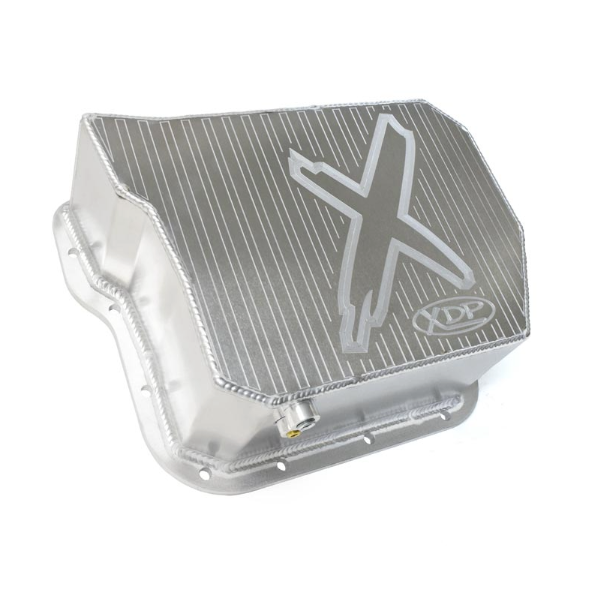

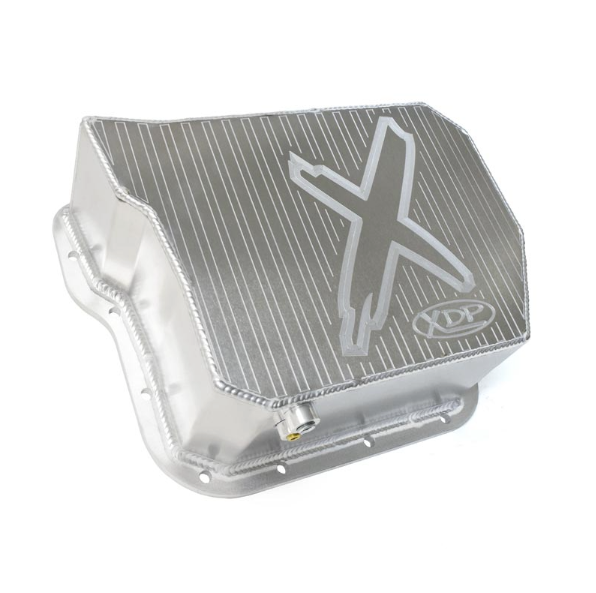

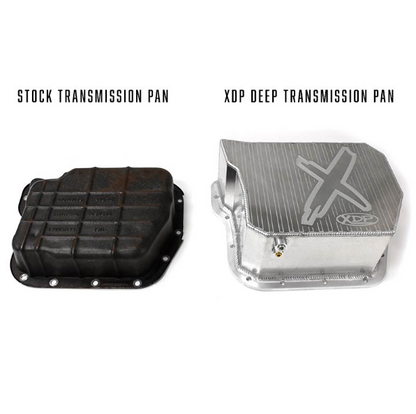

XDP XTRA DEEP ALUMINUM TRANSMISSION PAN (47/48RE) XD450 | 1989-2007 5.9L CUMMINS

Increase transmission fluid capacity and improve durability with the XDP Xtra Deep Aluminum Transmission Pan XD450. Designed for Dodge trucks equipped with 727, 518, 47RH, 47RE, and 48RE automatic transmissions, this fabricated aluminum pan adds four quarts of fluid capacity to help improve heat management during towing, performance driving, and heavy-duty use.

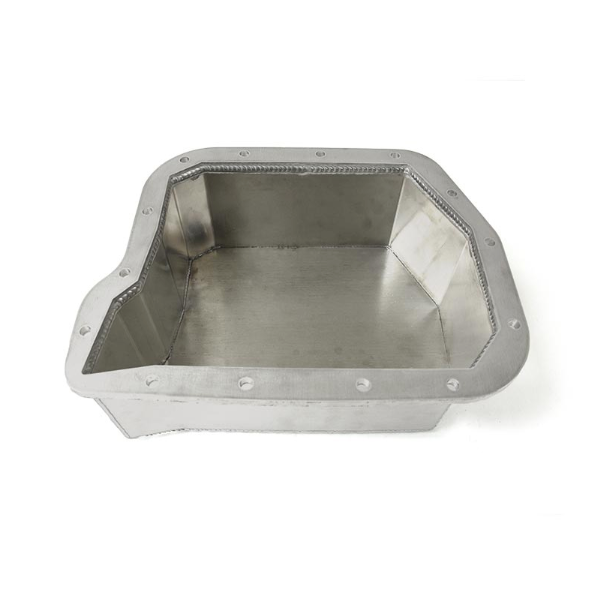

Constructed from fully welded fabricated aluminum, the Xtra Deep Pan features a 3/8-inch thick mounting flange that resists warping while providing exceptional strength and sealing performance. The deep sump design helps increase thermal capacity, while an integrated 1/8-inch NPT port allows for the installation of a transmission temperature sensor. A magnetic drain plug captures ferrous metal particles to help protect internal transmission components.

The direct-fit design installs using an OE-style transmission pan gasket and includes stainless steel mounting hardware for a straightforward installation.

Features:

• Adds approximately 4 quarts of transmission fluid capacity

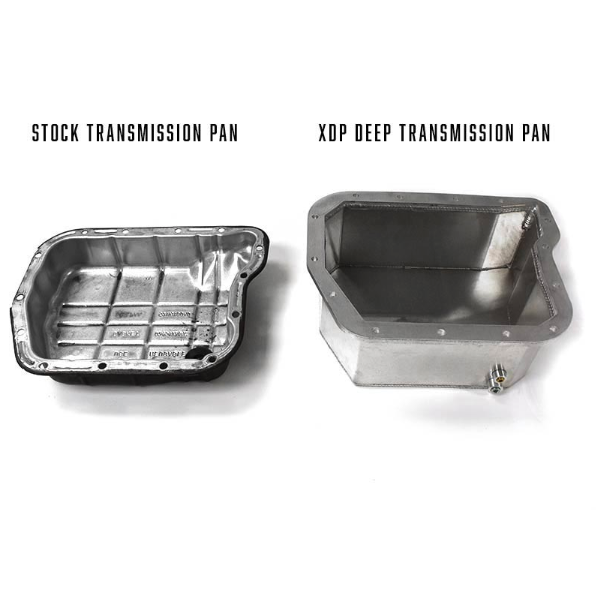

• Deep sump design improves thermal capacity
• Fully welded fabricated aluminum construction

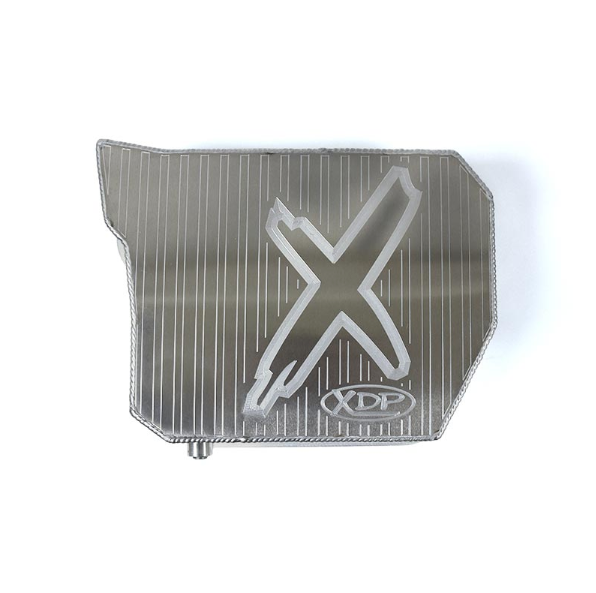

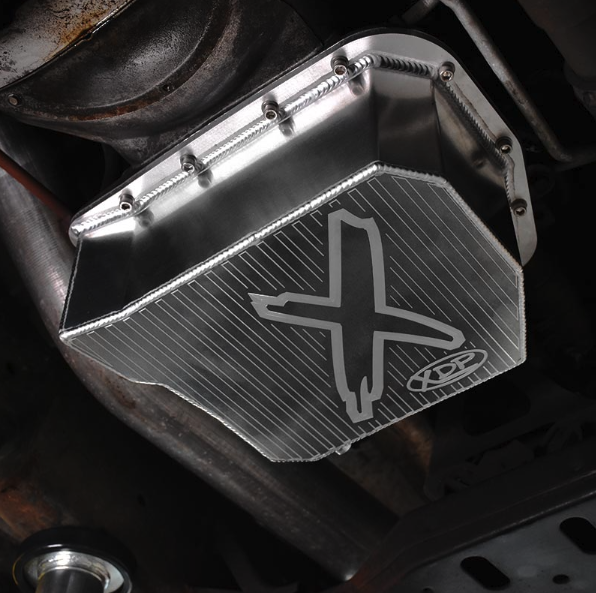

• Race-inspired appearance with CNC-engraved bottom
• 3/8-inch thick mounting flange resists warping

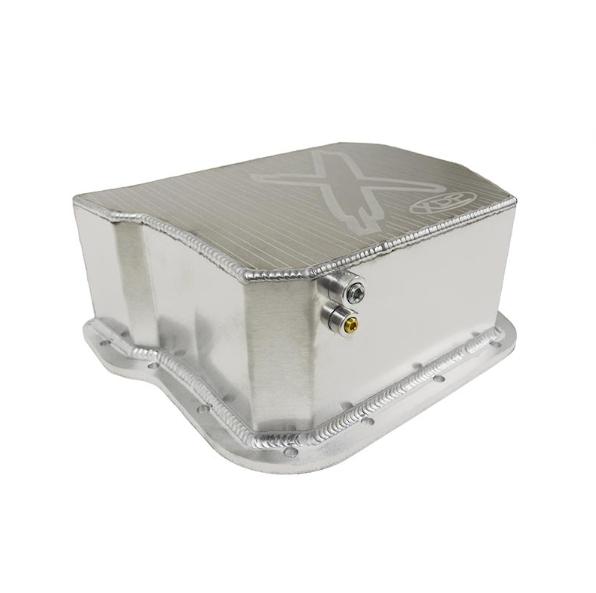

• Integrated 1/8-inch NPT temperature sensor port
• Magnetic drain plug captures harmful metal particles

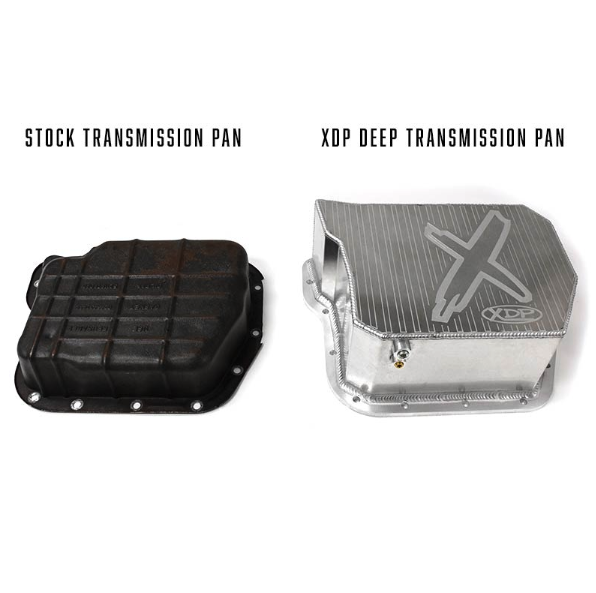

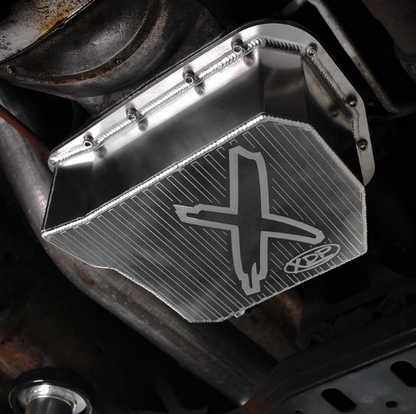

• Direct-fit replacement for the factory transmission pan
• Uses an OE-style transmission pan gasket

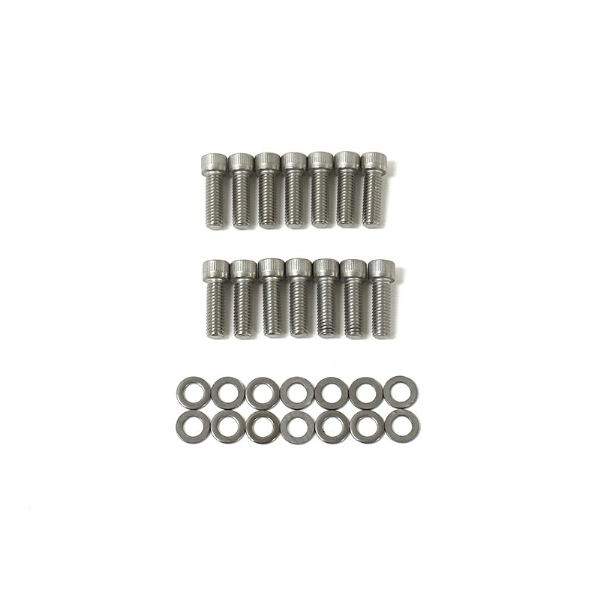

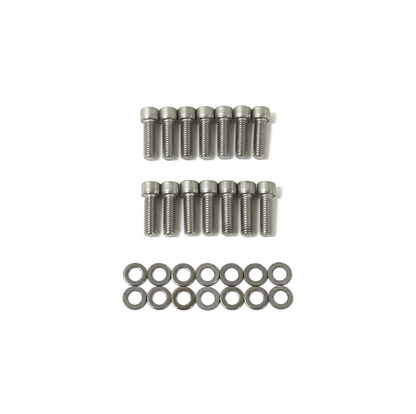

• Includes stainless steel mounting hardware

Notes:

• Fits 1989–2007 Dodge 5.9L diesel trucks equipped with 727, 518, 47RH, 47RE, or 48RE automatic transmissions.
• Does not require or include a transmission filter spacer.
• Transmission gasket and filter are not included.
