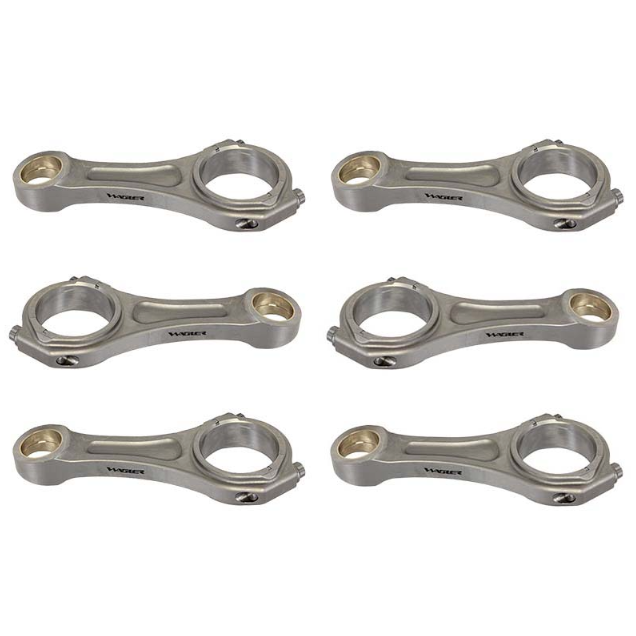

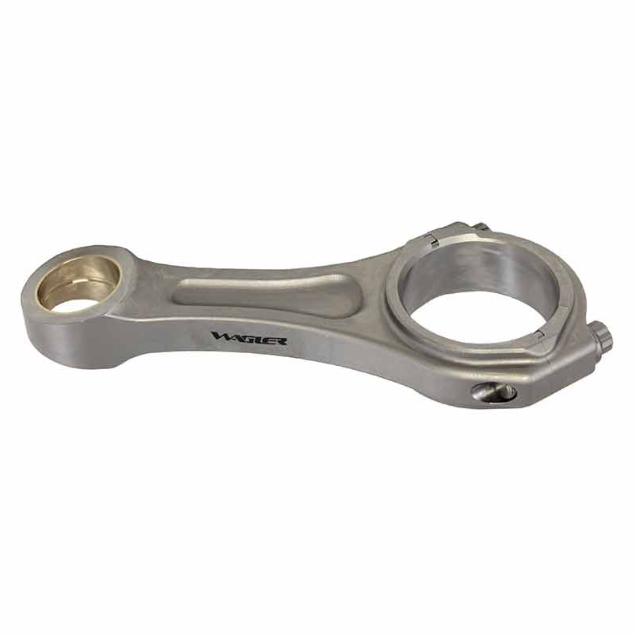

WAGLER CONNECTING ROD SET(FOR DECK PLATE ENGINES) CRD5.9/6.7+1.00 | 5.9L/6.7L CUMMINS DECK PLATE ENGINES

WAGLER CONNECTING ROD SET(FOR DECK PLATE ENGINES) CRD5.9/6.7+1.00 | 5.9L/6.7L CUMMINS DECK PLATE ENGINES

CRD5.9/6.7+1.00

$4,199.68 USD

SELECT FITMENT

See If This Product Fits Your Vehicle

While many of our products are stocked in our warehouse, inventory levels can change quickly. If you need to confirm availability before placing your order, please call or text 970-778-0792.

Build a high-horsepower custom deck plate Cummins engine with the Wagler Competition Products +1.00" Connecting Rod Set. Designed specifically for 5.9L and 6.7L Cummins deck plate engine applications, these extended-length forged connecting rods provide the strength and geometry required for specialized competition and high-performance engine builds.

Each connecting rod is forged in Michigan from 4340ACQ certified material and features Wagler's HD beam design. Increased beam thickness, additional strengthening ribs, 3D profiling, and larger radii help increase strength while reducing potential stress concentrations under extreme cylinder pressure and engine loads.

The rods are precision honed to specification and feature an oil groove and oiling hole in the pin end. Wagler's tongue-and-groove locator design accurately aligns and locks the connecting rod cap into position, helping eliminate cap offset and maintain a true bore.

At 1.00 inch longer than standard-length rods, these connecting rods are engineered exclusively for custom deck plate engines. Additional engine block machining is required for installation, making these rods intended for purpose-built engine combinations rather than direct replacement applications.

Each matched set is balanced to within +/- 1 gram and includes heavy-duty ARP L19 1/2-inch fasteners. The rods receive a standard shot-peened finish for additional durability in demanding high-performance applications.

Features

  • +1.00" extended length – Designed specifically for custom deck plate Cummins engine builds
  • HD beam design – Engineered for extreme horsepower and torque applications
  • 2,000+ HP capability – Known to support 2,000+ horsepower applications when used as part of a properly engineered engine combination
  • 4340ACQ certified material – Forged for increased strength and durability
  • Reinforced beam construction – Increased beam thickness and strengthening ribs provide additional rigidity
  • 3D-profiled design – Optimized geometry provides additional strength in critical areas
  • Large-radius transitions – Designed to help reduce stress risers
  • Tongue-and-groove cap locator – Accurately aligns and locks the rod cap to help maintain a true bore
  • Pin-end oiling – Features an oil groove and oiling hole in the pin end
  • Matched and balanced set – Balanced to within +/- 1 gram
  • ARP L19 fasteners – Includes heavy-duty 1/2" ARP L19 connecting rod fasteners
  • Shot-peened finish – Provides additional durability for demanding engine applications
  • Made in the USA

Specifications

  • Rod Design: HD Beam
  • Material: 4340ACQ Certified Steel
  • Rod Length: +1.00" Extended Length
  • Balance Tolerance: +/- 1 Gram
  • Fasteners: ARP L19 1/2"
  • Finish: Shot Peened
  • Engine Configuration: Deck Plate Engines Only

Application Notes

  • Designed only for 5.9L and 6.7L Cummins deck plate engine applications.
  • Additional machining to the engine block is required for installation.
  • These are not standard-length direct replacement connecting rods.

Fitment: Custom 5.9L & 6.7L Cummins Deck Plate Engines

Part Number: CRD5.9/6.7+1.00
