WAGLER CONNECTING ROD SET CRD5.9/6.7 | 1989-2018 5.9L/6.7L CUMMINS

WAGLER CONNECTING ROD SET CRD5.9/6.7 | 1989-2018 5.9L/6.7L CUMMINS

CRD5.9/6.7

$4,127.53 USD

SELECT FITMENT

See If This Product Fits Your Vehicle

While many of our products are stocked in our warehouse, inventory levels can change quickly. If you need to confirm availability before placing your order, please call or text 970-778-0792.

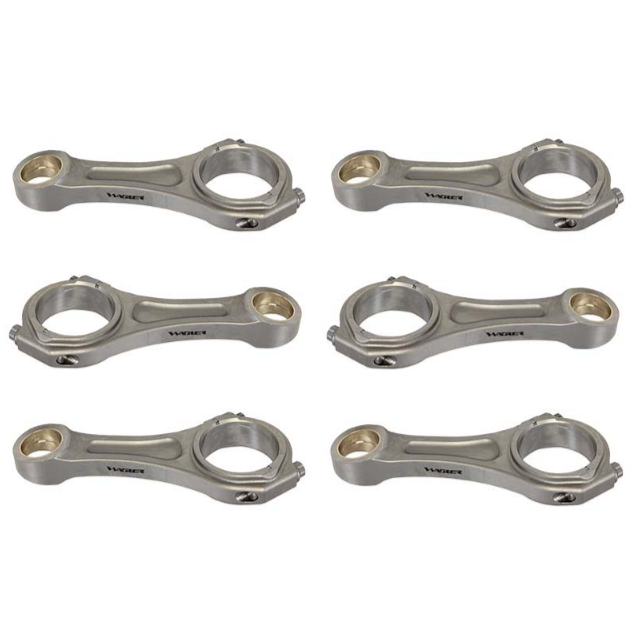

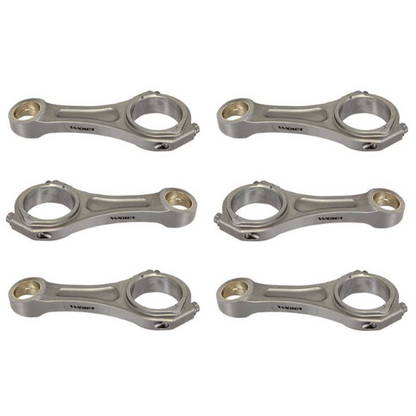

Build a stronger bottom end for your Dodge/Ram 5.9L or 6.7L Cummins with the Wagler Competition Products Connecting Rod Set. Designed for high-horsepower and high-torque diesel engine builds, these forged connecting rods provide increased strength and durability for demanding performance applications.

Each connecting rod is forged in Michigan from 4340ACQ certified material and features Wagler's updated HD beam design. Increased beam thickness, additional strengthening ribs, 3D profiling, and larger radii are incorporated to improve strength and help reduce stress concentrations under extreme cylinder pressure and engine loads.

Each rod is precision honed to specification and incorporates an oil groove and oiling hole in the pin end. Wagler's tongue-and-groove locator design precisely aligns and locks the connecting rod cap into position, helping eliminate cap offset and maintain a true bore.

The standard-length CRD5.9/6.7 connecting rods are designed to utilize 12-valve-style rod bearings. Each matched set is balanced to within +/- 1 gram and supplied with heavy-duty ARP L19 1/2-inch fasteners. A standard shot-peened finish provides additional durability for high-performance diesel applications.

Design, drafting, programming, machining, assembly, and quality assurance are performed in-house in the USA by Wagler Competition Products.

Features

  • HD beam design – Engineered for high-horsepower and high-torque Cummins engine builds
  • 2,000+ HP capability – Known to support 2,000+ horsepower applications when used as part of a properly engineered engine combination
  • 4340ACQ certified material – Forged for increased strength and durability
  • Reinforced beam construction – Increased beam thickness and strengthening ribs provide additional rigidity
  • 3D-profiled design – Optimized geometry provides additional strength in critical areas
  • Large-radius transitions – Designed to help reduce stress risers
  • Tongue-and-groove cap locator – Precisely aligns and locks the rod cap to help maintain a true bore
  • Pin-end oiling – Features an oil groove and oiling hole in the pin end
  • 12-valve bearing compatibility – Standard-length CRD5.9/6.7 rods utilize 12V-style rod bearings
  • Matched and balanced set – Balanced to within +/- 1 gram
  • ARP L19 fasteners – Includes heavy-duty 1/2" ARP L19 connecting rod fasteners
  • Shot-peened finish – Provides additional durability for demanding engine applications
  • Made in the USA

Specifications

  • Rod Design: HD Beam
  • Material: 4340ACQ Certified Steel
  • Rod Length: Standard Length
  • Balance Tolerance: +/- 1 Gram
  • Fasteners: ARP L19 1/2"
  • Finish: Shot Peened
  • Rod Bearing Compatibility: 12-Valve Style Bearings

Fitment: Dodge/Ram 5.9L & 6.7L Cummins

Part Number: CRD5.9/6.7
