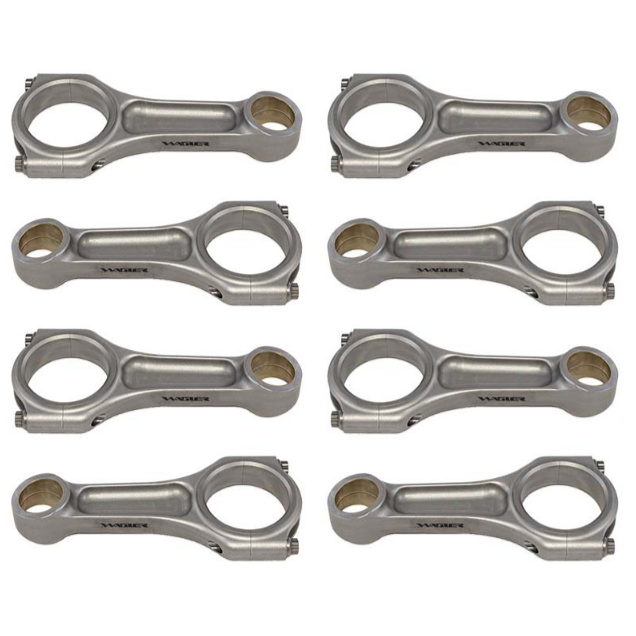

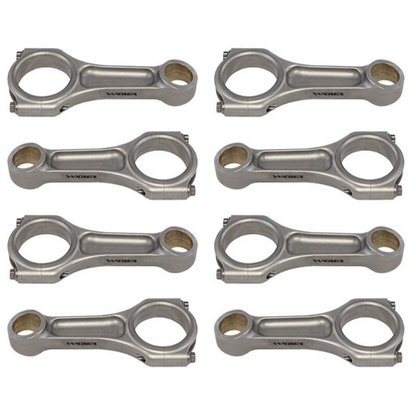

WAGLER CONNECTING ROD SET CRC6.6 | 2001-2016 6.6L DURAMAX LB7/LLY/LBZ/LMM/LML

Build a stronger bottom end in your 2001–2016 GM 6.6L Duramax with the Wagler Competition Products Connecting Rod Set. Designed for high-horsepower and high-torque diesel applications, these forged connecting rods provide a substantial strength upgrade for performance engine builds while maintaining compatibility with factory-style pistons.

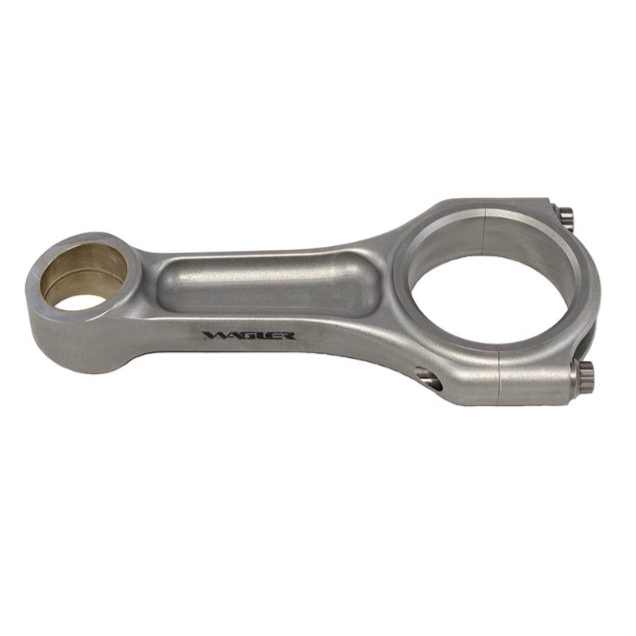

Each connecting rod is forged in Michigan from certified 4340ACQ material and utilizes Wagler's updated I-beam design. Increased beam thickness, additional strengthening ribs, 3D profiling, and larger radiuses are incorporated to improve strength and reduce potential stress concentrations under extreme cylinder pressure and engine loads.

The rods are honed to factory specifications and designed to work with factory pistons without requiring additional piston clearancing. Wagler also incorporates a precision tongue-and-groove locator system that helps accurately align and lock the rod cap into position, reducing the possibility of cap offset while maintaining a true connecting rod bore.

Each set is balanced to within +/- 1 gram and supplied with ARP2000 7/16-inch fasteners. The connecting rods receive a standard shot-peened finish for additional durability.

From design and programming through machining, assembly, and quality assurance, these connecting rods are manufactured in the USA by Wagler Competition Products.

Features

• High-performance I-beam design – Engineered for demanding high-horsepower and high-torque Duramax applications
• 4340ACQ certified material – Forged for strength and durability under extreme engine loads
• Reinforced beam construction – Increased thickness and strengthening ribs provide additional rigidity
• 3D-profiled design – Optimized geometry helps increase strength while managing stress throughout the connecting rod
• Large-radius transitions – Designed to reduce stress concentrations in critical areas
• Tongue-and-groove cap locator – Helps accurately align and lock the rod cap while maintaining a true bore
• Factory piston compatible – Designed to fit factory pistons without additional clearancing
• Precision honed – Finished to factory specifications for proper fitment
• Matched and balanced set – Balanced to within +/- 1 gram
• ARP2000 fasteners – Includes 7/16" ARP2000 connecting rod fasteners
• Shot-peened finish – Standard surface treatment provides additional durability
• Proven high-horsepower capability – Known to support 2,000+ HP applications when used as part of a properly engineered engine combination
• Made in the USA

Specifications

• Rod Design: I-Beam
• Material: 4340ACQ Certified Steel
• Balance Tolerance: +/- 1 Gram
• Fasteners: ARP2000 7/16"
• Finish: Shot Peened
• Piston Compatibility: Factory Pistons

Fitment: 2001–2016 GM 6.6L Duramax

Part Number: CRC6.6
