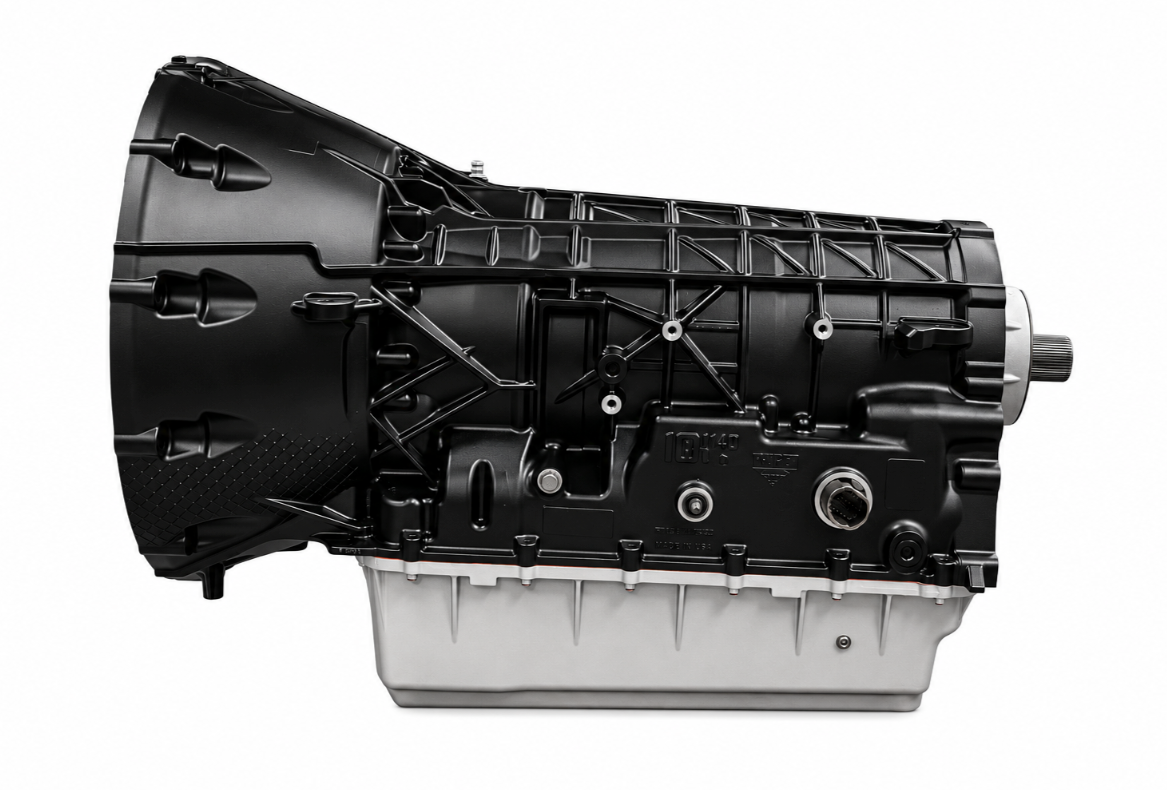

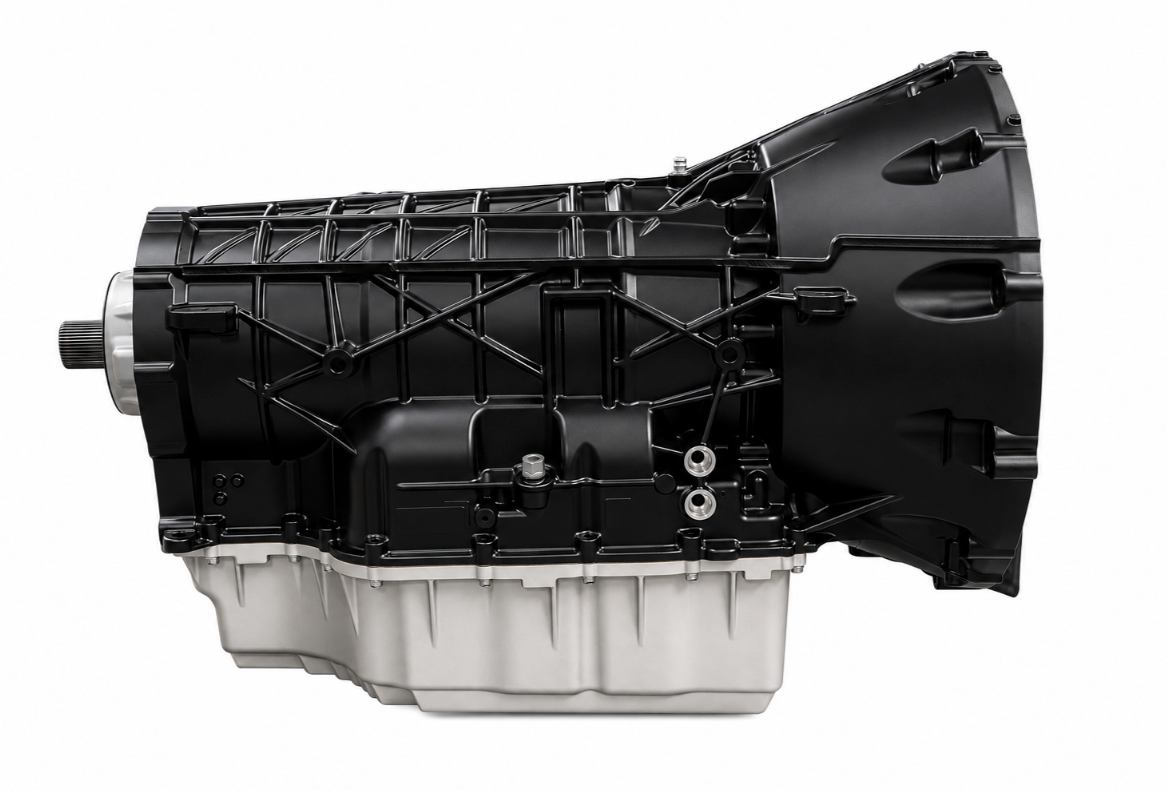

Tier One Stage 2 750HP 10R140 Built Transmission TODT1-10R140-ST2-X | 2020-2024 6.7L Powerstroke

Upgrade your 2020–2024 Ford F-250 or F-350 6.7L Power Stroke with the Tier One Stage 2 10R140 Built Transmission. Engineered for high-horsepower applications and demanding towing conditions, this complete replacement transmission combines upgraded performance components, increased clutch capacity, and updated OEM parts to improve durability, lubrication, and power handling.

Rated by Tier One to support up to 1,000 crankshaft horsepower, the Stage 2 10R140 is designed for modified Power Stroke trucks equipped with performance upgrades, as well as trucks regularly subjected to heavy towing and hauling. The transmission addresses common factory 10R140 weaknesses while maintaining dependable shifting and drivability.

The Stage 2 features a RatioTek Performance Valve Body Kit for improved shift response and lubrication, along with a SunCoast Category 1 Torque Converter featuring a billet stator for increased torque capacity. BorgWarner D clutches and performance GPZ frictions provide additional holding capacity, while increased clutch counts in the E and F drums improve friction surface area compared to the factory configuration.

Additional upgrades include an updated OEM CDF clutch hub designed to address bushing movement and lubrication concerns, a new OEM P4 gear hub, and a cast aluminum transmission pan. Each transmission is completely disassembled, cleaned, inspected, rebuilt with new sealing components, and tested before shipping.

The Tier One Stage 2 10R140 is supplied as a complete replacement assembly designed to install in place of the factory transmission without permanent vehicle modifications. A transmission adaptive relearn procedure is required following installation.

Features

• Up to 1,000 HP capability – Manufacturer-rated for applications producing up to 1,000 crankshaft horsepower
• Complete replacement transmission – Designed for direct installation in compatible Ford Super Duty trucks
• RatioTek Performance Valve Body Kit – Improves shift response and lubrication to critical internal components
• SunCoast Category 1 Torque Converter – Features a billet stator designed for increased torque capacity
• BorgWarner D Clutches – Selected to maintain lubrication flow to the F clutch assembly
• Performance GPZ Frictions – Provides increased clutch holding capacity for demanding applications
• Increased E Drum Clutch Count – Upgraded from four to five clutches for additional friction surface area
• Increased F Drum Clutch Count – Upgraded from four to five clutches for improved holding capacity
• Updated OEM CDF Clutch Hub – Revised design helps prevent bushing movement and related lubrication problems
• New OEM P4 Gear Hub – Replaces the original component with a new factory unit
• Cast aluminum transmission pan – Provides a durable replacement for the factory pan and supports improved cooling
• New OEM transmission filter – Included during the rebuild process
• Complete internal inspection – Planetary geartrain, bearings, washers, and critical components are inspected during assembly
• New sealing components – Includes replacement seals, gaskets, and sealing rings
• Quality-tested assembly – Valve body solenoids and completed transmissions undergo inspection and testing
• Black exterior finish – Provides a clean, finished appearance
• 2-year/unlimited-mileage warranty – Subject to Tier One warranty terms and required vehicle configurations

Upgraded Components

• RatioTek Performance Trans Tuner Valve Body Kit
• SunCoast Category 1 Torque Converter with Billet Stator
• BorgWarner D Clutches
• Performance GPZ Friction Clutches
• Increased E Drum Clutch Count (4 to 5)
• Increased F Drum Clutch Count (4 to 5)
• Updated Ford OEM CDF Clutch Hub
• New Ford OEM P4 Gear Hub
• Cast Aluminum Transmission Pan
• New OEM Transmission Filter
• New Seals, Gaskets, and Sealing Rings

Specifications

• Transmission Model: Ford 10R140
• Transmission Type: 10-Speed Automatic
• Build Level: Stage 2
• Power Rating: Up to 1,000 Crankshaft HP
• Torque Converter: SunCoast Category 1
• Valve Body Upgrade: RatioTek Performance Trans Tuner Kit
• Clutch Materials: BorgWarner D Clutches and GPZ Frictions
• E Drum Clutch Count: 5
• F Drum Clutch Count: 5
• CDF Clutch Hub: Updated OEM
• P4 Gear Hub: New OEM
• Transmission Pan: Cast Aluminum
• Transmission Filter: New OEM
• Warranty: 2 Years / Unlimited Mileage
• Core Charge: $2,500
• Shipping Method: Freight

Vehicle Fitment

• 2020–2024 Ford F-250 6.7L Power Stroke with 10R140 Transmission
• 2020–2024 Ford F-350 6.7L Power Stroke with 10R140 Transmission

Required Gear Ratios

Tier One specifies the following minimum axle gear ratios based on tire size to maintain warranty eligibility:

• 35" Tires: 3.73 or numerically higher axle ratio
• 37" Tires: 4.10 or numerically higher axle ratio
• Larger Than 38" Tires: 4.56 or numerically higher axle ratio

Important Application Notes

• Transmission relearn required: A transmission adaptive relearn procedure must be completed after installation for proper operation.
• Vehicle compatibility: Designed exclusively for 2020–2024 Ford F-250 and F-350 trucks equipped with the 6.7L Power Stroke and 10R140 automatic transmission.
• Core charge: A $2,500 refundable core charge applies. Refund eligibility depends on the condition and acceptance of the returned transmission. Contact the supplier regarding advance core returns.
• Freight shipping: This product ships via freight. Inspect the shipment for damage before signing the Bill of Lading and document any damage with the carrier.
• Warranty requirements: Tire size, axle gearing, installation procedures, and other manufacturer conditions may affect warranty eligibility.
• Professional installation recommended: Installation and transmission programming should be completed by a qualified technician.

Fitment: 2020–2024 Ford F-250 & F-350 6.7L Power Stroke with 10R140 Transmission

Manufacturer: Tier One Transmissions
