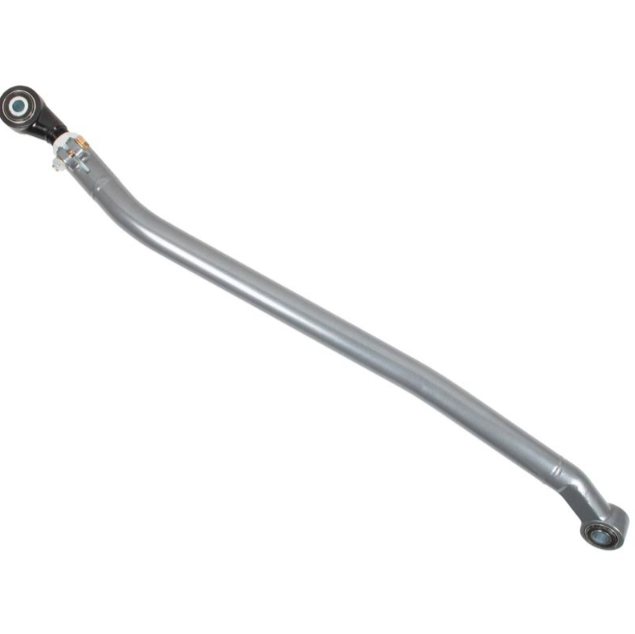

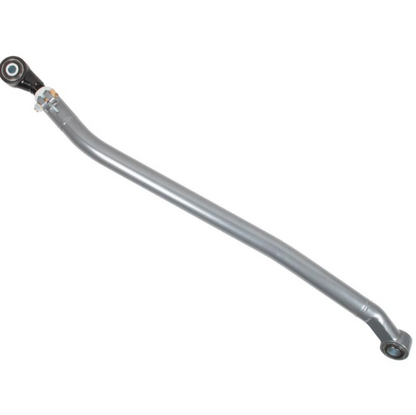

SYNERGY HEAVY-DUTY ADJUSTABLE FRONT TRACK BAR 8704-11 | 2013-2023 6.7L Cummins

The Synergy 8704-11 Heavy-Duty Adjustable Front Track Bar allows you to recenter the axle in your lifted Ram 2500/3500 4WD. This essential component corrects axle location and ensures proper suspension geometry after installing a lift kit. Constructed from American 1.75" DOM steel, it dramatically improves lateral stiffness and strength over the factory unit, withstanding the abuse of aggressive off-road driving and large tires.

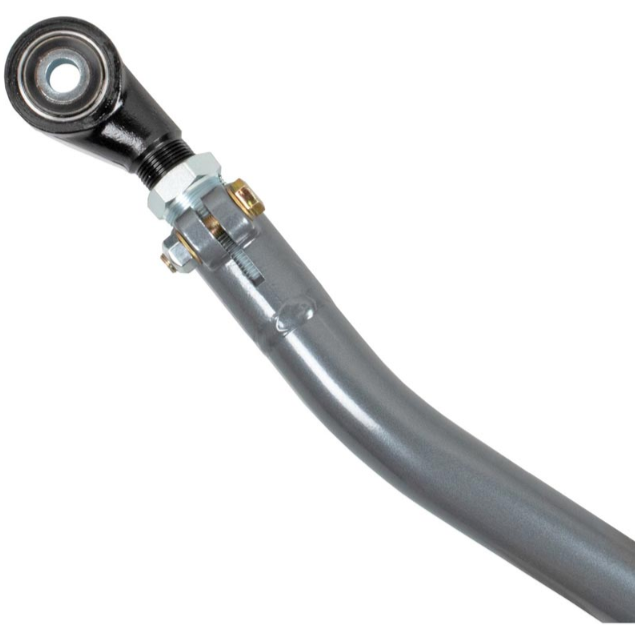

This front track bar includes the Synergy Double Adjuster Sleeve and Pinch Bolt Assembly on one end, allowing easy adjustment without removing the bar from the truck. Maintenance-free dual-durometer bushings provide superior ride quality while eliminating noise and vibration.

Features:

• No jam nuts that are difficult to keep tight
• Fully adjustable without removal from the vehicle
• Retains factory mounting locations & hardware
• Compatible with stock steering components, wheels & tires
• Best-in-class offset forged rod end with 1-1/4" shank
• Bolts directly to factory mounting points, no modification needed

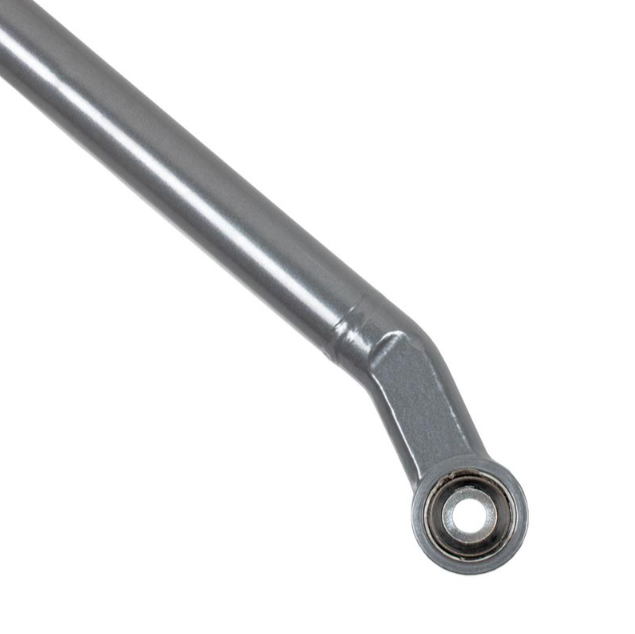

• Offset forged rod end for maximum clearance during articulation
• Precision bent from 1.75" x 0.188" wall DOM tubing
• 100% bolt-in components for easy installation with basic hand tools
• Two-stage abrasion-resistant powder coat finish for durability & corrosion resistance

Description:

• Synergy Double Adjuster Sleeve & Pinch Bolt Assembly eliminates jam nuts for easy adjustment
• Compatible on trucks with 0–4" lift in stock mounting locations; no bump stop spacing required
• Maintenance-free dual durometer bushings isolate noise & vibrations
• Centers the axle after a lift for proper suspension geometry, smooth handling, & even tire wear
• Teflon bearing surface for a quiet, long-lasting design
• Heavy-duty 1.75" x 0.188" wall DOM tubing prevents axle wandering
• Min/Max length (center-to-center bolt holes): 38-9/16" – 40-5/8"

Includes:

• (1) Synergy Heavy-Duty Front Track Bar
• (1) Double Adjuster Sleeve
• (1) Grade 8 Hardware Kit

Notes: Supersedes part number 8704-01. Cannot guarantee fitment with aftermarket differential covers. Not compatible with AEV Prospector Lift Kit. For lifts over 4", Synergy recommends a drop pitman arm and front track bar relocation bracket.
