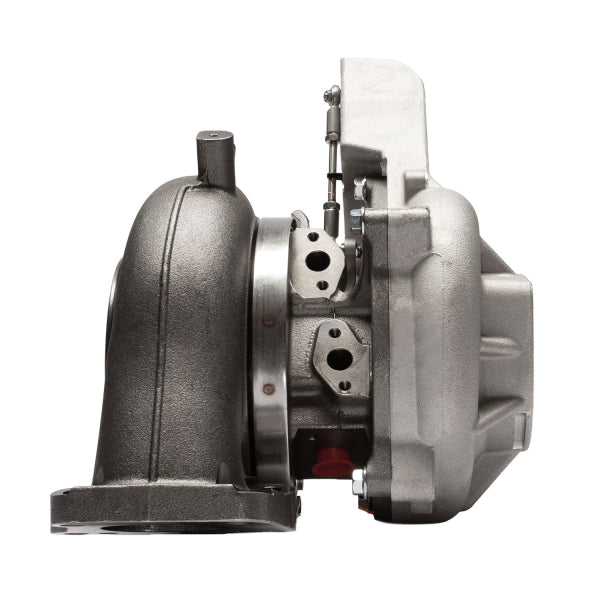

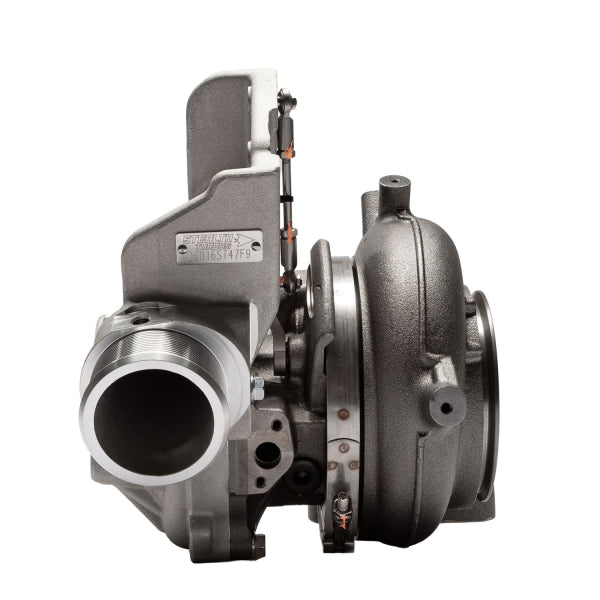

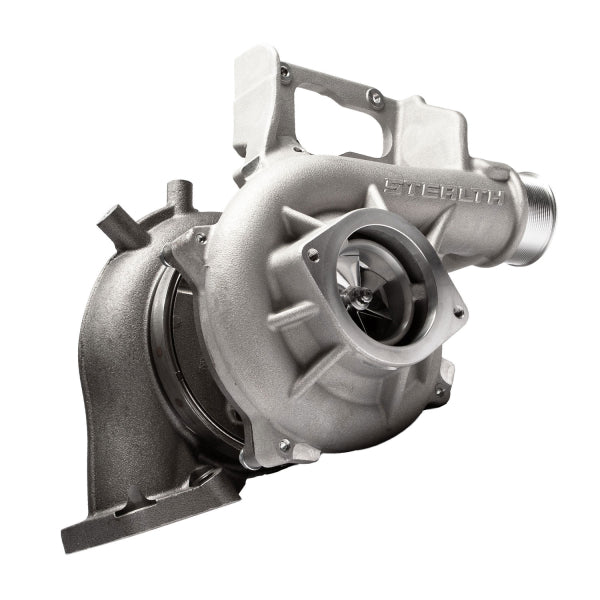

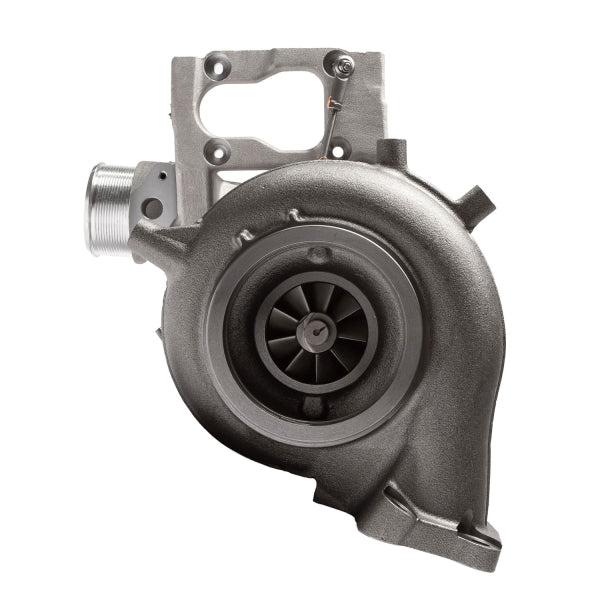

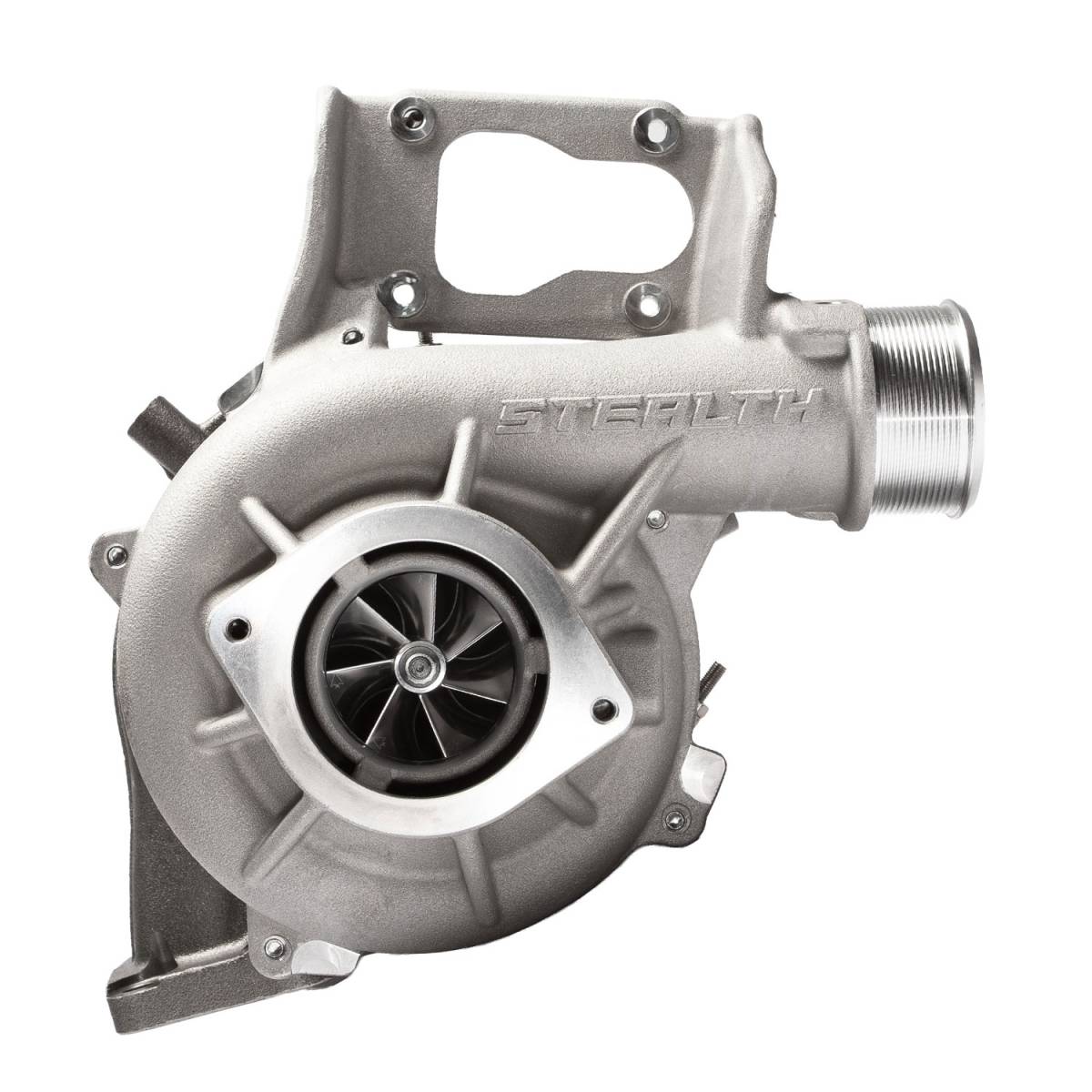

Stealth STR Drop In VGT Turbo CPS200143 | 2017-2023 6.6L Duramax L5P

Take the performance of your diesel truck to the next level with this Stealth Performance Turbocharger. Featuring upgraded billet compressor and turbine wheel technology, this turbocharger is engineered to deliver improved airflow, faster spool-up, increased efficiency, and enhanced durability while maintaining factory-style fitment.

The advanced rotating assembly combines a lightweight billet compressor wheel with a larger high-flow turbine wheel to provide excellent throttle response, improved boost characteristics, and lower exhaust gas temperatures under load. A ported exhaust housing further improves exhaust flow and reduces backpressure for enhanced overall performance.

Compressor Wheel Features:

• 63mm compressor wheel design
• 62.5mm 7+7 blade extended-tip billet compressor wheel
• Manufactured from aerospace-grade 2618 billet aluminum
• Higher airflow capacity than the factory compressor wheel
• Optimized for fast spool-up and improved efficiency
• Supports up to approximately 625 RWHP
• Capable of producing 40+ PSI boost pressure

Turbine Wheel Features:

• 65mm high-flow turbine wheel
• 9-blade design for improved exhaust flow
• Constructed from durable 713C Inconel™ nickel alloy
• Larger 65mm exducer compared to the factory 62.5mm design
• Helps reduce exhaust gas temperatures under load
• Improved boost-to-drive pressure ratio
• Enhanced durability compared to stock components

Rotating Assembly Features:

• Approximately 6% lighter than the factory rotating assembly
• Improved spool-up and throttle response
• Increased turbocharger efficiency
• Reduced drive pressure
• Precision balanced in-house

Ported Exhaust Housing:

• Enlarged exhaust port opening
• Improved post-turbine exhaust flow
• Reduced exhaust backpressure
• Optimized to complement the larger turbine wheel

Additional Benefits:

• No core charge required
• Built using all-new components
• New actuator options available
• Backed by a 1-year warranty
• Extended warranty options available
• Supported by a dedicated customer service team
