SPE Motorsport Upper Oil Pan Gasket SPE-S100467 | 2015-2019 6.7L Powerstroke

The 2015–2019 6.7L Powerstroke is known for developing leaks at the upper oil pan due to factory RTV silicone breaking down over time. The SPE Motorsport Upper Oil Pan Gasket Kit replaces the factory silicone with a modern gasket solution, providing a cleaner, more reliable seal.

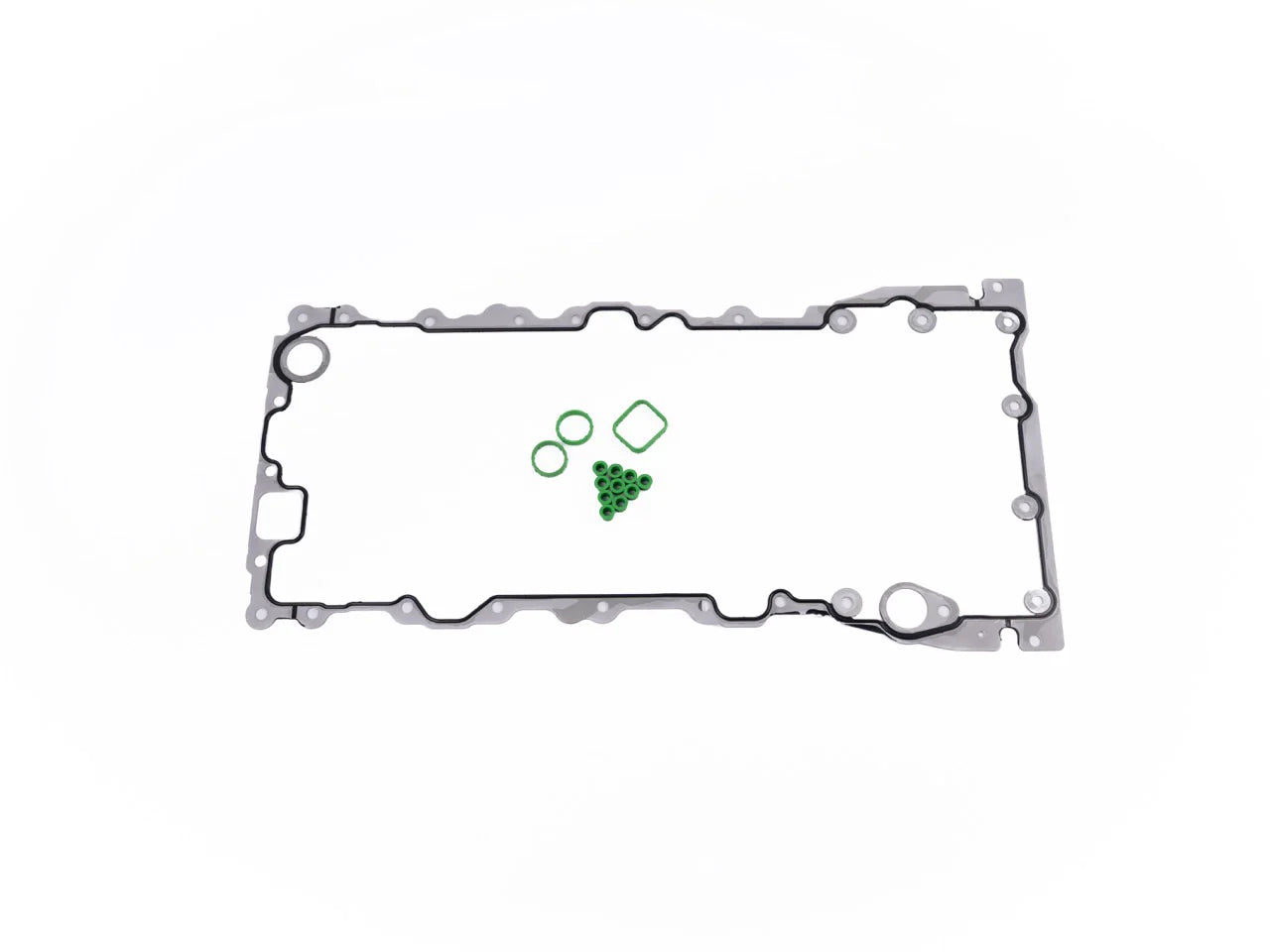

This kit uses a bonded nitrile rubber gasket mounted to a rigid aluminum carrier. The aluminum frame acts as a crush limiter and gasket retainer, keeping the gasket properly aligned and preventing over-compression. This ensures consistent sealing pressure across the pan and eliminates the risk of gasket movement during installation.

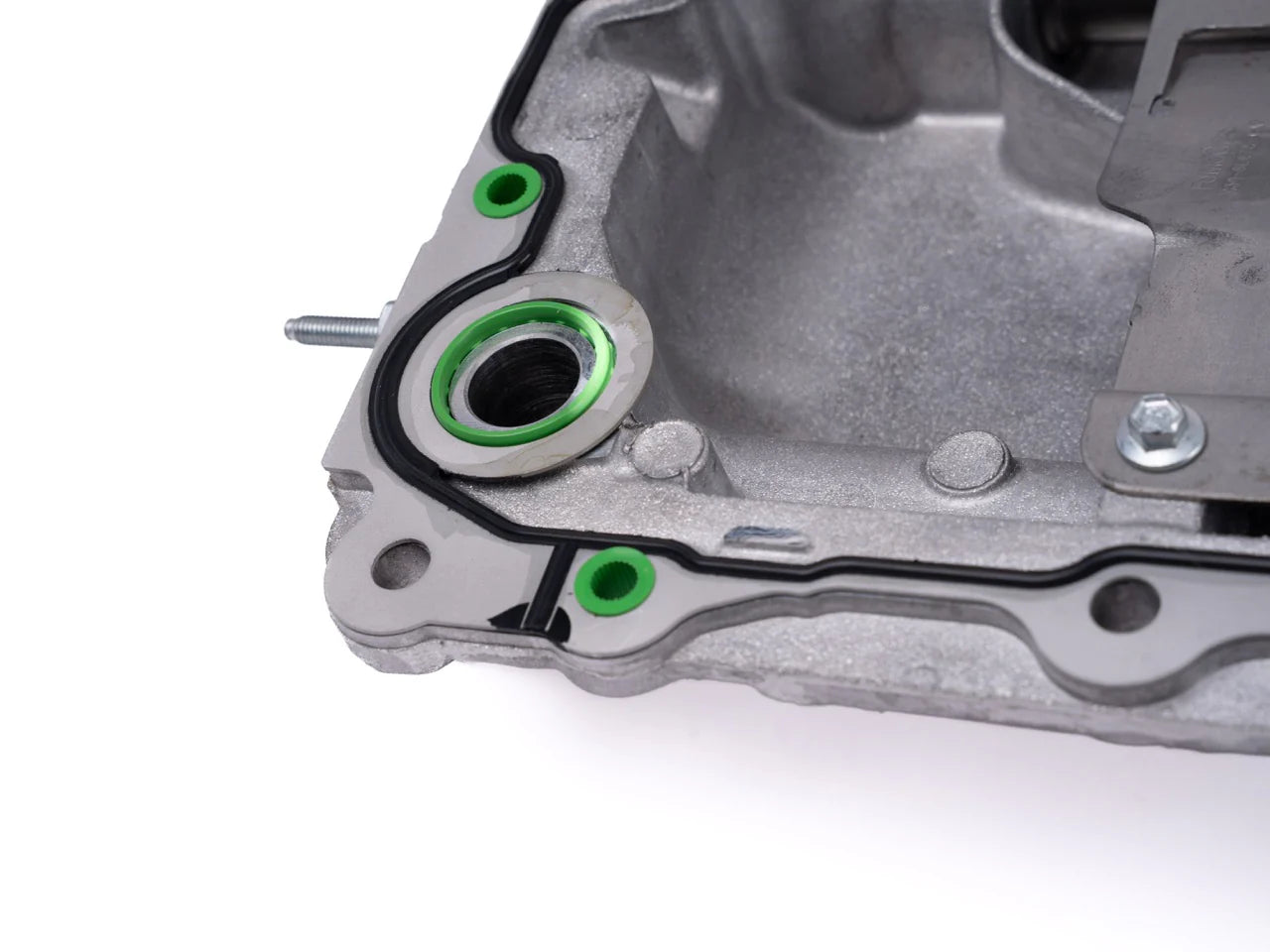

The kit also includes all necessary transfer port gaskets for the oil pressure and suction passages, along with alignment dowels to hold the gasket in position and simplify installation. Only small dabs of RTV are required at the front and rear corners, resulting in a cleaner, easier installation.

Features & Benefits:

• Eliminates factory RTV silicone sealing
• Bonded nitrile gasket with rigid aluminum carrier
• Built-in crush protection for consistent sealing
• Prevents gasket movement during installation
• Cleaner installation with minimal RTV required
• Includes suction and pressure transfer port gaskets
• Alignment dowels help locate the gasket and hold bolts during installation
• Designed specifically for 2015–2019 6.7L Powerstroke upper oil pan

Vehicle Fitment:

• 2015–2019 Ford F250 6.7L Powerstroke
• 2015–2019 Ford F350 6.7L Powerstroke
• 2015–2019 Ford F450 6.7L Powerstroke
• 2015–2019 Ford F550 6.7L Powerstroke

Please Note:

Make sure that extreme care is taken when cleaning the silicone from the pan. Do not use a power tool to clean the surface. If the surface is gouged or not flat the new gasket may not seal.
