SPE Motorsport Ford 6.7 Crank Timing Tool SPE-S100473 | 2011-2026 6.7L Powerstroke

Accurately reference crankshaft timing during 6.7L Ford Power Stroke engine service with the SPE Motorsport Crank Timing Tool. Designed for engine builders, repair shops, and experienced DIY technicians, this precision tool provides a crankshaft-referenced timing point when diagnosing or repairing a slipped crank gear, P0016 cam/crank correlation fault, or other crankshaft timing alignment issue.

The factory 6.7L Power Stroke crank gear uses an interference-fit design without a traditional keyway or pin securing its timing position. Under certain operating conditions, the gear can move on the crankshaft and alter the relationship between crankshaft and camshaft timing. The SPE timing tool provides a repeatable mechanical reference directly from the crankshaft rather than relying on external measurements, laser alignment, or visual estimation.

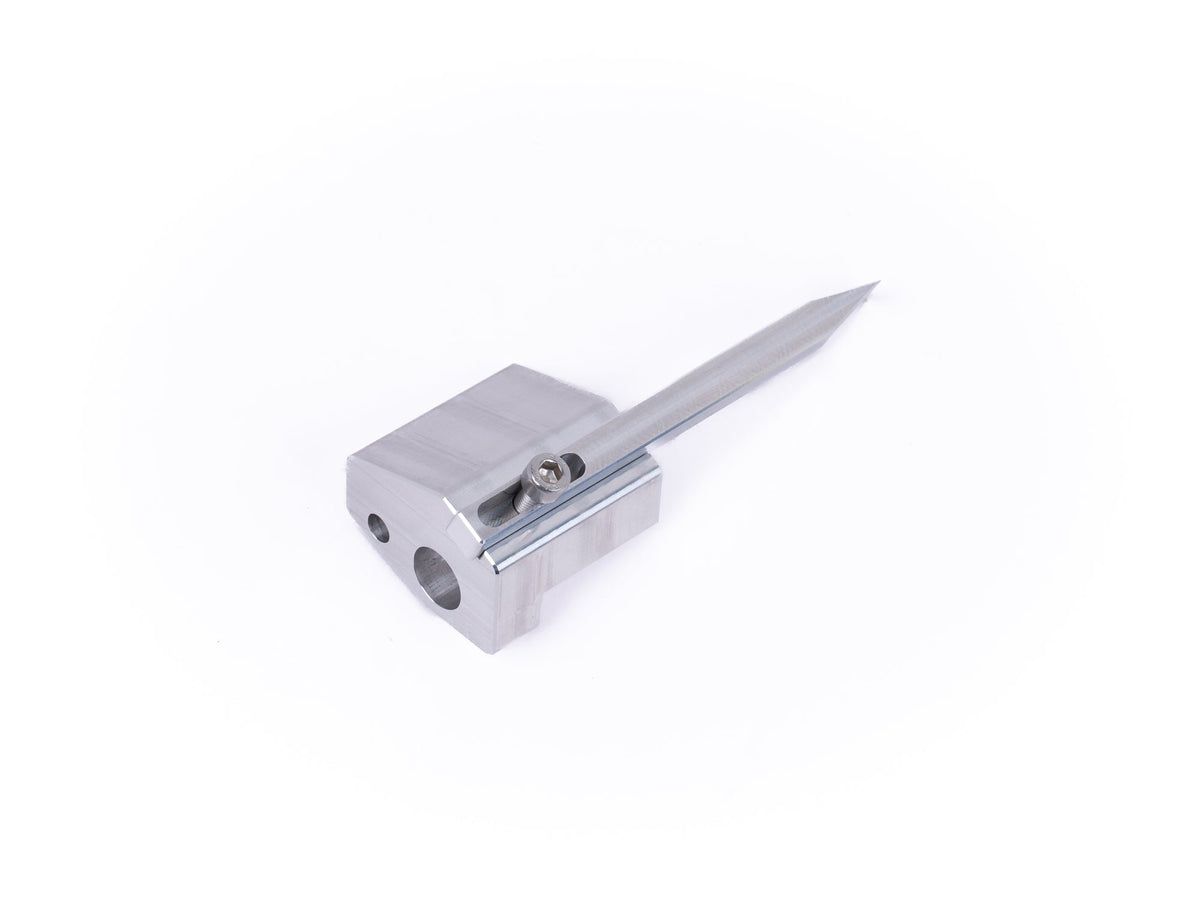

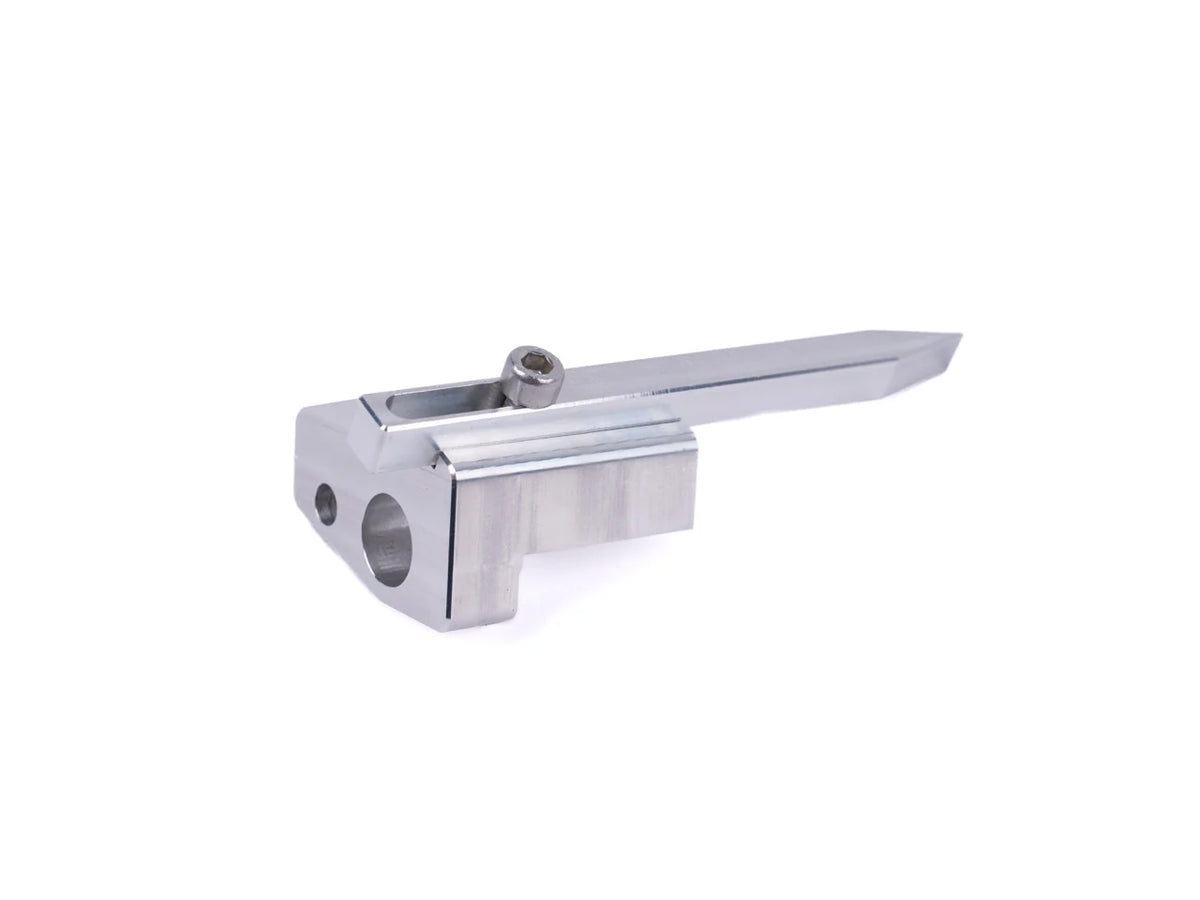

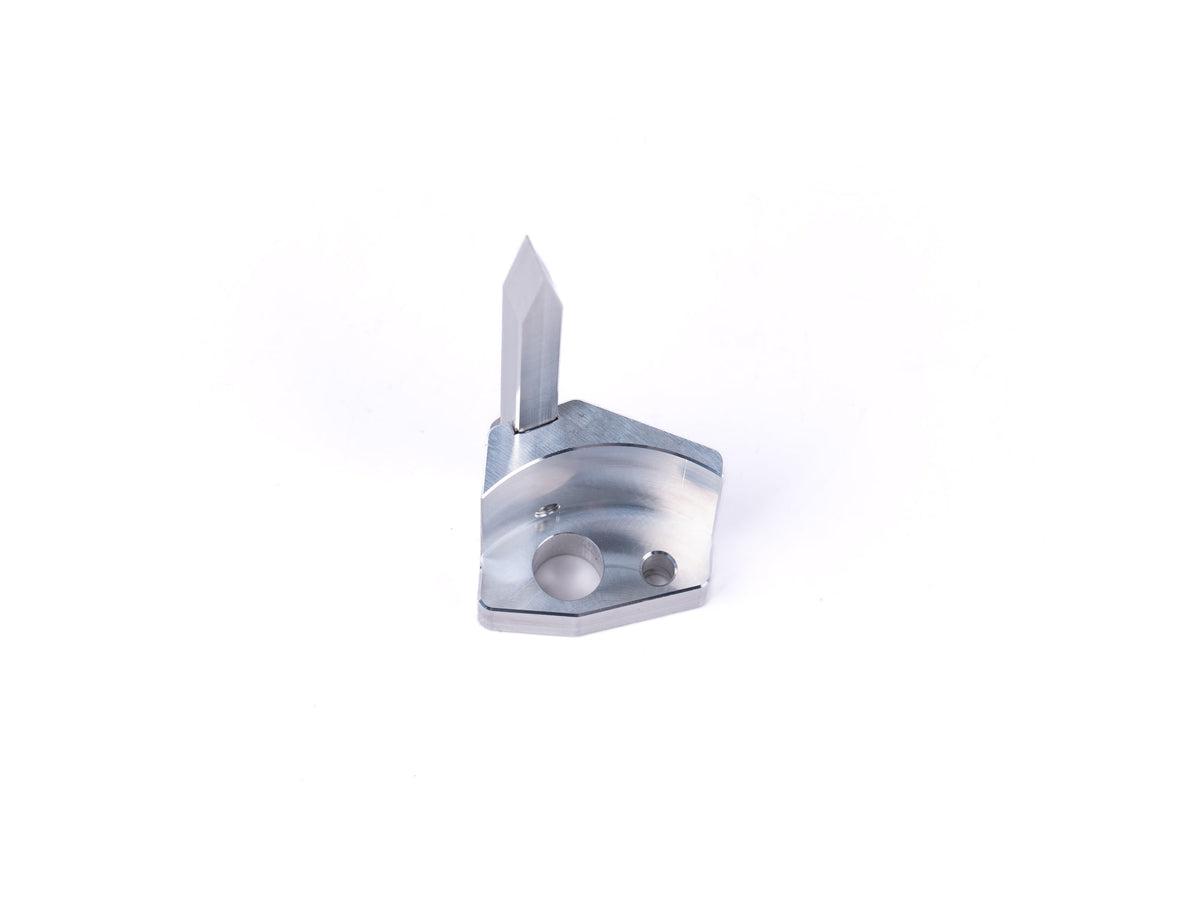

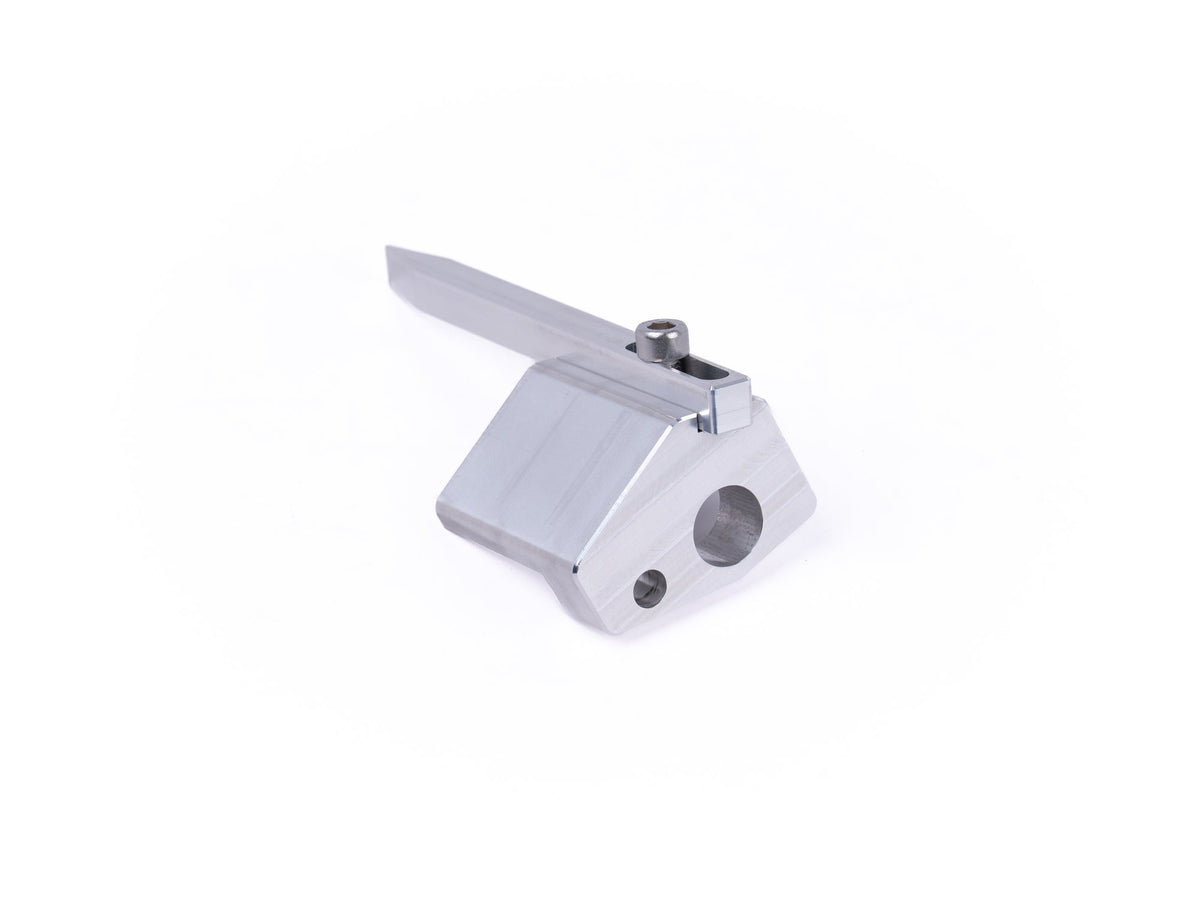

The tool locates from the crankshaft snout, balancer dowel pin, and crankshaft outside diameter to establish an accurate reference point for top dead center and crank gear positioning. An adjustable pointer can then be used to align the appropriate crank gear timing tooth with the cam gear timing marks during re-timing or engine assembly.

Each tool is CNC-machined in-house by SPE Motorsport to tight tolerances for a secure and repeatable fit. It can be used when diagnosing a suspected slipped crank gear, re-clocking the gear during repair, confirming cam-to-crank timing, or verifying proper alignment before an experienced engine builder performs additional crank gear retention procedures.

Features:

• Designed for 6.7L Ford Power Stroke engines
• Provides a precise crankshaft-referenced timing point
• Useful when diagnosing slipped crank gear and P0016 cam/crank correlation issues
• References directly from the crankshaft rather than external alignment points
• Locates using the crankshaft snout, balancer dowel pin, and crankshaft outside diameter
• CNC-machined in-house by SPE Motorsport
• Precision-machined for a secure and repeatable fit
• Adjustable timing pointer allows accurate crank gear positioning
• Helps align the crank gear timing tooth with the cam gear timing marks
• Useful for verifying camshaft and crankshaft timing during engine service
• Suitable for professional repair shops, engine builders, and experienced DIY technicians
• Useful for verifying crank gear alignment before additional gear retention procedures

Fitment:

• 2011–2026 Ford applications equipped with the 6.7L Power Stroke diesel engine

Important Installation Note:

This is a specialized engine timing service tool intended for experienced installers familiar with 6.7L Power Stroke timing procedures. Always verify cylinder #1 top dead center and confirm proper camshaft-to-crankshaft timing alignment before final engine assembly.
