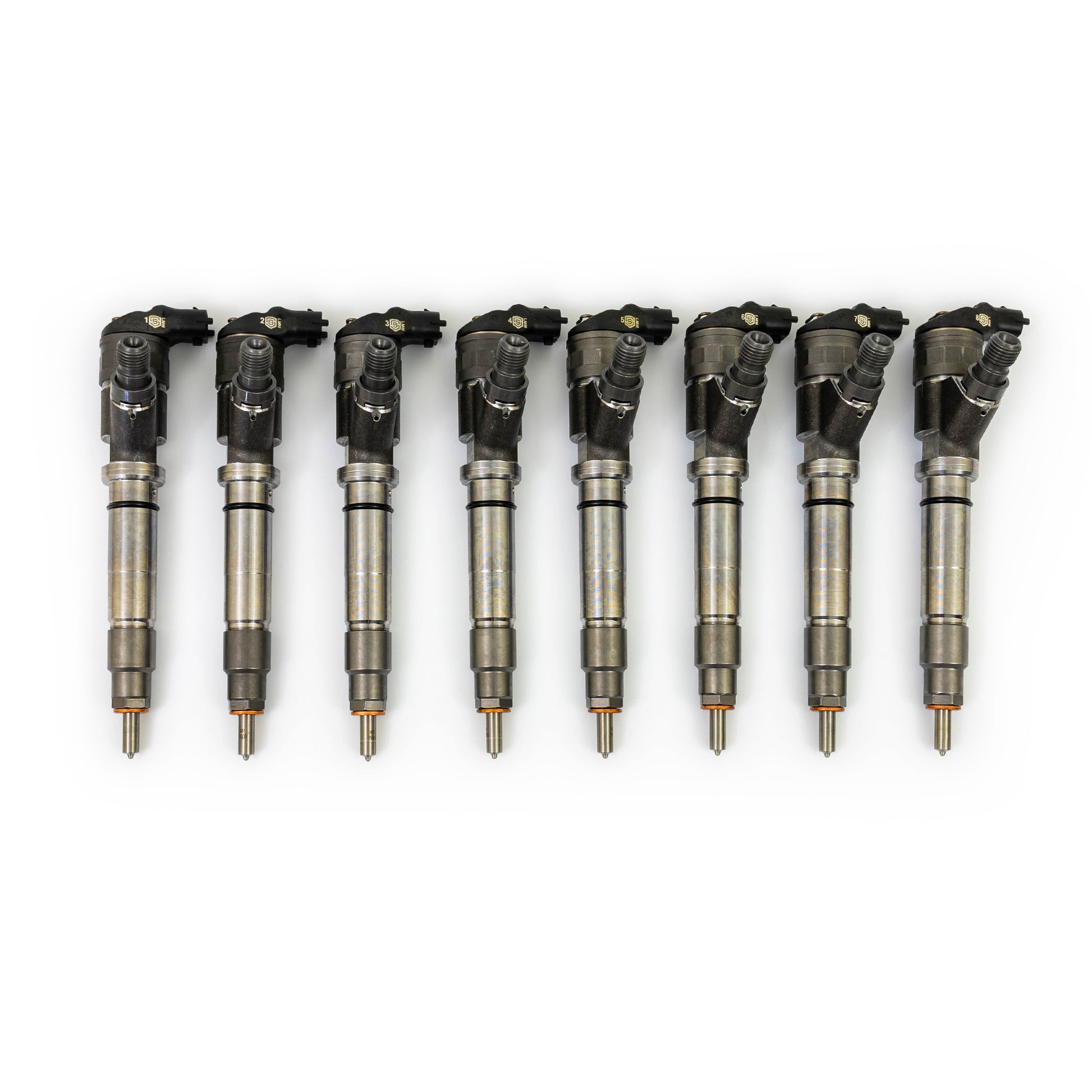

S&S Diesel Fuel Injectors - Set | 2007.5-2010 Duramax LMM

S&S Diesel Motorsport performance fuel injectors are manufactured using advanced machining, calibration, and testing procedures to ensure consistent fuel delivery and dependable performance. Each injector set is carefully built and validated to maintain balanced fueling across all cylinders while meeting strict quality standards.

A proprietary nozzle honing process is used to produce clean, precise nozzle holes that promote consistent fuel atomization. Nozzles are flow-matched within 1% variance per set using OEM testing standards, while completed injectors are flow-matched within 3% variance per set (excluding TorqueMaster injectors) to maintain balanced cylinder fueling.

All injectors are tested using Viscor SAE-J967 procedures at 40°C and 100 bar to verify accurate fuel delivery. Each injector is also evaluated at four different pressure and energizing points to ensure proper operation across a range of conditions. Injection rate profiles are aligned within each set to help maintain consistent combustion and engine performance.

Higher-flow injector sizes include additional engineering changes to maintain proper injection characteristics. Injectors rated at 250% (approximately 3200 cc/min) and above feature internal body modifications designed to improve injection rate shape and compensate for slower opening and closing speeds caused by increased nozzle flow.

• Precision Nozzle Honing: Proprietary process for consistent nozzle hole geometry
• Nozzle Flow Matching: Matched within 1% variance per set using OE testing standards
• Injector Flow Matching: Matched within 3% variance per set (excluding TorqueMaster)
• Testing Standard: Viscor SAE-J967
• Test Conditions: 40°C and 100 bar
• Multi-Point Testing: Four pressure and energizing points evaluated per injector
• Injection Rate Alignment: Injection profiles matched across each set
• Custom Build Calibration: Injector specifications matched to nozzle flow rate for each size
• High-Flow Engineering: 250% (3200 cc/min) and larger injectors include internal body modifications

Available Options:

• Brand new injector bodies available
• Bosch remanufactured injector bodies available
• Remanufactured bodies sourced directly from Bosch for quality assurance

Injector sizing follows the industry-standard convention of percentage increase in nozzle flow compared to stock.

• Available Sizes: TorqueMaster, 30%, 45%, 60%, 80%, 100%, 150%, 200%, 250%, 300%, 350%, 400%, 450%, 500%

Core Policy: Core returns are required. A $150 charge will apply if a usable core is not returned.

Return Policy: All returns (not core returns) are subject to a 20% restocking fee. Refunds will only be issued once the item is received in new and unused condition.
