S&S Diesel Ford 6.7L Fuel Leak Prevention Kit Plus 6.7F17-LPK-PLUS-650 | 2017-2026 6.7L Powerstroke F-650 & F-750

Upgrade the complete fuel filtration system on your Ford F-650 or F-750 6.7L Power Stroke with the S&S Diesel Motorsport 6.7F17-LPK-PLUS-650 Fuel Leak Prevention Kit Plus. This comprehensive kit addresses two common fuel leak points in the factory system while providing a complete engine-mounted and chassis-mounted fuel filtration refresh.

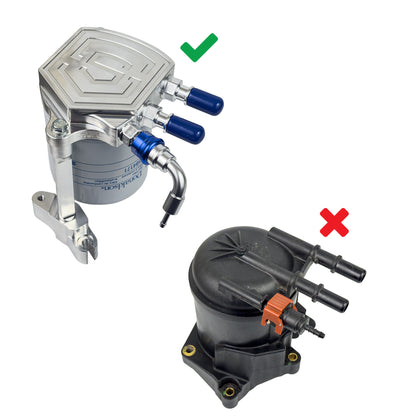

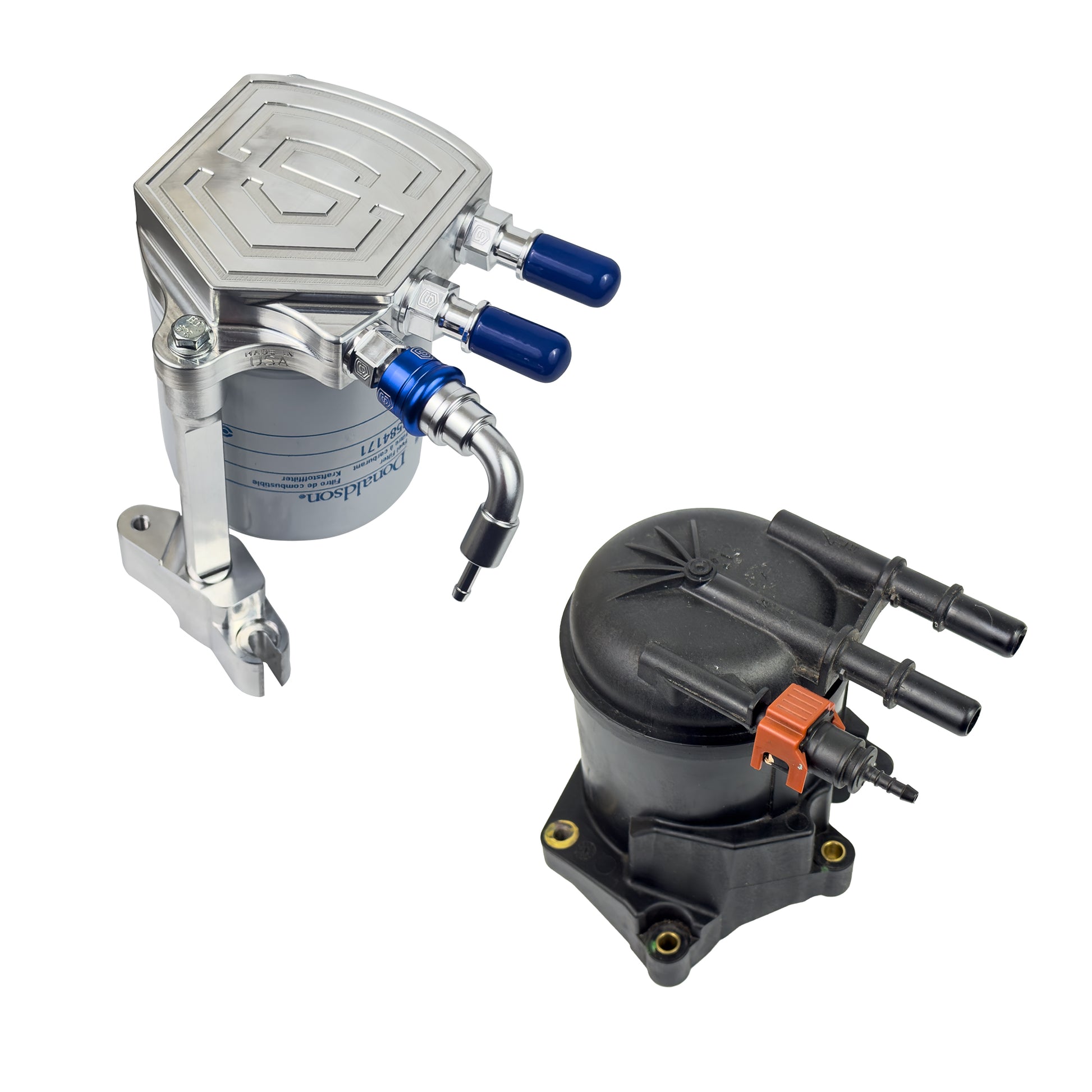

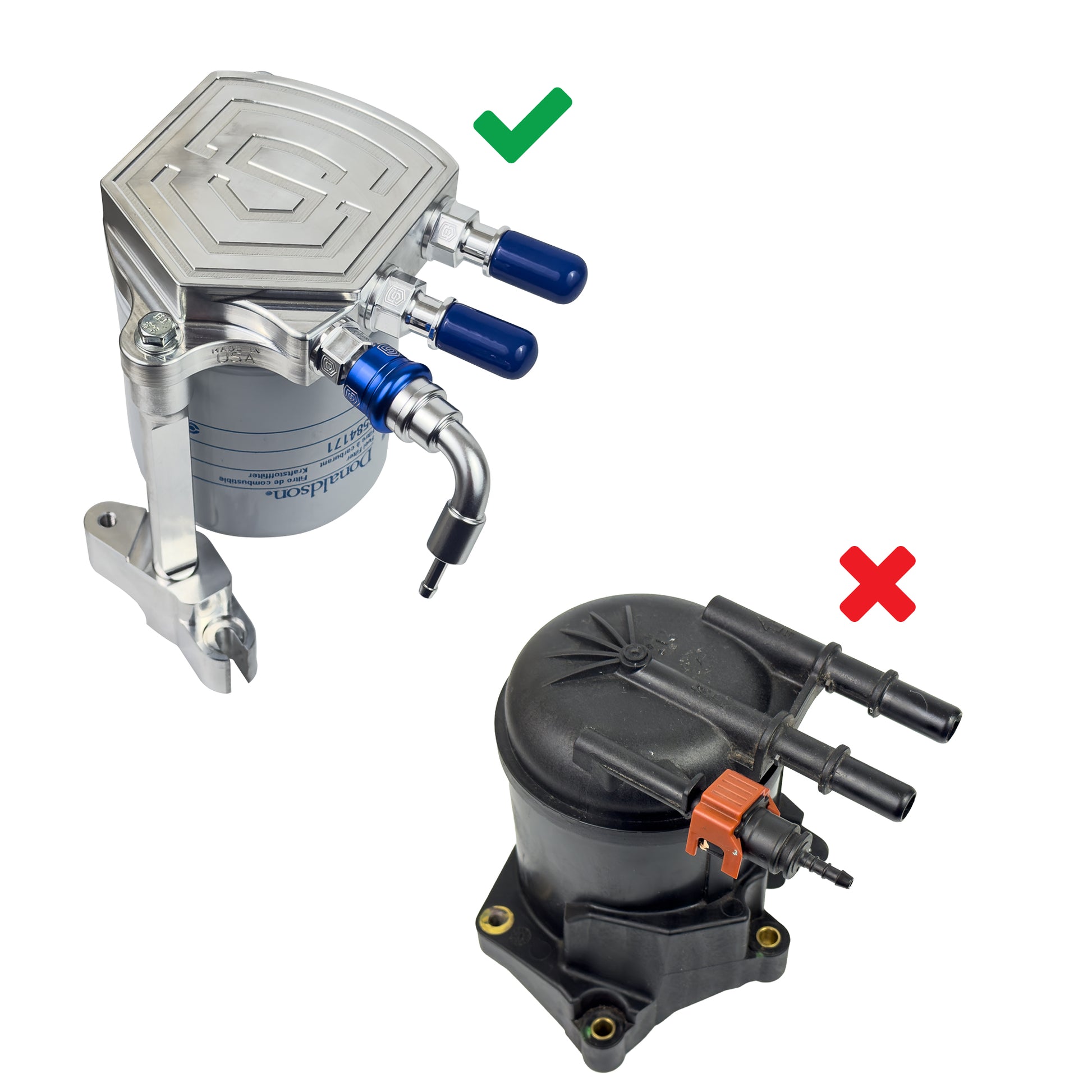

The S&S LPK replaces the crack-prone plastic engine-mounted fuel filter housing with a durable billet aluminum two-post filter mount. This design accepts a larger Donaldson P584171 spin-on filter that maintains OEM-spec 4-micron absolute filtration at 99% efficiency while nearly doubling dirt holding capacity at 23 grams compared to the OEM filter's 12 grams.

S&S also addresses the brittle factory plastic injector return fitting with an aluminum Fuel Leak Prevention Fitting featuring a durable hose barb and easy-release quick connect. The Plus kit goes a step further by including a Donaldson P585405 chassis-mounted panel fuel filter, providing 10-micron nominal filtration and greater than 40 grams of dirt holding capacity. Together, these components provide a complete filtration upgrade without sacrificing the filtration performance required by the factory fuel system.

Features:

• Complete fuel filtration upgrade and refresh kit

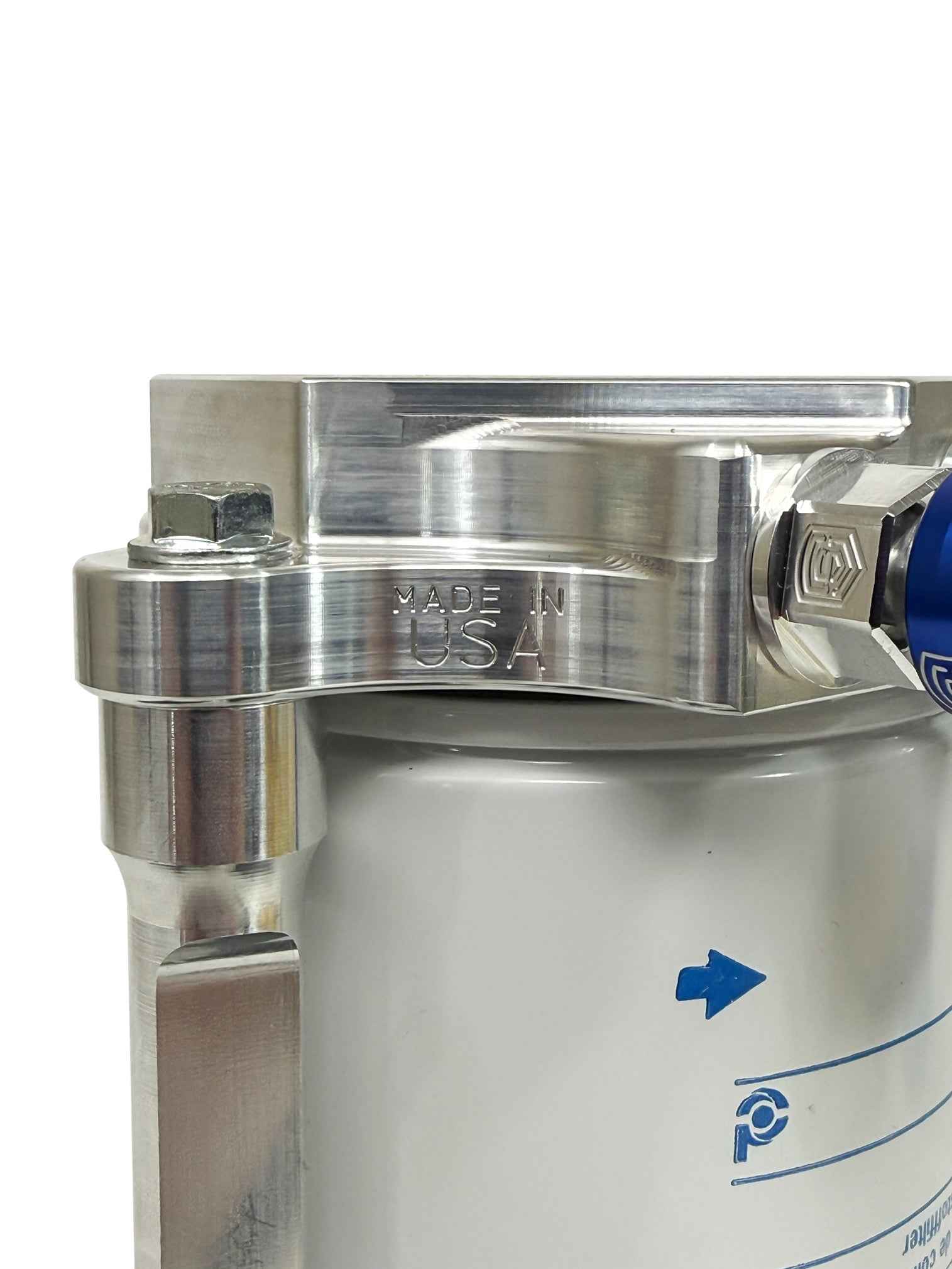

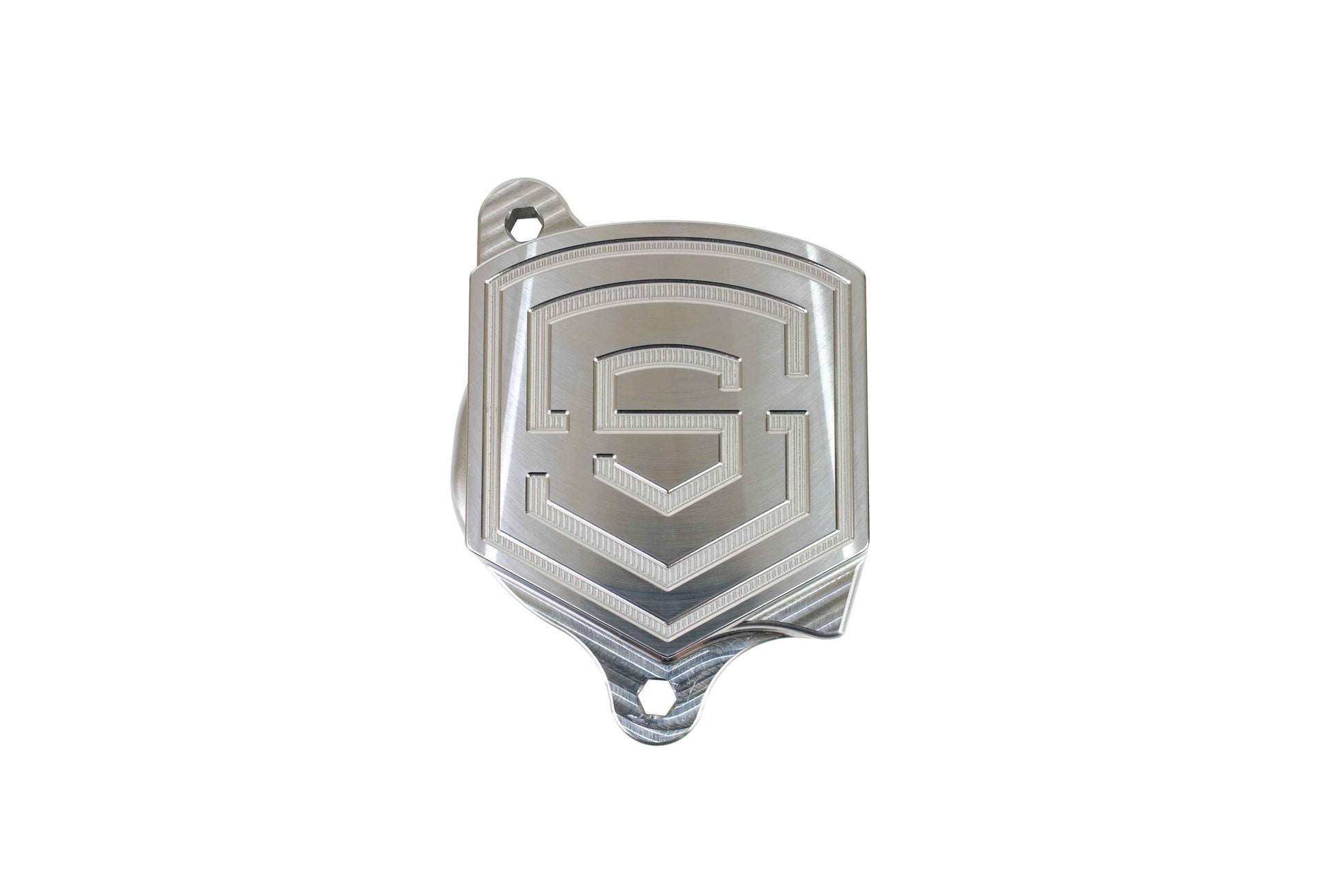

• Billet aluminum engine-mounted fuel filter housing
• Replaces the crack-prone factory plastic fuel filter housing
• Includes Donaldson P584171 engine-mounted spin-on fuel filter
• 4-micron absolute engine filter filtration at 99% efficiency
• 23-gram engine filter dirt holding capacity compared to 12 grams for the OEM filter
• Includes Donaldson P585405 chassis-mounted panel fuel filter
• 10-micron nominal chassis filter filtration
• Greater than 40-gram chassis filter dirt holding capacity

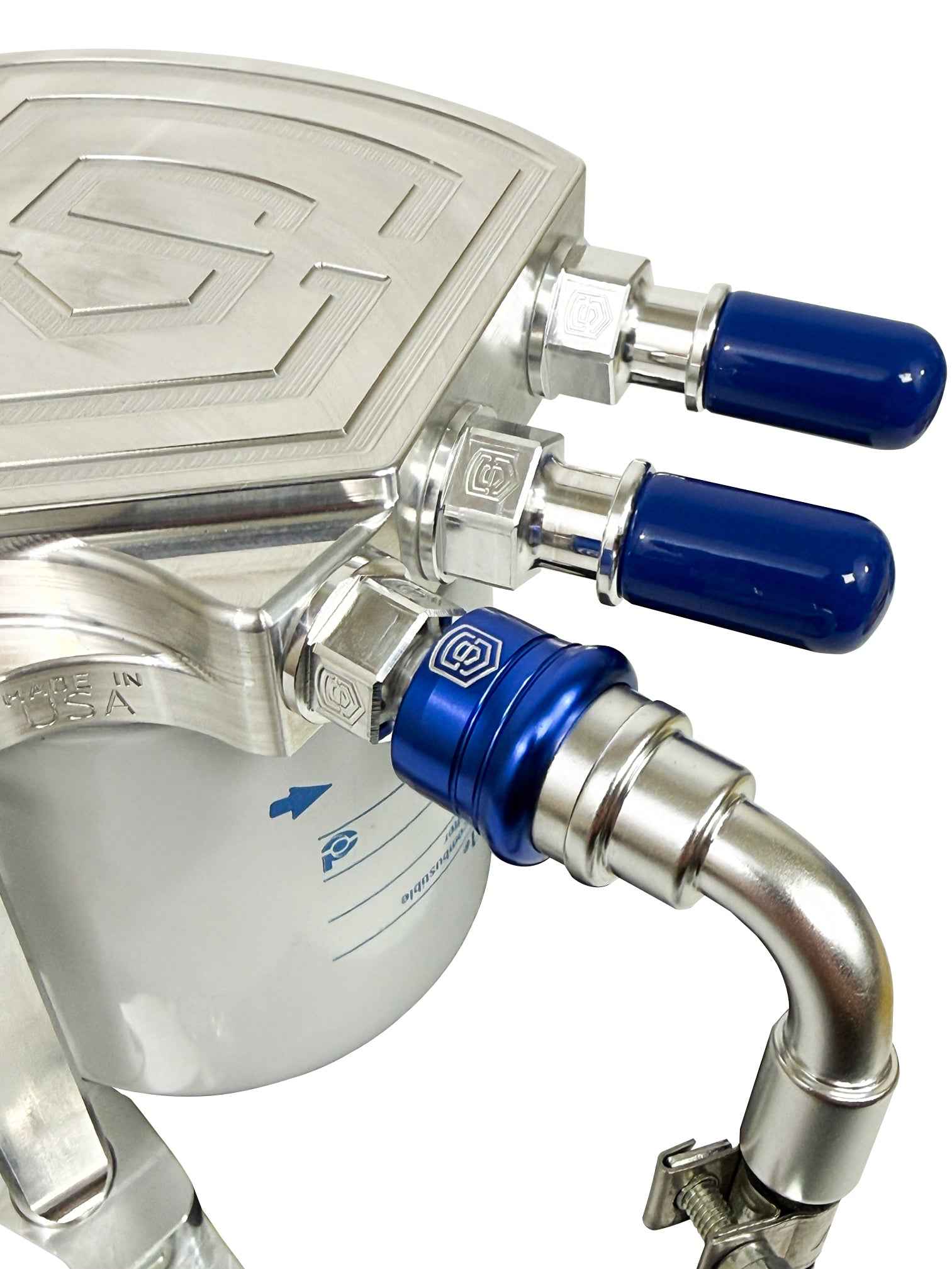

• Aluminum Fuel Leak Prevention Fitting replaces the brittle OEM injector return fitting
• Durable aluminum hose barb
• Easy-release quick-connect design
• Filter housing bolt holes accept an 8mm Allen wrench for easier filter removal
• Compatible with stock fuel systems, S&S Disaster Prevention Kits, and DCR pump conversions

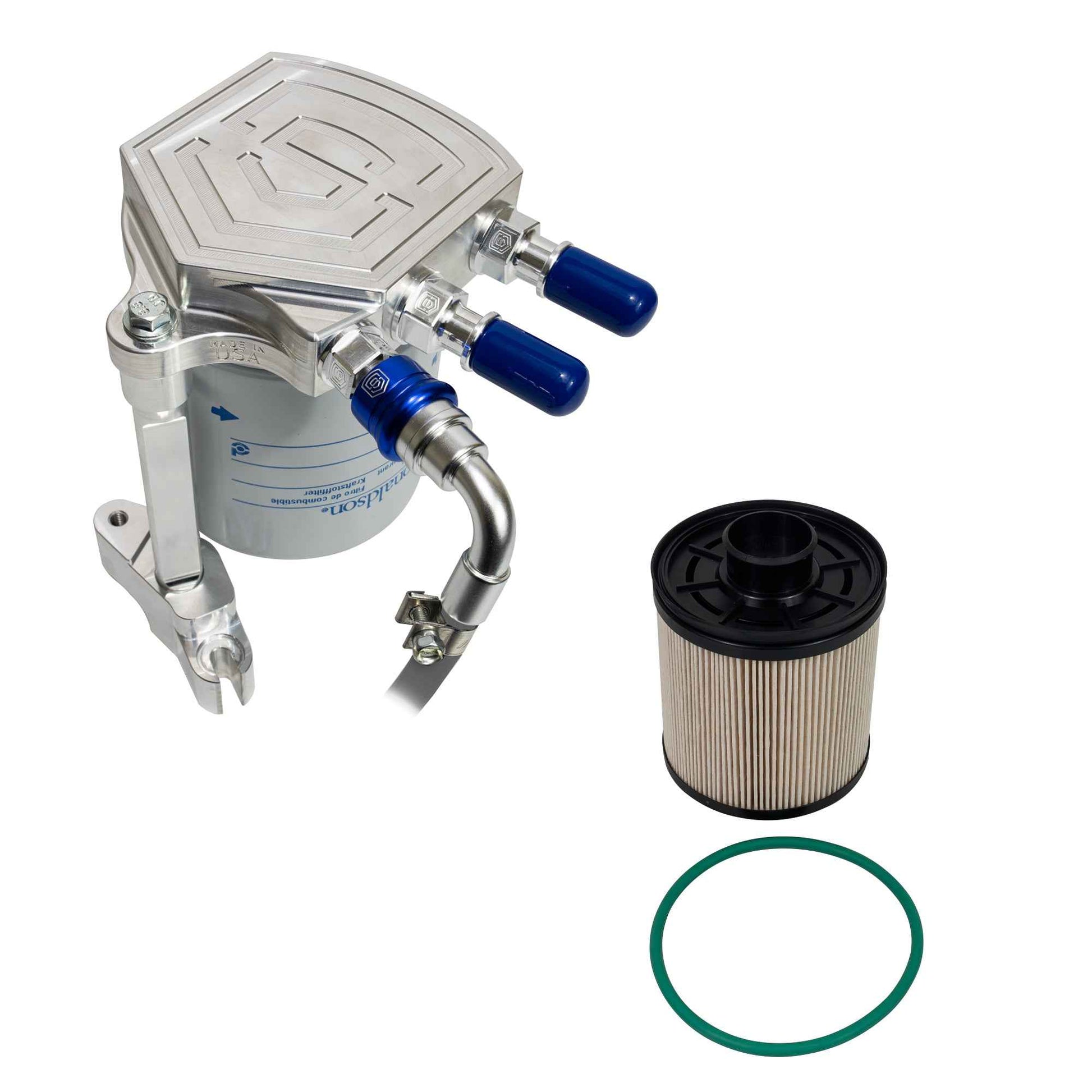

Kit Includes:

• Billet aluminum engine-mounted fuel filter housing
• Donaldson P584171 engine-mounted spin-on fuel filter
• Donaldson P585405 chassis-mounted panel fuel filter
• Aluminum injector return Fuel Leak Prevention Fitting
• Required installation components

Fitment:

• Ford F-650/F-750 trucks equipped with the 6.7L Power Stroke diesel
