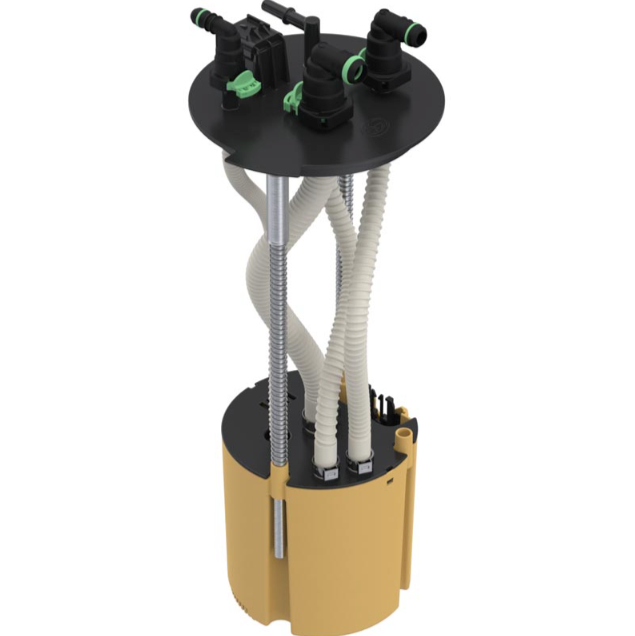

S&B TANKS FUEL TANK SENDING UNIT 86-3001 | 2013-2018 & 2021-2026 RAM 6.7L CUMMINS

Eliminate common low-fuel issues associated with aftermarket lift pumps using the S&B Tanks Fuel Sending Unit. Designed for lift pump-equipped Ram trucks, this plug-and-play sending unit helps maintain consistent fuel delivery even when the tank reaches approximately 1/4 full or lower.

Aftermarket lift pumps can move significantly more fuel than the factory system, which may cause fuel supply problems as tank levels drop. The S&B Sending Unit addresses this by utilizing a Venturi jet pump, powered by the truck's external aftermarket lift pump, to continuously keep the fuel reservoir supplied. This allows you to use more of the fuel in your tank without modifying the factory tank.

Designed for straightforward installation, the sending unit connects directly to the factory-style quick-connect fuel lines and is compatible with both the factory fuel tank and S&B replacement fuel tanks.

Features

• Drive-to-empty capability – Helps eliminate fuel starvation issues at approximately 1/4 tank and below
• Venturi jet pump design – Uses fuel flow from the aftermarket external lift pump to keep the reservoir supplied
• Plug-and-play installation – No modification to the factory fuel tank required
• OEM-style fuel quick-connect fittings – Integrates with the factory fuel line connections
• Factory and S&B tank compatible – Designed for installation in either tank configuration
• Fuel-resistant construction – Manufactured from OEM-grade materials engineered for long-term exposure to diesel fuel
• Low-fuel tested – Tested under a variety of low-fuel-level operating conditions

Part Number: 86-3001
