• S&B TANKS FUEL TANK SENDING UNIT 86-2004 | 2011-2016 6.6L DURAMAX LML
1 1

S&B Filters

S&B TANKS FUEL TANK SENDING UNIT 86-2004 | 2011-2016 6.6L DURAMAX LML

S&B TANKS FUEL TANK SENDING UNIT 86-2004 | 2011-2016 6.6L DURAMAX LML

86-2004

$299.00 USD

SELECT FITMENT

See If This Product Fits Your Vehicle

While many of our products are stocked in our warehouse, inventory levels can change quickly. If you need to confirm availability before placing your order, please call or text 970-778-0792.

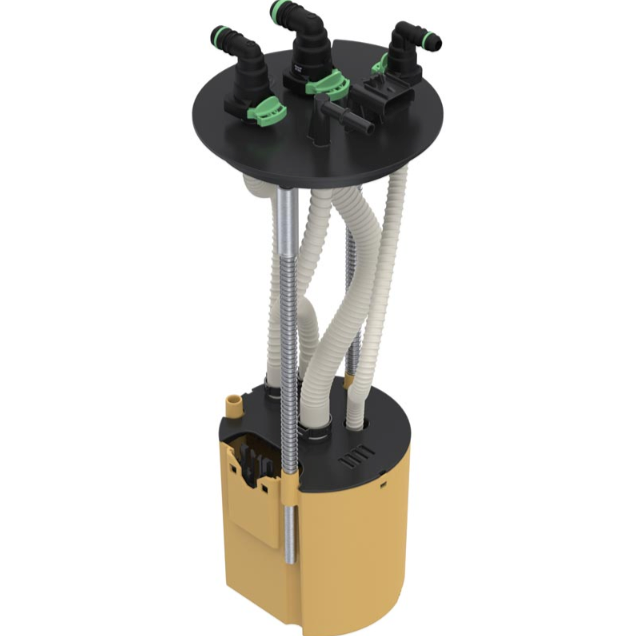

Help maintain consistent fuel delivery at low tank levels in your Chevy or GMC 6.6L Duramax LML equipped with an aftermarket lift pump using the S&B Tanks 86-2004 Fuel Tank Sending Unit. Designed to address low-fuel pickup issues, this upgraded sending unit helps keep fuel available to the lift pump as the tank approaches empty.

The sending unit incorporates a Venturi jet pump powered by the aftermarket lift pump to continuously transfer fuel into the sending unit reservoir. Keeping the reservoir supplied helps reduce the potential for fuel starvation, sputtering, and inconsistent fuel delivery when the overall tank level becomes low.

Constructed with OEM-grade materials, the 86-2004 is designed as a plug-and-play solution compatible with both OEM and applicable S&B fuel tanks. Installation does not require modification to the fuel tank or factory sending unit, providing a straightforward solution for trucks already equipped with an aftermarket lift pump.

Features:

  • Designed to address low-fuel-level pickup issues with aftermarket lift pumps
  • Venturi jet pump helps keep the sending unit reservoir supplied with fuel
  • Helps maintain consistent fuel delivery at low tank levels
  • Helps reduce fuel starvation and sputtering
  • Compatible with OEM and applicable S&B fuel tanks
  • Requires an aftermarket lift pump
  • OEM-grade materials
  • Plug-and-play installation
  • No modification to the compatible fuel tank or factory sending unit required

Fitment:

  • Chevy/GMC applications equipped with the 6.6L Duramax LML diesel engine

Important Fitment Note:

This sending unit requires an aftermarket lift pump for the Venturi jet pump to operate. It is compatible with OEM and applicable S&B fuel tanks. Verify fuel tank and lift pump compatibility before ordering.

View full details
