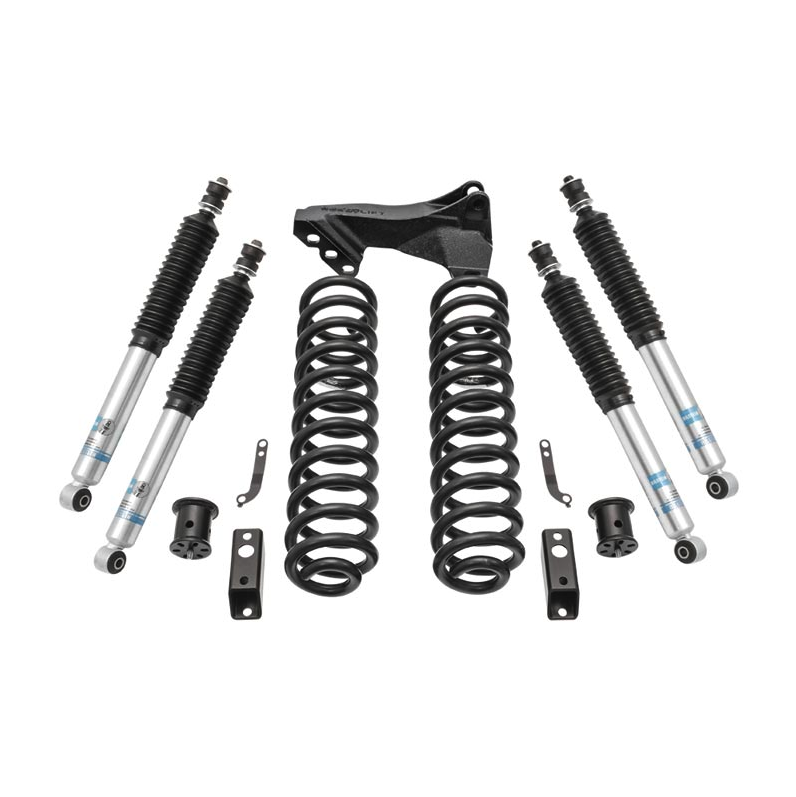

ReadyLift 46-2729 2.5" Coil Spring Lift Kit with Bilstein Shocks

The ReadyLift 46-2729 2.5" Coil Spring Lift Kit with Bilstein Shocks provides a complete leveling solution for the front of your 2011-2016 Ford F-250/F-350 6.7L Powerstroke. This kit replaces the factory coil springs with ReadyLift 2.5" springs to achieve added front lift while maintaining proper suspension geometry.

To ensure correct alignment and functionality, the kit includes a track bar relocation bracket, bump stop extensions, front sway bar extension brackets, and brake line extension brackets. Front and rear Bilstein 5100 Series shocks are included, delivering improved on- and off-road performance and accommodating larger tire sizes.

This leveling kit is engineered to fit up to 35" tires and provides a complete bolt-on solution for diesel trucks.

Features:

• 2.5" front coil spring lift / 0" rear lift
• Front and rear Bilstein 5100 Series shocks
• Track bar relocation bracket included
• Bump stop, sway bar, and brake line extension brackets
• Accommodates tires up to 35" diameter
• Designed for 2011-2016 Ford F-250/F-350 6.7L Powerstroke

Tire Specifications:

• 35" maximum tire diameter
• 35x12.50 on a 9" wheel with +25 offset
• 17" - 35x12.5R17
• 18" - 315/70R18
• 20" - 295/65R20 / 325/60R20
• 22" - 35x12.5R22

Note: For diesel trucks only. Depending on factory spring rate, final lift height may vary from 1.5" to 2.5".
