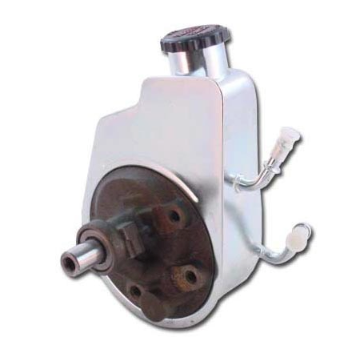

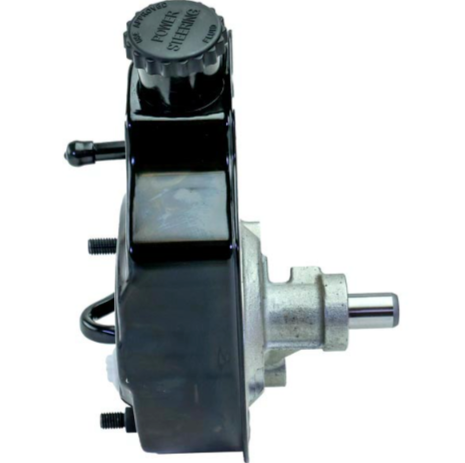

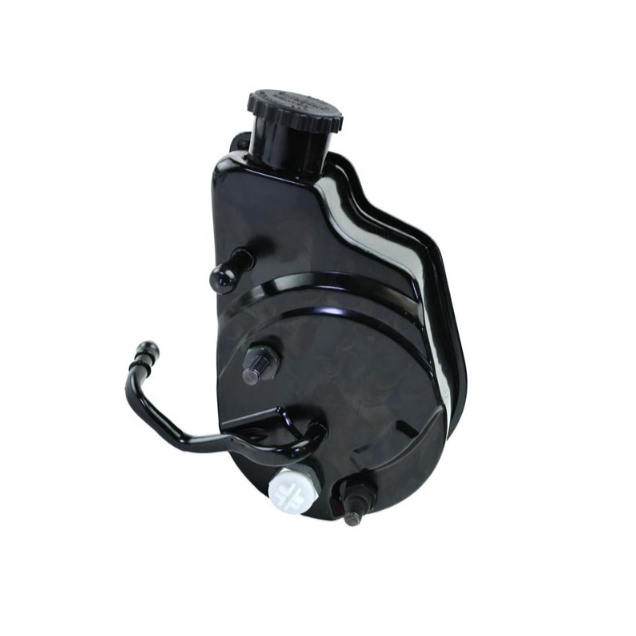

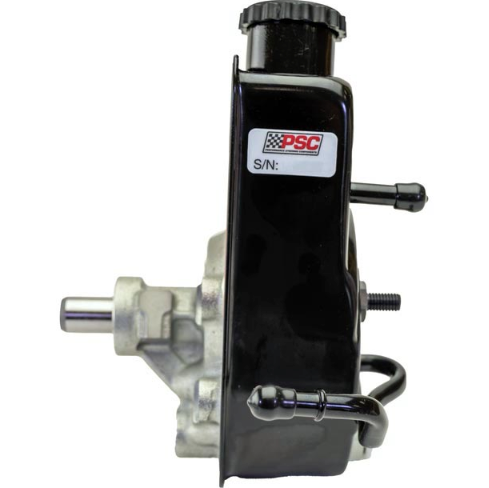

PSC HIGH PERFORMANCE POWER STEERING PUMP SP1404 | 2001-2010 Duramax 6.6L LB7/LLY/LBZ/LMM

Upgrade your steering system with the PSC SP1404 High Performance Power Steering Pump, designed for 2001–2010 GM 6.6L Duramax applications. Built brand new—not remanufactured—this pump features a larger internal ring and rotor to move more fluid per revolution, making it ideal for trucks running larger tires, steering upgrades, or operating at low RPM.

Engineered for hydroboost-equipped trucks, this high-volume pump delivers improved steering response and consistent performance under demanding conditions.

Key Benefits:

• Increased fluid displacement for improved steering performance
• Ideal for low RPM operation and modified steering systems
• Built new for reliability and long service life
• Optimized for hydroboost braking systems

Features:

• New unit (not remanufactured)
• High-volume output design
• Larger ring and rotor for increased flow
• Satin aluminum finish
• Includes OEM-style reservoir with cap

Specifications:

• Pump Model: Saginaw 132 Series
• Flow: High Volume
• Pressure Rating: 1600 PSI
• Reservoir: Included (Hydroboost style)
• Pulley Included: No
• Pulley Attachment: Press Fit
• Fittings Included: No
• Inlet: Dual 5/16" flared tube
• Outlet: 16mm male (16mm-1.50 female fitting)
