PPE HD Stage3 Forged Tie Rod Assemblies Kit (Pair) 158031500 | 2001-2010 Duramax 6.6L LB7,LLY,LBZ,LMM

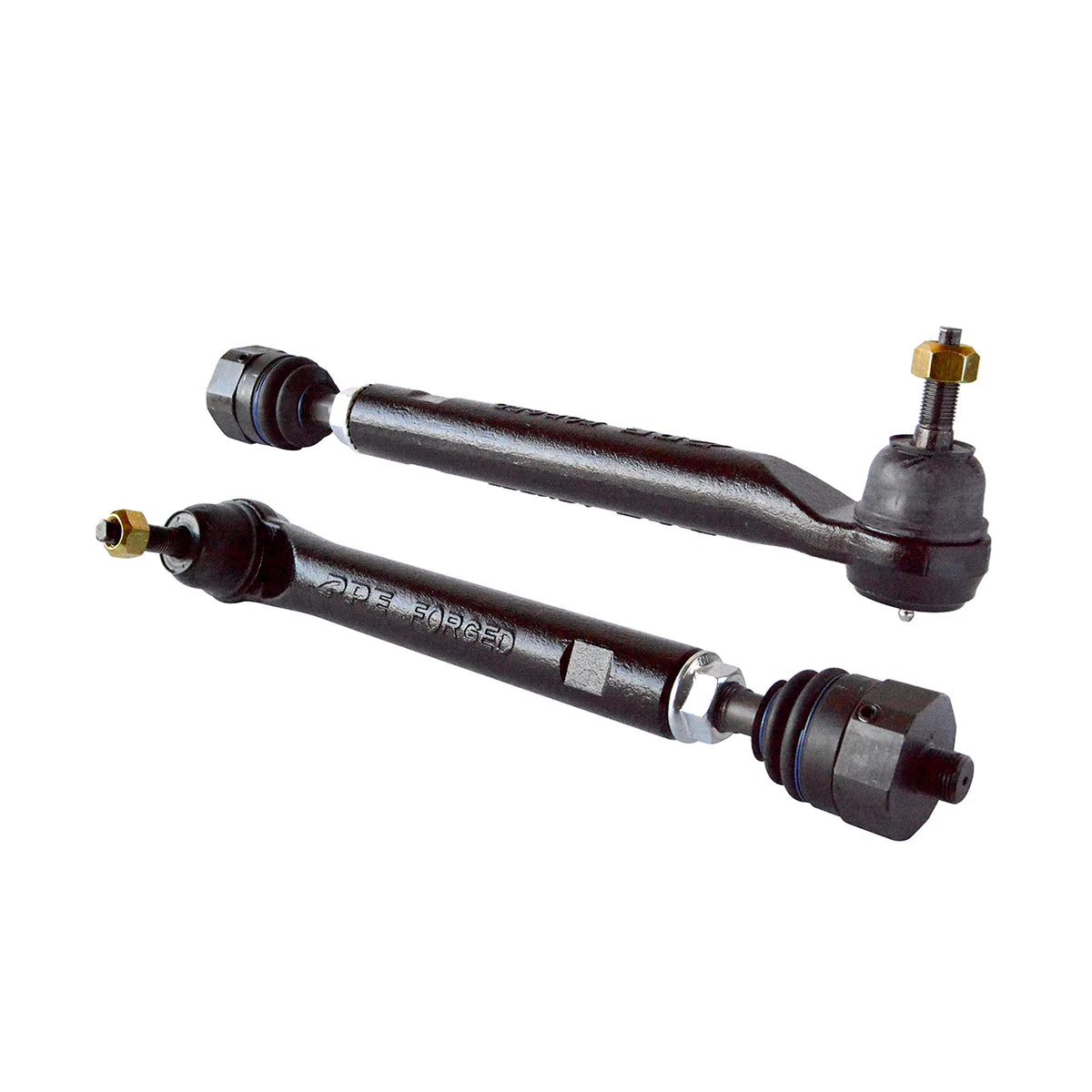

PPE HD Stage3 Forged Tie Rod Assemblies

Upgrade your steering with the PPE Stage3 Forged Tie Rod Assemblies for 2001–2010 GM 2500/3500 trucks. These heavy-duty tie rods are built for maximum strength and reliability, making them the perfect solution for trucks running larger tires, lift kits, towing, racing, or heavy off-road use. When it comes to steering components, failure is not an option.

Unmatched Strength & Design

• 1.5" wide forged tie rod body

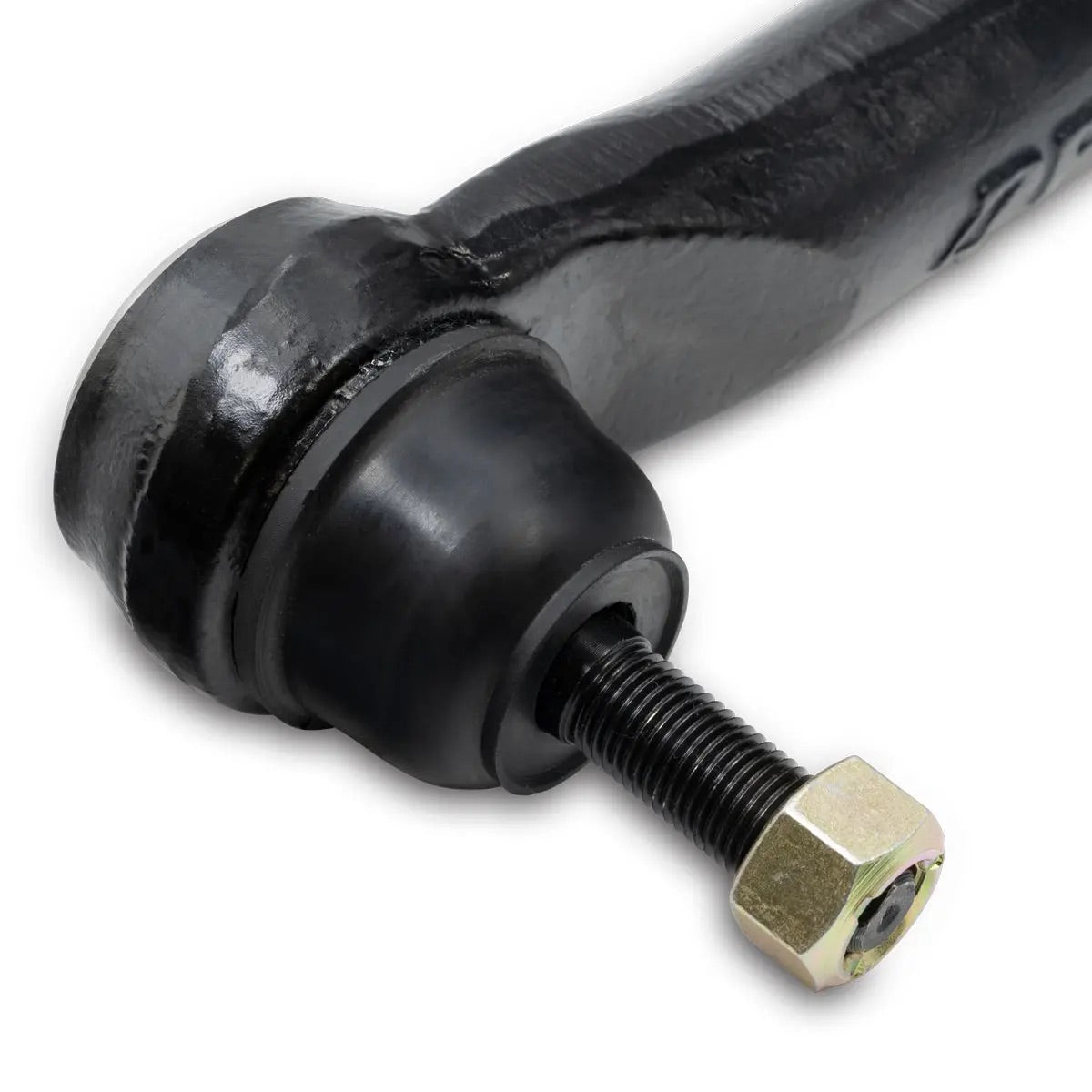

• Massive 2 1/3" outer ball joints
• Adjustable oversized inner ball joint

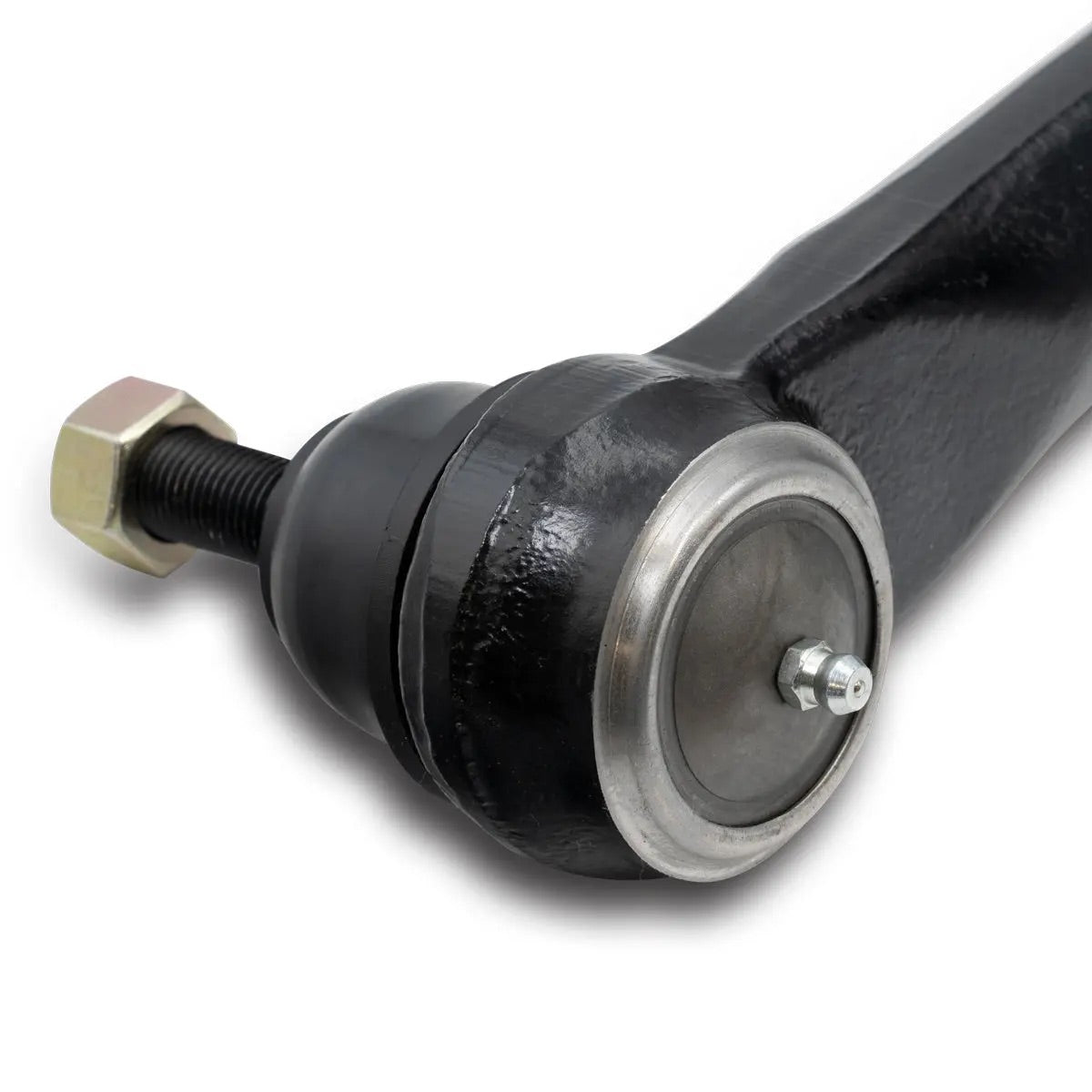

• Spring-loaded gusher bearing in the outer tie rod end maintains constant pressure

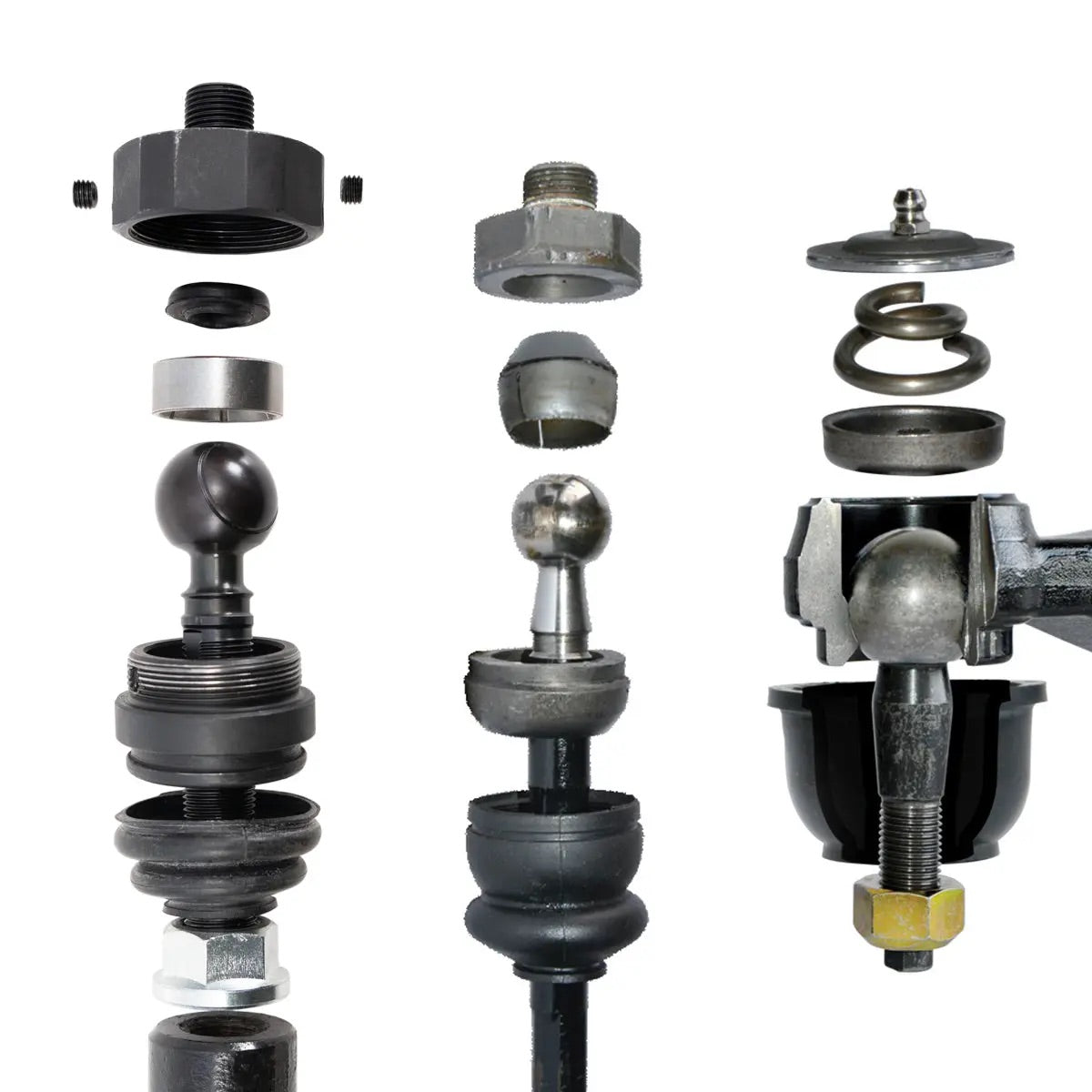

Compared to Factory Components:

• 30% larger toe adjusting shaft
• 53% larger tie rod body
• 35% larger outer ball joint
• 28% larger adjustable inner ball joint

OEM Reference Part Numbers:

• Inner tie rods: AC Delco 46A1311A / GM 19435545
• Outer tie rods: AC Delco 46A1093A / 45A1093

Important Notes:

• Do not exceed 500 PSI when applying grease. Excessive pressure can damage grease caps, cause tie rod failure, and void warranty.
• Stage3 Tie Rods are designed to fit GM stock steering components. Some aftermarket spindles relocate the tie rod perch, requiring shorter tie rods. The fully-threaded outer can be trimmed to fit, but professional measurement and installation are recommended.
