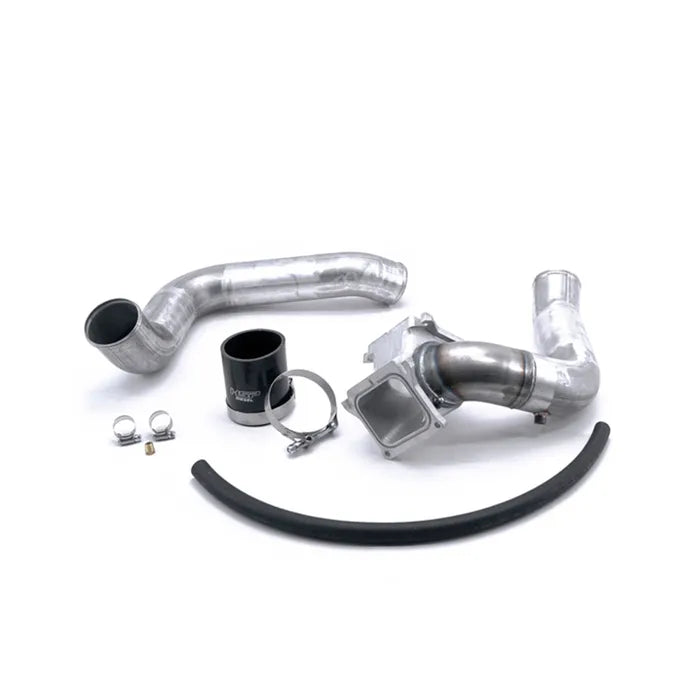

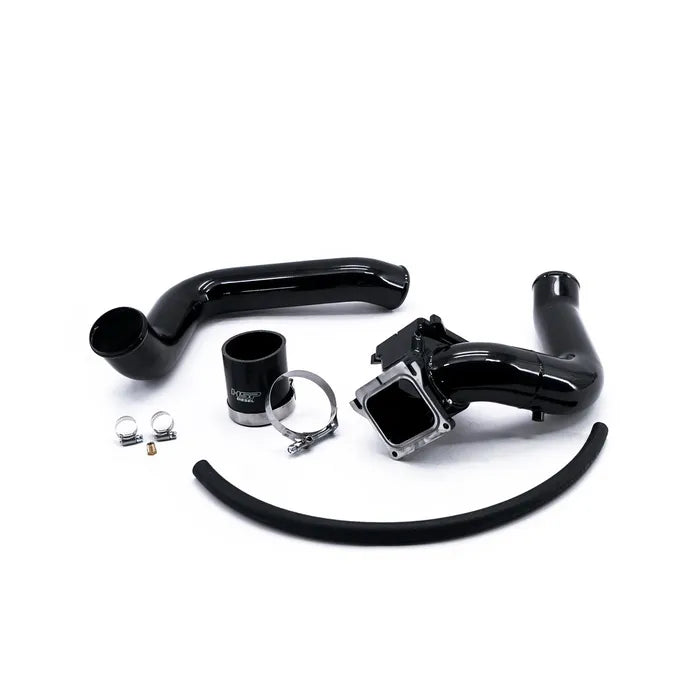

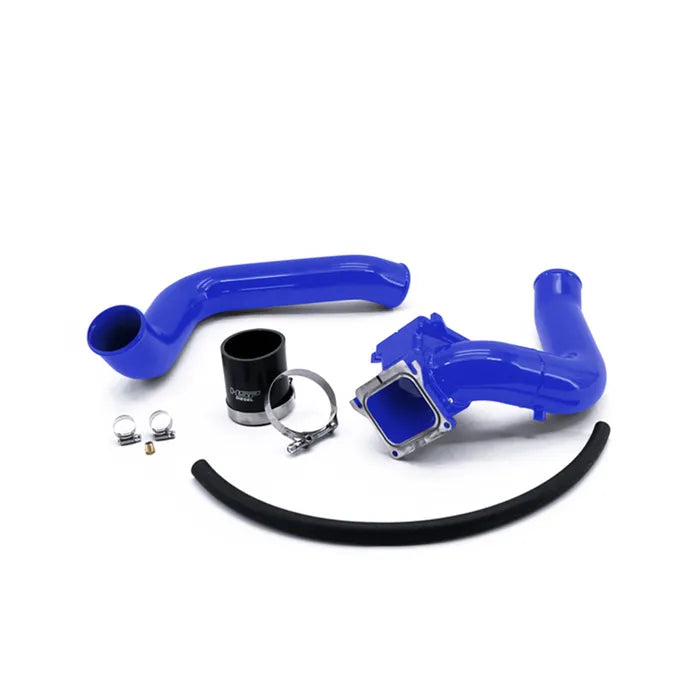

HSP Diesel Max Flow Bridge and Cold Side Tube 204-HSP | 2004.5-2005 6.6L Duramax LLY

The 204-HSP, also known as the HSP Max Flow Bridge and Cold Side Tube, is designed for 2004.5–2005 LLY Duramax-equipped Chevrolet and GMC trucks. This upgrade improves airflow, enhances performance, and cleans up your engine bay with a bold, functional design.

Why Choose the HSP Max Flow Bridge and Cold Side Tube?

The factory bridge and cold side pipe on the LLY are known weak points. They are restrictive, poorly designed for airflow, and inefficiently bent, limiting performance. The factory bridge is a major source of power loss and boost leaks.

What Makes the HSP Max Flow Bridge and Cold Side Tube Different?

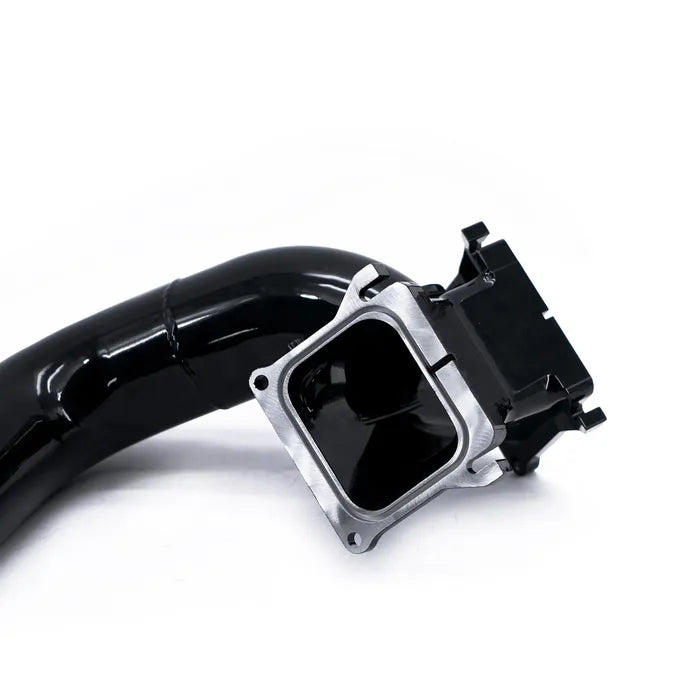

Both the bridge and cold side tube are upgraded to a 3" diameter, providing a significant improvement in airflow. The Max Flow Bridge is precision-cast aluminum, CNC-machined for optimal internal flow and strength. It is pressure-tested to over 100 PSI and secured using two M8 studs, 12-point nuts, and a high-strength O-ring to eliminate the risk of boost leaks.

The Cold Side Tube features a 3" mandrel-bent design with sweeping bends that reduce turbulence and increase efficiency. This setup pairs best with factory or drop-in replacement turbochargers while maintaining OEM-style intercooler routing.

What's Included

• 1x Bridge Neck (HSP-IN-209)
• 1x Bridge (HSP-IN-222)
• 1x Coldside Tube (HSP-IN-213)
• 1x Bridge Neck O-Ring (RFB-670-RFAB)
• 1x 1/8'' NPT Brass Plug (RFB-811-RFAB)
• 2x Bridge Neck Stud (RFB-902-RFAB)
• 2x Bridge Neck 12-Point Nut (RFB-903-RFAB)
• 24x 5/8" Heater Hose (RFB-401-RFAB)
• 2x 5/8" Worm Gear Clamp (RFB-403-RFAB)
• 2x 3" T-Bolt Clamp (RFB-422-RFAB)
• 1x 3"x4" Straight Boot (RFB-430-RFAB)

Fitment

LLY: 2004.5–2005 (VIN Code 2)
How to identify VIN Code: The 8th character of the VIN indicates the engine code. The 10th character indicates the model year.

Overview

• Increased performance and turbo spool-up
• Powder coat options to enhance engine bay aesthetics
• High-strength silicone boots
• Enhanced engine sound
• 3" Mandrel-bent cold side tube
• 3" Precision-cast aluminum CNC-machined bridge

Warranty

HSP NO BS LIMITED LIFETIME WARRANTY
HSP stands behind the quality of their products and offers a No BS Warranty to ensure customer confidence and product reliability.
