HSP Diesel 2004.5-2005 Chevrolet / GMC Max Air Flow Bundle
HSP Diesel 2004.5-2005 Chevrolet / GMC Max Air Flow Bundle
SKU:283-HSP-Raw
SELECT FITMENT
See If This Product Fits Your Vehicle
Couldn't load pickup availability
While many of our products are stocked in our warehouse, inventory levels can change quickly. If you need to confirm availability before placing your order, please call or text 970-778-0792.

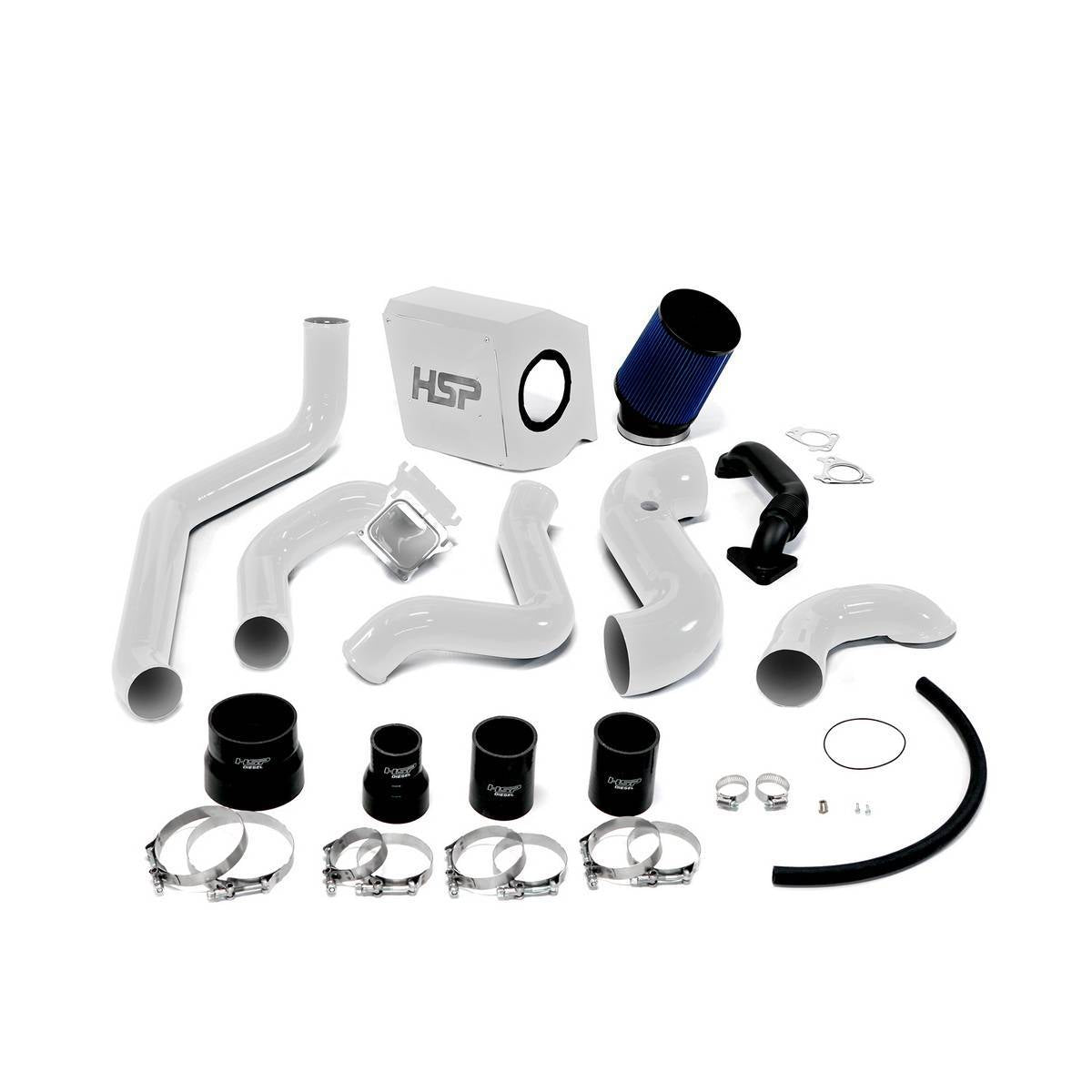

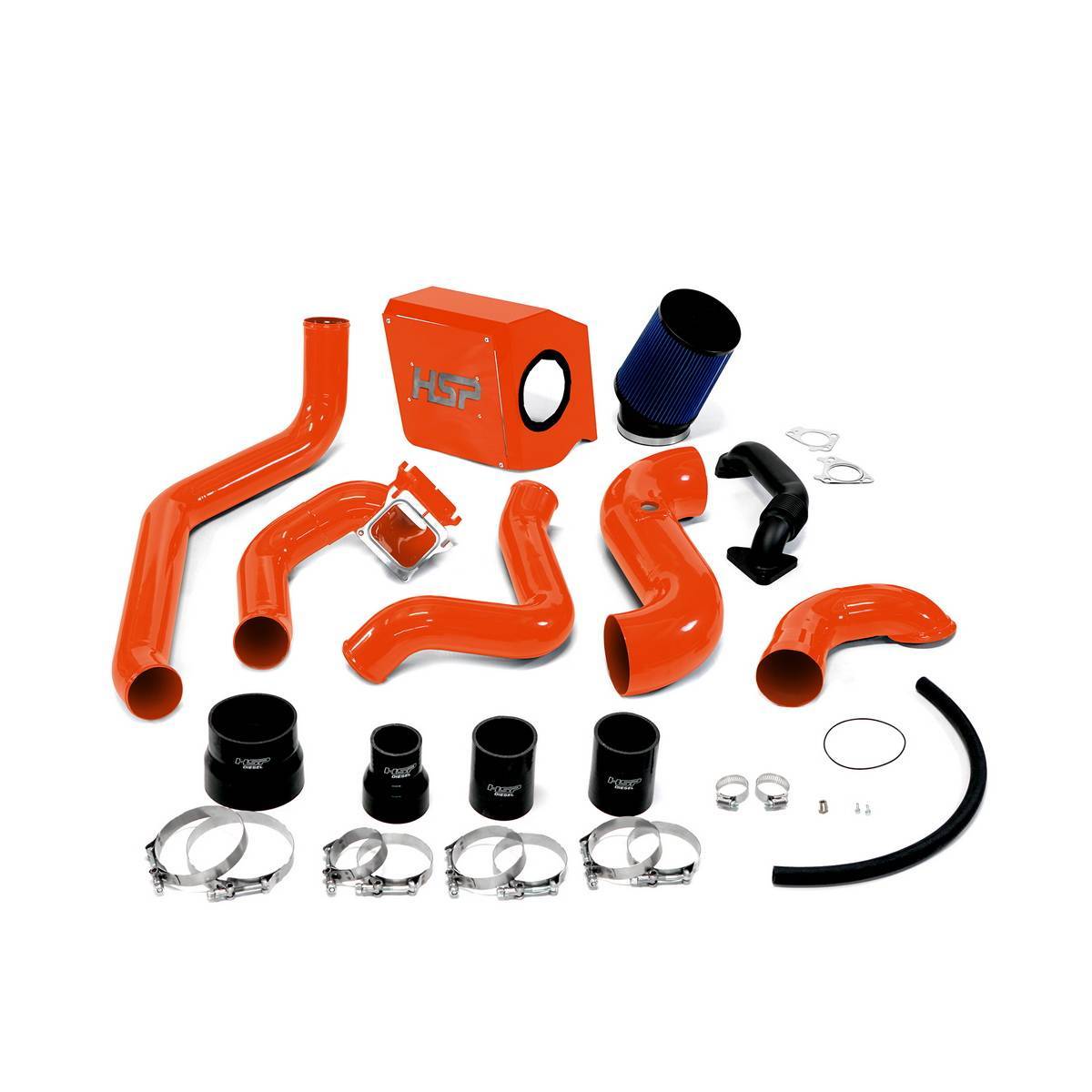

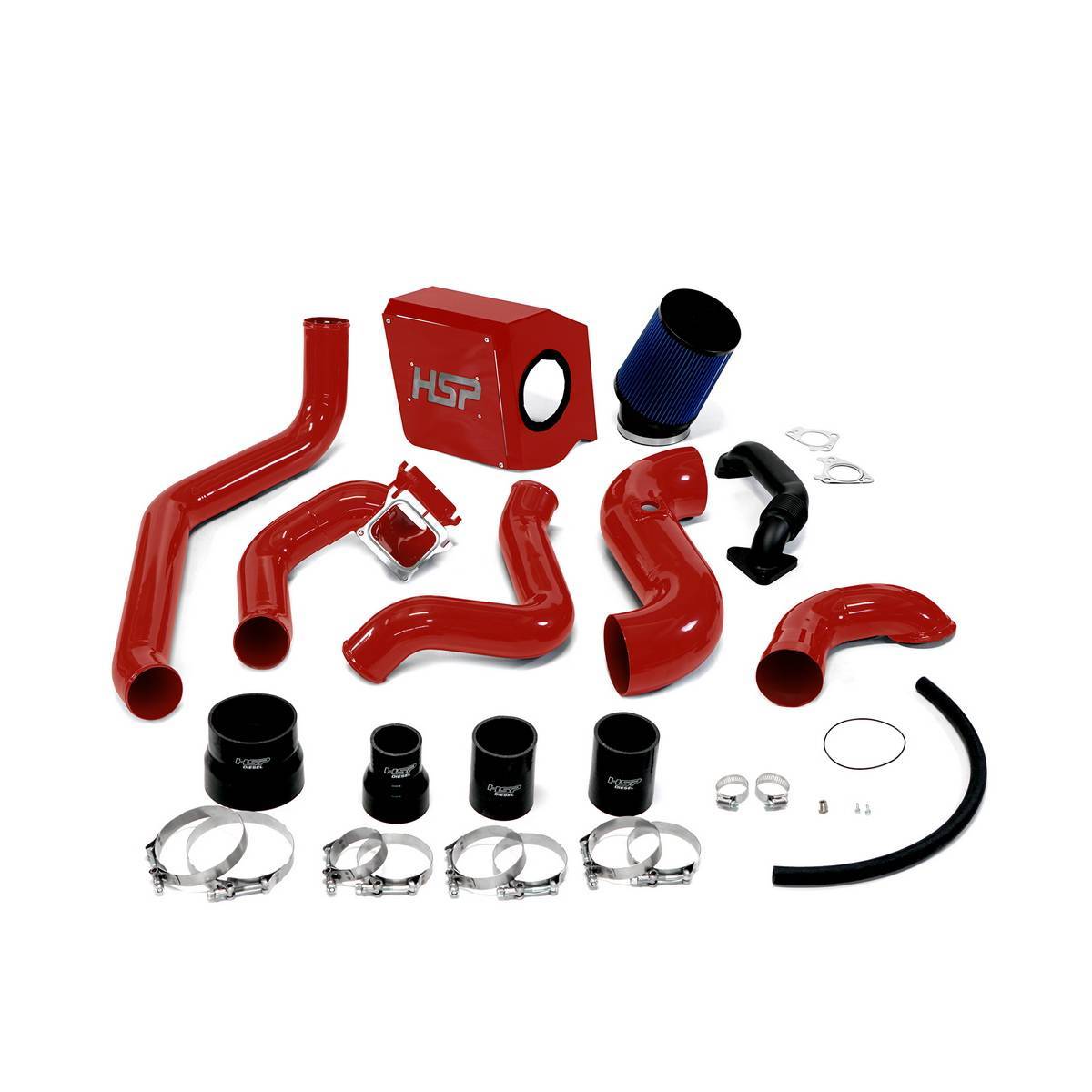

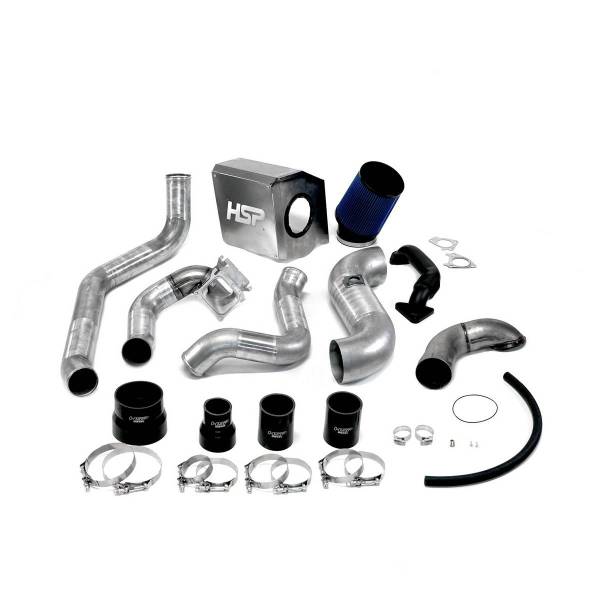

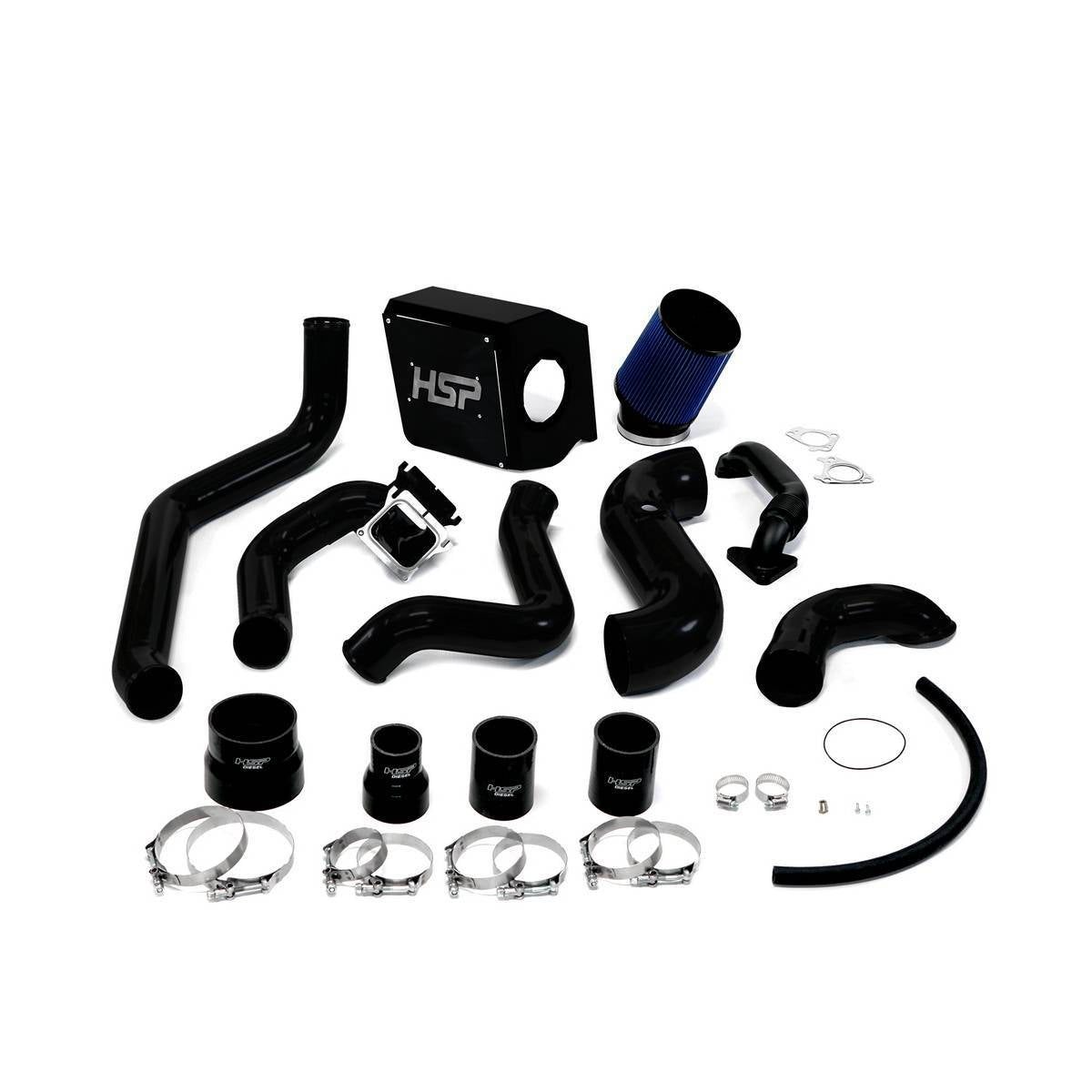

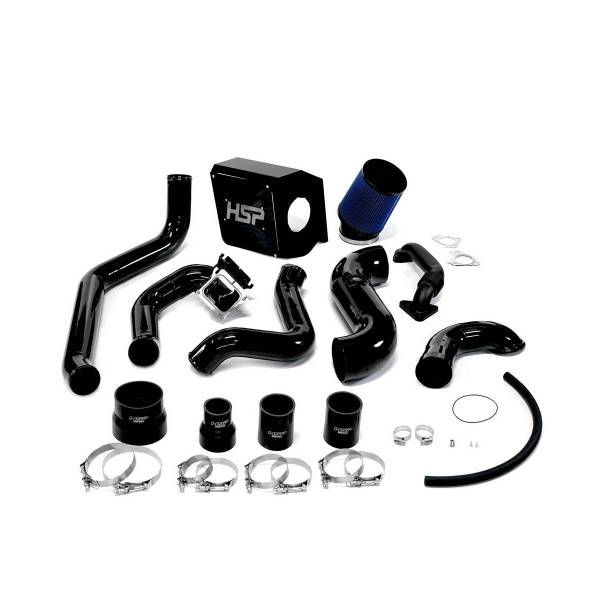

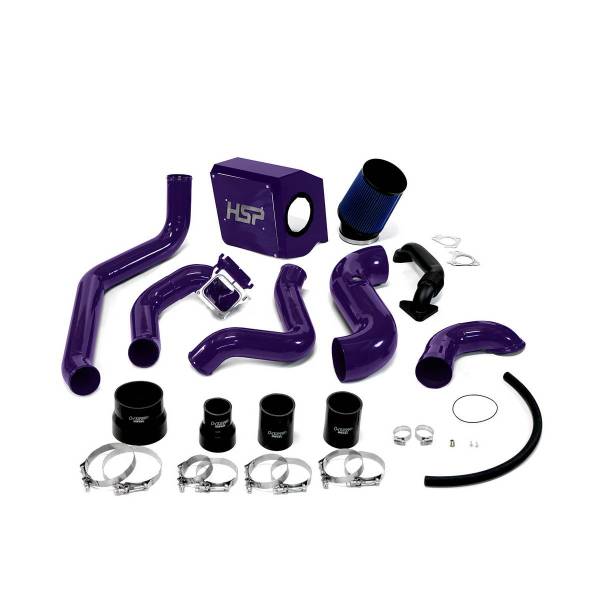

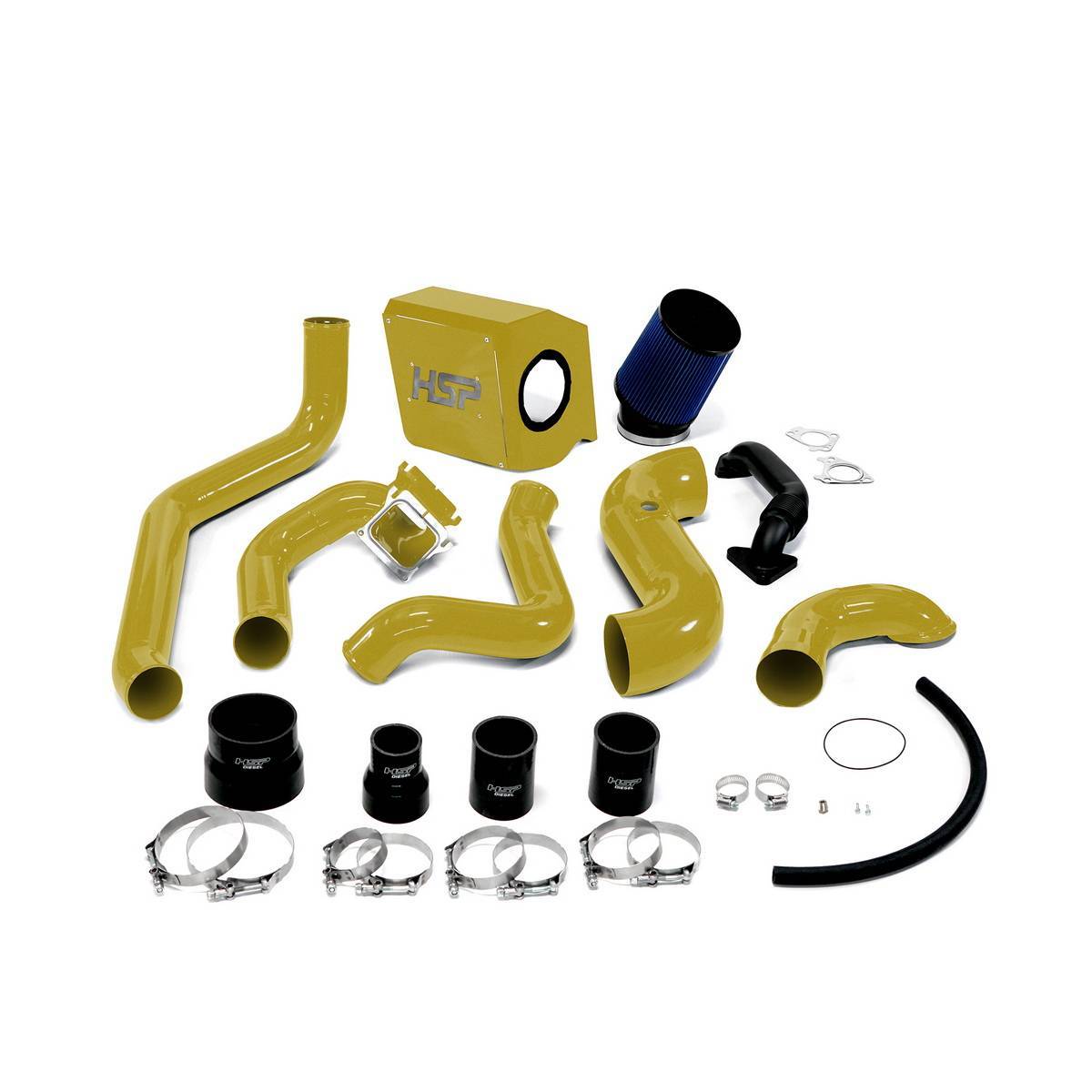

This kit allows your engine to breathe easier and cooler. Featuring a mandrel-bent 4.5-inch LBZ-style intake tube for massive airflow gains and HSP's signature heat shield box to eliminate unwanted hot air entering the cold air intake. Every 1-degree increase in intake air temperature can result in a 3hp loss. The kit also includes HSP's high flow turbo mouthpiece for rerouting the factory PCV system and removing the factory resonator box (PCV re-route sold separately).
Included are 3-inch mandrel bent hot side and cold side tubes with a two-piece Y-bridge and race-proven 5-layer silicone boots for a leak-free installation. The hot side tube runs directly into the intercooler for lower temperatures, better airflow, and added clearance. The 3-inch cold side tube ensures your engine gets maximum airflow. Also included is a 2-inch passenger-side up-pipe featuring .120 inch tubing and high-quality bellow construction to replace the factory up-pipe prone to failure.
Available Colors:
- Raw
- Polar White
- Illusion Blueberry
- Illusion Purple
- Flag Red
- Custom Color
- Kingsport Grey
- Ink Black
- Illusion Cherry
- M&M Orange
- Silk Satin Black
What's included?
- 2x 3" x 4" Straight Boots
- 5x 3" T-Bolt Clamps
- 1x 2.25" - 3" Reducer Boot
- 1x 2.25" T-Bolt Clamp
- 1x Bridge Neck O-Ring
- 2x Bridge Neck Stud
- 2x Bridge Neck 12-Point Nut
- 2' Heater Hose
- 2x 5/8" Worm Gear Clamp
- 1x 1/8" NPT Brass Plug
- 2x M4x.7x10mm Bolt
- 3x 10-32 x 3/8" Button Head Screw
- 4x 1/8" Aluminum Rivet
- 1x 4" - 4.5" Reducer Boot
- 1x 4" T-Bolt Clamp
- 1x 4.5" T-Bolt Clamp
- 1x 4.5" Filter
- 16" Trim Seal
- 1x Turbo Inlet O-Ring
- 1x Up-Pipe Gasket (Turbo Side)
- 1x Up-Pipe Gasket (Manifold Side)
