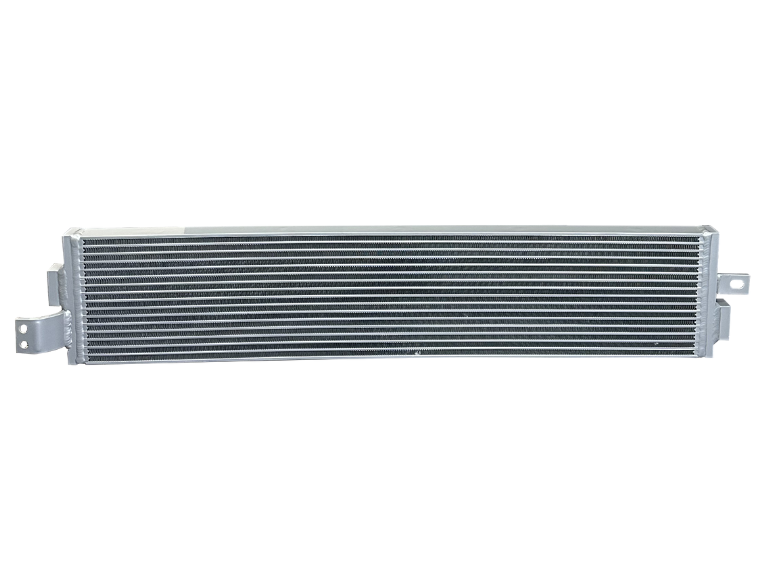

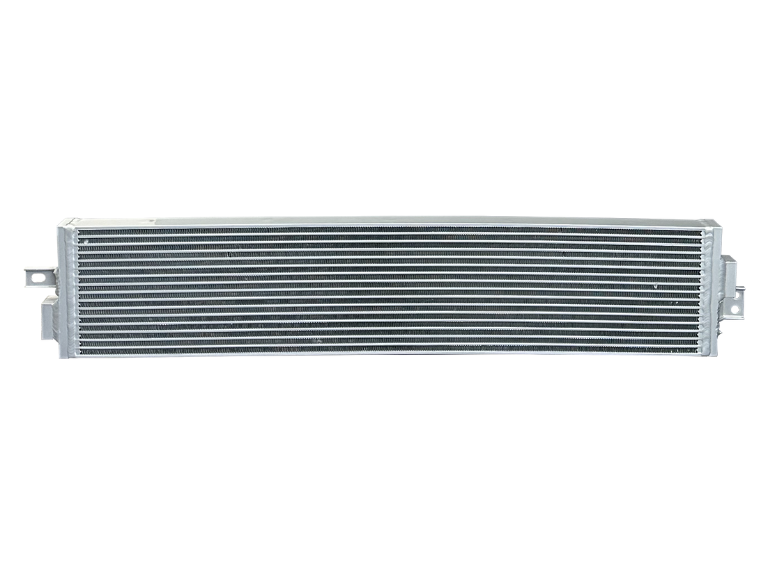

FLUIDYNE HIGH PERFORMANCE BAR AND PLATE TRANSMISSION COOLER TOC.A1000.2024 | 2020-2024 6.6L Duramax L5P

Keep transmission temperatures under control in your GM 6.6L Duramax L5P with the Fluidyne TOC.A1000.2024 High-Performance Transmission Cooler. Designed as a direct replacement for the factory cooler, this premium bar-and-plate unit delivers significantly greater cooling capacity to help maintain transmission performance during towing, hauling, and demanding driving conditions.

Built from aerospace-grade aluminum, the Fluidyne cooler utilizes a high-efficiency core design with dense cooling fins and fully welded internal splitter plates to maximize heat transfer while maintaining reliable fluid separation and flow characteristics.

Key Benefits:

• Provides substantially greater cooling capacity than the factory cooler
• Helps reduce transmission fluid temperatures under heavy loads
• Direct replacement design for straightforward installation
• Built for demanding towing, performance, and motorsports applications

Features:

• High-performance bar-and-plate transmission cooler
• Up to four times the heat exchange capacity of the factory cooler
• Dense fin design for enhanced cooling efficiency
• Proprietary fin configuration for maximum performance
• Aerospace-grade aluminum construction
• Fully welded internal splitter plates
• Powder-coated finish with heat-wicking compound
• Uses factory mounting locations
• Direct bolt-in installation

Specifications:

• Length: 35.82"
• Height: 7.32"
• Depth: 1.57"
• Cooler Construction: Bar & Plate
• Cooler Material: Aluminum
• Cooler Finish: Silver Powder Coat
• Number of Passes: Dual Pass
• Inlet Size: -10 AN Female O-Ring
• Outlet Size: -10 AN Female O-Ring
• Fan Included: No

Additional Information:

• Designed for use on GM 6.6L Duramax L5P applications
• Fluidyne transmission coolers are trusted in professional motorsports applications
