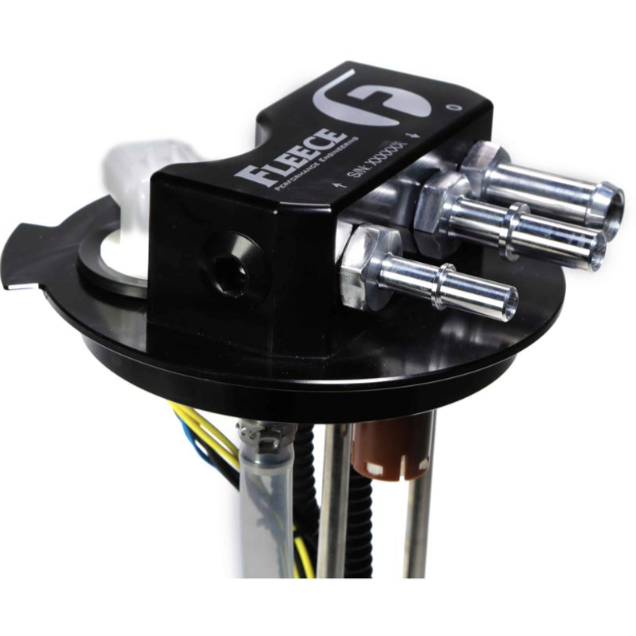

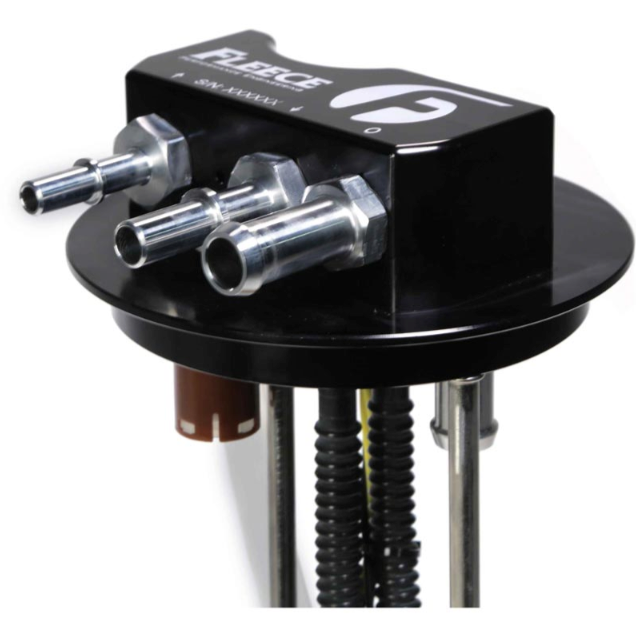

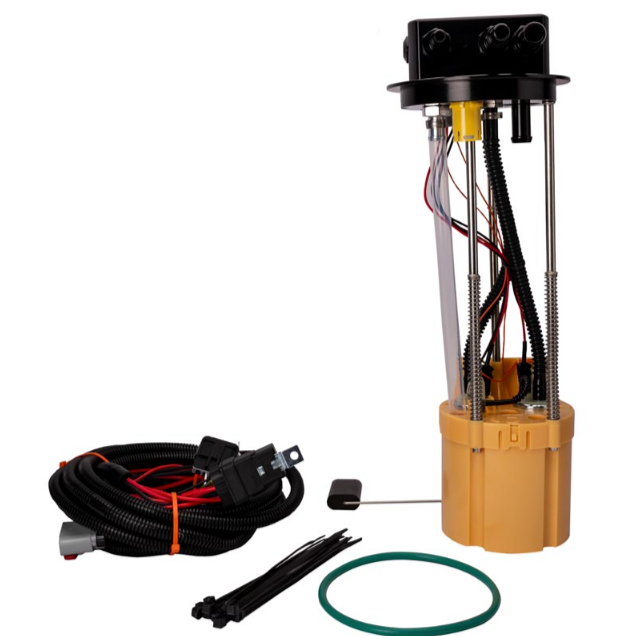

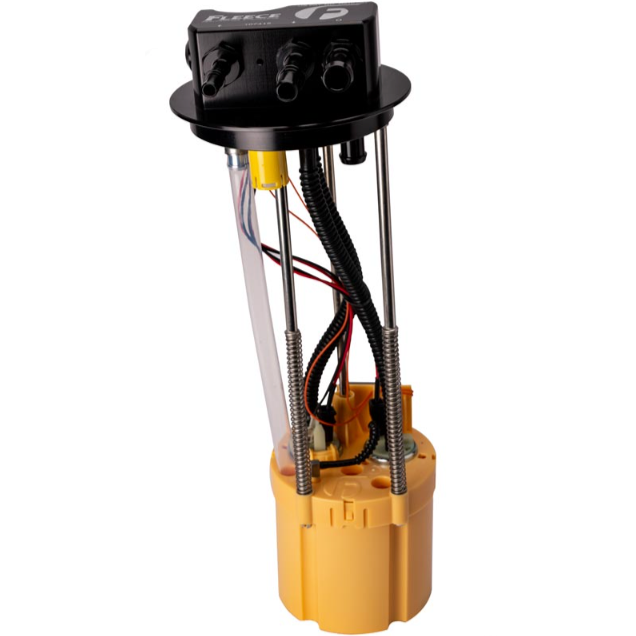

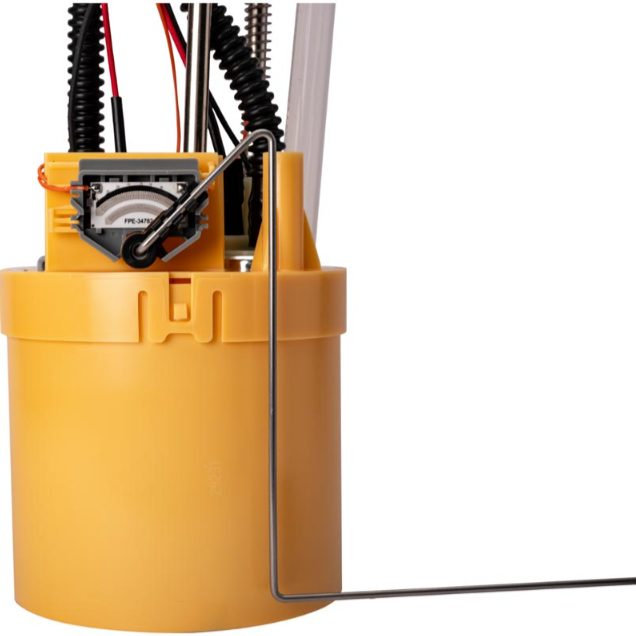

FLEECE POWERFLO IN-TANK FUELLIFT PUMP FPE-34790 | 2007.5-2010 6.6L DURAMAX LMM

Upgrade the fuel delivery system in your GM 6.6L Duramax LMM with the Fleece Performance FPE-34789 PowerFlo Lift Pump. Designed as a direct in-tank replacement for the factory pump, the PowerFlo provides increased fuel flow to support applications producing up to approximately 800 RWHP while maintaining a clean, factory-style installation.

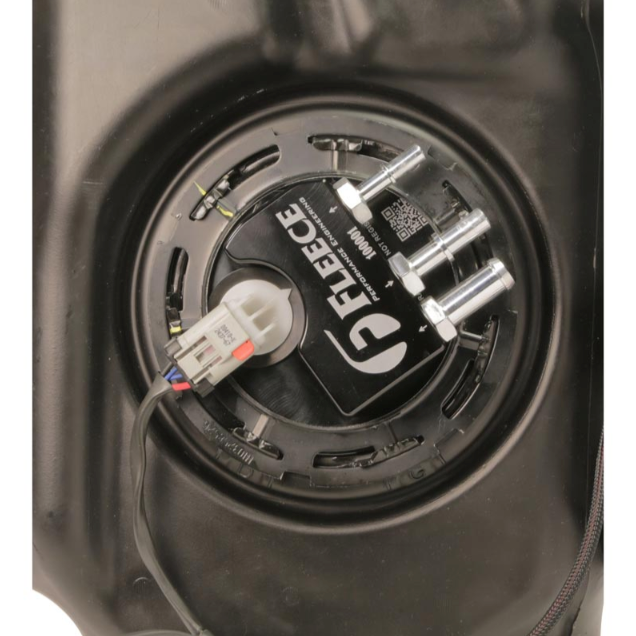

The PowerFlo utilizes dual OEM-quality gerotor pumps for increased flow capacity and reliable fuel delivery. Because the pump installs inside the factory fuel tank, it retains the factory fuel lines, Water-In-Fuel sensor, and fuel heater while providing quiet operation compared to many frame-mounted lift pump systems.

Fleece's active fill bucket technology maintains fuel around the pumps and eliminates the need for a tank sump or draw straw. This design also helps prevent the quarter-tank fuel delivery issues commonly associated with some aftermarket high-flow fuel systems.

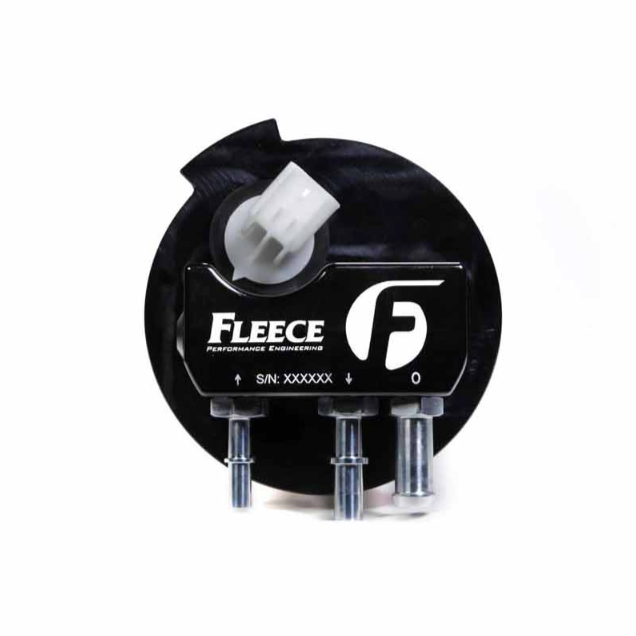

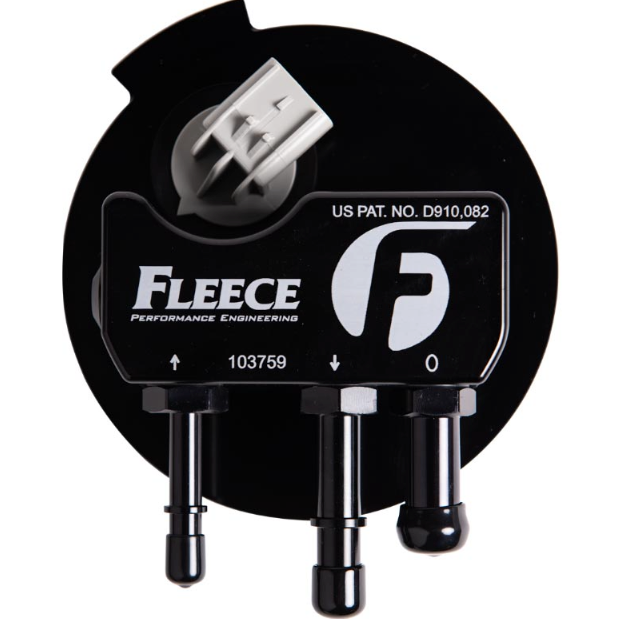

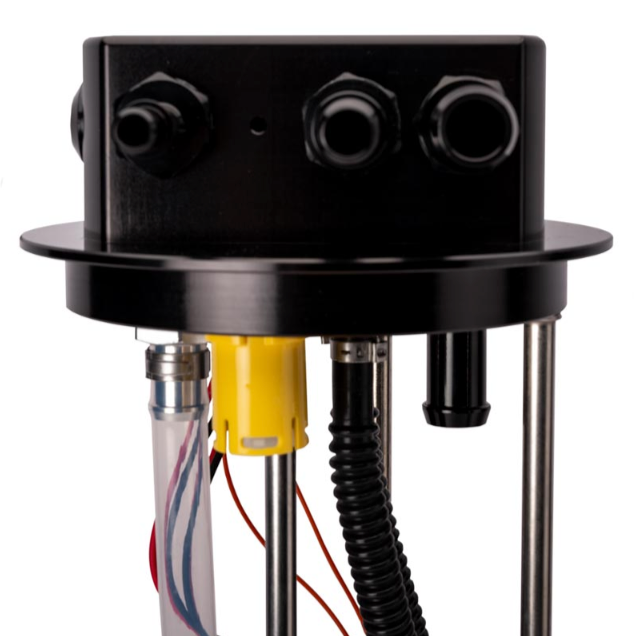

For custom fuel system configurations, the pump outlet and return ports are threaded to accept -8 O-ring fittings with 3/4"-16 threads. This allows aftermarket fuel lines or filtration components to be incorporated while retaining the benefits of the in-tank PowerFlo system.

Features

• Direct in-tank replacement – Designed as a drop-in replacement for the factory lift pump
• Dual gerotor pumps – Uses two OEM-quality pumps for increased flow capacity and reliability
• Supports up to approximately 800 RWHP – Provides increased fuel delivery for high-performance applications
• Active fill bucket technology – Maintains fuel supply without requiring a tank sump or draw straw
• Helps eliminate quarter-tank issues – Designed for consistent fuel delivery at lower tank levels
• Quiet in-tank operation – Avoids the noise associated with many frame-mounted lift pumps
• Retains factory components – Works with the factory fuel lines, Water-In-Fuel sensor, and fuel heater
• No sump or draw straw required – Provides a clean installation without cutting into the fuel tank
• Aftermarket fuel system compatible – Outlet and return ports accept -8 O-ring fittings with 3/4"-16 threads
• Biodiesel compatible – Validated for use with fuel blends containing up to 20% biodiesel

Specifications

• Pump Type: Dual Gerotor
• Power Capability: Up to Approximately 800 RWHP
• Operating Pressure: 10–13 PSI at Idle
• Installation Location: In-Tank
• Outlet/Return Port: -8 O-Ring Compatible, 3/4"-16 Thread
• Fuel Tank Configuration: Single Tank Only
• Biodiesel Compatibility: Up to B20

Application Notes

• For use with single fuel tank configurations only.
• Designed for pickup-style trucks. Cab & Chassis applications require verification of the correct pump part number.
• Not compatible with S&B aftermarket fuel tanks.
• For use with Titan aftermarket fuel tanks, reference current Fleece Performance fitment information.

Fitment: GM 6.6L Duramax LMM Pickup Trucks

Part Number: FPE-34789
