FLEECE POWERFLO IN-TANK FUELLIFT PUMP FPE-34564 | 2011-2016 6.6L DURAMAX LML (LONG BED)

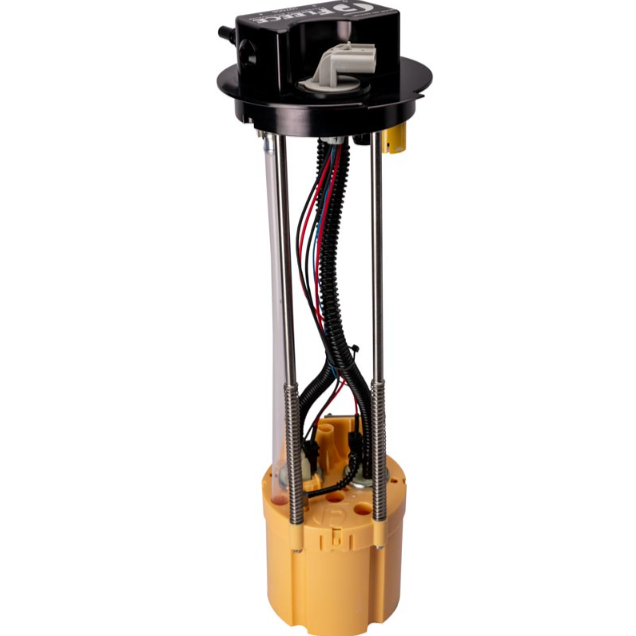

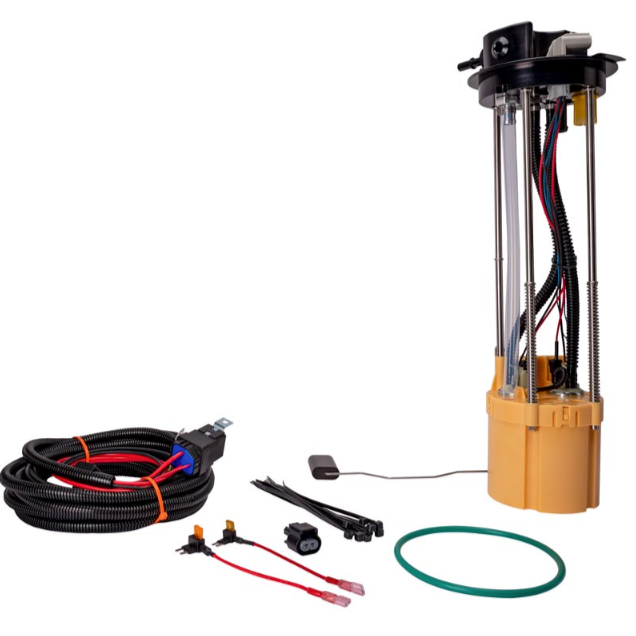

Upgrade the fuel delivery system in your GM 6.6L Duramax LML with the Fleece Performance PowerFlo Lift Pump. Designed as a direct in-tank replacement for the factory pump, the PowerFlo provides increased fuel flow to support applications producing up to approximately 800 horsepower while maintaining a clean, factory-style installation.

The PowerFlo utilizes dual OEM-quality gerotor pumps to provide consistent fuel delivery and increased reliability compared to the factory pump. The additional flow capacity makes the system suitable for higher-horsepower applications, including compatible dual CP3 configurations.

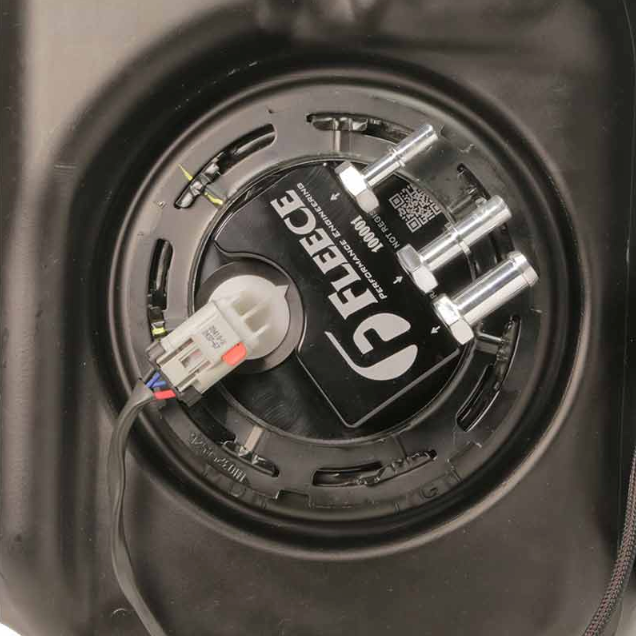

Because the PowerFlo installs inside the factory fuel tank, it retains the factory fuel lines and integrates with the existing fuel system without requiring a frame-mounted pump, tank sump, or draw straw. Fleece's active fill bucket technology maintains fuel around the pumps and helps eliminate the quarter-tank fuel delivery issues commonly associated with some aftermarket lift pump systems.

For custom fuel system configurations, the pump outlet and return ports are threaded to accept -8 O-ring fittings with 3/4"-16 threads. This allows custom fuel lines or aftermarket filtration components to be incorporated while retaining the benefits of the in-tank PowerFlo pump.

The PowerFlo is designed for straightforward installation and is backed by the Fleece Performance Lifetime Warranty according to current warranty terms.

Features

• Direct in-tank replacement – Replaces the factory lift pump while maintaining a clean OEM-style installation
• Dual gerotor pumps – Uses two OEM-quality pumps for increased flow capacity and reliability
• Supports up to approximately 800 HP – Provides increased fuel delivery for high-performance applications
• Dual CP3 compatible – Designed to provide sufficient fuel supply for compatible dual CP3 configurations

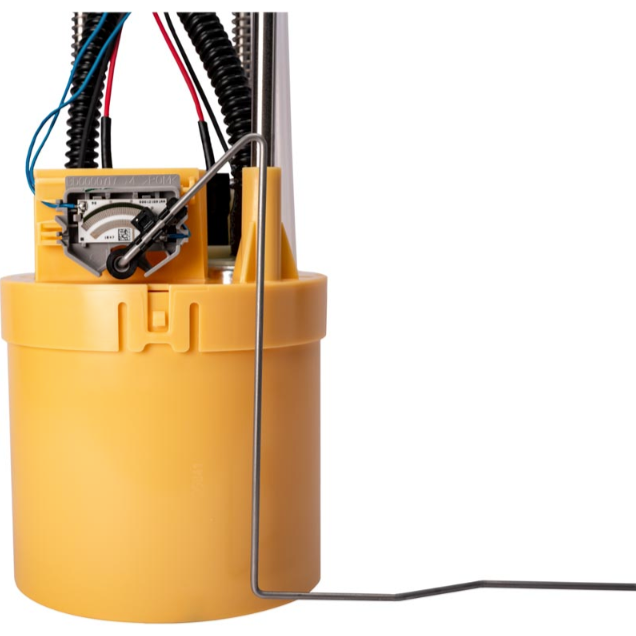

• Active fill bucket technology – Helps maintain consistent fuel supply without a tank sump or draw straw
• Helps eliminate quarter-tank issues – Designed for reliable fuel delivery at lower tank levels
• Retains factory fuel lines – Integrates with the existing vehicle fuel system
• No sump or draw straw required – Simplifies installation compared to many frame-mounted systems

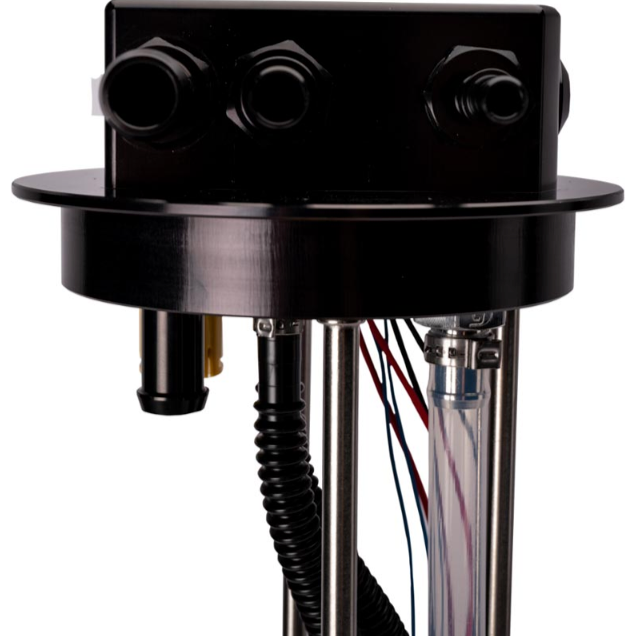

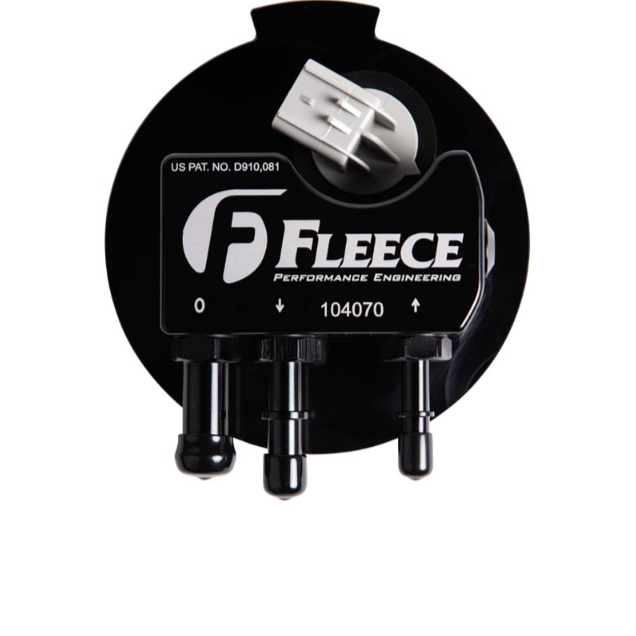

• Custom fuel system compatible – Outlet and return ports accept -8 O-ring fittings with 3/4"-16 threads
• Aftermarket filtration compatible – Allows custom fuel lines and filtration components to be incorporated
• Biodiesel compatible – Validated for use with fuel blends containing up to 20% biodiesel
• Lifetime warranty – Backed by Fleece Performance according to current warranty terms

Specifications

• Pump Type: Dual Gerotor
• Power Capability: Up to Approximately 800 HP
• Operating Pressure: 10–13 PSI at Idle
• Installation Location: In-Tank
• Outlet/Return Port: -8 O-Ring Compatible, 3/4"-16 Thread
• Fuel Tank Configuration: Single Tank Only
• Biodiesel Compatibility: Up to B20

Application Notes

• For use with single fuel tank configurations only.
• Designed for pickup-style trucks. Cab & Chassis applications require verification of the correct pump part number.
• Not compatible with S&B aftermarket fuel tanks.
• For use with Titan aftermarket fuel tanks, reference current Fleece Performance fitment information.
• Fleece recommends using the FPE-DMAX-HFFBA-1116 Auxiliary Heated Fuel Filter Kit with the PowerFlo Lift Pump.

Recommended Fuel Filter Upgrade

The optional Fleece FPE-DMAX-HFFBA-1116 Auxiliary Heated Fuel Filter Kit replaces the factory fuel filter housing with an upgraded filter base featuring an integral high-flow fuel heater, Water-In-Fuel sensor provision, and Donaldson spin-on canister-style fuel filter. It mounts in the factory location and is designed to provide increased fuel heating and filtration capacity for demanding applications and cold-weather operation.

Fitment: GM 6.6L Duramax LML Pickup Trucks

Part Number: FPE-34564
