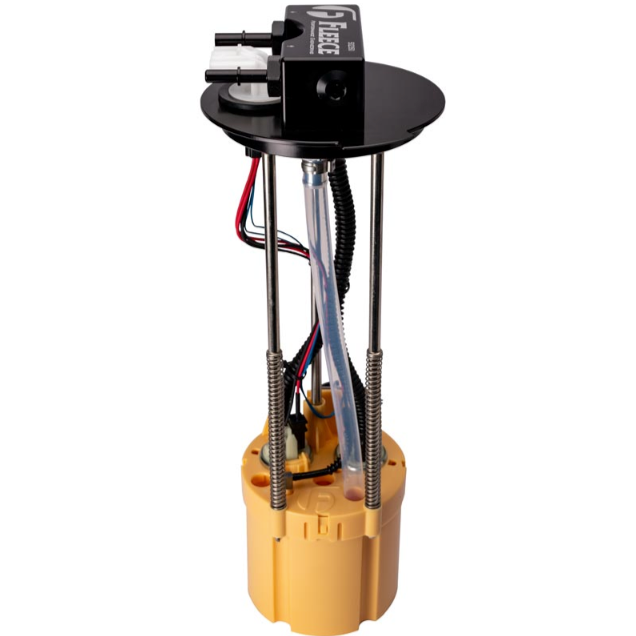

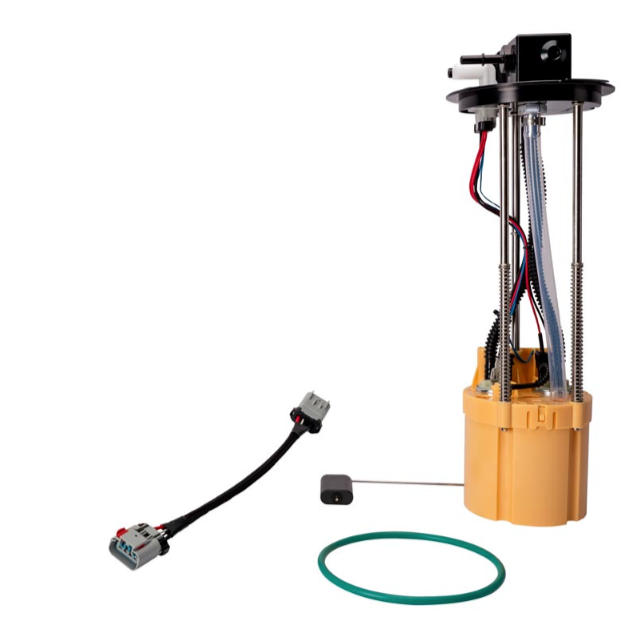

FLEECE POWERFLO IN-TANK FUEL LIFT PUMP FPE-3456 | 2011-2024 6.7L CUMMINS

Upgrade the factory fuel delivery system in your Ram 2500 or 3500 6.7L Cummins with the Fleece Performance PowerFlo Lift Pump. Designed as a direct in-tank replacement, the PowerFlo provides increased fuel flow without the noise, tank sumps, draw straws, or quarter-tank fuel delivery issues commonly associated with traditional high-flow lift pump systems.

The PowerFlo utilizes dual OEM-quality gerotor pumps that have undergone more than 12,000 hours of testing. The system flows approximately 170 GPH at 15 PSI and is capable of supporting applications producing up to approximately 800 RWHP, including compatible dual CP3 configurations.

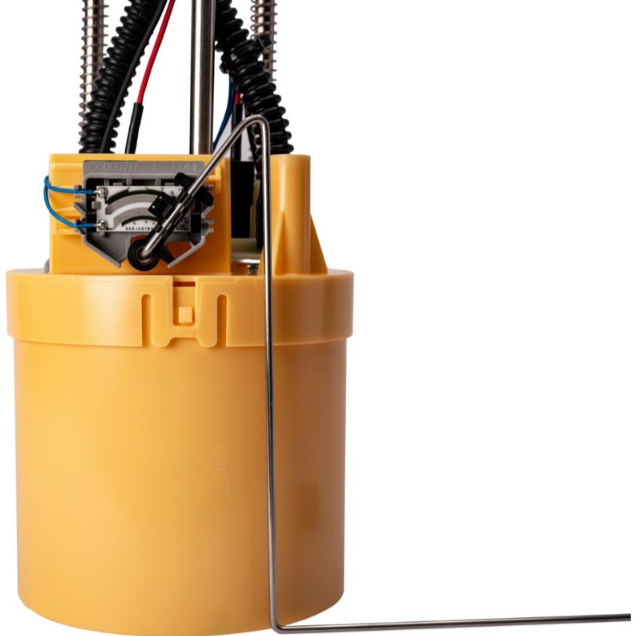

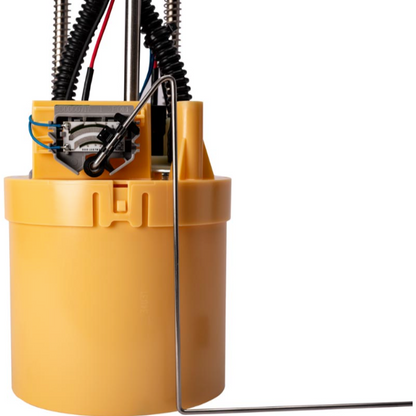

Fleece's active fill bucket technology maintains fuel supply around the pumps without requiring a tank sump or draw straw. This design helps eliminate the quarter-tank issues that can occur with some aftermarket fuel systems while retaining quiet in-tank operation.

Installation is designed around the factory fuel system. The PowerFlo retains the factory Water-In-Fuel sensor, fuel heater, and fuel lines while utilizing factory-style connections for a straightforward installation. For custom fuel systems, the pump outlet and return ports are threaded to accept -8 O-ring fittings with 3/4"-16 threads.

A regulated return helps prevent excessive fuel pressure, while the in-tank configuration provides quiet operation and a clean installation without adding an external frame-mounted pump assembly.

Features

• Direct in-tank replacement – Designed as a drop-in upgrade for the factory lift pump
• Dual gerotor pumps – Uses two OEM-quality pumps for increased flow capacity and reliability
• 170 GPH at 15 PSI – Provides increased fuel delivery for high-performance applications
• Supports up to approximately 800 RWHP – Suitable for compatible high-horsepower and dual CP3 configurations
• Active fill bucket technology – Helps maintain consistent fuel supply without a sump or draw straw
• No quarter-tank issues – Designed to maintain reliable fuel delivery at lower tank levels
• Quiet in-tank operation – Eliminates the noise associated with many frame-mounted lift pumps
• Retains factory components – Works with the factory Water-In-Fuel sensor, fuel heater, and fuel lines
• Factory-style connections – Designed for a straightforward installation with minimal modification
• Regulated return flow – Helps prevent excessive fuel pressure
• Aftermarket fuel system compatible – Outlet and return ports accept -8 O-ring fittings with 3/4"-16 threads
• Biodiesel compatible – Validated for use with fuel blends containing up to 20% biodiesel

Specifications

• Pump Type: Dual Gerotor
• Flow Rating: 170 GPH @ 15 PSI
• Operating Pressure: 18–20 PSI at Idle
• Power Capability: Up to Approximately 800 RWHP
• Installation Location: In-Tank
• Outlet/Return Port: -8 O-Ring Compatible, 3/4"-16 Thread
• Biodiesel Compatibility: Up to B20

Application Notes

• Not compatible with Cab & Chassis applications.
• For 2020+ trucks, this pump is not compatible with the factory-installed 50-gallon fuel tank option.
• Reference current Fleece Performance fitment information when installing with Titan or S&B aftermarket fuel tanks.
• Designed to retain the factory Water-In-Fuel sensor, fuel heater, and fuel lines.

Fitment: Ram 2500 & 3500 6.7L Cummins

Part Number: FPE-34562
