FLEECE COOLANT BYPASS KIT FPE-CLNTBYPS-CUMMINS-19 | 2019-2024 6.7L CUMMINS

Improve coolant circulation through the rear cylinders of your Dodge/Ram 6.7L Cummins with the Fleece Performance FPE-CLNTBYPS-19 Coolant Bypass Kit. Designed to address reduced coolant flow at the rear of the engine, this system helps lower rear-cylinder coolant temperatures and reduce excessive cooling-system pressure.

The rear cylinders of the 6.7L Cummins can experience higher operating temperatures due to reduced coolant flow. This temperature increase can contribute to excessive pressure at the rear of the engine, increasing the risk of freeze plug or under-valve-cover plug failure.

The Fleece Coolant Bypass Kit incorporates a secondary thermostat that regulates additional coolant flow based on temperature rather than waiting for excessive pressure to develop. This helps maintain more consistent coolant temperatures across all six cylinders and reduces pressure buildup at the rear of the engine.

Designed for a clean, factory-style fit and finish, the complete kit includes front and rear coolant bypass thermostat housings, black braided nylon coolant hose, -AN O-ring fittings, new EGR cross-over tube gaskets, and the necessary mounting hardware.

Features

• Improved rear-cylinder coolant flow – Helps lower coolant temperatures at the rear of the engine
• Temperature-activated secondary thermostat – Regulates additional coolant flow based on temperature
• More consistent cylinder temperatures – Helps equalize coolant temperatures across all six cylinders
• Reduces pressure buildup – Helps prevent excessive cooling-system pressure at the rear of the engine
• Factory-style integration – Designed to integrate cleanly with the existing cooling system
• Black braided nylon hose – Provides a durable and clean coolant bypass connection
• -AN O-ring fittings – Provides secure, leak-resistant coolant connections

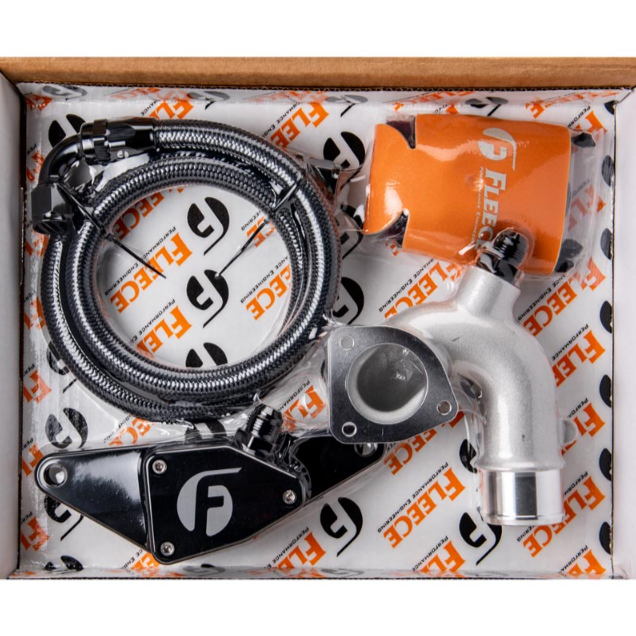

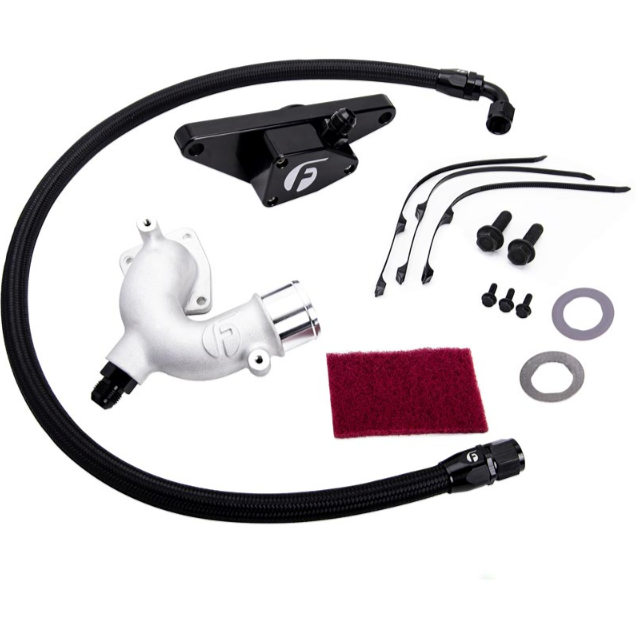

Kit Includes

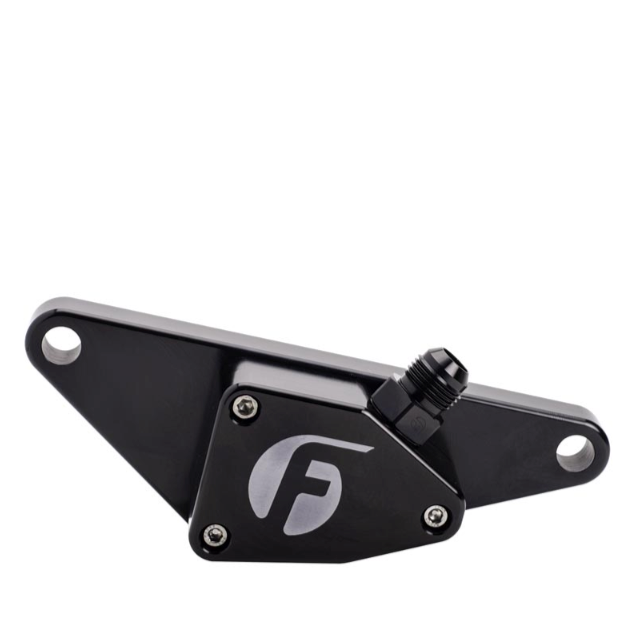

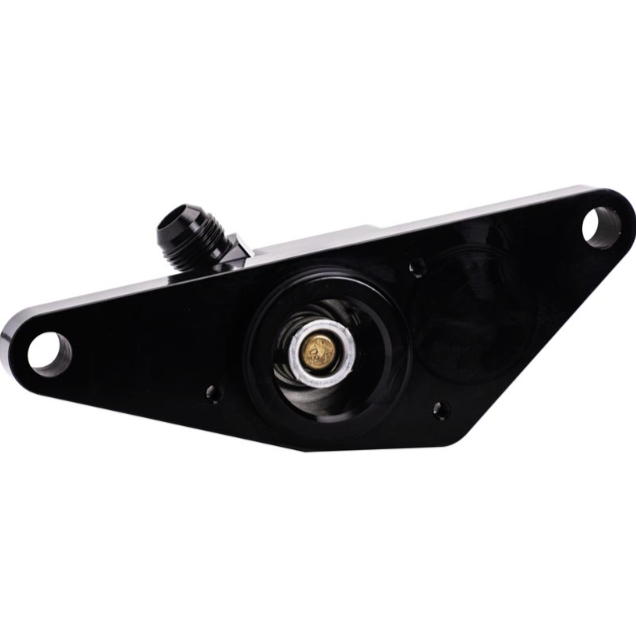

• Rear Coolant Bypass Thermostat Housing

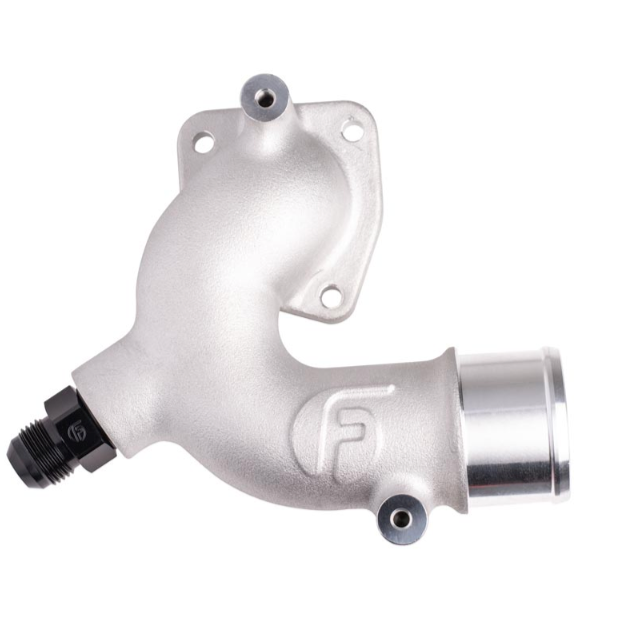

• Front Coolant Bypass Thermostat Housing

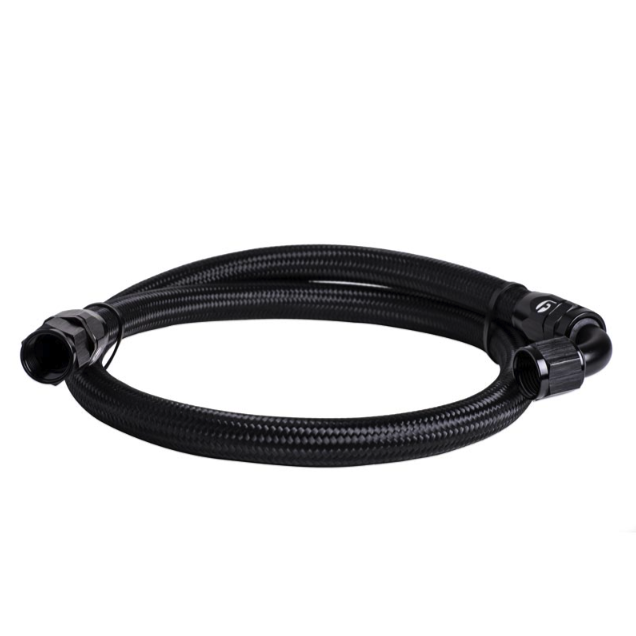

• Black Braided Nylon Coolant Bypass Hose
• -AN O-Ring Fittings
• New EGR Cross-Over Tube Gaskets
• Mounting Hardware

Application Notes

• Designed to improve coolant circulation through the rear cylinders of the 6.7L Cummins.
• Verify all fittings, hoses, and sealing surfaces during installation to ensure proper cooling-system operation.

Fitment: Dodge/Ram 6.7L Cummins

Part Number: FPE-CLNTBYPS-CUMMINS-19
