FLEECE COOLANT BYPASS KIT FPE-CLNTBYPS-CUMMINS-0712 | 2007.5-2012 6.7L CUMMINS

Improve coolant circulation and maintain more consistent cylinder temperatures in your 2007.5–2012 Dodge/Ram 6.7L Cummins with the Fleece Performance FPE-CLNTBYPS-0712 Coolant Bypass Kit. Designed to address reduced coolant flow through the rear of the engine, this system helps lower rear-cylinder coolant temperatures and reduce excessive cooling-system pressure.

The rear cylinders of the 6.7L Cummins can experience higher coolant temperatures due to limited coolant flow through the back of the engine. This temperature increase can contribute to excessive pressure at the rear of the block and increase the risk of freeze plug failure.

The Fleece Coolant Bypass Kit incorporates a secondary thermostat that regulates additional coolant flow based on temperature rather than excessive cooling-system pressure. This helps maintain more consistent temperatures across all six cylinders while reducing pressure buildup at the rear of the engine.

Designed for an OEM-style fit and finish, the complete kit includes front and rear coolant bypass thermostat housings, braided black nylon coolant hose, -AN fittings, mounting hardware, and the components required to accommodate the exhaust back pressure sensor system.

Features

• Improved rear-cylinder coolant flow – Helps lower coolant temperatures at the rear of the engine
• Temperature-activated bypass – Secondary thermostat regulates coolant flow based on temperature
• More consistent cylinder temperatures – Helps equalize coolant temperatures across all six cylinders
• Reduces pressure buildup – Helps prevent excessive cooling-system pressure at the rear of the block
• OEM-style integration – Designed for clean fitment with the factory engine configuration
• Braided coolant hose – Includes black braided nylon hose with a protective sleeve
• -AN O-ring fittings – Provides secure, leak-resistant coolant connections
• 1-year limited warranty – Covered according to current Fleece Performance warranty terms

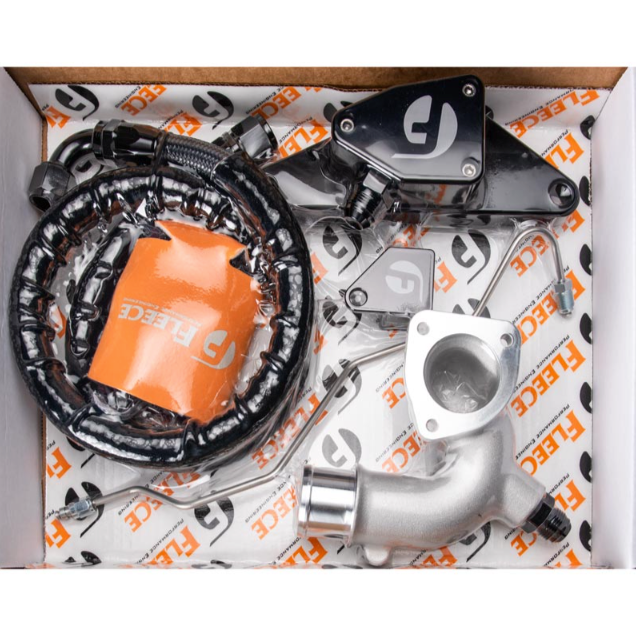

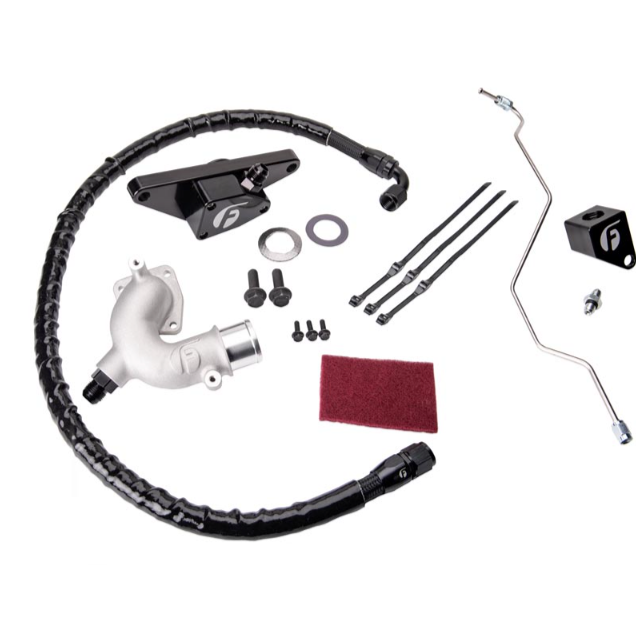

Kit Includes

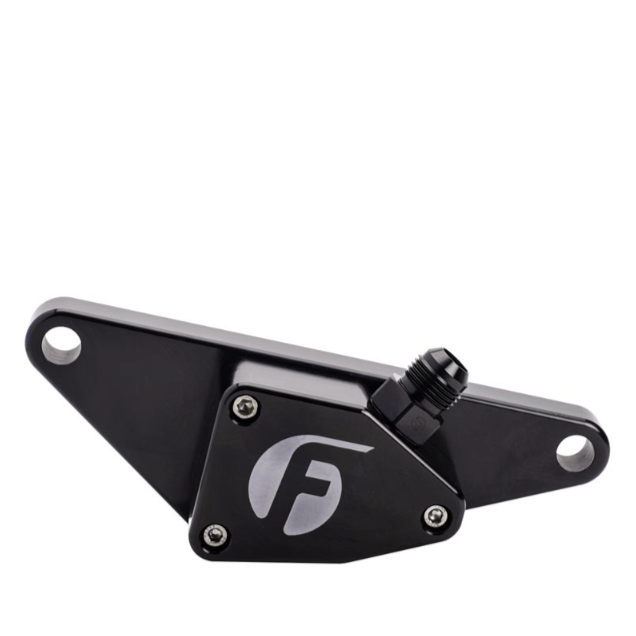

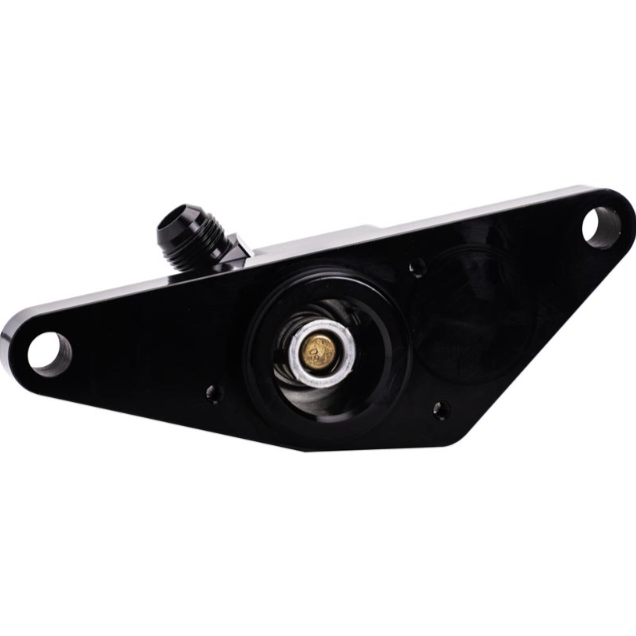

• Rear Coolant Bypass Thermostat Housing

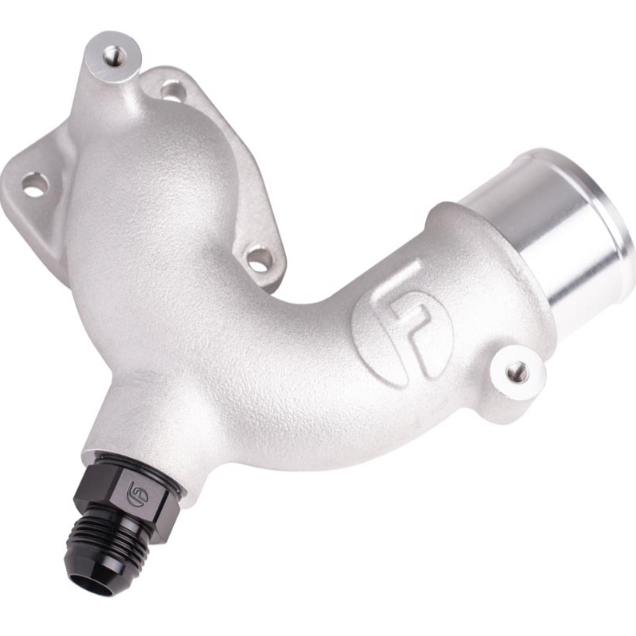

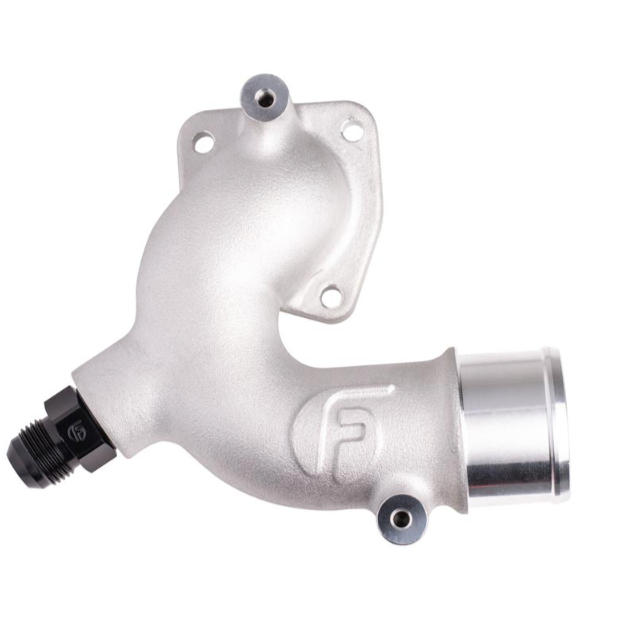

• Front Coolant Bypass Thermostat Housing
• Black Braided Nylon Coolant Bypass Hose with Protective Sleeve
• -AN Fittings
• Exhaust Back Pressure Sensor Mounting Block
• Exhaust Back Pressure Sensor Line
• New EGR Cross-Over Tube Gaskets
• Mounting Hardware

Application Notes

• Designed to improve coolant circulation through the rear cylinders of the 6.7L Cummins.
• Verify all fittings, hoses, and sealing surfaces during installation to ensure proper cooling-system operation.

Fitment: 2007.5–2012 Dodge/Ram 6.7L Cummins

Part Number: FPE-CLNTBYPS-CUMMINS-0712
