FASS Titanium Signature Series Plus 220GPH Fuel System TSPC13250F220G | 2017-2019 Duramax 6.6L L5P

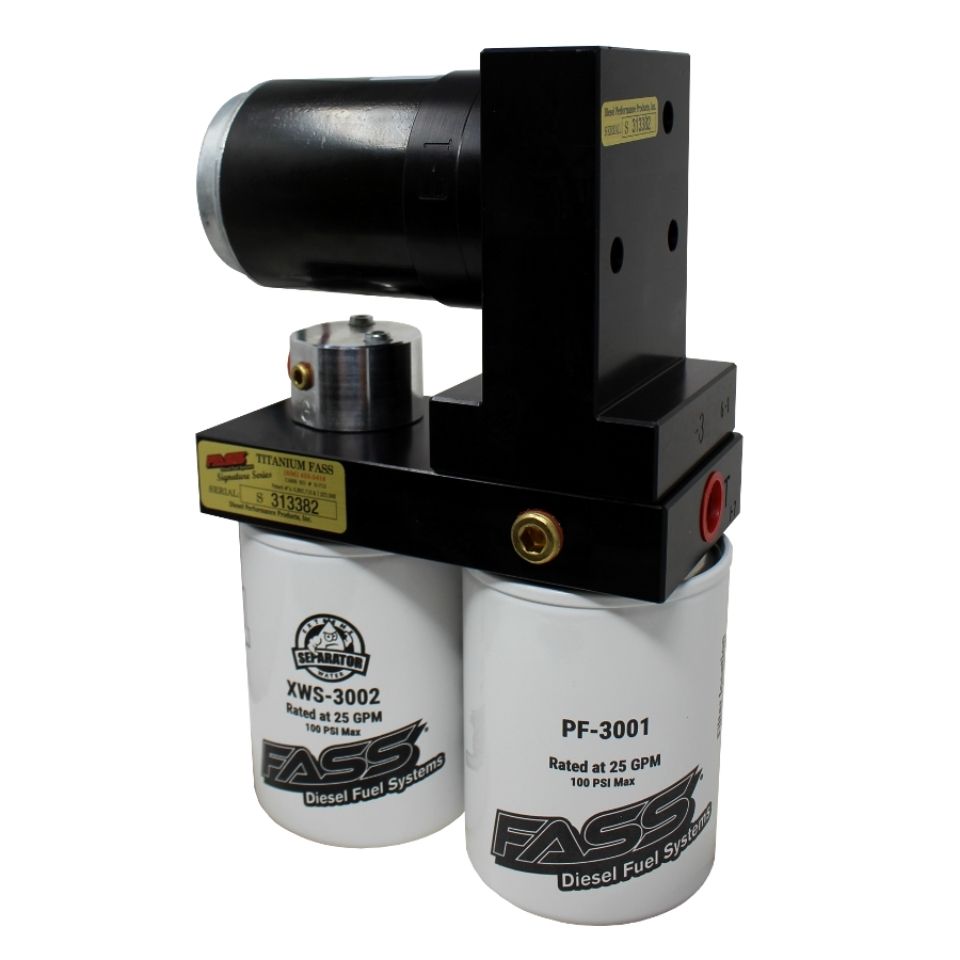

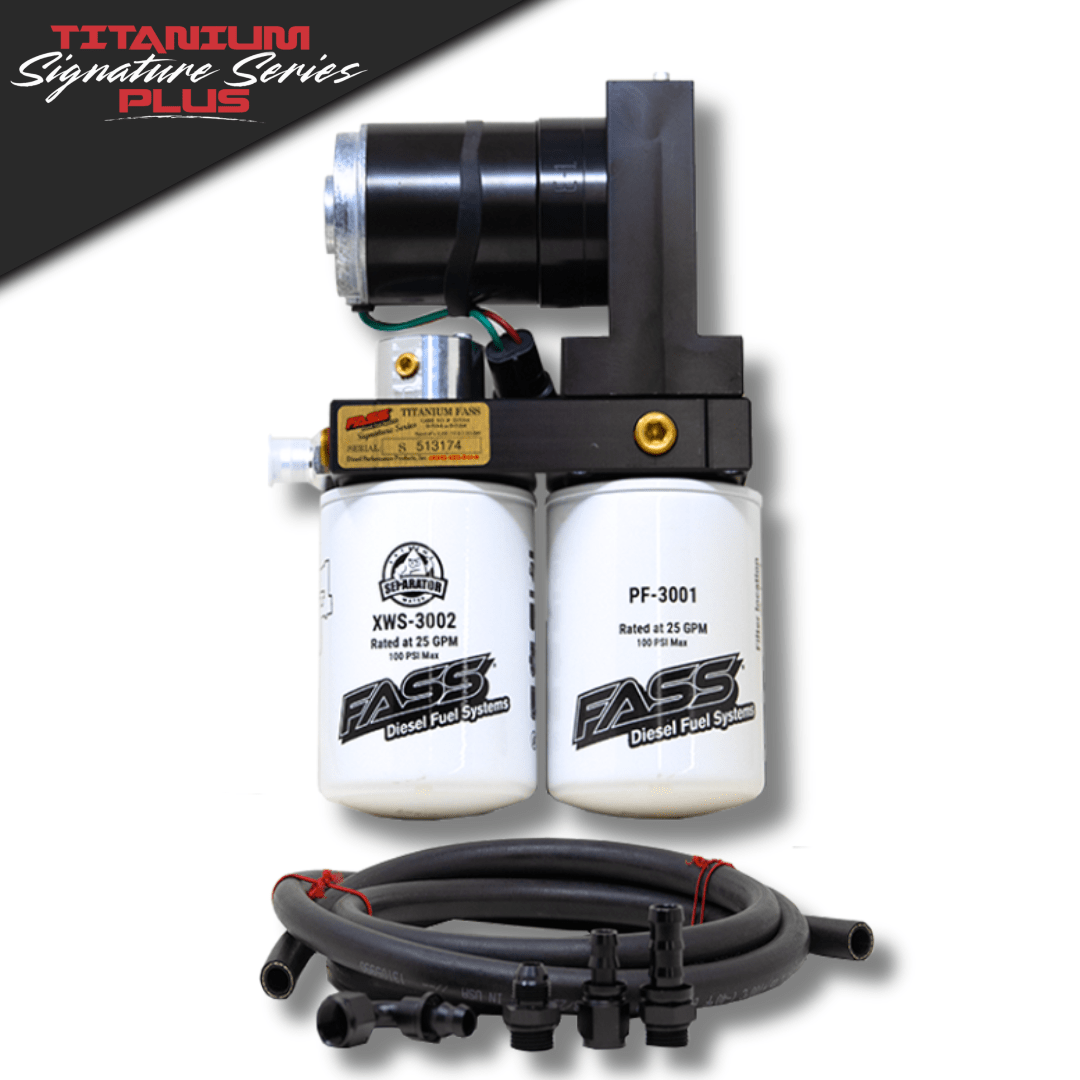

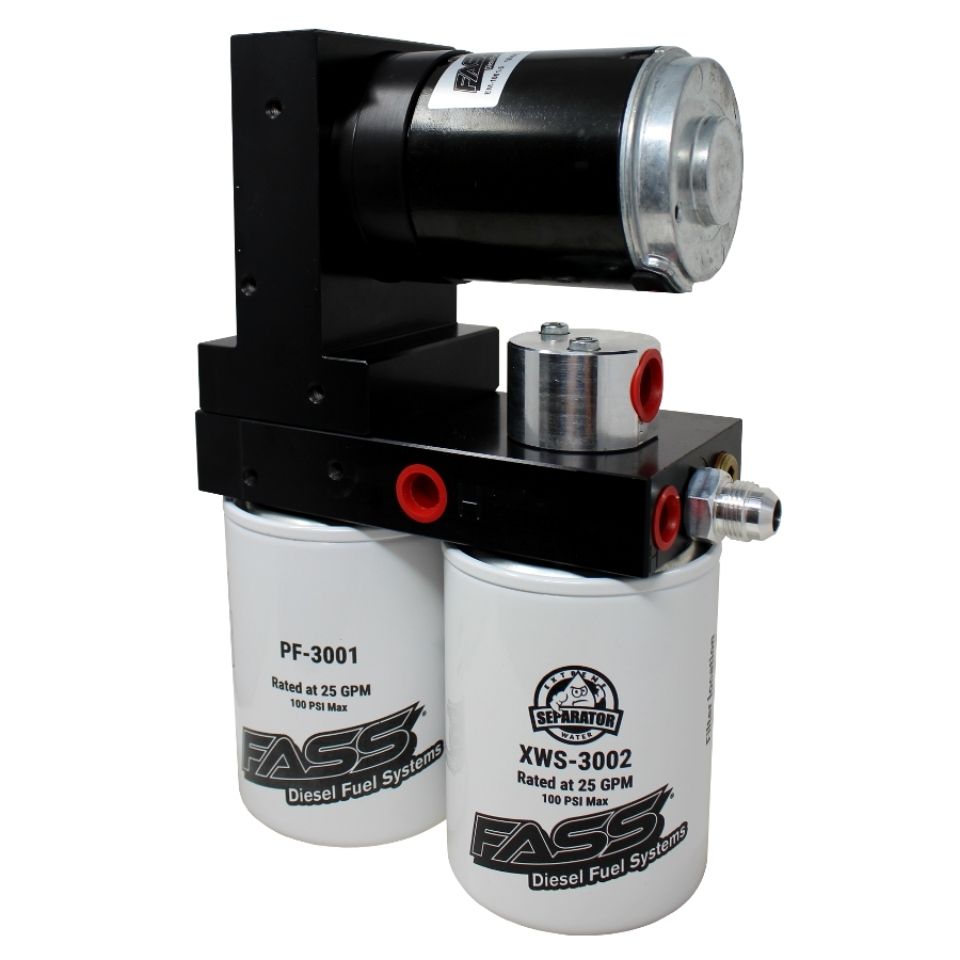

FASS TSPC13250F220G – Titanium Signature Series Plus 220GPH Fuel System

Upgrade your GM 6.6L Duramax L5P with the FASS TSPC13250F220G Titanium Signature Series Plus 220GPH Fuel System and get improved fuel delivery and protection for high-performance applications. As the next evolution of the proven Titanium Signature Series, the Plus system incorporates ORB (O-Ring Boss) fittings, 6061 aluminum black anodized fittings, and black fuel lines for a clean and professional installation. Rated at 220 gallons per hour, this system supports 500–900 HP applications.

The Titanium Signature Series Plus enhances reliability with advanced filtration features, including a 2-micron filtration rating, a built-in water separation filter, and FASS’ patented air/vapor removal process. Together, these features extend injector and pump life while ensuring your engine always receives clean fuel.

FASS Innovations:

• Whisper Technology (FWT): Reduces pump noise with precision machining, tighter tolerances, and a military-grade coating for quieter operation and long-lasting performance.
• Performance Radius Cuts (PRC): Smooth radius machining improves fuel flow, eliminates sharp corners, and prevents air/vapor from re-entering the fuel system—delivering superior performance compared to competitors.
• Mass Flow Return (MFR): Continuously “polishes” fuel by recirculating unused fuel through filtration before returning it to the tank, guaranteeing consistently clean fuel and protecting your fuel system components.

Easy Installation:
Bolt-on mounting brackets make installation simple, using your factory bed bolts with no drilling or welding required. Heavy-duty machined steel brackets ensure durability and strength.

Titanium Signature Series Plus Includes:

• ORB (O-Ring Boss) Fittings
• 6061 Aluminum Black Anodized Fittings
• Black Fuel Line for a Clean Installation

System Features:

• 220GPH @ 70–75 PSI
• Supports 500–900 HP Applications
• Whisper Technology for Quieter Operation
• 2-Micron Filtration Rating with Water Separation
• Complete Replacement System
• Improved Cold Weather Starts
• 1/2" Fuel Lines and Ports
• Improved Fuel Volume Delivery
• 30,000-Mile Filter Life Expectancy
• Removes Water, Air, & Debris from Fuel
• Increases Efficiency, Performance, & Smoother Idle
• Optional Electric Heater & Fuel Pressure Gauge Port
• Protects & Extends Life of Injectors and Fuel System
