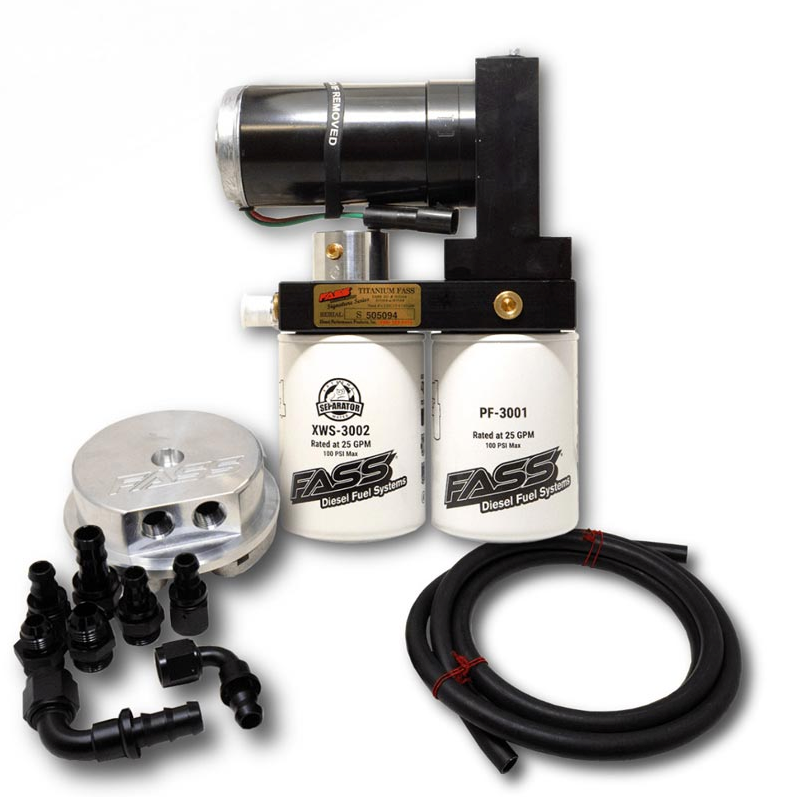

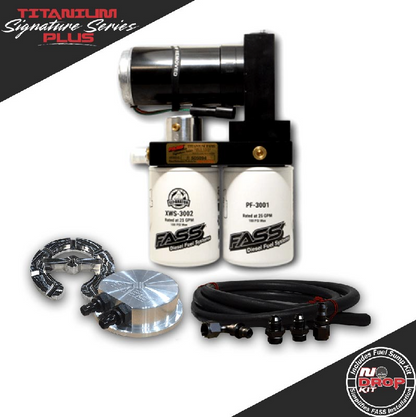

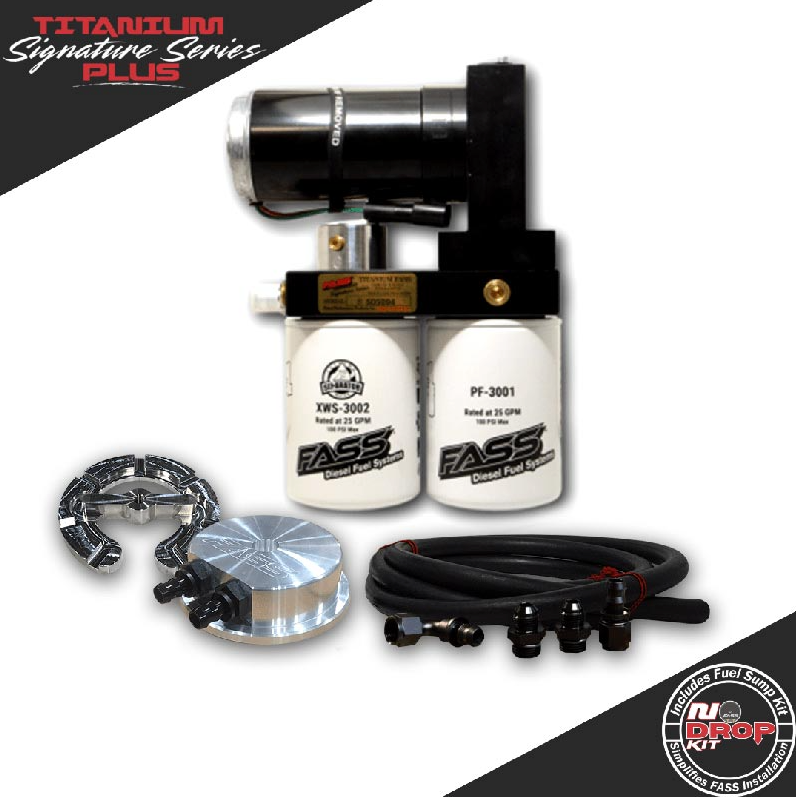

FASS NDTSPF17250F220G No-Drop Kit Titanium Series Plus 220GPH Fuel System & Sump

Increase fueling capacity and reliability on your Ford F-250/F-350 6.7L Powerstroke with the FASS Titanium Signature Series Plus No-Drop 220GPH Fuel System & Sump Kit. Built for high-demand applications, this complete replacement system delivers the volume and pressure required to support aggressive tuning and high-performance fuel system upgrades.

With a flow rating of 220 gallons per hour at high operating pressure, this system provides consistent, air-free fuel delivery while protecting sensitive fuel injection components. Advanced filtration features include a 2-micron filtration rating, integrated water separation, and FASS’s patented air and vapor removal process to help extend injector and fuel system life.

This no-drop kit includes the FASS BHF-1005 bulkhead and suction tube assembly, precision machined from 6061-T6 billet aluminum. The bulkhead mounts directly to the factory fuel tank module, allowing fuel to be drawn from and returned to the tank without removing it. The PTFE Teflon pickup tube can be trimmed to accommodate varying tank depths and helps eliminate common 1/4-tank and 1/8-tank fuel starvation issues.

The Titanium Signature Series Plus system features upgraded ORB (O-ring boss) fittings, black anodized 6061 aluminum fittings, and black fuel line for a clean, professional installation. Noise is reduced through FASS Silencing Technology, while Performance Radius Cuts improve internal fuel flow and prevent air reintroduction. Mass Flow Return technology continuously polishes fuel by maintaining positive pressure and returning unused, filtered fuel back to the tank. Bolt-on mounting brackets utilize factory bed bolts for a fast, drill-free installation, and the included sump provides a stable fuel reservoir under demanding conditions.

Features:

• 220 GPH Fuel Flow Rating at 65 PSI
• Includes FASS Fuel Tank Sump Kit
• No-Drop Design for Simplified Installation
• 2 Micron Filtration with Water Separation
• FASS Whisper / Silencing Technology
• Performance Radius Cuts for Improved Fuel Flow
• Mass Flow Return Technology for Continuous Fuel Polishing
• 1/2"; Fuel Lines and Ports
• Improved Cold Weather Starting
• 30,000 Mile Filter Life Expectancy
• Optional Electric Heater and Fuel Pressure Gauge Ports
• Removes Water, Air, and Debris from Diesel Fuel
• Improves Efficiency, Performance, and Idle Quality
