FASS No-Drop Kit Titanium Series Plus 240GPH Fuel System & Sump NDTSPC15290F240G | 2020-2023 Duramax L5P

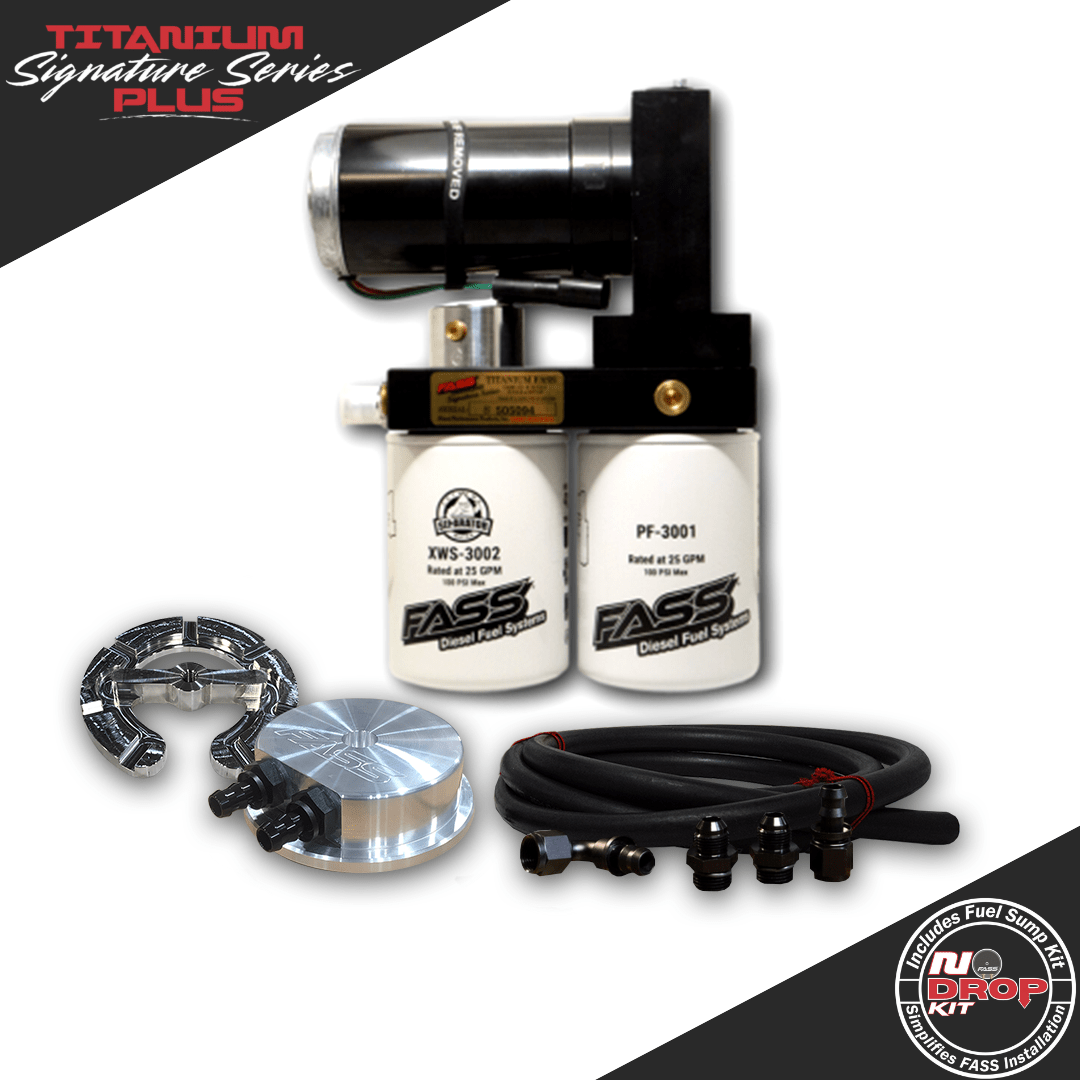

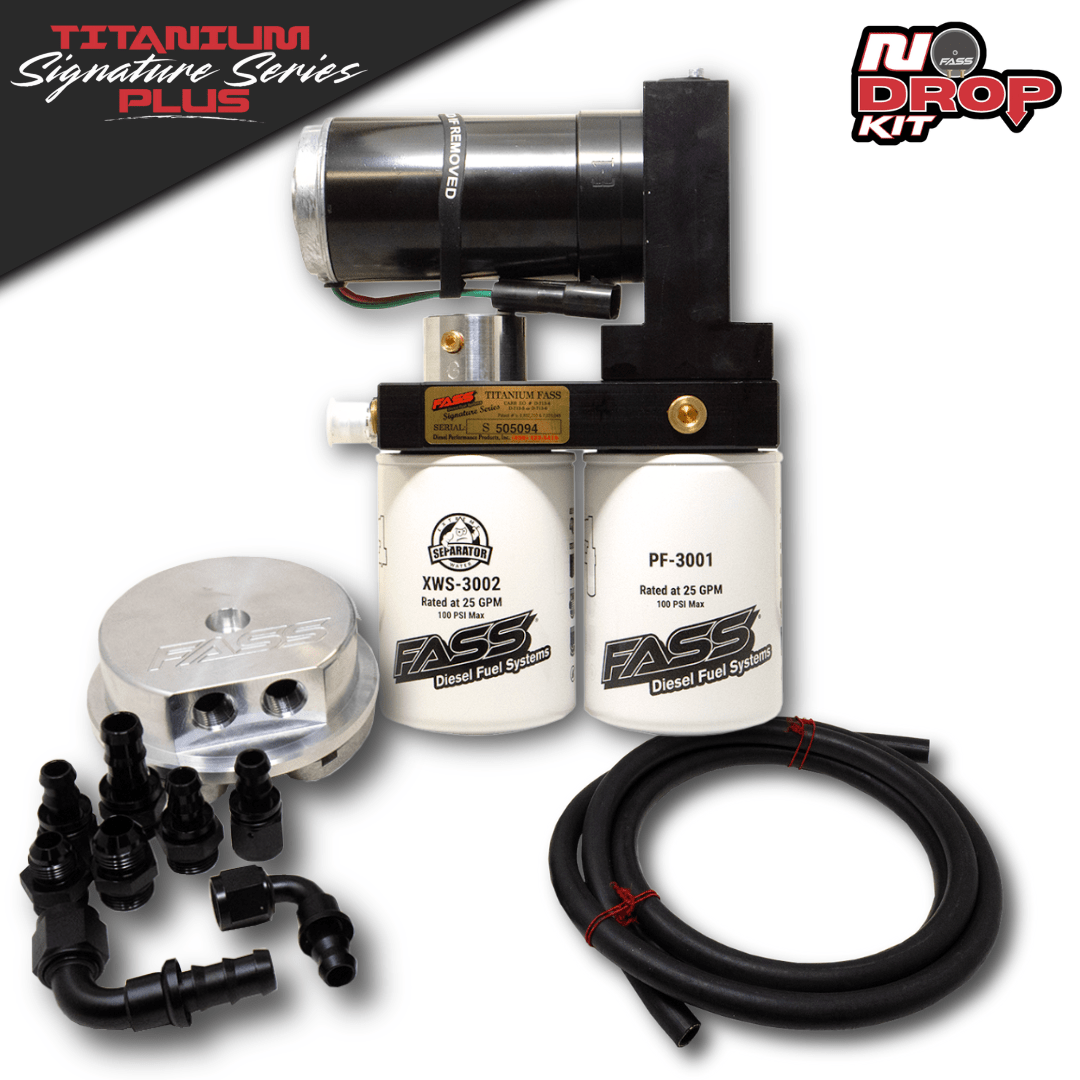

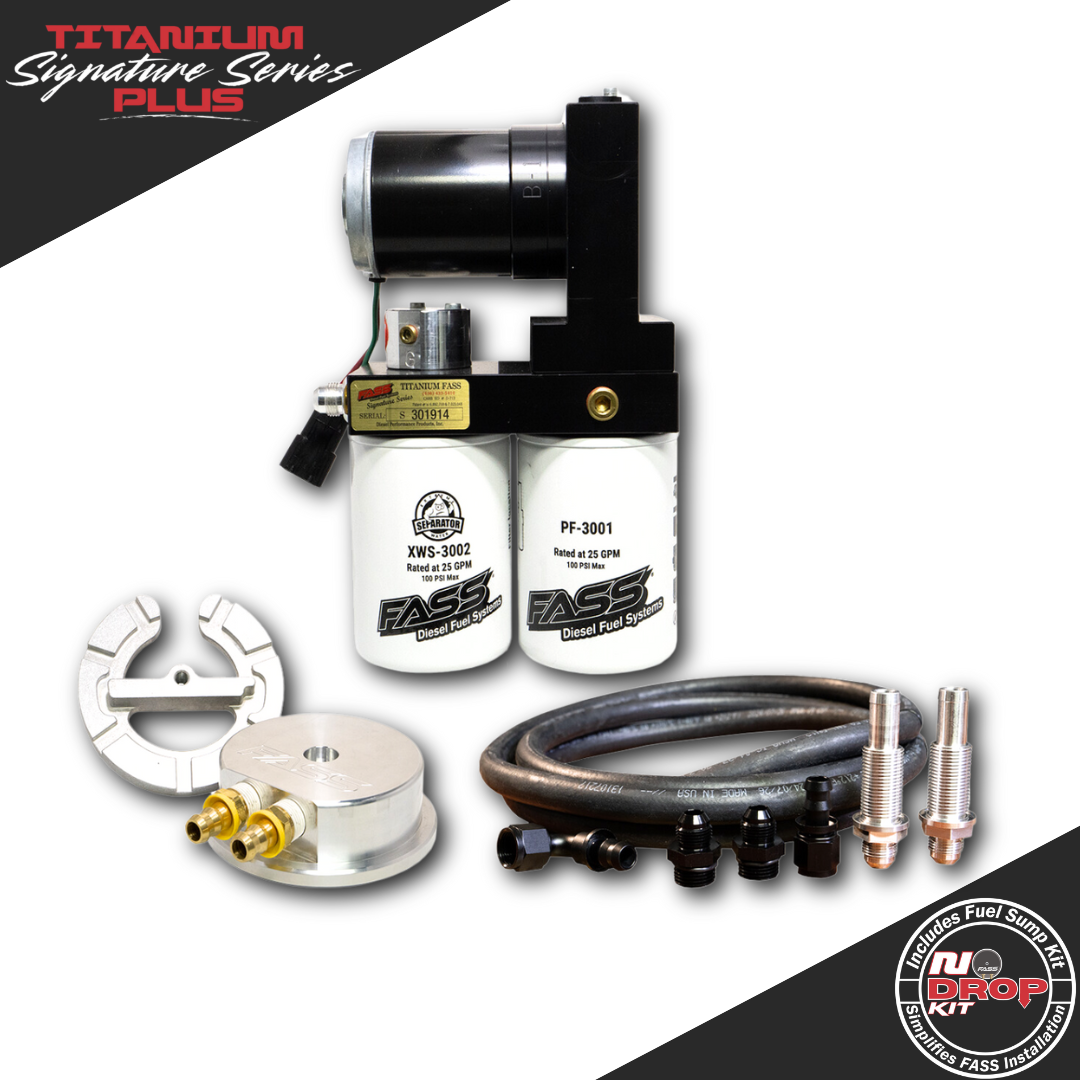

FASS NDTSPC15290F240G – No-Drop Kit Titanium Series Plus 240GPH Fuel System & Sump

Upgrade the fuel system on your GM 6.6L Duramax L5P with the FASS NDTSPC15290F240G No-Drop Kit Titanium Signature Series Plus 240GPH Fuel System & Sump. Engineered for extreme horsepower builds, this lift pump is rated at 240 gallons per hour and is designed to maximize performance while protecting your fuel injection system.

No-Drop Installation:
The included Fuel Sump eliminates the need to remove your fuel tank, simplifying installation and saving cost. The sump’s single-bolt design and large bowl ensure a constant fuel supply, even under aggressive driving or low fuel conditions.

Advanced Filtration & Protection:
This system features a 2-micron filtration rating, built-in water separation, and FASS’ patented air/vapor removal process. These benefits safeguard injectors, reduce injector failure, and provide the cleanest fuel possible under high-load conditions.

Titanium Signature Series Plus Enhancements:

• ORB (O-Ring Boss) Fittings
• 6061 Aluminum Black Anodized Fittings
• Black Fuel Line for an Ultra-Clean Installation

Engineering Advantages:

• FASS Whisper Technology (FWT): Quiet operation with uncompromised flow.
• FASS Silencing Technology (FST): Military-spec coating, tighter gear tolerances, and radius cuts for the quietest aftermarket pump on the market.
• Performance Radius Cuts (PRC): Smooth fuel flow prevents air reintroduction and restrictions.
• Mass Flow Return (MFR): Continuously polishes fuel for maximum cleanliness and system longevity.
• Bolt-On Bracket Mounts: Utilizes factory bed bolts for simple, drill-free installation.

Fuel Tank Sump:
Provides fuel directly from the bottom of the tank with a reservoir design for consistent supply during hard acceleration and low tank levels. Features dedicated suction and return ports for easy line routing.

Features:

• 240GPH @ 45 PSI
• Includes FASS Sump Kit
• Supports Extreme Horsepower Builds
• Whisper Technology
• 2 Micron Filtration Rating
• Complete Replacement System
• Improved Cold Weather Starts
• Removes Water, Air & Debris from Fuel
• Fuel Mileage & Efficiency Improvement
• Smoother Engine Idle & Stronger Fuel Volume Delivery
• 1/2-Inch Fuel Lines & Ports
• 30,000 Mile Filter Life Expectancy
• Optional Electric Heater & Fuel Pressure Gauge Port
• No-Drop Kit for Simplified Installation
• Protects & Extends Fuel System & Injector Life
