FASS No-Drop Kit Titanium Signature Series Plus 240GPH Fuel System & Sump NDTSPC13290F240G | 2017-2019 Duramax 6.6L L5P

FASS No-Drop Kit Titanium Signature Series Plus 240GPH Fuel System & Sump NDTSPC13290F240G | 2017-2019 Duramax 6.6L L5P

NDTSPC13290F240G

$999.00 USD

SELECT FITMENT

See If This Product Fits Your Vehicle

While many of our products are stocked in our warehouse, inventory levels can change quickly. If you need to confirm availability before placing your order, please call or text 970-778-0792.

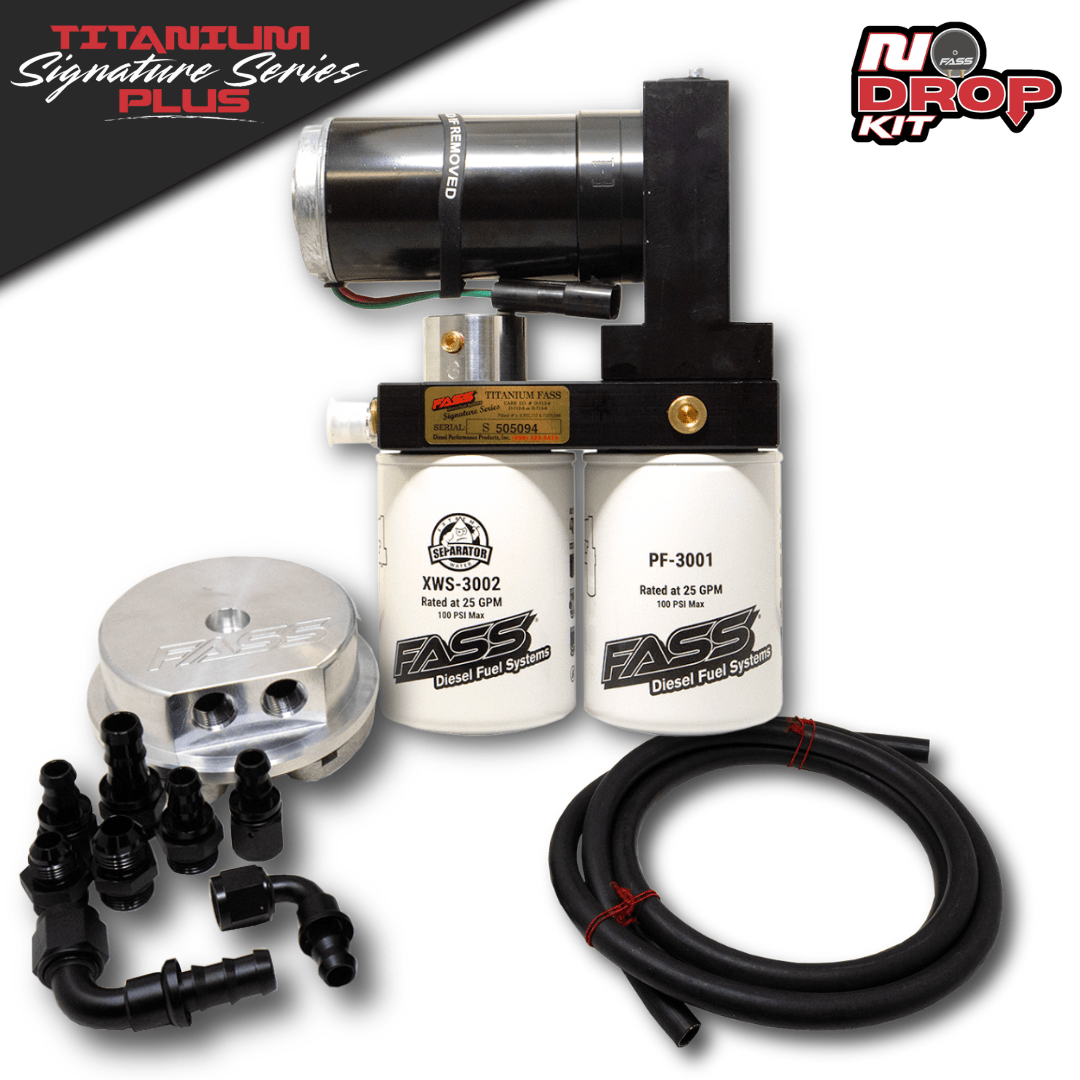

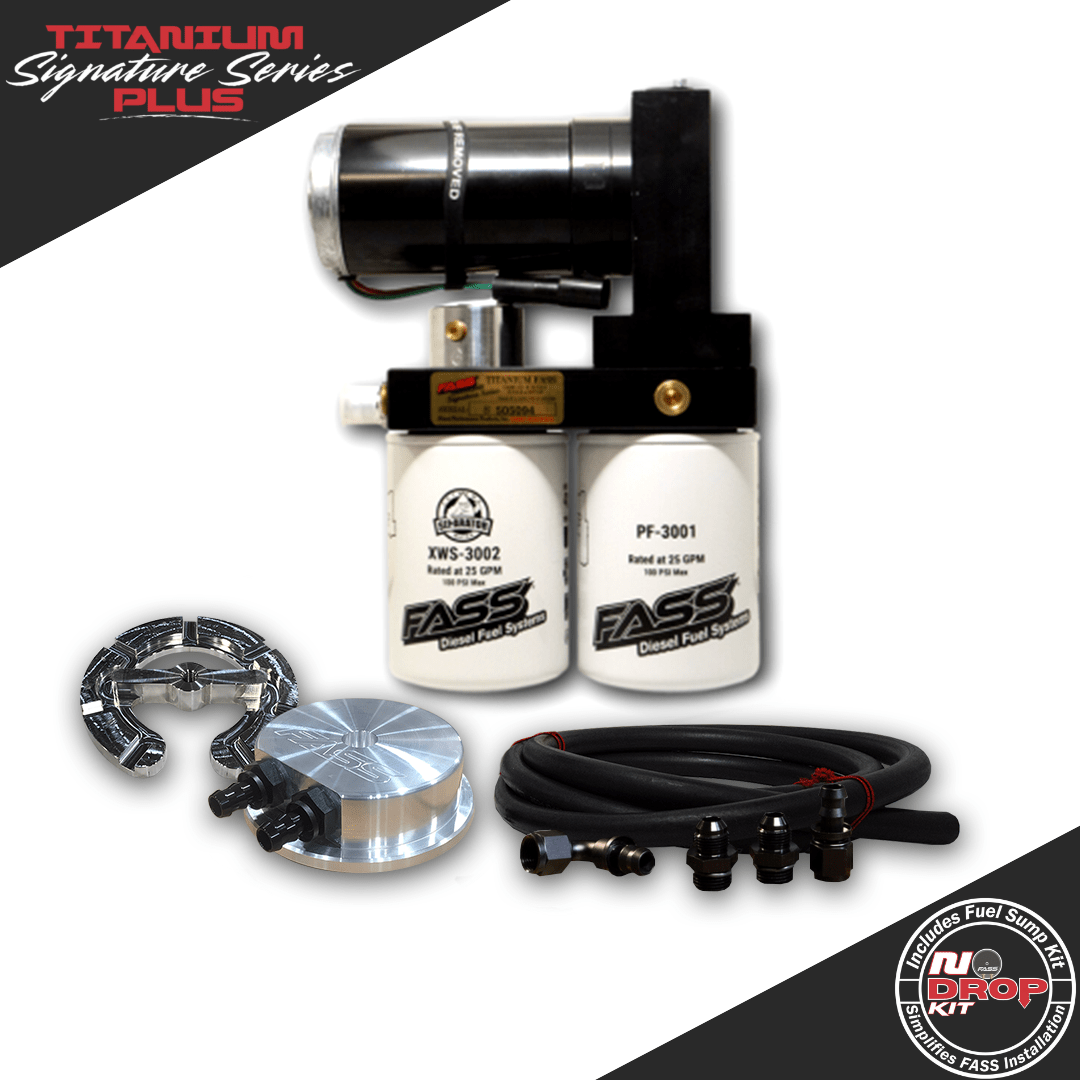

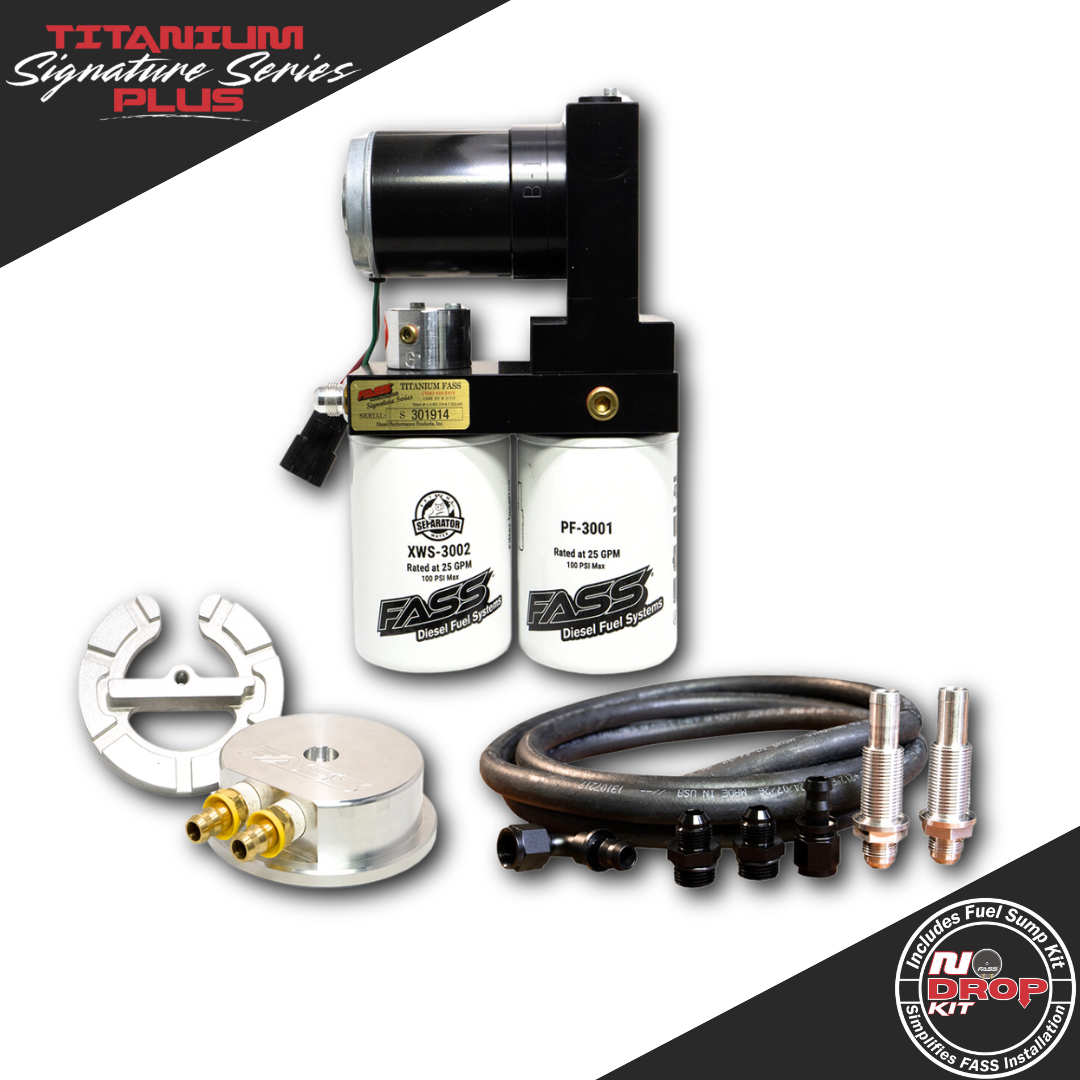

FASS NDTSPC13290F240G No-Drop Kit – Titanium Signature Series Plus 240GPH Fuel System & Sump

The FASS NDTSPC13290F240G No-Drop Kit Titanium Series Plus 240GPH Fuel System & Sump is the ultimate upgrade for your GM 6.6L Duramax L5P fuel system. Rated at 240 gallons per hour, this lift pump is engineered for high-performance builds (900–1200HP) and delivers unmatched filtration and reliability. Designed as a No-Drop kit, installation is simplified with the included sump, eliminating the need to remove your fuel tank and saving time and labor costs.

Titanium Signature Series Plus: The Plus line is the evolution of the renowned Titanium Signature Series. It features ORB (O-Ring Boss) fittings, 6061 aluminum black anodized fittings, and black fuel lines for a clean, professional installation.

FASS Innovations:

  • FASS Silencing Technology (FST): Minimizes pump noise using radius cuts, tighter gear tolerances, and a military-grade coating.
  • Performance Radius Cuts (PRC): Enhances fuel flow and prevents reintroduction of air or vapor by eliminating sharp angles and stagnant fuel pockets.
  • Mass Flow Return (MFR): Keeps fuel under constant positive pressure while continuously “polishing” unused fuel before returning it to the tank for maximum cleanliness and performance.

No-Drop Installation: The included sump kit eliminates the need to drop the fuel tank. Its single-bolt design and large fuel bowl maximize fuel supply and ensure consistent delivery, even in demanding conditions. Dedicated suction and return line ports make hook-up straightforward.

Easy Bolt-On Mounting: Heavy-duty steel brackets bolt directly to your truck’s factory bed bolts—no drilling or welding required.

System Features:

  • 240 GPH @ 70–75 PSI
  • Supports 900–1200HP builds
  • Includes FASS sump kit
  • Whisper Technology for quieter operation
  • 2-micron filtration with water separation
  • 1/2" fuel lines and ports
  • Improved cold-weather starts
  • Fuel mileage improvement & smoother idle
  • 30,000-mile filter life expectancy
  • Removes water, air, & debris from fuel
  • Optional electric heater & fuel pressure gauge ports
  • Protects and extends fuel system & injector life
  • No-drop sump design for simplified installation
