FASS No-Drop Kit Titanium Signature Series Plus 220GPH Fuel System & Sump NDTSPC13250F220G | 2017-2019 Duramax 6.6L L5P

FASS NDTSPC13250F220G No-Drop Kit – Titanium Signature Series Plus 220GPH Fuel System & Sump

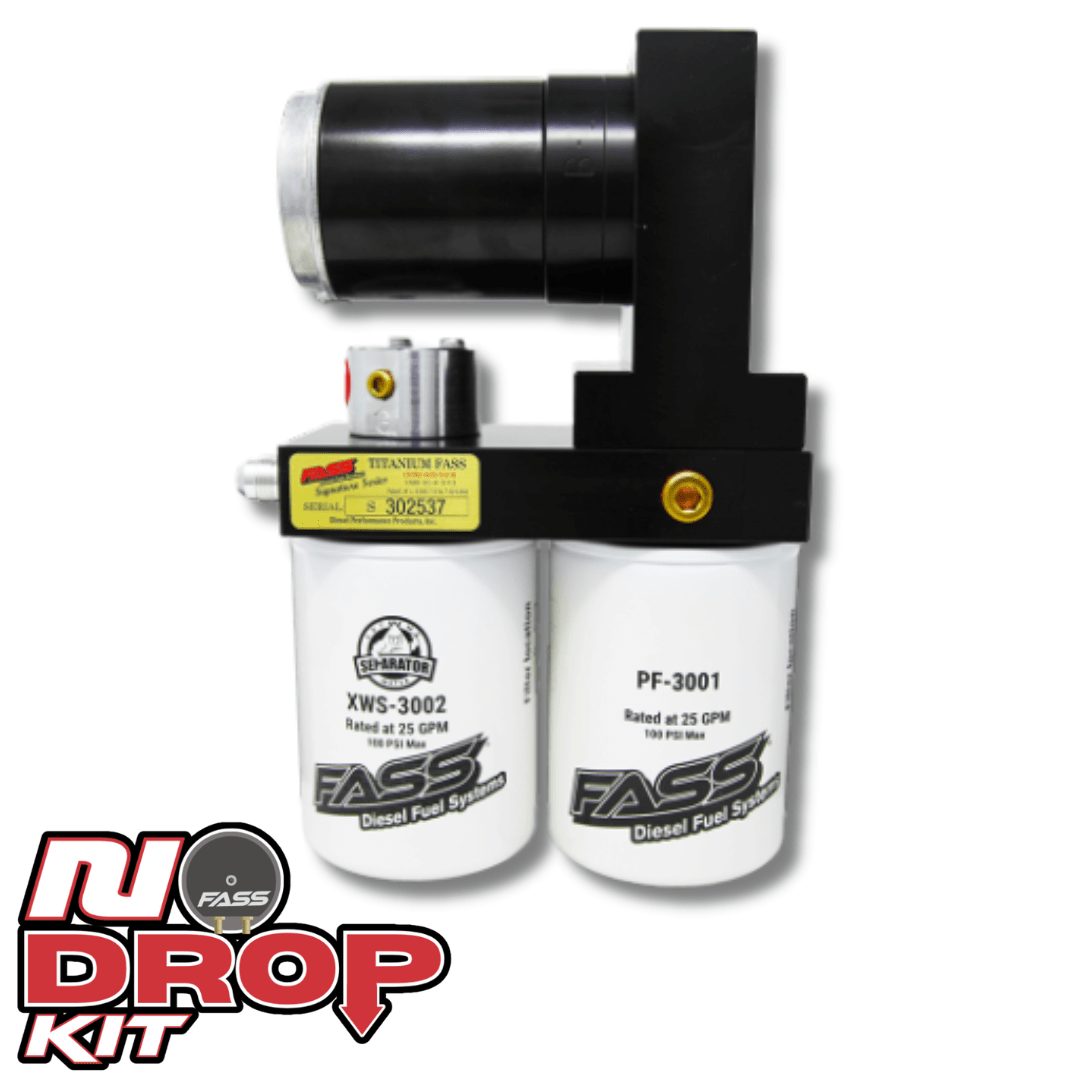

The FASS NDTSPC13250F220G No-Drop Kit Titanium Series Plus 220GPH Fuel System & Sump is the ultimate lift pump upgrade for your GM 6.6L Duramax L5P. Designed for moderate to extreme builds (500–900HP), this system delivers 220 gallons per hour of consistent fuel flow with advanced 2-micron filtration, water separation, and FASS’ patented air/vapor removal process. It’s built to protect injectors, pumps, and fuel system components while extending their life under heavy performance demands.

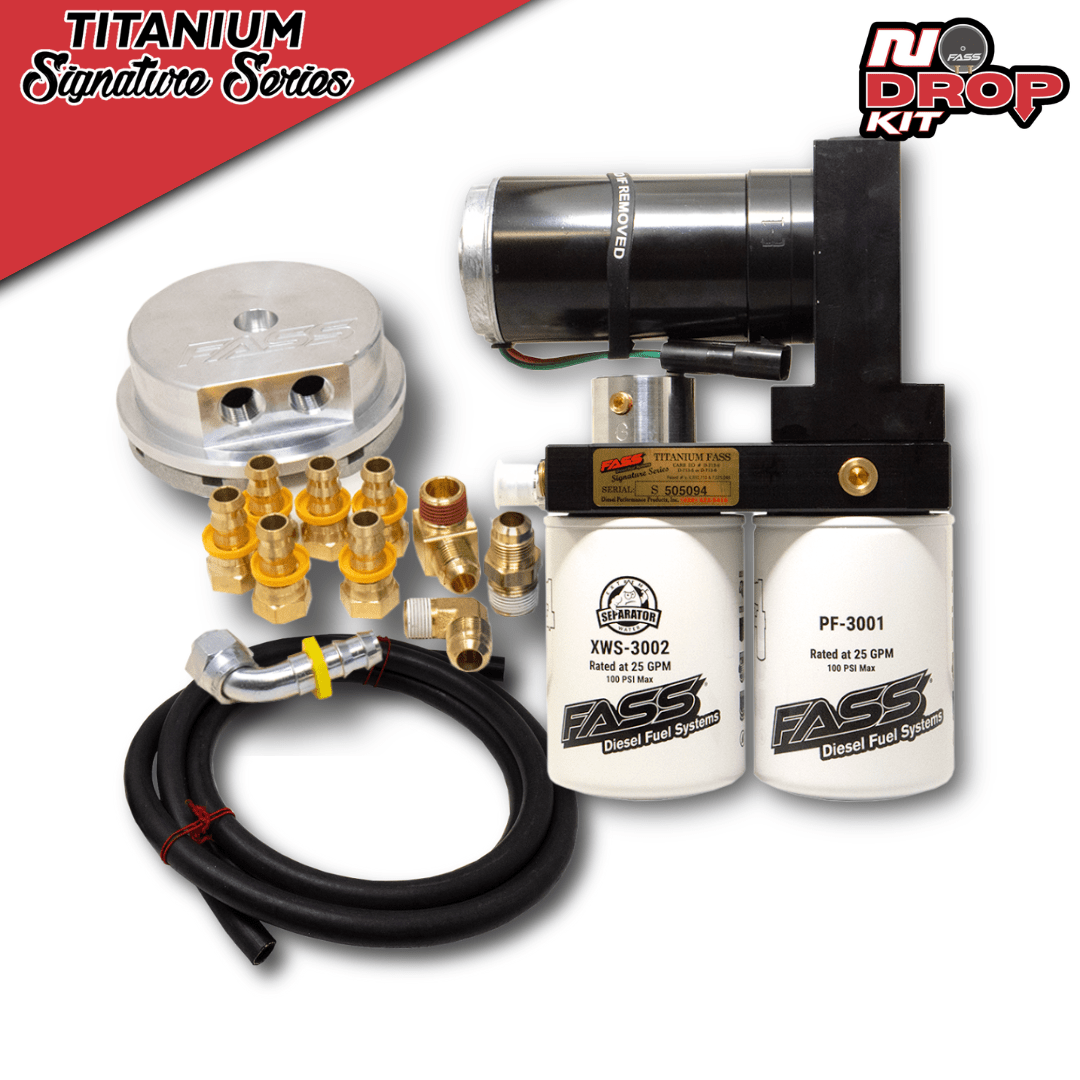

Titanium Signature Series Plus: The next generation of FASS’ popular Signature Series, the Plus version includes ORB (O-Ring Boss) fittings, 6061 aluminum black anodized fittings, and black fuel line for a sleek, professional installation.

FASS Innovations:

• FASS Silencing Technology (FST): Reduces noise with tighter gear tolerances, radius cuts, and a high-grade military coating.
• Performance Radius Cuts (PRC): Eliminates sharp fuel path angles, reducing restrictions and preventing air/vapor reintroduction.
• Mass Flow Return (MFR): Keeps fuel under positive pressure and continually “polishes” unused fuel before returning it to the tank for maximum cleanliness.

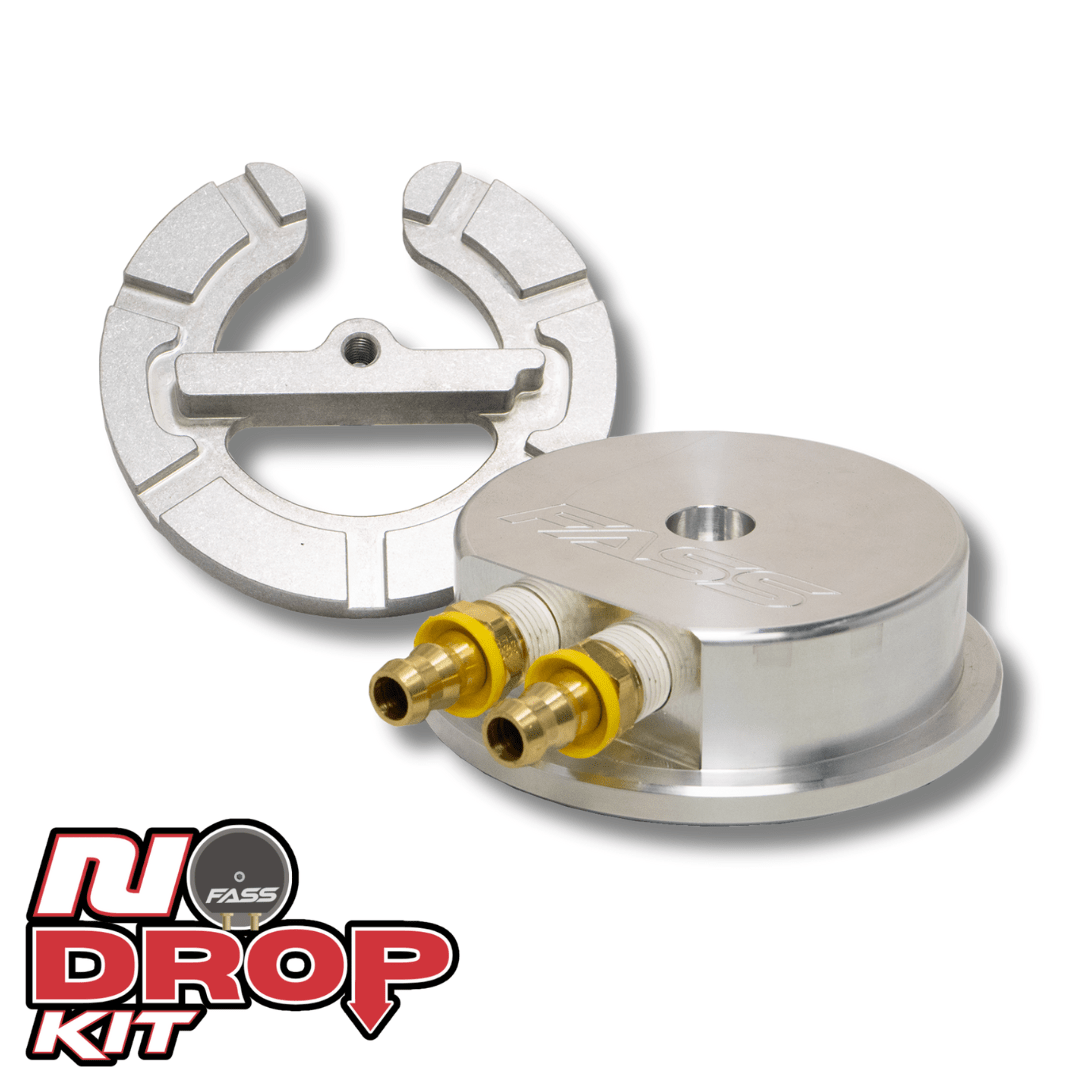

No-Drop Installation: Simplify installation with the included sump kit, which eliminates the need to drop the fuel tank. The large single-bolt sump bowl ensures consistent fuel supply and reliability, even under heavy load or low fuel conditions.

Easy Bolt-On Mounting: Bolt-on steel brackets mount directly to factory bed bolts for quick installation without drilling or welding.

System Features:

• 220 GPH @ 70–75 PSI
• Supports 500–900HP builds
• Includes FASS sump kit
• Whisper Technology for quieter operation
• 2-micron filtration rating with water separation
• 1/2" fuel lines and ports
• Improves cold-weather starts
• Fuel mileage improvement & smoother idle
• 30,000-mile filter life expectancy
• Removes water, air, & debris from diesel fuel
• Optional electric heater & fuel pressure gauge ports
• Protects and extends fuel system & injector life
• No-drop sump design for simplified installation
