FASS No-Drop Kit Titanium Signature Series Plus 140GPH Fuel System & Sump NDTSPC13180F140G | 2017-2019 Duramax 6.6L L5P

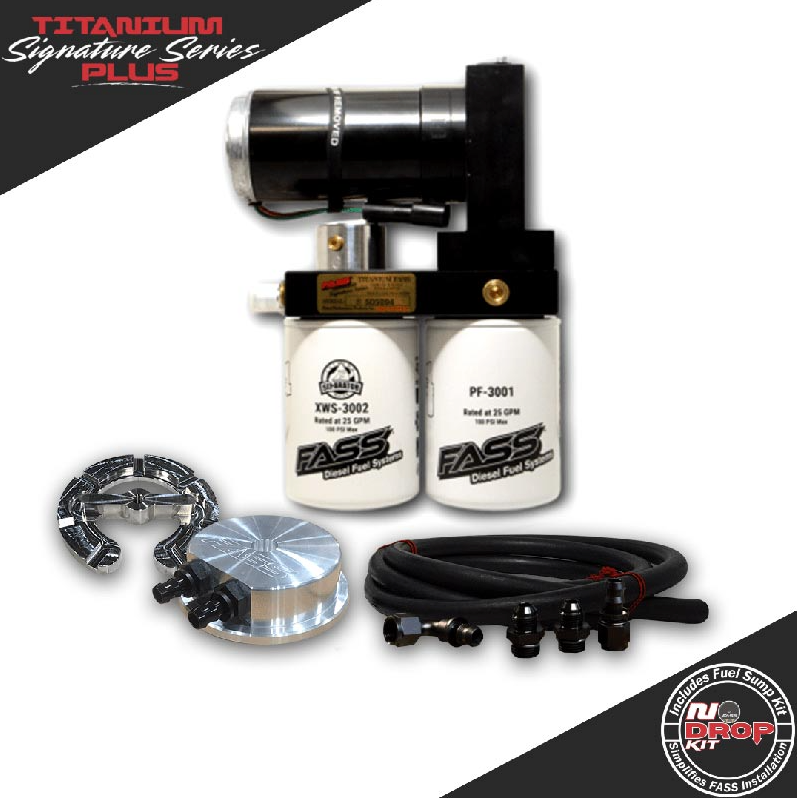

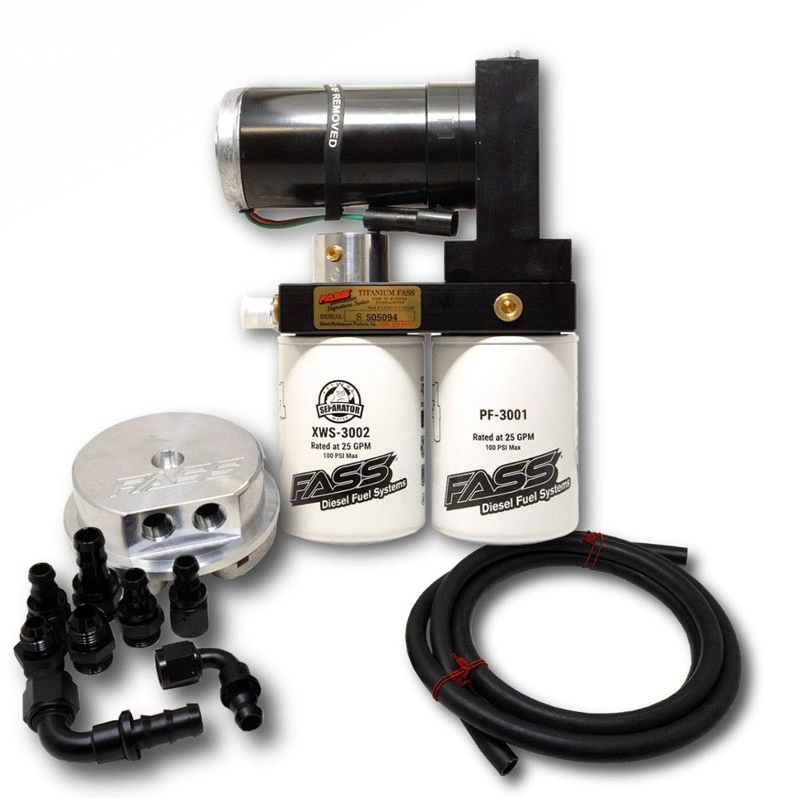

FASS NDTSPC13180F140G No-Drop Kit – Titanium Signature Series Plus 140GPH Fuel System & Sump

The FASS NDTSPC13180F140G No-Drop Kit Titanium Series Plus 140GPH Fuel System & Sump is the premium fuel delivery and filtration solution your GM 6.6L Duramax L5P needs. Designed for applications up to 500HP, this system provides 140 gallons per hour of clean, reliable fuel flow while protecting your injection pump and injectors from harmful debris, water, and air/vapor contamination. With a 2-micron filtration rating, water separation filter, and FASS’ patented air/vapor removal process, your fuel system gets unmatched protection and efficiency.

Titanium Signature Series Plus: The next evolution of the Titanium Signature Series, the Plus line includes ORB (O-Ring Boss) fittings, 6061 aluminum black anodized fittings, and black fuel lines for a sleek, ultra-clean installation. Built for stock-to-moderate performance setups, it combines performance, durability, and ease of installation.

FASS Innovations:

• FASS Silencing Technology (FST): Reduces pump noise using precision machining, radius cuts, and a high-grade military spec coating.
• Performance Radius Cuts (PRC): Smooth-flow machining eliminates 90° fuel flow restrictions to improve efficiency and prevent air/vapor reintroduction.
• Mass Flow Return (MFR): Keeps fuel under positive pressure and continually “polishes” unused fuel before returning it to the tank, ensuring your system always has the cleanest fuel possible.

No-Drop Installation: Simplifies installation with an included sump kit, eliminating the need to remove the fuel tank. The sump’s large single-bolt fuel bowl provides reliable fuel pickup, even when fuel is sloshing in the tank, while dedicated suction and return ports make plumbing straightforward.

Easy Bolt-On Mounting: Heavy-duty steel brackets mount directly to the factory bed bolt—no drilling or welding required. Install in minutes with confidence.

System Features:

• 140 GPH @ 70–75 PSI flow rating
• For stock–500HP applications
• Includes FASS sump kit
• Whisper Technology for quiet operation
• 2-micron filtration rating with water separation
• Improved cold-weather starts
• 1/2" fuel lines and ports
• Improved fuel mileage and volume delivery
• 30,000-mile filter life expectancy
• Removes water, air, and debris from diesel fuel
• Optional electric heater and fuel pressure gauge ports
• Protects and extends injector and pump life
• No-drop kit design simplifies installation
