FASS No-Drop Kit Titanium Signature Series 220GPH Fuel System & Sump NDTSC13250F220G | 2017-2019 Duramax 6.6L L5P

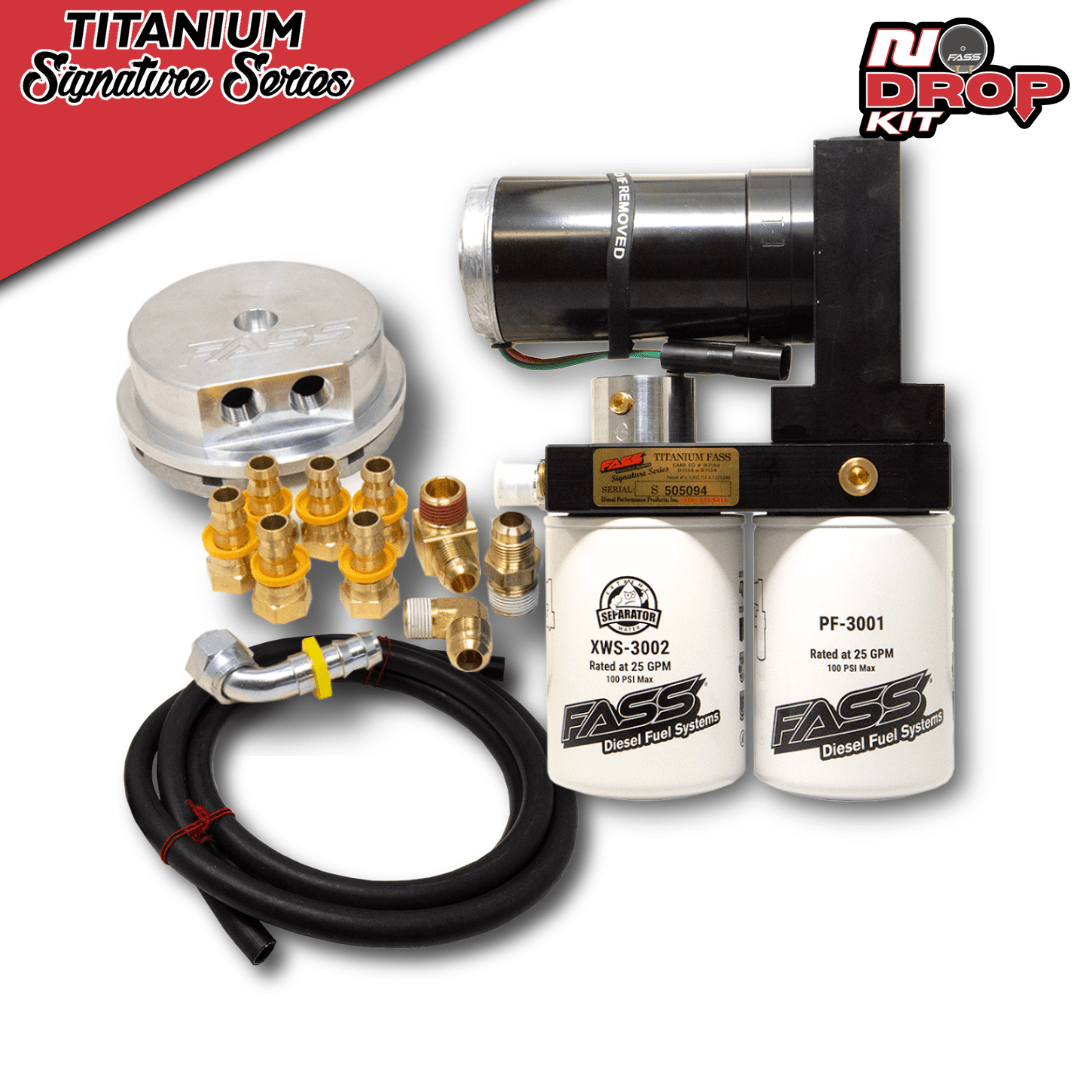

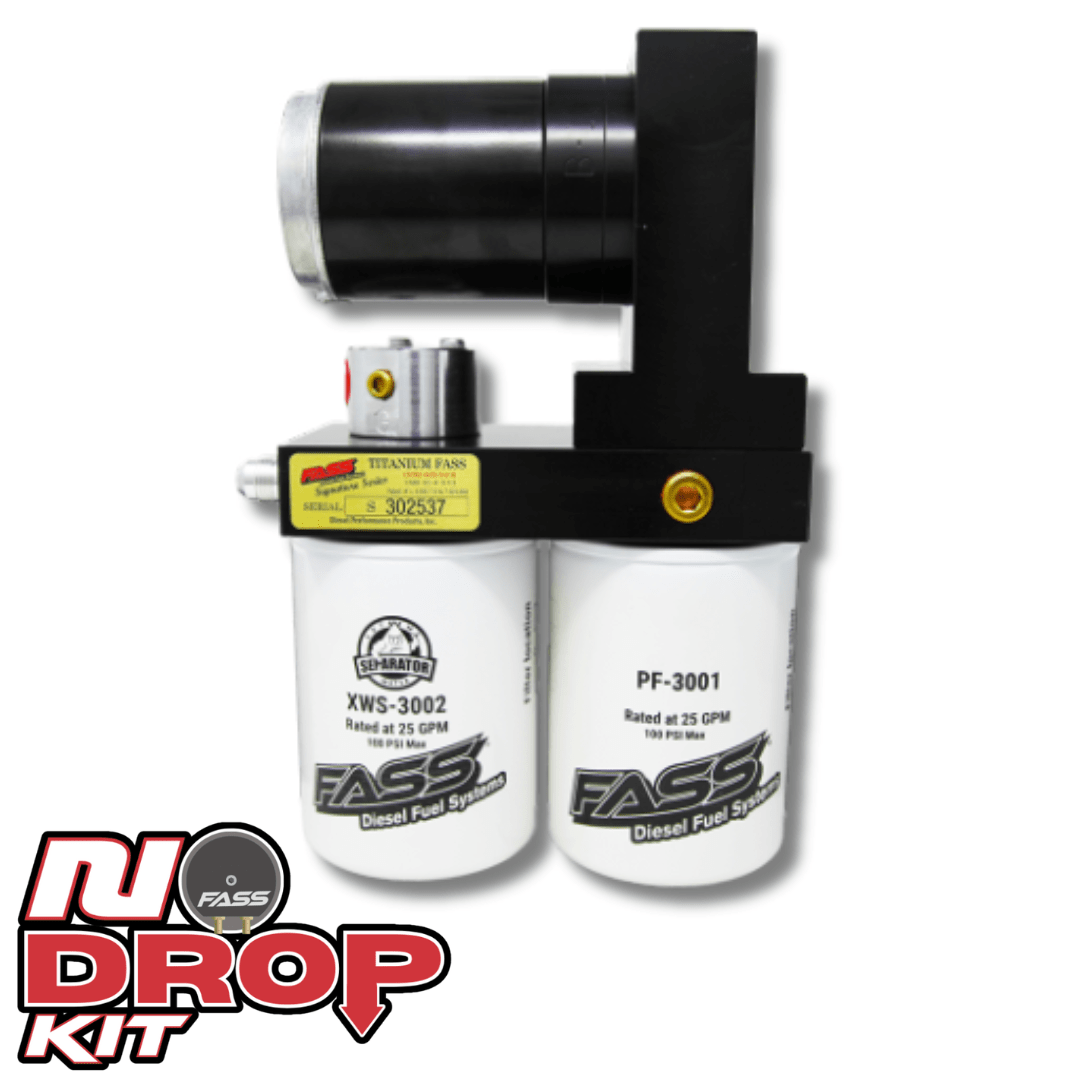

FASS NDTSC13250F220G No-Drop Kit – Titanium Signature Series 220GPH Fuel System & Sump

Give your 2017–2019 GM Silverado/Sierra 2500HD/3500HD 6.6L L5P the fuel flow and filtration it needs with the FASS NDTSC13250F220G No-Drop Kit. Built for moderate to extreme performance builds (500–900HP), this system is engineered to deliver 220 gallons per hour of clean, consistent fuel flow. The Titanium Signature Series is FASS’s top-performing system, designed to protect injectors and high-pressure fuel system components while extending service life. With advanced 3-micron filtration, integrated water separation, and patented air/vapor removal technology, your engine benefits from cleaner, more reliable fuel delivery.

Why This Kit:

• High Flow Performance: 220GPH flow capacity supports extreme builds with improved throttle response and power.
• Whisper-Quiet Operation: FASS Whisper Technology (FWT) and Silencing Technology (FST) reduce pump noise while maintaining fuel flow.
• Clean, Consistent Fuel: Mass Flow Return (MFR) technology constantly “polishes” unused fuel by filtering out dirt, water, air, and vapor before returning it to the tank.
• Optimized Flow Path: Performance Radius Cuts (PRC) eliminate sharp corners inside the housing to prevent restrictions and air reintroduction.

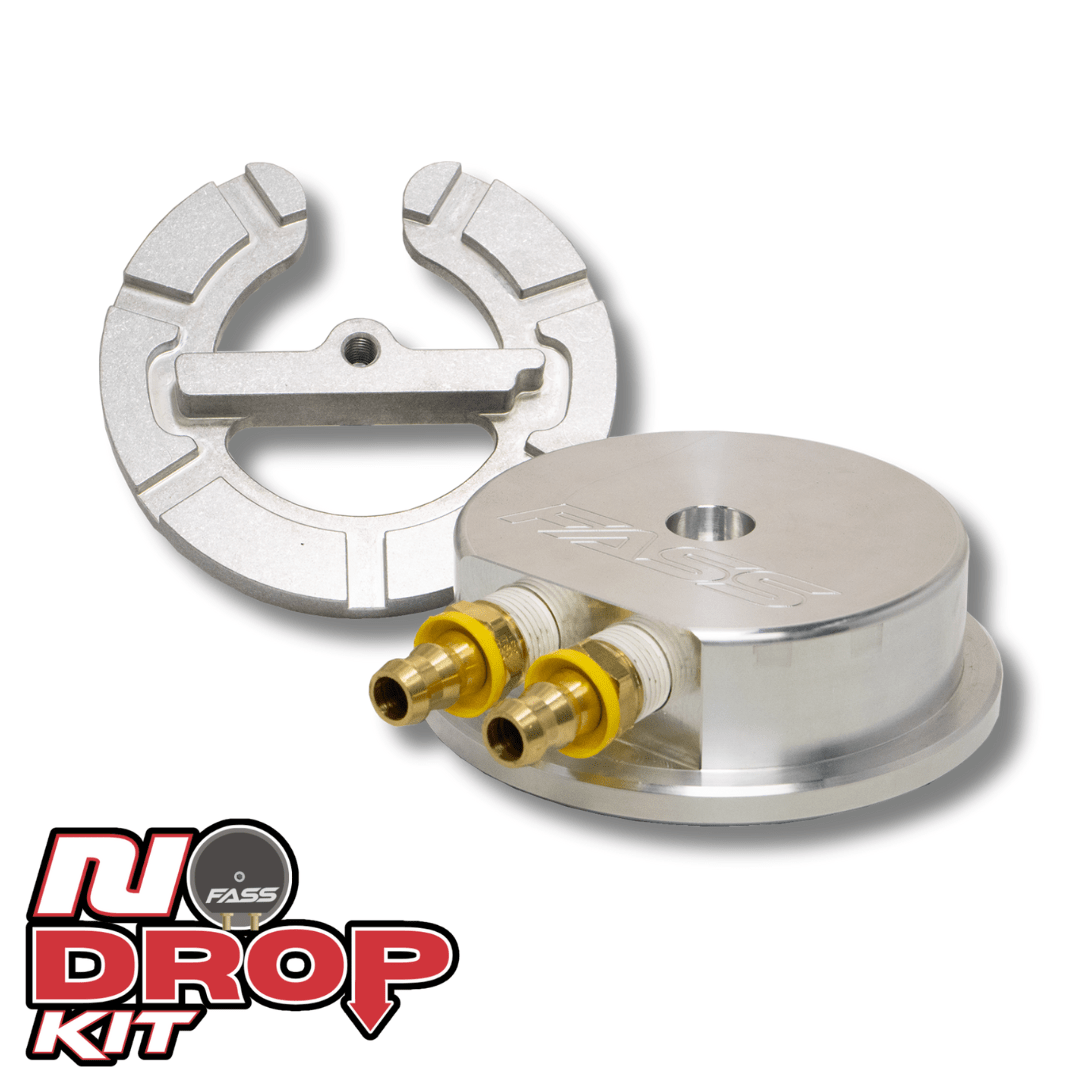

No-Drop Installation: Includes a sump kit that draws fuel from the bottom of the tank with a large single-bolt fuel bowl design. This simplifies installation, eliminates the need to drop the tank, and improves fuel pickup during slosh for consistent performance.

Easy Bolt-On Mounting: Heavy-duty machined-steel brackets mount directly to the factory bed bolt for a quick, secure, no-drill install.

System Features:

• 220 GPH flow rating
• 3-micron filtration with water separation
• Removes water, air, and debris from diesel fuel
• 1/2" fuel lines and ports
• Improves cold-weather starts
• Supports smoother idle and consistent fuel delivery
• 30,000-mile filter life expectancy
• Optional electric heater & fuel pressure gauge ports
• Protects and extends life of injectors and fuel system
• No need to drop the tank during install
