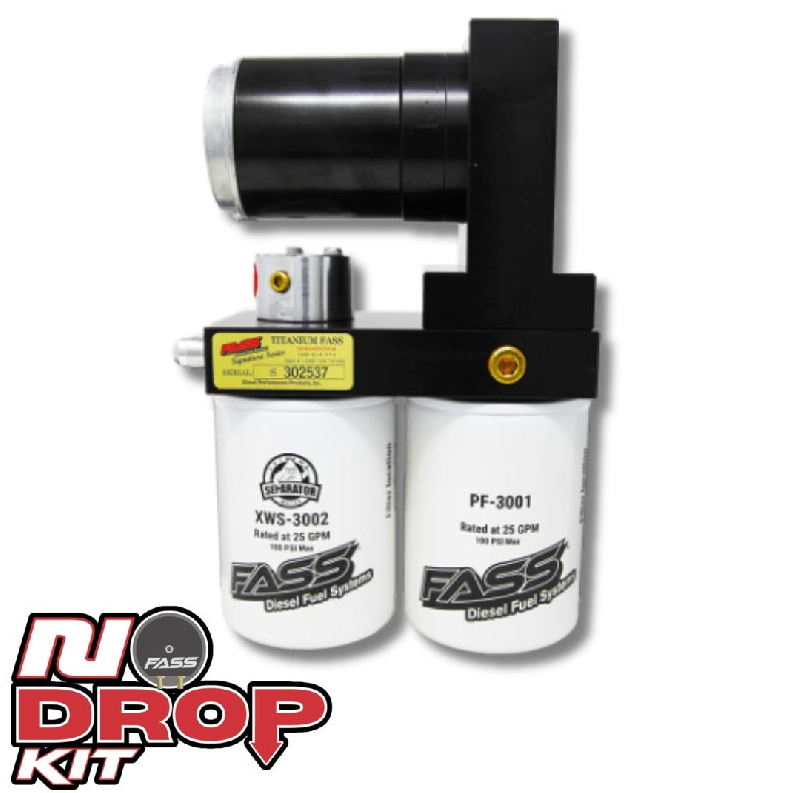

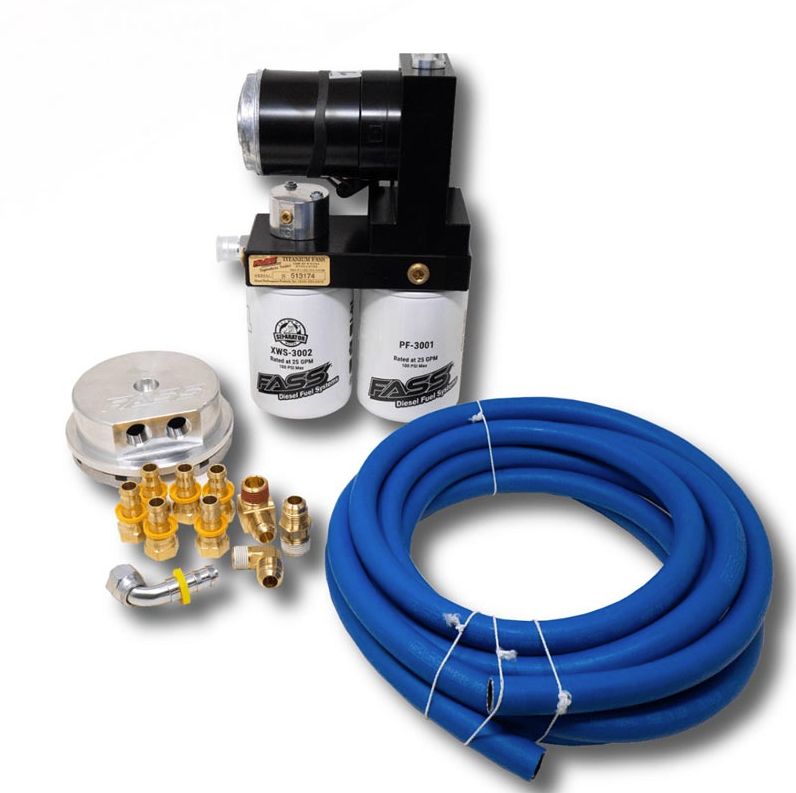

FASS NDTSC12100G NO-DROP KIT TITANIUM SERIES 100GPH FUEL SYSTEM & SUMP

The FASS NDTSC12100G No-Drop Kit Titanium Series 100GPH Fuel System & Sump is designed to deliver unmatched reliability and performance for your 2015-2016 GM 6.6L Duramax. Rated at 100 gallons per hour, this Titanium Signature Series system protects your fuel injection components, including the Injection Pump and Injectors, with advanced 3-micron filtration and a built-in water separation feature. Installation is simplified with the included fuel sump, eliminating the need to remove your fuel tank.

Titanium Signature Series Features:

• Whisper Technology reduces pump noise, improves pump life, and enhances fuel flow
• FASS Silencing Technology (FST) minimizes vibration and operational noise
• Performance Radius Cuts (PRC) improve fuel flow while eliminating air pockets and restrictions
• Mass Flow Return (MFR) continually cleans and polishes fuel by maintaining positive pressure and returning excess fuel to the tank

Installation Benefits:

• Bolt-on bracket mounts use factory bed bolts—no drilling or welding required

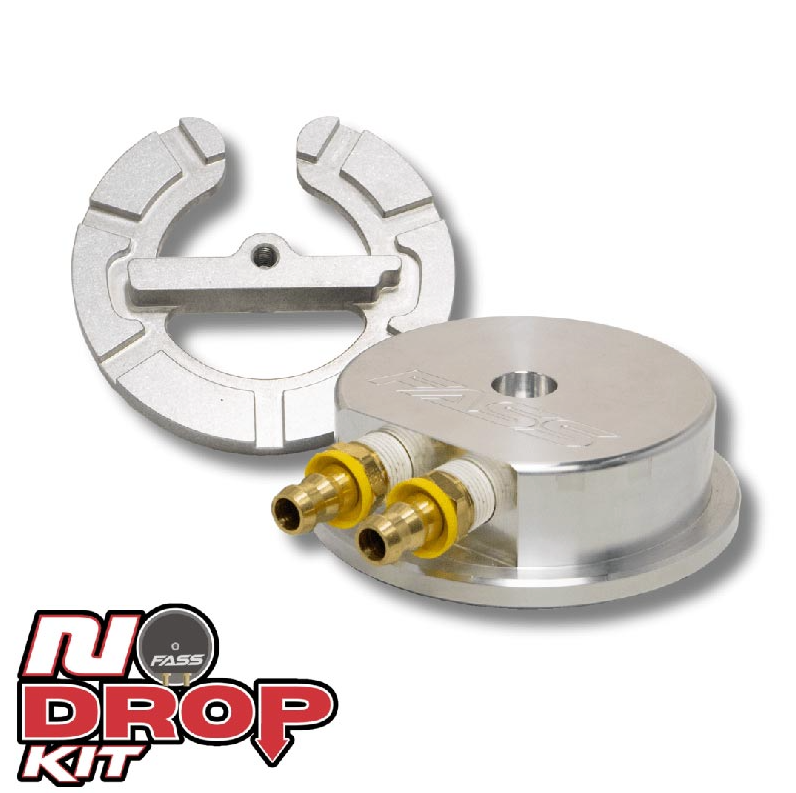

• Fuel tank sump features a single-bolt design with a large fuel reservoir for maximum range and stability
• Dedicated suction and return line ports simplify hook-up

Specifications & Features:

• Extra Deep Sump for reliable fuel pickup
• 100 GPH Flow Rating
• Whisper Technology for quieter operation
• 3 Micron Filtration Rating
• 1/2" Fuel Line & Ports
• Bolt-On Bracket Installation
• Improves cold weather starts
• 30,000 Mile Filter Life Expectancy
• Removes water, air, and debris from diesel fuel
• Enhances fuel efficiency, performance, and smooth idle
• Optional electric heater & fuel pressure gauge port
• Protects and extends the life of your fuel system and injectors
