FASS FACTORY FUEL FILTER HOUSING DELETE CFHD-1003K | 2019-2022 6.7L CUMMINS

FASS FACTORY FUEL FILTER HOUSING DELETE CFHD-1003K | 2019-2022 6.7L CUMMINS

CFHD-1003K

$79.00 USD

SELECT FITMENT

See If This Product Fits Your Vehicle

While many of our products are stocked in our warehouse, inventory levels can change quickly. If you need to confirm availability before placing your order, please call or text 970-778-0792.

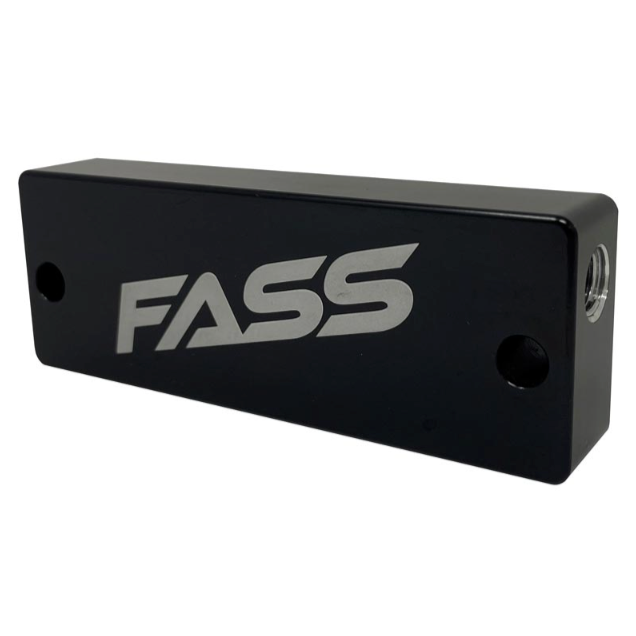

Simplify the fuel system and clean up the engine compartment in your 2019–2022 Ram 6.7L Cummins with the FASS Factory Fuel Filter Housing Delete Kit. Designed for trucks already equipped with an aftermarket lift pump and fuel filtration system, this kit allows the factory fuel filter housing to be removed and replaced with a compact delete block.

Once an aftermarket filtration system is handling fuel filtration duties, the factory filter housing is no longer required. Removing the housing helps reduce engine bay clutter while the FASS delete block provides an additional fuel return port for trucks equipped with dual CP3 injection pumps.

A dedicated Water-In-Fuel (WIF) sensor port allows the factory sensor to be transferred directly to the delete block. This maintains WIF sensor functionality and helps prevent false water-in-fuel warning lights after removing the original filter housing.

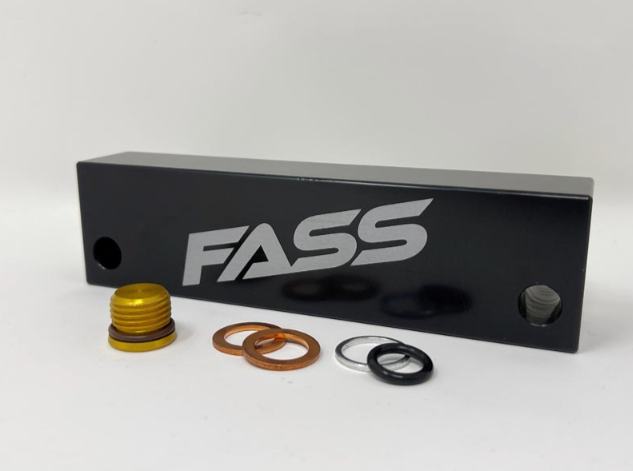

The kit also includes new banjo bolt sealing washers and a -6 ORB plug for single CP3 applications where the additional return port is not required.

Features

  • Eliminates the factory fuel filter housing – Designed for trucks using an aftermarket fuel filtration system
  • WIF sensor port – Allows installation of the factory Water-In-Fuel sensor
  • Helps prevent false WIF warnings – Retains factory sensor functionality after removing the original housing
  • Dual CP3 support – Provides an additional fuel return port for dual CP3 configurations
  • Single CP3 compatible – Includes a -6 ORB plug to seal the additional return port when not required
  • Cleans up the engine compartment – Removes the unnecessary factory filter housing when aftermarket filtration is installed
  • Installation components included – Supplied with new banjo bolt sealing washers

Application Notes

  • For use only with an aftermarket fuel filtration system.
  • The factory Water-In-Fuel sensor installs into the provided sensor port.
  • For single CP3 applications, use the included -6 ORB plug to seal the unused return port.

Fitment: 2019–2022 Ram 6.7L Cummins

Part Number: CFHD-1003K
