FASS FACTORY FUEL FILTER HOUSING DELETE CFHD-1001K | 2010-2018 6.7L CUMMINS
FASS FACTORY FUEL FILTER HOUSING DELETE CFHD-1001K | 2010-2018 6.7L CUMMINS
SKU:CFHD1001K
SELECT FITMENT
See If This Product Fits Your Vehicle
While many of our products are stocked in our warehouse, inventory levels can change quickly. If you need to confirm availability before placing your order, please call or text 970-778-0792.

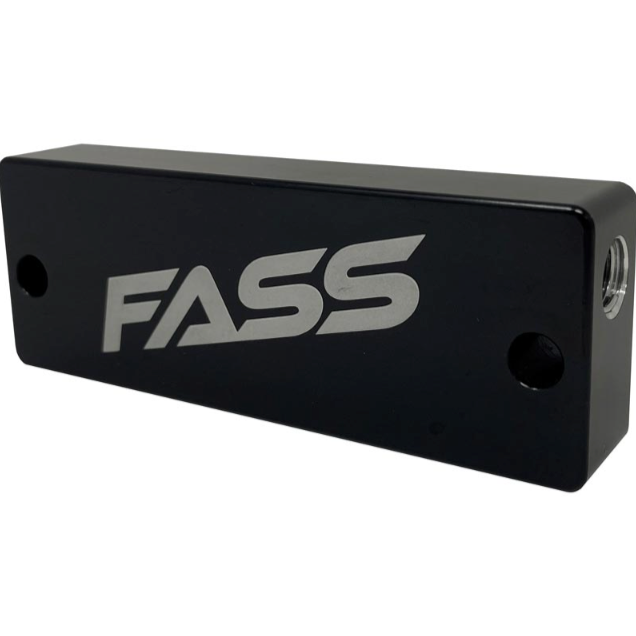

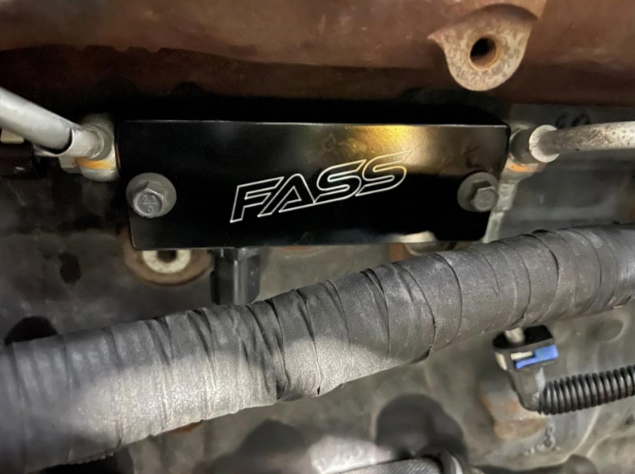

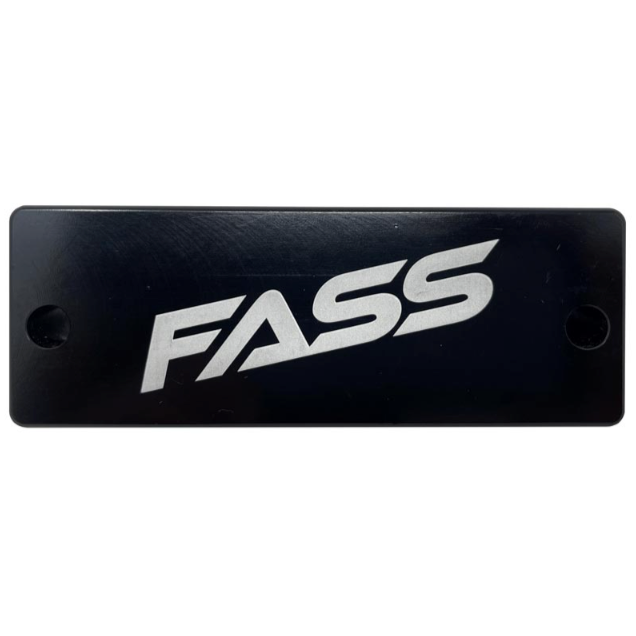

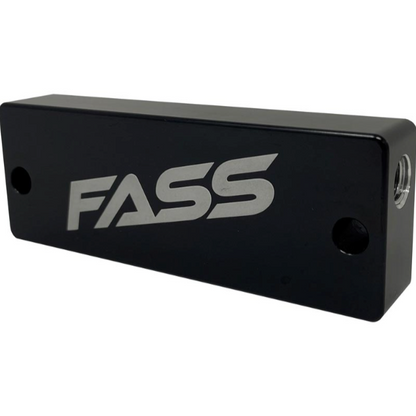

Simplify the fuel system in your 2010–2018 Ram 6.7L Cummins with the FASS Factory Fuel Filter Housing Delete Kit. Designed for trucks already equipped with an aftermarket fuel filtration system, this kit allows the factory fuel filter housing to be removed and replaced with a compact delete block.
Removing the factory housing helps clean up the engine compartment while eliminating a component that is no longer necessary when a complete aftermarket filtration system is being used. The FASS delete block also incorporates an additional fuel return port to support dual CP3 configurations.
A dedicated Water-In-Fuel (WIF) sensor port allows the factory sensor to be transferred to the delete block, helping maintain proper sensor functionality and prevent false water-in-fuel warnings. For trucks retaining a single CP3 configuration, a supplied -6 ORB plug seals the unused return port.

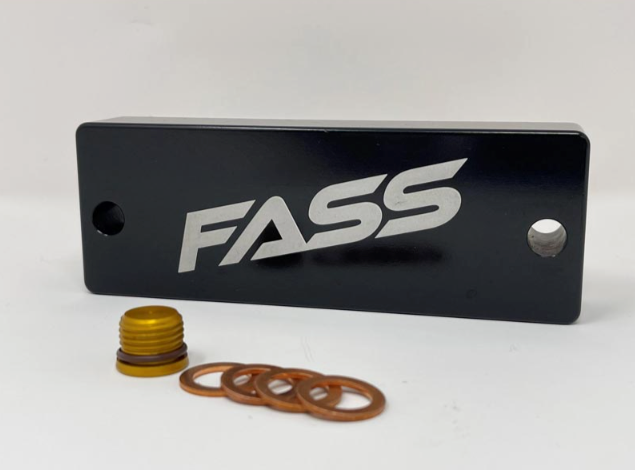

The kit also includes new banjo bolt sealing washers and features a durable anodized finish for corrosion resistance and long-term durability.
Features
- Eliminates the factory fuel filter housing – Designed for trucks already equipped with an aftermarket fuel filtration system
- WIF sensor port – Allows installation of the factory Water-In-Fuel sensor
- Helps prevent false WIF warnings – Retains the factory sensor in the fuel system
- Dual CP3 support – Provides an additional fuel return port for dual CP3 configurations
- Single CP3 compatible – Includes a -6 ORB plug to seal the additional return port when it is not required
- Durable anodized finish – Provides corrosion resistance and a clean appearance
- Cleans up the engine compartment – Removes the unnecessary factory filter housing when aftermarket filtration is installed
- Installation components included – Supplied with new banjo bolt sealing washers
Application Notes
- Intended for trucks equipped with an aftermarket fuel filtration system that replaces the function of the factory fuel filter housing.
- The factory Water-In-Fuel sensor installs into the provided sensor port.
- For single CP3 applications, use the included -6 ORB plug to seal the unused return port.
Fitment: 2010–2018 Ram 6.7L Cummins
Part Number: CFHD-1001K
