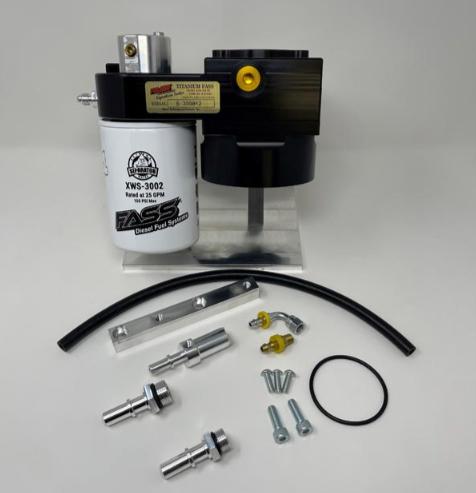

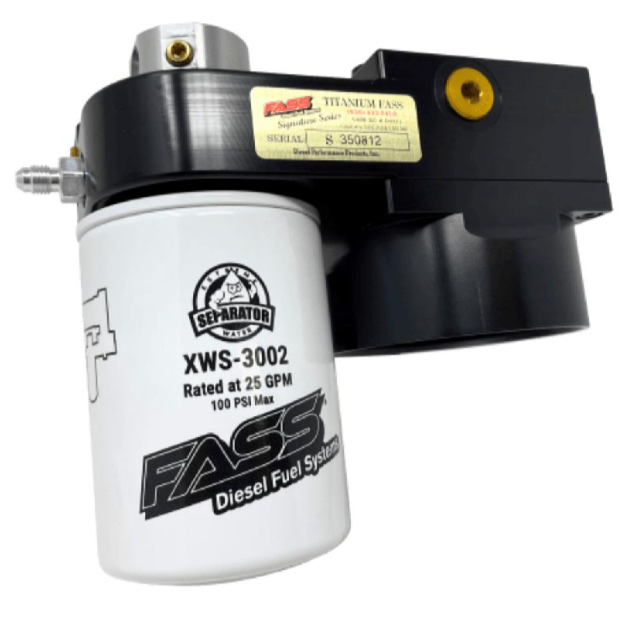

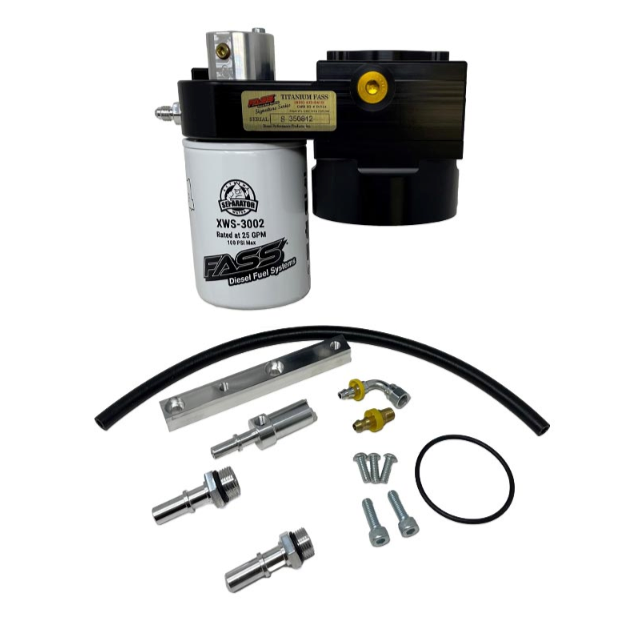

FASS DROP-IN SERIES FUEL SYSTEM DIFSL5P1001 | 2017-2024 6.6L DURAMAX L5P (see fitment notes)

Upgrade the fuel filtration on your GM 6.6L Duramax L5P with the FASS DIFSL5P1001 Drop-In Series Fuel System. Engineered as a straightforward bolt-in filtration upgrade, this system retains the factory in-tank lift pump while providing advanced fuel filtration, water separation, and air removal to help protect the L5P's high-pressure fuel injection system.

The FASS Drop-In Series provides 2-micron absolute filtration and is designed to remove more than 99% of free and emulsified water from diesel fuel. The system also removes entrained air and vapor, helping provide cleaner, more consistent fuel to the injection system while increasing fuel lubricity by up to 10%.

At the center of the system is FASS' Extreme Water Separator (XWS) technology. Its water-removal capability has been third-party tested to exceed 99%. When the XWS filter reaches its water-holding capacity, its design restricts fuel flow to help prevent contaminated fuel from continuing into critical injection system components.

The system also incorporates FASS Performance Radius Cuts (PRC) within the aluminum housing. These smooth internal transitions are designed to improve fuel flow and reduce restrictions, turbulence, and the potential reintroduction of air and vapor compared with sharp 90-degree internal passages.

Installation is designed to be straightforward with no cutting, wiring, or additional vehicle modifications required. The system retains the factory Water-In-Fuel sensor functionality and works with either the factory plastic fuel filter cap or a compatible billet filter cap.

Features

• 2-micron absolute filtration – Helps remove fine contaminants before they reach the high-pressure injection system
• Over 99% water separation – Extreme Water Separator technology removes free and emulsified water from diesel fuel
• Air and vapor removal – Helps provide a more consistent supply of fuel to the injection system
• Improved fuel lubricity – Removing entrained air and vapor can increase fuel lubricity by up to 10%
• Retains factory in-tank lift pump – Works with the existing factory fuel delivery system
• Water-In-Fuel sensor compatibility – Retains full functionality of the factory WIF sensor
• Drop-in installation – No cutting, wiring, or additional vehicle modifications required
• Performance Radius Cuts – Smooth internal passages help improve fuel flow and reduce turbulence and restriction
• Factory or billet filter cap compatible – Works with the factory plastic cap or a compatible billet filter cap
• Helps protect fuel system components – Cleaner fuel can help extend the service life of high-pressure injection system components
• Supports stock and modified trucks – Designed to operate without requiring calibration changes for installation
• Limited lifetime warranty – Backed by FASS according to current warranty terms

Filtration Specifications

• Filtration Rating: 2 Micron Absolute
• Water Separation: Over 99% Free & Emulsified Water
• Fuel Lubricity Improvement: Up to 10%
• Factory Lift Pump: Retained
• Factory Water-In-Fuel Sensor: Retained
• Installation Type: Drop-In / Bolt-On

Application Notes

• Designed for GM 6.6L Duramax L5P applications.
• Compatible with Crew Cab Short Bed and Crew Cab Long Bed configurations as specified by FASS.
• Designed to install without cutting, wiring, or additional vehicle modifications.
• Works with the factory plastic fuel filter cap or a compatible billet filter cap.

Fitment: GM 6.6L Duramax L5P – Crew Cab Short Bed & Crew Cab Long Bed

Part Number: DIFSL5P1001
