Edge Products Insight CTS4 Digital Gauge Monitor 84130-4 | Fits Most 1996+ OBDII Vehicles

Monitor critical vehicle data with the Edge Products Insight CTS4 Digital Gauge Monitor 84130-4. Designed for compatible gas and diesel vehicles, the fourth-generation Insight CTS4 combines advanced vehicle monitoring, diagnostics, customizable gauges, and data logging in a single 5.5-inch touchscreen display. This monitor provides a convenient alternative to installing multiple traditional gauges.

The CTS4 features a 5.5-inch full-color capacitive touchscreen with 21% more viewing area than the CTS3. Its upgraded 1.7GHz dual-core 64-bit processor delivers approximately 3.4 times the processing performance, while 2GB of RAM and a 70% faster startup provide improved responsiveness. Smooth 60 FPS graphics make real-time vehicle information easier to view.

With more than 100 available monitoring parameters on supported vehicles, the Insight CTS4 can display information such as boost pressure, exhaust gas temperature (EGT), transmission temperature, engine RPM, regeneration activity, and other important operating data. Customizable audible and visual alerts help drivers identify when selected parameters reach preset thresholds.

The Insight CTS4 also includes diagnostic trouble code reading and clearing, high-speed data logging, maintenance reminders, and performance testing functions. Its integrated Expandable Accessory System (EAS) compatibility allows additional sensors, cameras, and accessory controls to be incorporated into the display.

The Insight CTS4 is a monitoring and diagnostic device and does not include engine performance calibrations. Its plug-and-play OBD-II connection allows for straightforward installation without extensive wiring.

Features

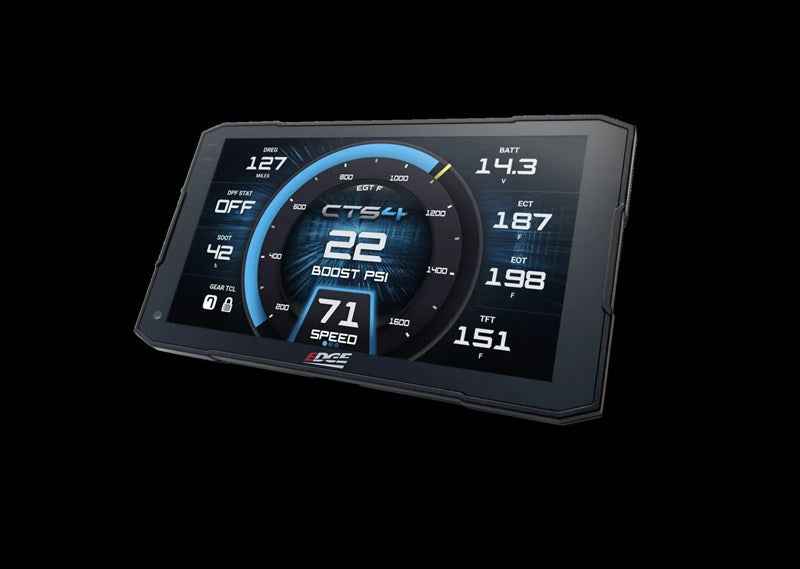

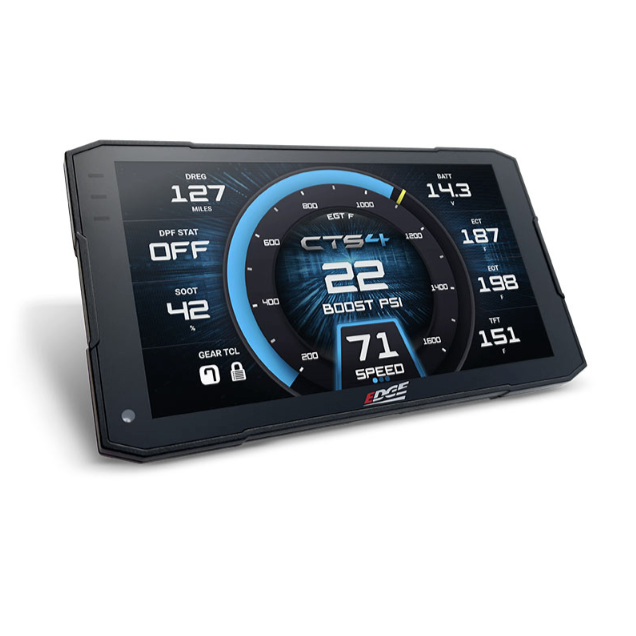

• 5.5-inch HD touchscreen – Full-color capacitive display with 21% more viewing area than the CTS3
• Upgraded processor – 1.7GHz dual-core 64-bit processor with approximately 3.4X the processing performance of the previous generation
• 2GB RAM – Four times the memory of the CTS3 for improved responsiveness
• 70% faster startup – Loads directly into the gauge display when the vehicle is started
• 60 FPS graphics – Provides smooth gauge movement and screen transitions

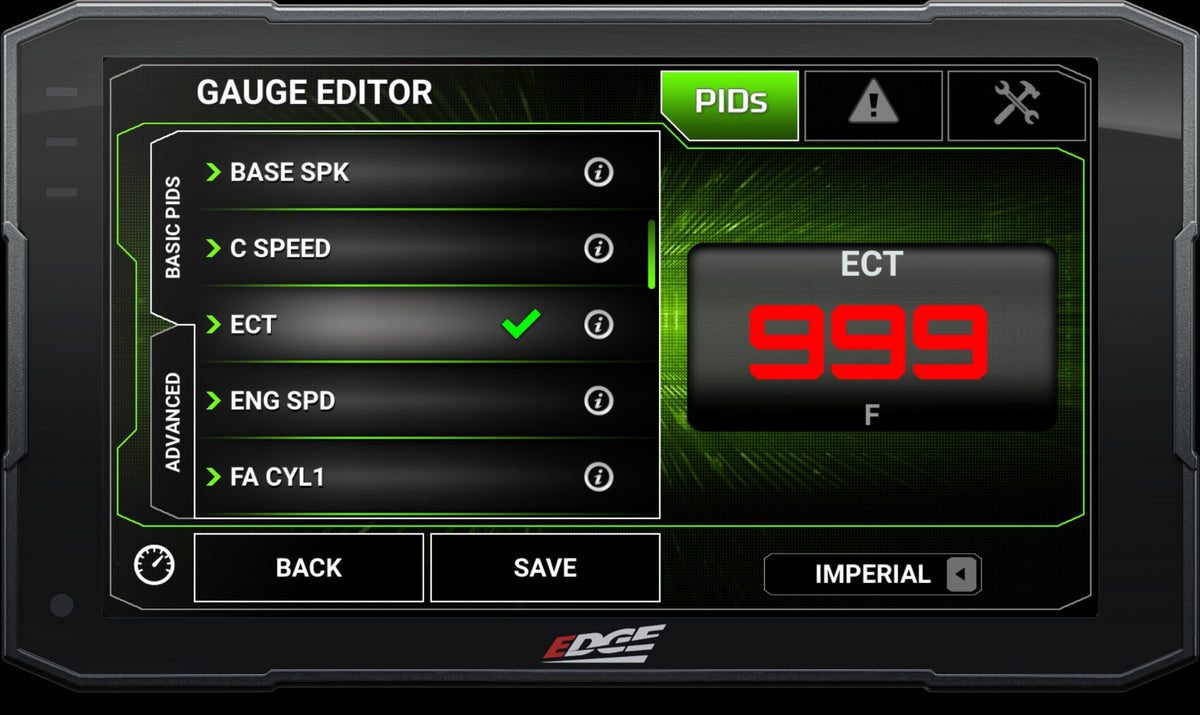

• Customizable gauge displays – Offers 31 screen layouts with adjustable colors, backgrounds, and gauge configurations

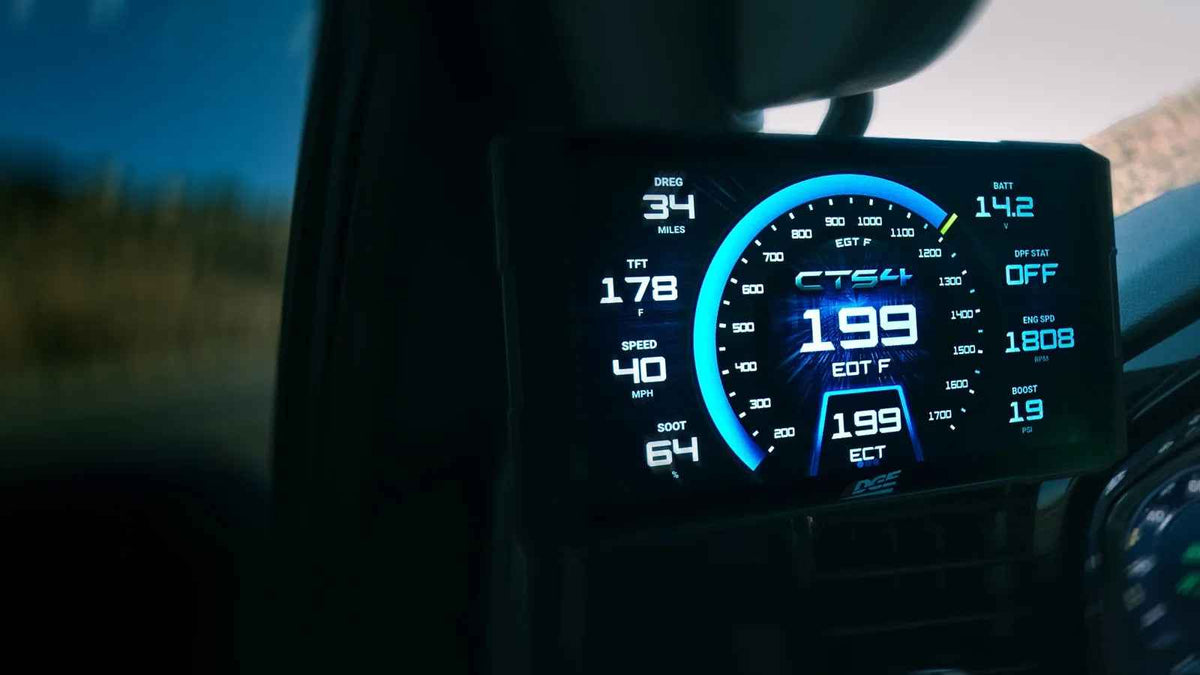

• Real-time vehicle monitoring – Displays supported engine, transmission, and vehicle operating parameters
• Read and clear DTCs – Provides diagnostic trouble code reading and clearing capabilities

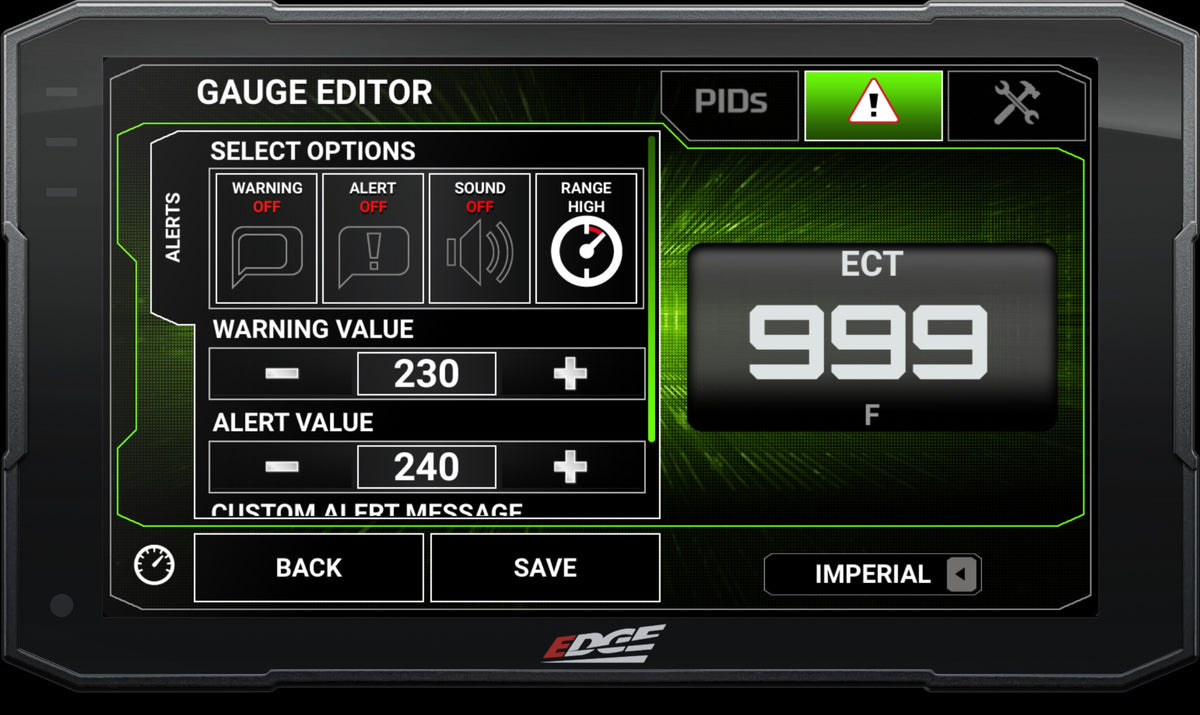

• Audible and visual alerts – Notifies drivers when selected operating parameters reach preset limits

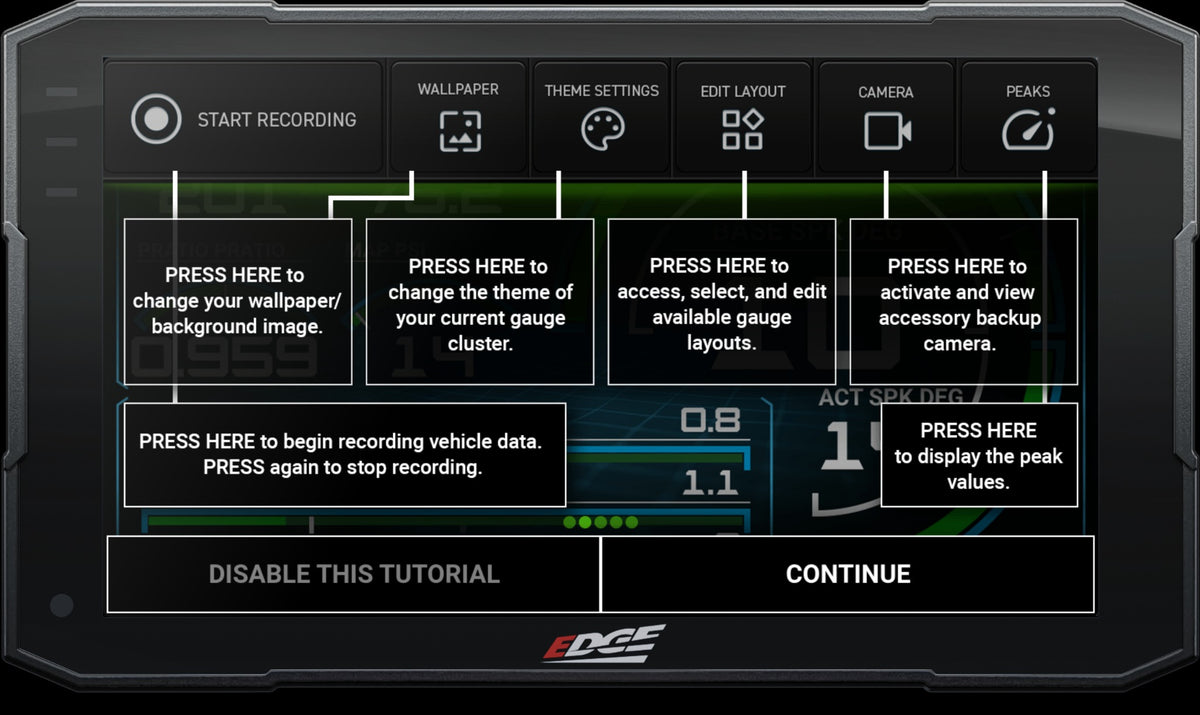

• High-speed data logging – Records vehicle data for export and review using compatible software

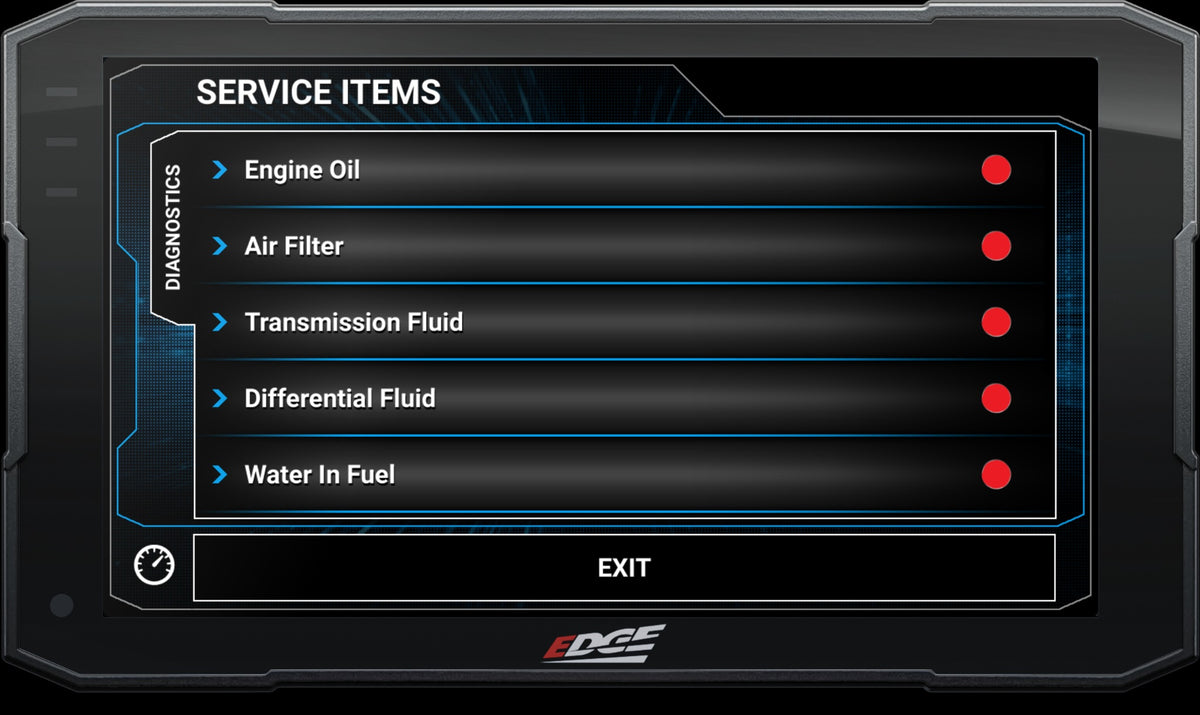

• Maintenance Minder – Provides customizable reminders for oil changes, filter replacements, and other maintenance
• Performance testing – Includes acceleration and distance-based performance measurement functions
• Pitch and roll monitoring – Uses an integrated accelerometer to display vehicle movement and G-forces
• Automatic screen dimming – Adjusts display brightness based on surrounding lighting conditions
• Wi-Fi updates – Supports software and feature updates through a wireless connection
• EAS compatibility – Supports compatible additional sensors, probes, cameras, and accessory controls
• Integrated RCA camera input – Allows connection of compatible backup cameras
• Physical shortcut buttons – Provides programmable quick access to frequently used screens
• Plug-and-play installation – Connects through the vehicle's OBD-II diagnostic port

Monitoring & Diagnostic Capabilities

• Engine RPM
• Boost Pressure
• Exhaust Gas Temperature (EGT)
• Transmission Temperature
• Diesel Regeneration Information

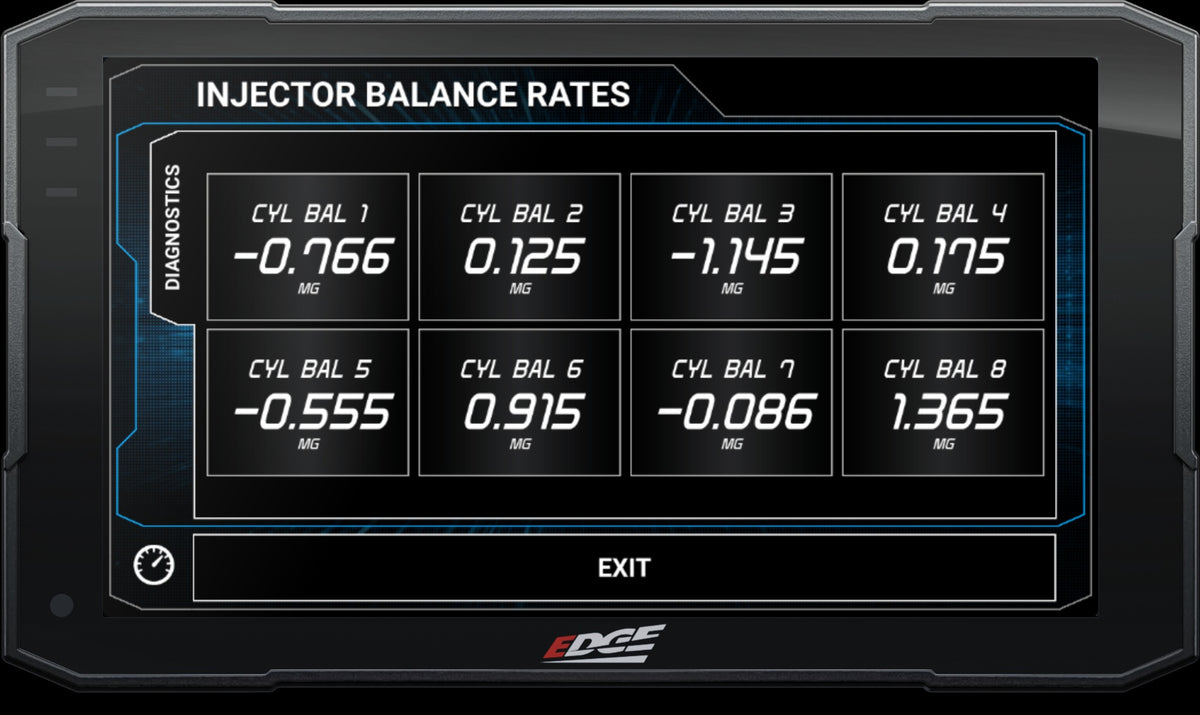

• Injector-Related Data
• Vehicle Speed and Mileage Information
• Diagnostic Trouble Codes (DTCs)
• Customizable Operating Parameter Alerts
• High-Speed Data Logging
• Maintenance Reminders

Additional Functions

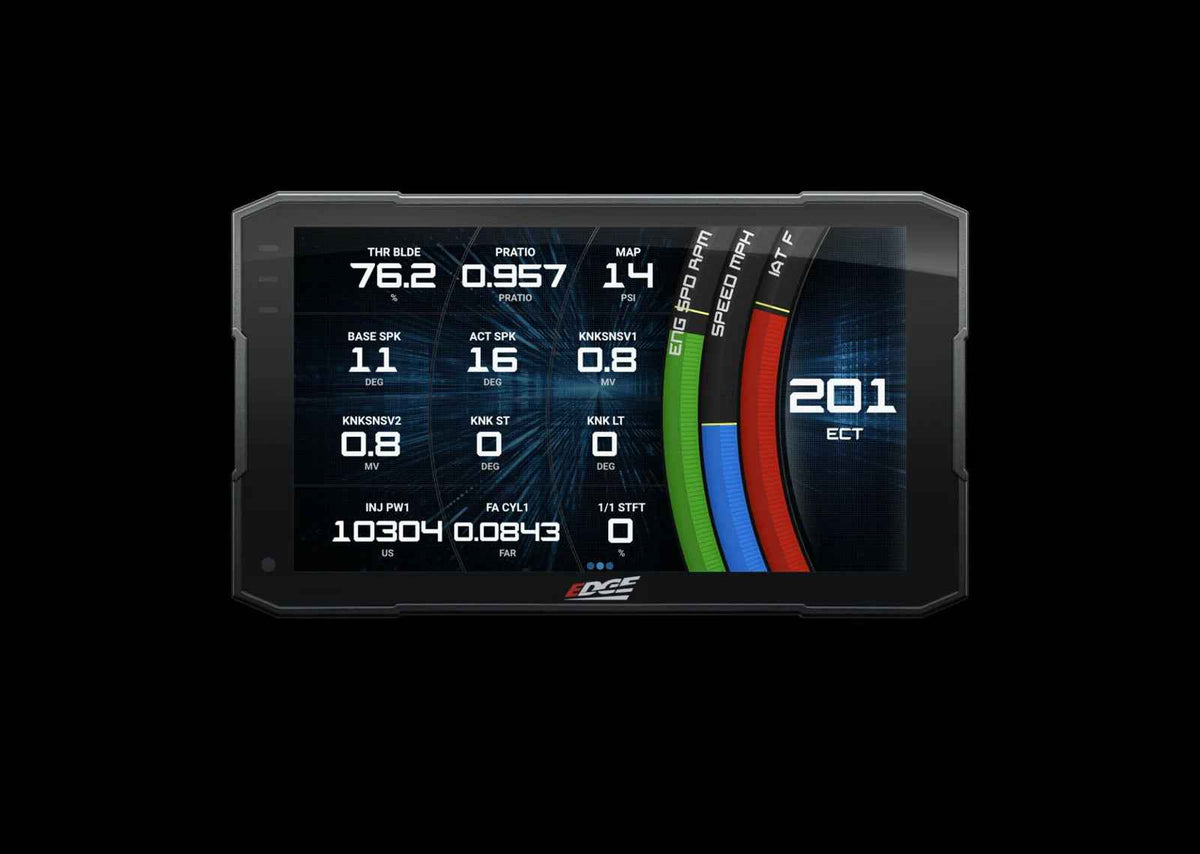

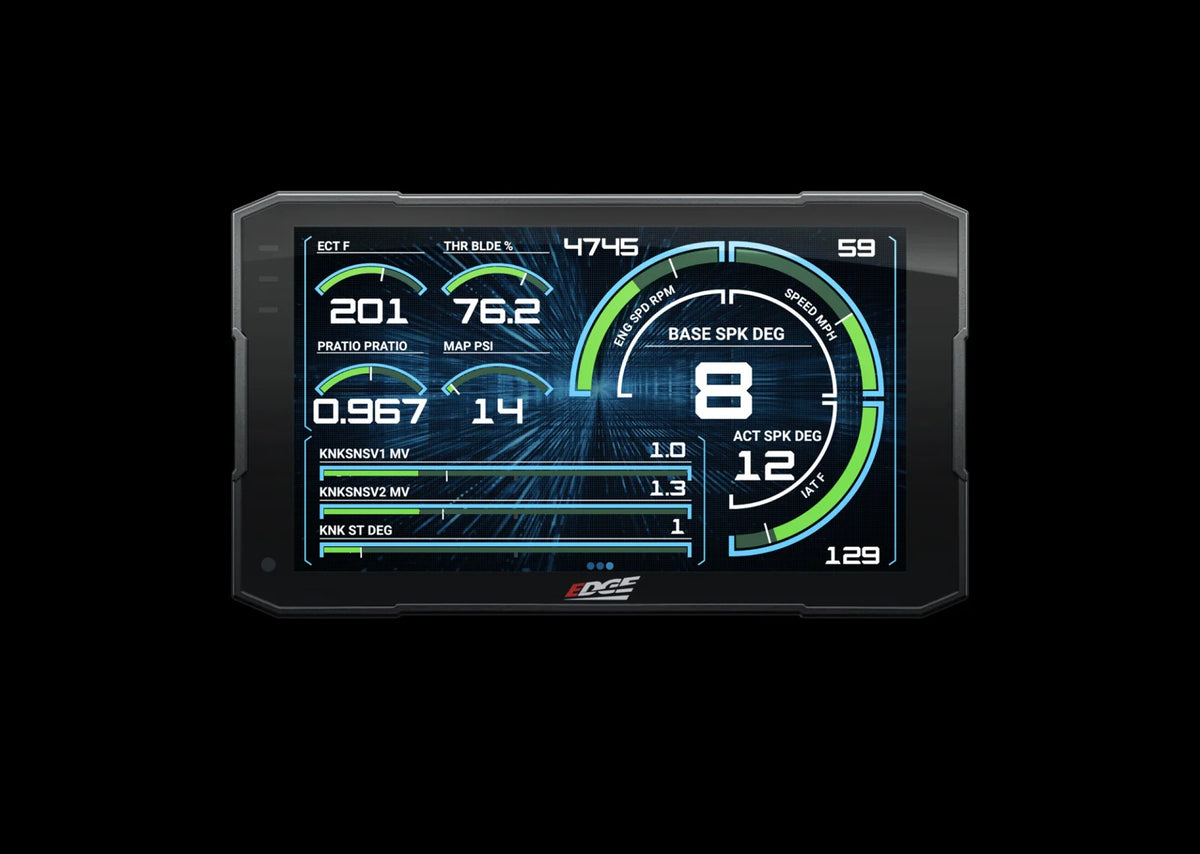

• Custom Gauge Layouts: Select from 31 available screen configurations and save preferred layouts.
• Performance Meter: Measure supported acceleration and distance-based performance results, including 0–60 MPH, 0–100 MPH, 1/8-mile, and 1/4-mile times.
• Pitch & Roll Display: Monitor vehicle pitch, roll, and G-forces using the integrated accelerometer.
• Expandable Accessory System: Add compatible EAS sensors, probes, cameras, and accessory switches.
• Maintenance Minder: Set service reminders based on mileage.
• Data Export: Export recorded vehicle information for analysis with compatible DataViewer software.
• Diesel-Specific Functions: Select vehicles support additional regeneration and monitoring functions.

Specifications

• Product Type: Digital Gauge Monitor
• Series: Insight CTS4
• Display: 5.5" Full-Color Capacitive Touchscreen
• Refresh Rate: 60 FPS
• Processor: 1.7GHz Dual-Core 64-Bit
• Memory: 2GB RAM
• Viewing Area: 21% Larger Than CTS3
• Startup Performance: Approximately 70% Faster Than CTS3
• Gauge Layouts: 31
• Connection: OBD-II
• Wi-Fi Updates: Yes
• Data Logging: Yes
• Diagnostic Code Reading/Clearing: Yes
• Automatic Screen Dimming: Yes
• Camera Input: RCA
• EAS Compatible: Yes

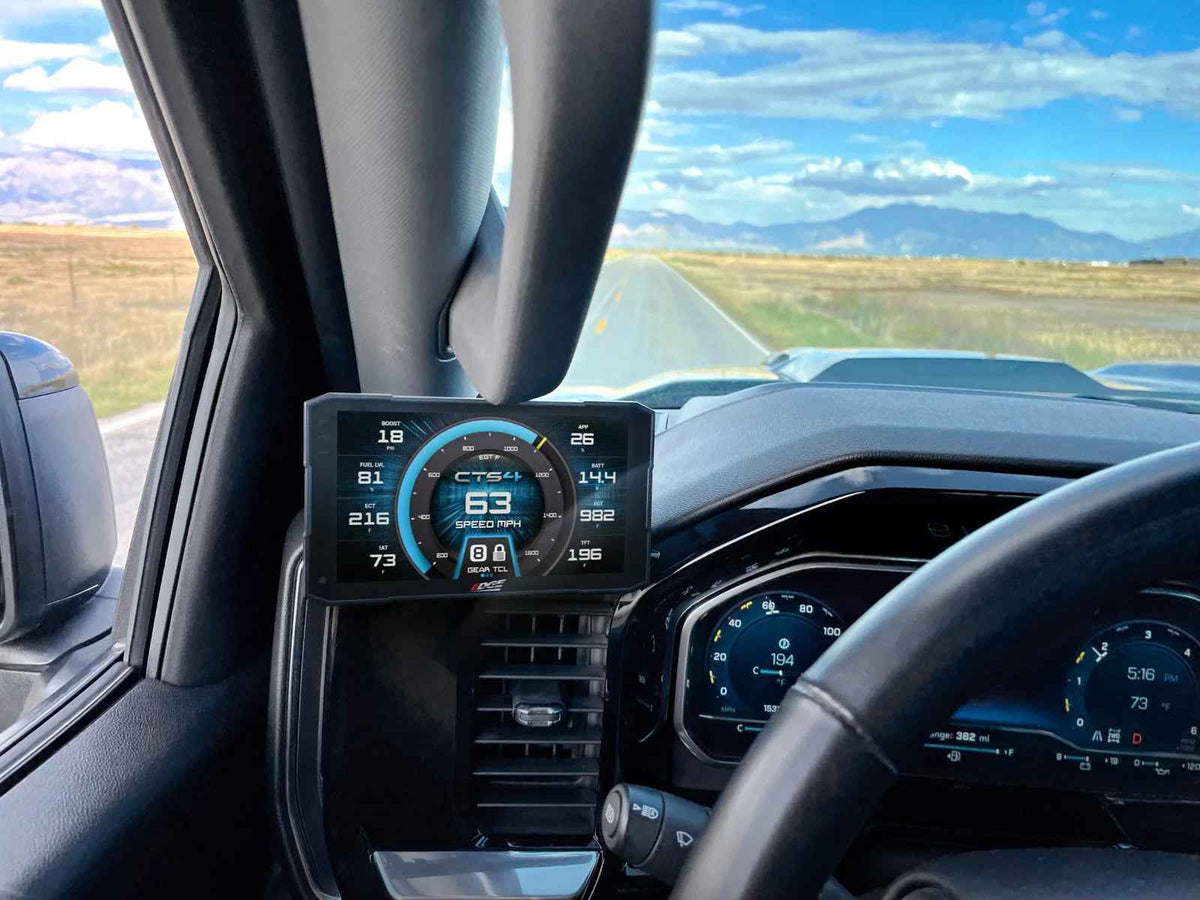

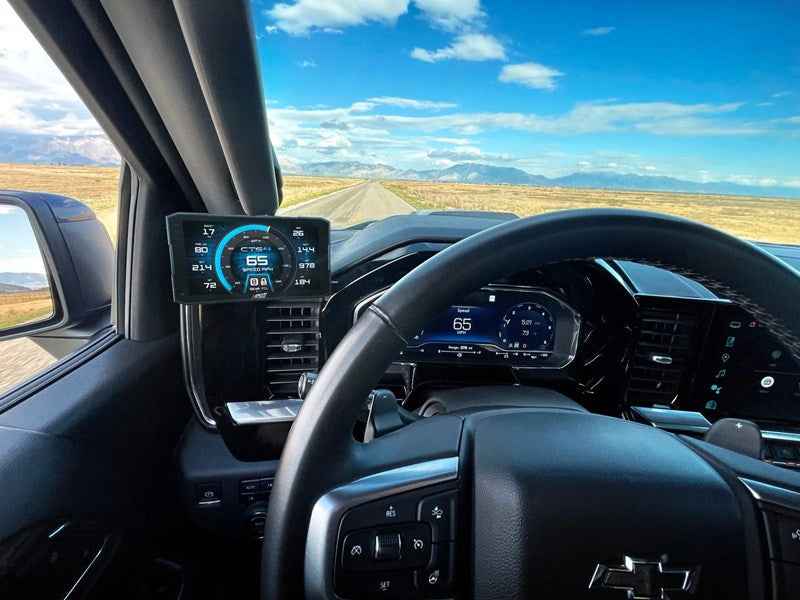

• Mounting: Windshield Suction Cup Mount
• Emissions Classification: CARB Exempt, Per Manufacturer

Application Notes

• Designed for many compatible domestic gasoline and diesel vehicles manufactured in 1996 or later.
• Available monitoring parameters and diagnostic functions vary by vehicle year, make, model, and engine.
• Some functions require additional EAS sensors, accessories, or compatible vehicle systems.

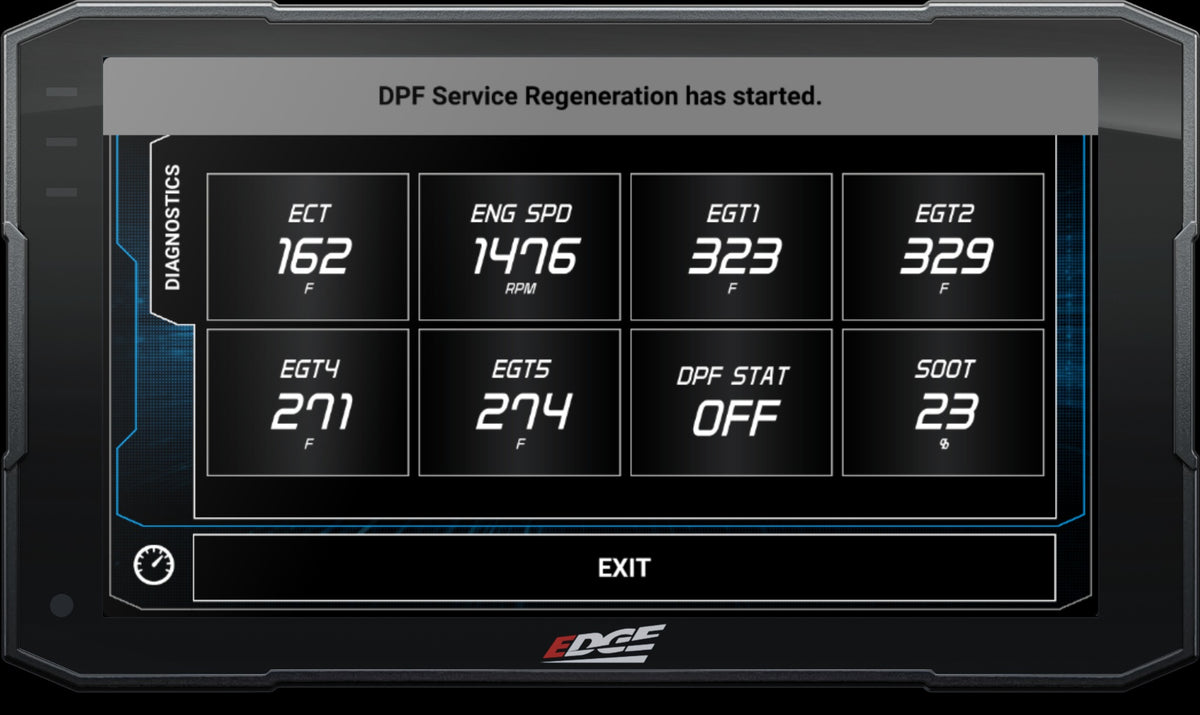

• Manual and mobile regeneration functions are available only on select supported diesel applications.
• Backup cameras and additional EAS accessories may be sold separately.
• The Insight CTS4 is intended for vehicle monitoring and diagnostics and does not provide engine performance calibrations.
• Verify vehicle compatibility and available functions before ordering.

Application: Compatible 1996+ Domestic Gas & Diesel Vehicles

Part Number: 84130-4
