EDGE PRODUCTS EZ MODULE & INSIGHT CTS3 KIT 20202-3 | 2024-2026 6.6L DURAMAX L5P

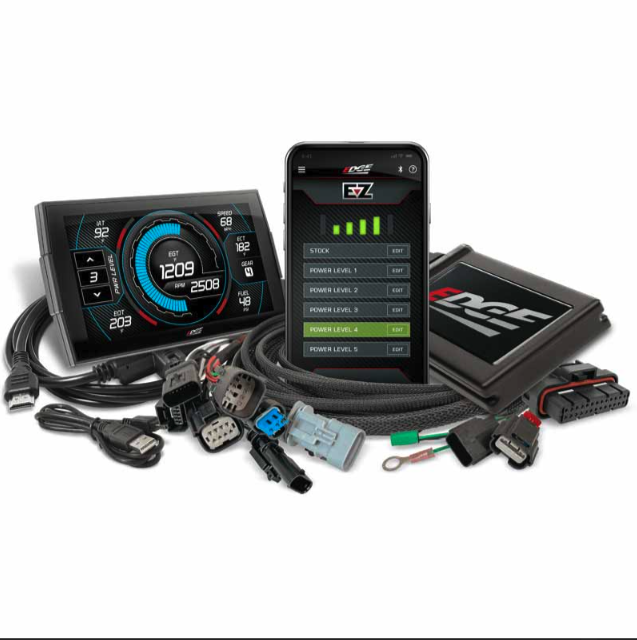

Combine adjustable plug-and-play performance with comprehensive digital monitoring in your GM 6.6L Duramax L5P with the Edge Products 20202-3 EZ Module & Insight CTS3 Kit. This package pairs the EZ performance module with the Insight CTS3 5-inch touchscreen monitor, providing increased power, adjustable throttle response, and access to critical vehicle data from one complete system.

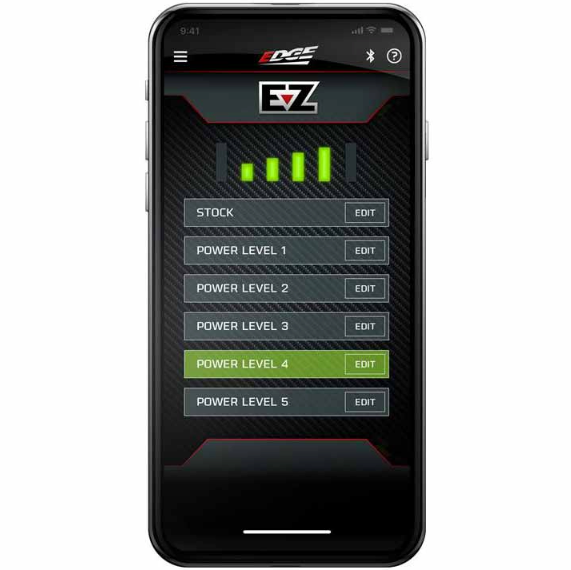

The EZ Module provides five selectable power levels with peak gains of up to 63 horsepower and 140 lb-ft of torque. Each power level can be combined with one of seven adjustable throttle pedal settings, allowing you to customize pedal sensitivity and reduce throttle lag. Settings can be changed on the fly through Edge's compatible smartphone app. The module modifies select engine sensor signals without requiring ECM flashing, allowing for a straightforward plug-and-play installation.

Built-in engine temperature protection maintains factory power levels until the engine reaches proper operating temperature. Designed for daily driving and towing, the EZ Module adjusts parameters including rail pressure and mass airflow signals to improve throttle response, turbocharger response, and overall drivability. Edge reports that extensive loaded and unloaded testing showed no change in DPF regeneration frequency.

The included Insight CTS3 provides a 5-inch full-color capacitive touchscreen with haptic feedback for monitoring vehicle parameters in real time. Its high-speed processor provides quick startup and responsive operation, while Wi-Fi connectivity simplifies software updates. The CTS3 also provides additional diagnostic and vehicle functions, including reading and clearing diagnostic trouble codes, manual DPF regeneration on supported applications, and performance testing.

Features:

• Combines the Edge EZ Module with the Insight CTS3 monitor
• Peak gains of up to 63 HP and 140 lb-ft of torque
• Five selectable power levels
• Seven user-adjustable throttle pedal settings for each power level
• Built-in adjustable throttle booster helps reduce pedal lag
• Power and throttle settings adjustable on the fly
• Compatible with Edge's smartphone app
• Plug-and-play EZ Module installation
• No ECM flashing required
• Modifies select rail pressure and mass airflow signals
• Designed to improve throttle response and turbocharger spool-up
• Built-in cold-engine temperature protection
• Maintains factory power levels until the engine reaches operating temperature
• Designed for daily driving and towing applications
• Edge testing reported no change in DPF regeneration frequency
• Edge testing recorded a 0.31-second improvement in 0–60 MPH acceleration and a 3 MPH increase in quarter-mile trap speed

Insight CTS3 Features:

• 5" full-color capacitive touchscreen display
• Haptic touchscreen feedback
• High-speed processor for responsive operation
• Real-time vehicle parameter monitoring
• Wi-Fi update capability
• Read and clear diagnostic trouble codes
• Manual DPF regeneration on supported applications
• Performance testing functions

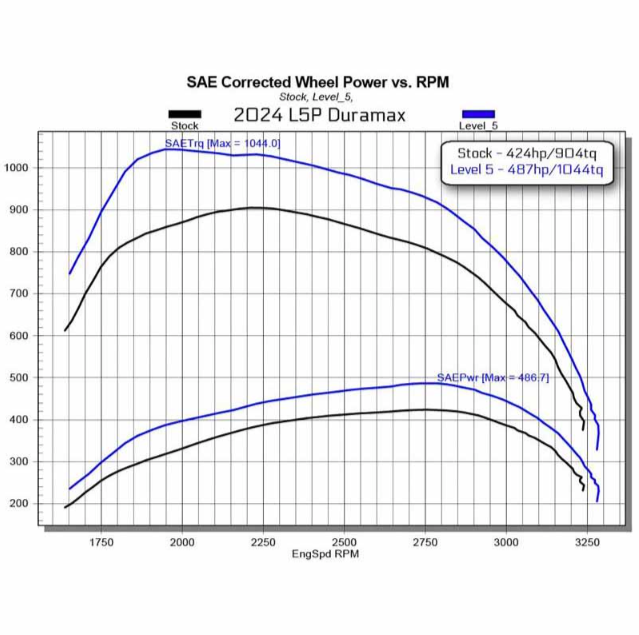

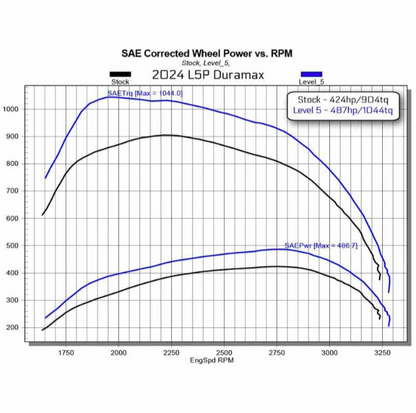

Power Levels:

• Level 1: Up to +20 HP / +60 lb-ft
• Level 2: Up to +30 HP / +80 lb-ft
• Level 3: Up to +40 HP / +90 lb-ft
• Level 4: Up to +50 HP / +110 lb-ft
• Level 5: Up to +63 HP / +140 lb-ft

Kit Includes:

• Edge EZ Performance Module
• Edge Insight CTS3 5" Touchscreen Monitor
• Required Connection Hardware and Wiring

Fitment:

• GM applications equipped with the 6.6L Duramax L5P diesel engine
