EDGE PRODUCTS EZ MODULE 20202 | 2024-2026 6.6L DURAMAX L5P

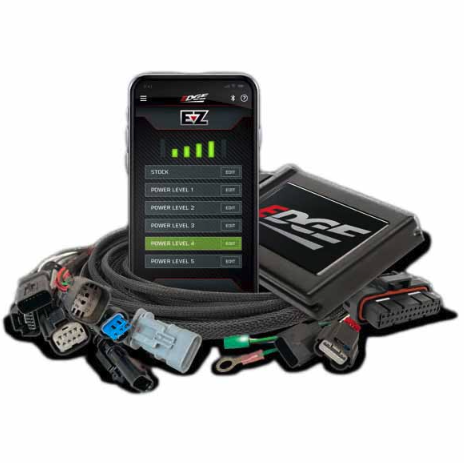

Improve power delivery, throttle response, and drivability in your GM 6.6L Duramax L5P with the Edge Products 20202 EZ Module. This plug-and-play performance module modifies select engine sensor signals without requiring ECM flashing, providing adjustable performance gains while allowing the system to be removed without permanently altering the factory ECM calibration.

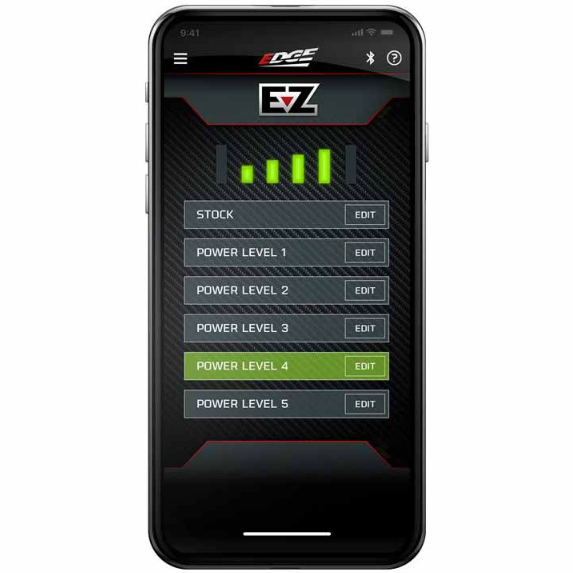

The EZ Module provides five selectable power levels with peak gains of up to 63 horsepower and 140 lb-ft of torque. Each power level can also be paired with one of seven adjustable throttle pedal settings, allowing you to customize pedal sensitivity and reduce throttle lag. Power and throttle settings can be changed on the fly through Edge's compatible smartphone app.

Built-in engine temperature protection helps manage added performance during cold starts and demanding operating conditions. The system retains factory power levels until the engine reaches proper operating temperature, then enables the selected performance calibration. Designed with daily driving and towing in mind, the EZ Module adjusts parameters including rail pressure and mass airflow signals to improve throttle response, turbocharger response, and overall drivability.

Features:

• Peak gains of up to 63 HP and 140 lb-ft of torque
• Five selectable power levels
• Seven user-adjustable throttle pedal settings for each power level
• Built-in adjustable throttle booster helps reduce pedal lag
• Power and throttle settings adjustable on the fly
• Compatible with Edge's smartphone app
• Plug-and-play installation
• No ECM flashing required
• Modifies select rail pressure and mass airflow signals
• Designed to improve throttle response and turbocharger spool-up
• Built-in engine temperature protection
• Maintains factory power levels until the engine reaches operating temperature
• Designed for daily driving and towing applications
• Edge testing reported no change in DPF regeneration frequency
• Edge testing recorded a 0.31-second improvement in 0–60 MPH acceleration and a 3 MPH increase in quarter-mile trap speed

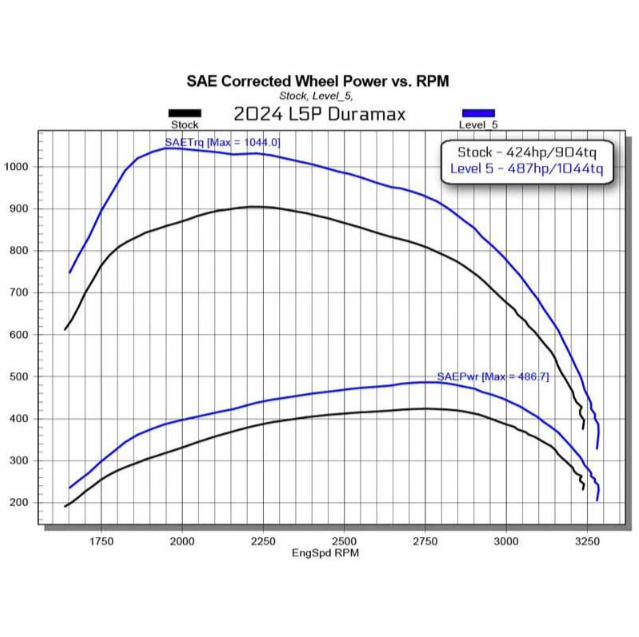

Power Levels:

• Level 1: Up to +20 HP / +60 lb-ft
• Level 2: Up to +30 HP / +80 lb-ft
• Level 3: Up to +40 HP / +90 lb-ft
• Level 4: Up to +50 HP / +110 lb-ft
• Level 5: Up to +63 HP / +140 lb-ft

Fitment:

• GM applications equipped with the 6.6L Duramax L5P diesel engine
