CSF OEM STYLE REPLACEMENT SECONDARY RADIATOR 3664 | 2013-2018 6.7L Cummins

CSF OEM STYLE REPLACEMENT SECONDARY RADIATOR 3664 | 2013-2018 6.7L Cummins

3664

$131.40 USD

SELECT FITMENT

See If This Product Fits Your Vehicle

While many of our products are stocked in our warehouse, inventory levels can change quickly. If you need to confirm availability before placing your order, please call or text 970-778-0792.

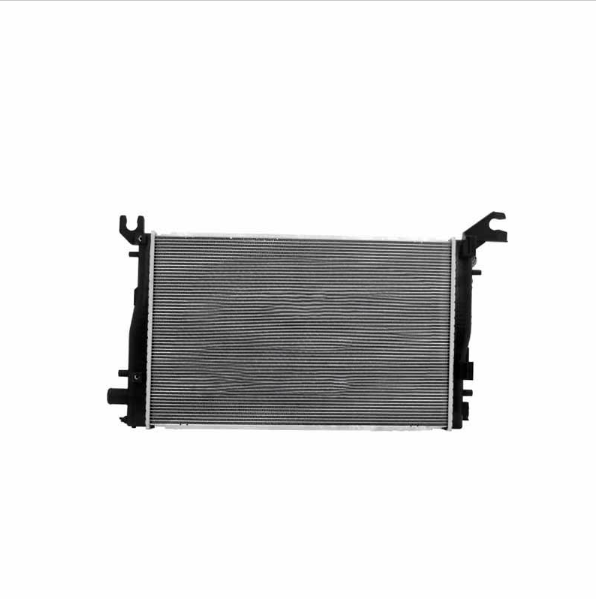

Replace a leaking, damaged, or inefficient factory radiator with the CSF 3664 OEM Style Replacement Radiator. Designed to match the fit and function of the original cooling system, this radiator features OEM-style plastic tank and aluminum core construction for dependable cooling performance and straightforward drop-in installation.

The radiator tanks are manufactured from virgin-grade engineered plastic resins reinforced with glass for additional strength and durability. Special-grade EPDM rubber gaskets are designed to withstand extreme temperatures down to -120°F, helping provide a reliable seal in demanding operating conditions.

CSF installs, torques, and tests the radiator components during assembly. Each radiator is 100% leak tested at 150% of its operating pressure before leaving the factory. A multi-louvered core design provides efficient heat transfer, while the integrated high-performance transmission cooler features a specialized internal turbulator when applicable.

Features:

  • OEM-style replacement radiator
  • Direct drop-in fit
  • OEM-spec plastic tank and aluminum core construction
  • Multi-louvered core design
  • Glass-filled engineered plastic tanks for increased strength and durability
  • Special-grade EPDM rubber gaskets
  • Gaskets designed to withstand temperatures down to -120°F
  • Components installed, torqued, and tested during assembly
  • 100% leak tested before leaving the factory
  • Leak tested at 150% of operating pressure
  • High-performance transmission cooler with built-in turbulator when applicable
  • Protective packaging designed to help prevent shipping damage

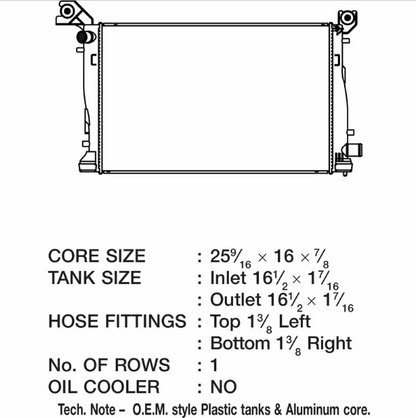

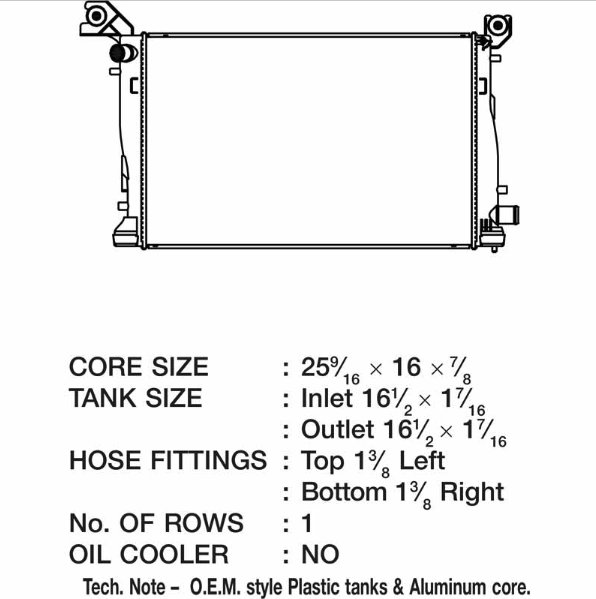

Specifications:

  • Core Material: Aluminum
  • Tank Material: Plastic
  • Core Length: 25-9/16"
  • Core Width: 15-7/8"
  • Core Thickness: 7/8"
  • Number of Rows: 1
  • Flow Design: Cross Flow
  • Bottom Hose Fitting: 1-3/8", Right
  • Top Hose Fitting: 1-3/8", Left
  • Inlet Length: 16-9/16"
  • Inlet Width: 1-3/8"
  • Outlet Length: 16-9/16"
  • Outlet Width: 1-3/8"
  • Radiator Cap Included: No
