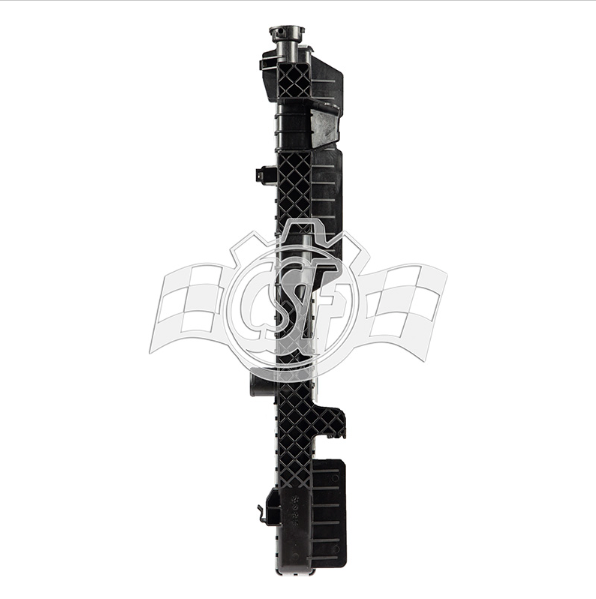

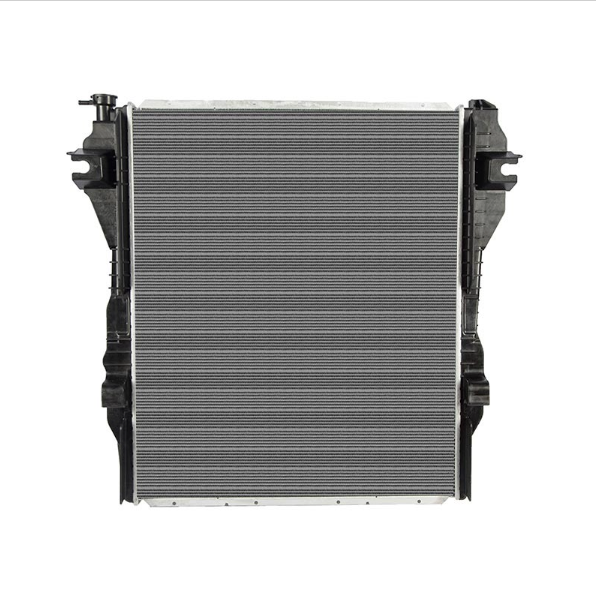

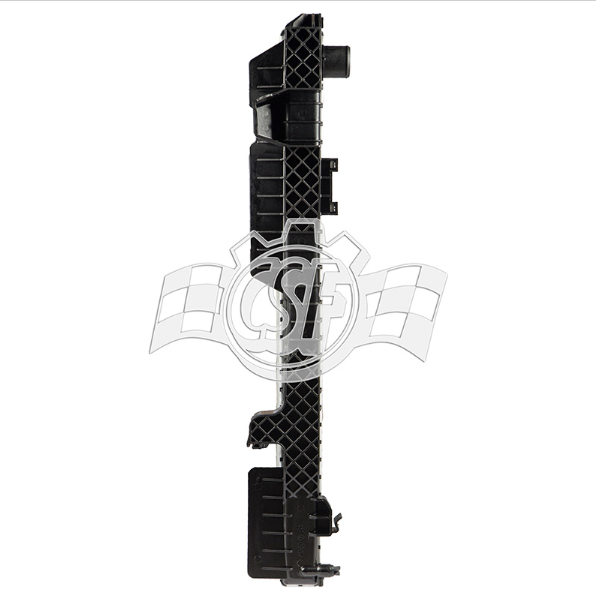

CSF OEM STYLE REPLACEMENT RADIATOR 3529 | 2010-2012 6.7L CUMMINS

Restore reliable cooling system performance in your 2010–2012 Dodge/Ram 6.7L Cummins with the CSF 3529 OEM Style Replacement Radiator. Engineered as a direct replacement for the factory radiator, this unit is built to OE specifications for straightforward, drop-in installation and dependable cooling performance.

The CSF 3529 features an aluminum core with OEM-style plastic tanks and a two-row cross-flow design. CSF develops and tests its radiator designs in-house using procedures including wind tunnel testing, burst-pressure testing, vibration testing, thermal cycling, and salt-spray corrosion testing. Each radiator is also individually pressure tested and serial-number certified for quality assurance.

Designed to match the factory fit and function, this radiator is an ideal replacement for a leaking, damaged, or inefficient original radiator without requiring a performance-style cooling system conversion.

Features:

• Designed for 2010–2012 Dodge/Ram 6.7L Cummins applications
• OEM-style replacement radiator
• Direct drop-in installation
• Built to OE fit and performance specifications
• Aluminum radiator core
• OEM-style plastic tanks
• Two-row cross-flow design
• Individually pressure tested
• Serial-number certified
• Backed by a 1-year warranty

Specifications:

• Core Material: Aluminum
• Tank Material: Plastic
• Core Length: 26-5/8"
• Core Width: 32-3/8"
• Core Thickness: 1-5/8"
• Number of Rows: 2
• Flow Design: Cross Flow
• Bottom Hose Fitting: 1-13/16", Right
• Top Hose Fitting: 1-13/16", Left
• Inlet Length: 33"
• Inlet Width: 2-1/8"
• Outlet Length: 33"
• Outlet Width: 2-1/8"
• Radiator Cap Included: No
• CSF Cap Number: 4539
