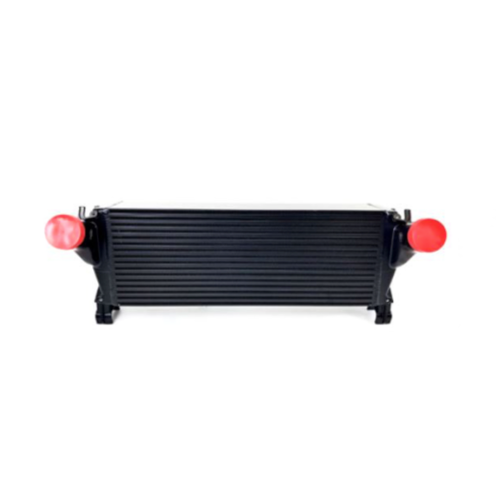

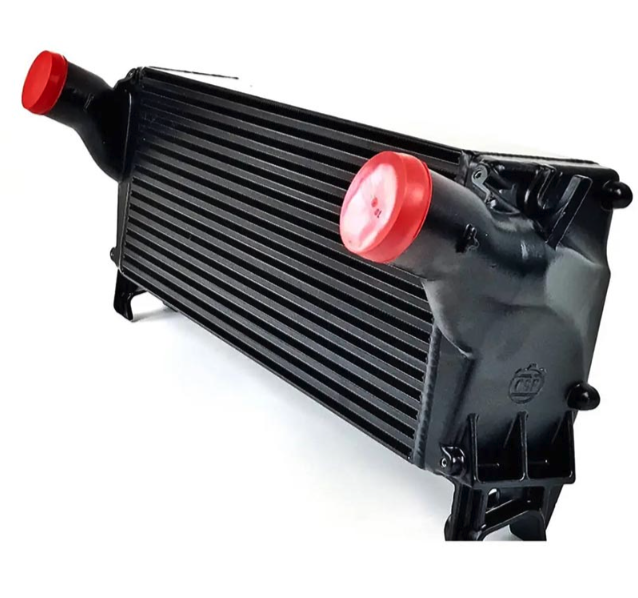

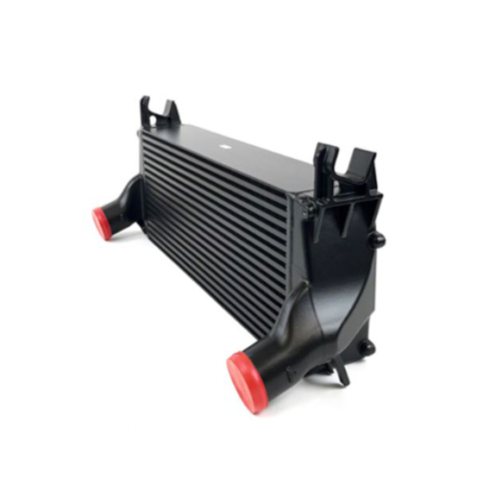

CSF HEAVY-DUTY INTERCOOLER 6076 | 2013-2018 6.7L CUMMINS

Upgrade charge-air cooling in your 2013–2018 Ram 6.7L Cummins with the CSF 6076 Heavy-Duty Intercooler. Designed for demanding towing and performance applications, this upgraded intercooler combines a massive 5-inch-thick bar-and-plate core with all-aluminum construction to provide increased durability and effective heat dissipation under heavy engine loads.

The heavy-duty aluminum bar-and-plate core is paired with aluminum end tanks and 100% TIG-welded construction for increased strength and resistance to high boost pressures. Each intercooler is pressure tested and rated to withstand more than 120 PSI, providing additional durability for stock and modified trucks operating under demanding conditions.

Despite its upgraded construction, the CSF 6076 is engineered around factory mounting specifications for a straightforward bolt-in installation. It retains compatibility with the factory hoses, brackets, mounting points, and related components without requiring additional vehicle modifications. Each intercooler is individually tested and serial-number certified before shipment.

Features:

• Heavy-duty intercooler upgrade
• 5" thick bar-and-plate intercooler core
• Aluminum core and end tank construction
• 100% TIG-welded construction
• Designed for increased durability and heat dissipation
• Suitable for demanding towing and performance applications
• Pressure tested and rated at over 120 PSI
• Individually tested and serial-number certified
• Drop-in, bolt-in replacement
• No additional vehicle modifications required
• Compatible with factory hoses, brackets, and mounting points
• 2-year warranty

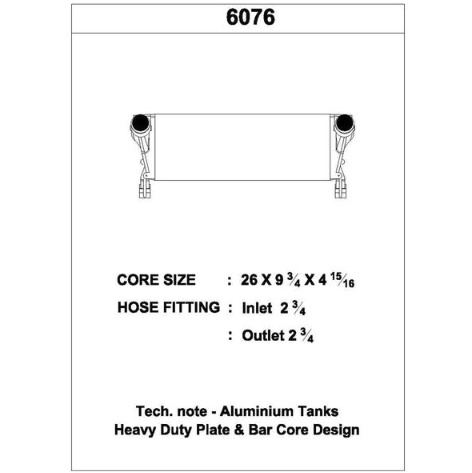

Specifications:

• Core Material: Aluminum
• Tank Material: Aluminum
• Core Design: Heavy-Duty Bar-and-Plate
• Core Thickness: 5"
• Pressure Rating: Over 120 PSI
• Construction: 100% TIG-Welded

Fitment:

• 2013–2018 Ram applications equipped with the 6.7L Cummins diesel engine
