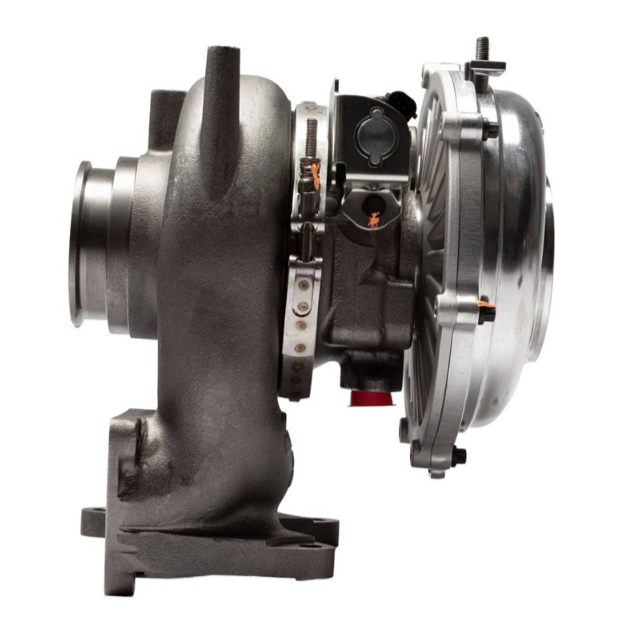

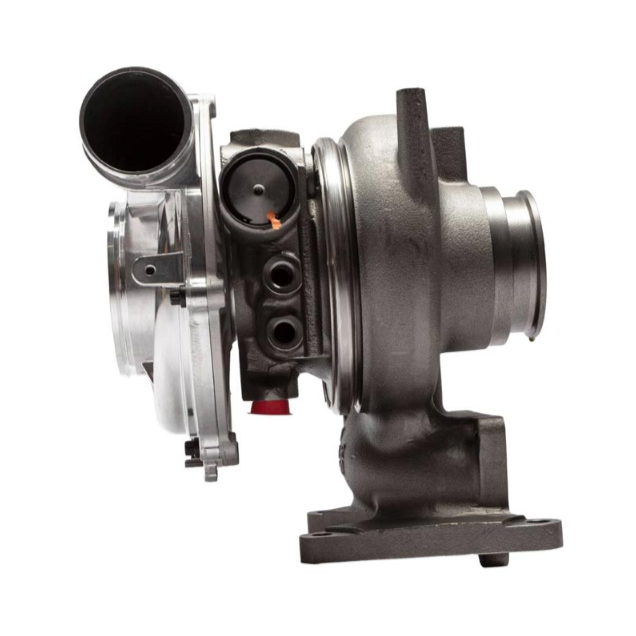

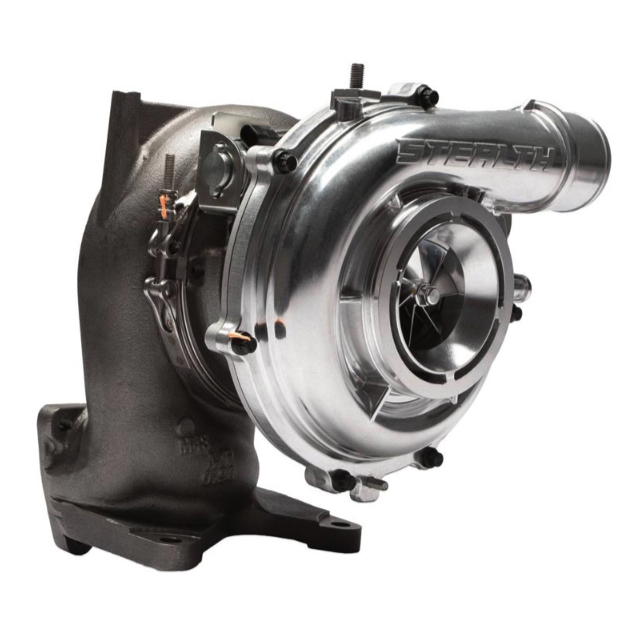

CALIBRATED POWER STEALTH STR TURBOCHARGER CPS200130 | 2004.5-2010 6.6L DURAMAX LLY/LBZ/LMM

Upgrade or replace the factory turbocharger on your GM 6.6L Duramax LLY, LBZ, or LMM with the Calibrated Power Stealth STR Turbocharger. Designed as a direct bolt-on replacement, the Stealth STR combines stock-like spool characteristics with increased airflow, improved temperature control, and additional horsepower capability for street and towing applications.

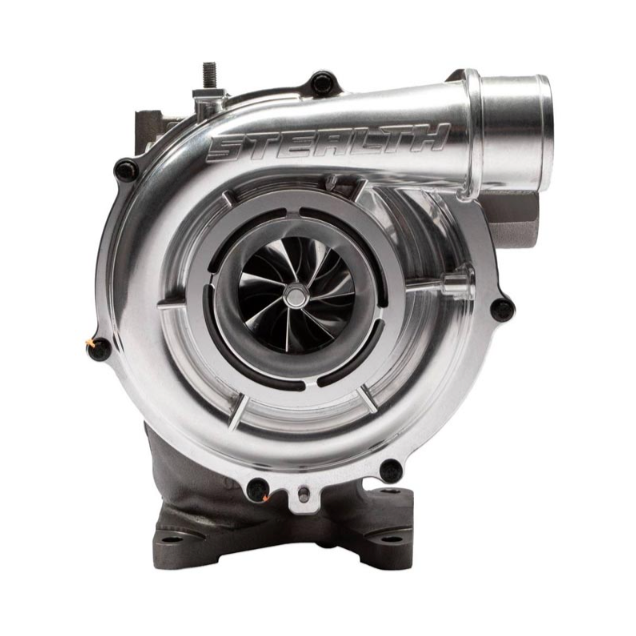

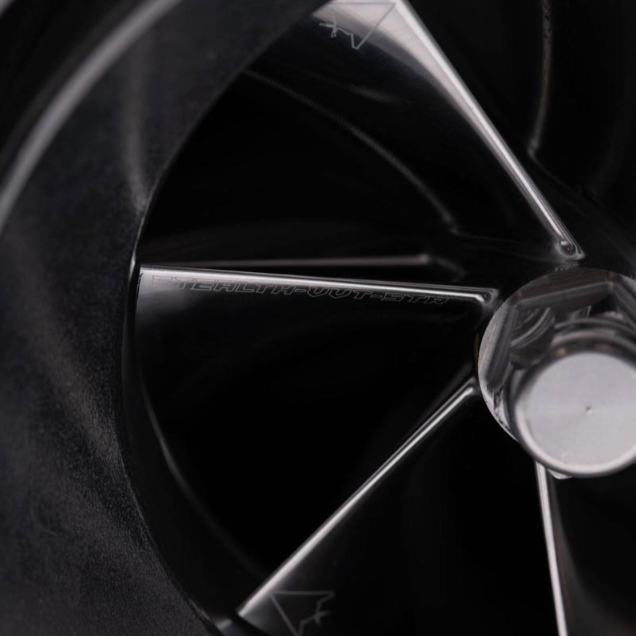

The Stealth STR features a custom 61mm 7-blade extended-tip billet compressor wheel capable of approximately 67 lb/min of airflow compared to approximately 59 lb/min from the stock compressor. Its lightweight billet construction and broad efficiency range help provide quick throttle response while reducing the potential for compressor surge during towing and low-RPM operation.

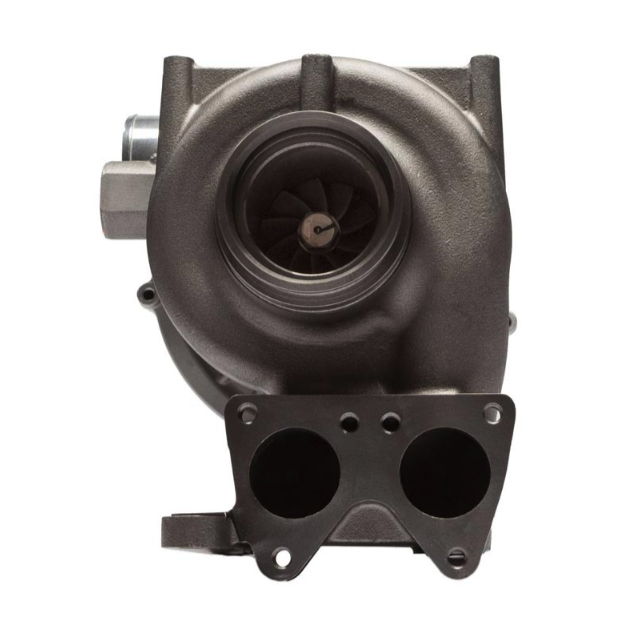

On the exhaust side, a custom 10-blade high-flow turbine wheel uses thicker, more heat-resistant blades to improve durability and exhaust flow. The turbine design helps reduce drive pressure under heavy loads and provides improved EGT control compared to the factory turbocharger while producing the distinctive exhaust note associated with a 10-blade turbine.

Upgraded 11mm turbine vanes are optimized for improved boost-to-drive-pressure ratios while retaining factory exhaust brake functionality and responsive vane operation. A 360-degree thrust bearing provides additional durability for demanding applications.

The Stealth STR is designed as a direct replacement using brand-new components throughout. No core charge is required, and the turbocharger is designed to install without custom fabrication or calibration changes.

Features

• 61mm billet compressor wheel – Custom 7-blade extended-tip design provides increased airflow and a broad efficiency range
• Approximately 67 lb/min airflow – Increased compressor airflow compared to approximately 59 lb/min stock
• 10-blade high-flow turbine – Custom oversized turbine improves exhaust flow and efficiency
• Thicker turbine blades – Designed for increased durability and heat resistance
• 11mm turbine vanes – Optimized for improved boost-to-drive-pressure characteristics
• Fast spool-up – Lightweight rotating assembly provides responsive, stock-like boost response
• Improved surge resistance – Designed to maintain compressor stability during towing and low-RPM operation
• Lower drive pressure – High-flow turbine design improves exhaust flow under heavy engine loads
• Improved EGT control – Designed to provide better temperature management than the factory turbocharger
• Factory exhaust brake compatible – Retains factory exhaust brake functionality
• Up to 600 RWHP capability – Designed to support performance applications up to approximately 600 rear-wheel horsepower
• 70–80 RWHP potential increase – Manufacturer states gains of approximately 70–80 RWHP over comparable calibration-only configurations
• 360-degree thrust bearing – Provides additional durability under demanding operating conditions
• Direct bolt-on installation – Designed as a replacement for the factory turbocharger without custom fabrication
• Brand-new components – New parts used throughout the turbocharger assembly
• No core charge – No original turbocharger return required

Specifications

• Series: Stealth STR
• Compressor Wheel: 61mm 7-Blade Extended-Tip Billet
• Maximum Compressor Airflow: Approximately 67 lb/min
• Turbine: 10-Blade High-Flow
• Turbine Vanes: 11mm
• Thrust Bearing: 360-Degree
• Power Capability: Up to Approximately 600 RWHP
• Installation Type: Direct Bolt-On / Drop-In Replacement
• Core Charge: None
• Intended Use: Street, Daily Driving, Towing & Performance

Fitment: GM 6.6L Duramax LLY, LBZ & LMM

Part Number: CPS200130
