CALIBRATED POWER STEALTH MACH 2 (67MM) TURBOCHARGER CPS200368 | 2001-2004 6.6L DURAMAX LB7

Upgrade your GM 6.6L Duramax LB7 with the Calibrated Power Stealth Mach 2 67mm Turbocharger. Designed as a direct-fit performance replacement, the Mach 2 combines increased airflow with quick spool characteristics and a broad torque curve while retaining a clean, factory-style appearance.

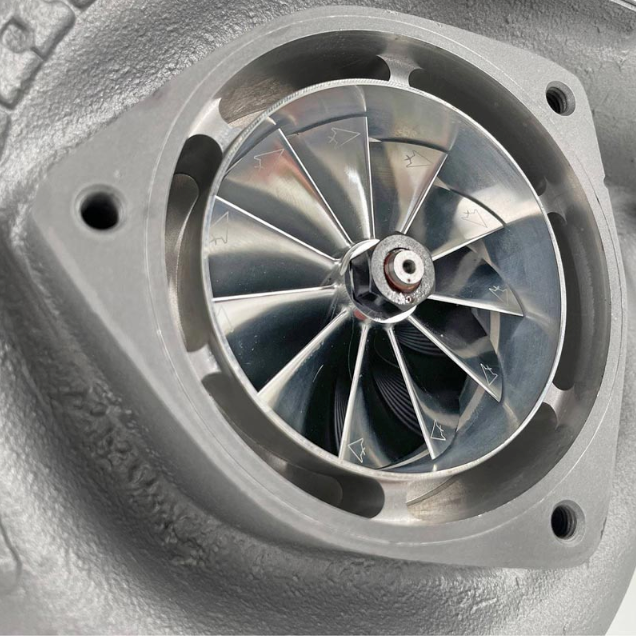

At the center of the Stealth Mach 2 is a custom 67mm x 96mm billet compressor wheel paired with an engineered anti-surge compressor cover. This combination is designed to increase airflow while improving compressor stability at higher boost levels, helping support strong and consistent performance throughout the RPM range.

On the exhaust side, Calibrated Power utilizes a 77mm x 71mm Stealth High-Flow turbine assembly engineered to improve exhaust flow and efficiency. An updated wastegate configuration helps promote quicker spool-up and responsive boost characteristics, providing usable power without sacrificing everyday drivability.

The Mach 2 also incorporates 360-degree thrust bearings to improve durability during heavy-load transitions and demanding performance applications. Together, these upgrades provide a turbocharger capable of supporting up to 800 peak horsepower while delivering a wide torque curve and responsive power delivery.

Features

• Up to 800 HP peak capability – Designed to support high-performance LB7 engine combinations
• 67mm x 96mm billet compressor wheel – Provides increased airflow for higher horsepower applications
• Engineered anti-surge compressor cover – Helps improve compressor stability at higher boost levels
• 77mm x 71mm Stealth High-Flow turbine – Engineered for improved exhaust flow and efficiency
• Updated wastegate design – Helps promote quick spool-up and responsive boost characteristics
• 360-degree thrust bearings – Provides increased durability during heavy-load transitions
• Quick spool-up – Designed to provide responsive power delivery throughout the RPM range
• Wide torque curve – Delivers strong, usable performance across a broad operating range
• Direct-fit installation – Designed as a straightforward replacement for the factory LB7 turbocharger
• Stock-appearing design – Maintains a clean, factory-style appearance in the engine compartment
• Dyno-proven performance – Engineered and tested for increased airflow and horsepower capability

Specifications

• Series: Stealth Mach 2
• Compressor Wheel: 67mm x 96mm Billet
• Compressor Cover: Engineered Anti-Surge
• Turbine Assembly: 77mm x 71mm Stealth High-Flow
• Thrust Bearing: 360-Degree
• Peak Power Capability: Up to 800 HP
• Installation Type: Direct-Fit Replacement
• Intended Use: Street & Performance

Fitment: GM 6.6L Duramax LB7

Part Number: CPS200368
