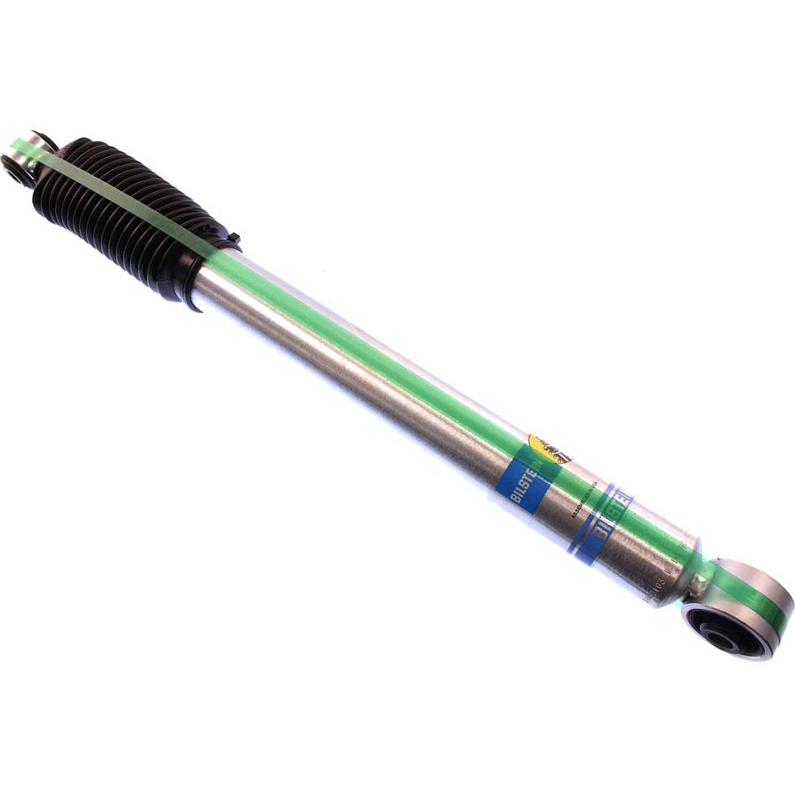

BILSTEIN B8 5100 SERIES SHOCK ABSORBER 24-186636 | 2003-2013 Cummins 5.9L/6.7L (Rear - Lifted 2") & 1999-2010 Duramax (Rear-Lifted 4")

BILSTEIN B8 5100 SERIES SHOCK ABSORBER 24-186636 | 2003-2013 Cummins 5.9L/6.7L (Rear - Lifted 2") & 1999-2010 Duramax (Rear-Lifted 4")

24-186636

$123.00 USD

SELECT FITMENT

See If This Product Fits Your Vehicle

While many of our products are stocked in our warehouse, inventory levels can change quickly. If you need to confirm availability before placing your order, please call or text 970-778-0792.

The Bilstein 5100 Series Shock Absorber is engineered for lifted trucks, SUVs, and Jeeps, delivering consistent damping performance and excellent ride quality. Built with a high-pressure monotube design and a 46mm digressive piston, this shock provides superior control for towing, hauling, and off-road driving.

Designed specifically for lifted applications, this rear shock improves stability, handling, and overall comfort while maintaining reliable performance under load.

Features:

  • High-pressure monotube design for fade-free performance
  • 46mm digressive piston with self-adjusting valving
  • Improves handling, stability, and ride control
  • Ideal for towing, hauling, and off-road use
  • Zinc-plated finish for corrosion resistance

Specifications:

  • Part Number: 24-186636
  • Old Part Number: F4-BE5-B514-H0
  • Series: 5100
  • Position: Rear
  • Drive Type: 4WD
  • Lift Height: 4" (GM) / 2" (Ram)
  • Body Design: 46mm monotube (non-coilover)
  • Finish: Zinc plated
  • Reservoir: No
  • Sold Individually (Qty: 2 required per vehicle)

Measurements:

  • Collapsed Length: 18.17" (461.5mm)
  • Extended Length: 29.92" (760mm)

Fitment:

  • 2003–2012 Ram 3500 4WD – Rear Lifted 2"
  • 2003–2013 Ram 2500 4WD – Rear Lifted 2"
  • 2014–2018 GM 1500 Gas 4WD – Rear Lifted 7–9"
  • 1999–2010 GM 2500/3500HD 4WD – Rear Lifted 4" (Non-Quadrasteer)

Note: Lift height is manufacturer recommended. Due to variations in suspension setups, verify measurements for proper fitment. Eye-to-eye shocks are measured from the center of one eyelet to the center of the other.
