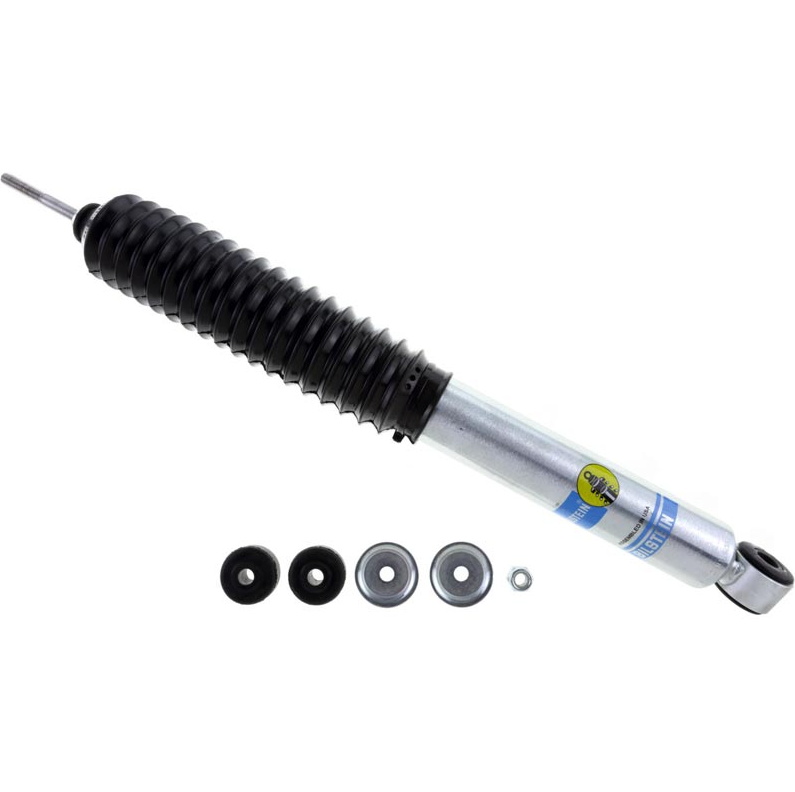

BILSTEIN B8 5100 SERIES SHOCK ABSORBER 24-187183 | 2001-2010 Duramax 6.6L (Front Lifted 4"-6")

The Bilstein 5100 Series Shock Absorber is engineered for lifted trucks, SUVs, and Jeeps, delivering superior damping performance with excellent on-road comfort. Featuring a high-pressure monotube design and a 46mm digressive piston, this shock provides consistent control under heavy loads and demanding conditions.

Ideal for trucks with 4–6" of front lift, the 5100 Series improves handling, stability, and ride quality whether towing, hauling, or driving off-road.

Features:

• High-pressure monotube design for fade-free performance
• 46mm digressive piston with self-adjusting valving
• Improved handling, stability, and ride comfort
• Ideal for lifted applications and heavy-duty use
• Zinc-plated finish for corrosion resistance

Specifications:

• Part Number: 24-187183
• Old Part Number: F4-BE5-E710-H1
• Series: 5100
• Position: Front
• Front Lift Height: 4–6"
• Front Spring Type: Torsion Bar
• Rear Spring Type: Leaf
• Body Design: 46mm monotube (non-coilover)
• Finish: Zinc plated
• Reservoir: No
• Sold Individually (Qty: 2 required per vehicle)

Measurements:

• Collapsed Length: 13.52" (343.3mm)
• Extended Length: 21.46" (545mm)

Fitment:

• 2001–2010 GM 2500/3500 HD (Non-Quadrasteer)

Note: Lift height is a manufacturer recommendation. Due to variations in suspension setups, verify measurements for proper fitment. Pin-to-eye shocks are measured from the base of the stem to the center of the eyelet.
