BILSTEIN B8 5100 SERIES SHOCK ABSORBER 24-186735 | 2001-2010 Duramax 6.6L LB7/LLY/LBZ/LMM (Front Lifted 0"-2.5")

BILSTEIN B8 5100 SERIES SHOCK ABSORBER 24-186735 | 2001-2010 Duramax 6.6L LB7/LLY/LBZ/LMM (Front Lifted 0"-2.5")

24-186735

$123.00 USD

SELECT FITMENT

See If This Product Fits Your Vehicle

While many of our products are stocked in our warehouse, inventory levels can change quickly. If you need to confirm availability before placing your order, please call or text 970-778-0792.

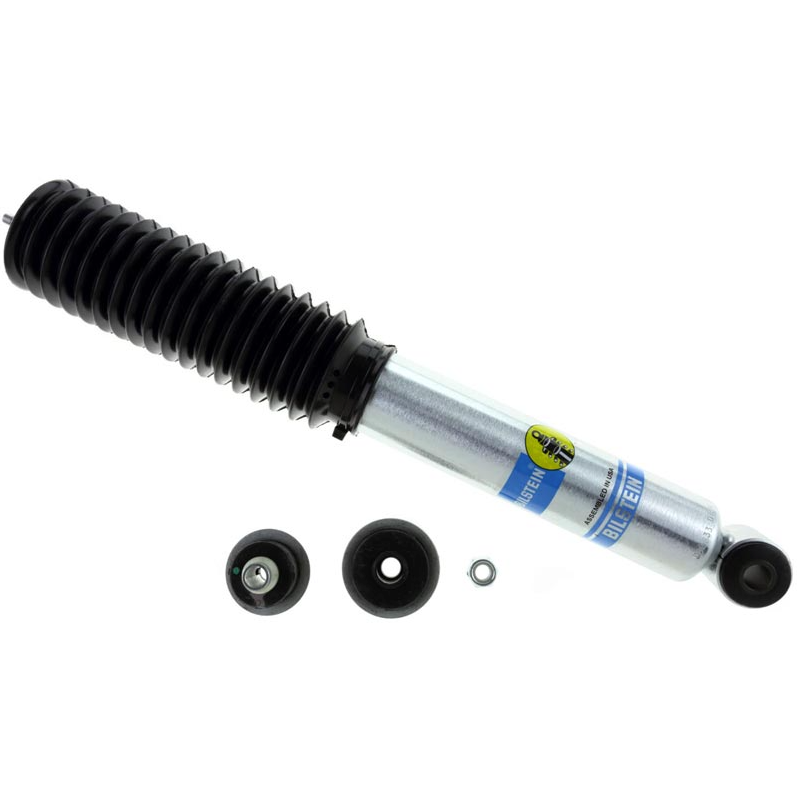

Bilstein 24-186735 5100 Series Front Shock Absorber

Enhance the performance of your lifted GM Silverado/Sierra 2500HD/3500HD with the Bilstein 5100 Series Front Shock. Built with a high-pressure monotube design and 46mm digressive piston featuring self-adjusting deflective disc valving, this shock delivers excellent damping for heavy loads, off-road adventures, and daily driving. Experience improved stability, comfort, and control without sacrificing ride quality. Sold individually.

Specifications:

  • Part Number: 24-186735
  • Old Part Number: F4-BE5-D146-H1
  • Series: 5100
  • Position: Front
  • Front Lifted Height: 0"-2.5" (Torsion Key Lift / Leveled)
  • Quantity Needed Per Vehicle: 2 (Sold Individually)
  • Body Design: 46mm ID Smooth Body (Non-Coilover)
  • Finish: Zinc Plated
  • Reservoir: No

Measurements:

  • Collapsed Length: 11.3 in (287 mm)
  • Extended Length: 15.76 in (400.2 mm)

Applications:

  • 2001-2010 GM Silverado/Sierra 2500HD/3500HD

Note: Lift height is suggested by the manufacturer. Because aftermarket suspension setups vary, it's recommended to measure for proper fit. Pin-to-eye measurement is from the base of the stem where the mounting hardware rests to the center of the eyelet. Shock absorbers are sold individually.
