BILSTEIN B8 5100 SERIES SHOCK ABSORBER 24-185776 | 1994-2013 Cummins 5.9L/6.7L (see fitment) & 2001-2016 Powerstroke 6.7L (Front Lifted 4")

BILSTEIN B8 5100 SERIES SHOCK ABSORBER 24-185776 | 1994-2013 Cummins 5.9L/6.7L (see fitment) & 2001-2016 Powerstroke 6.7L (Front Lifted 4")

24-185776

$123.00 USD

SELECT FITMENT

See If This Product Fits Your Vehicle

While many of our products are stocked in our warehouse, inventory levels can change quickly. If you need to confirm availability before placing your order, please call or text 970-778-0792.

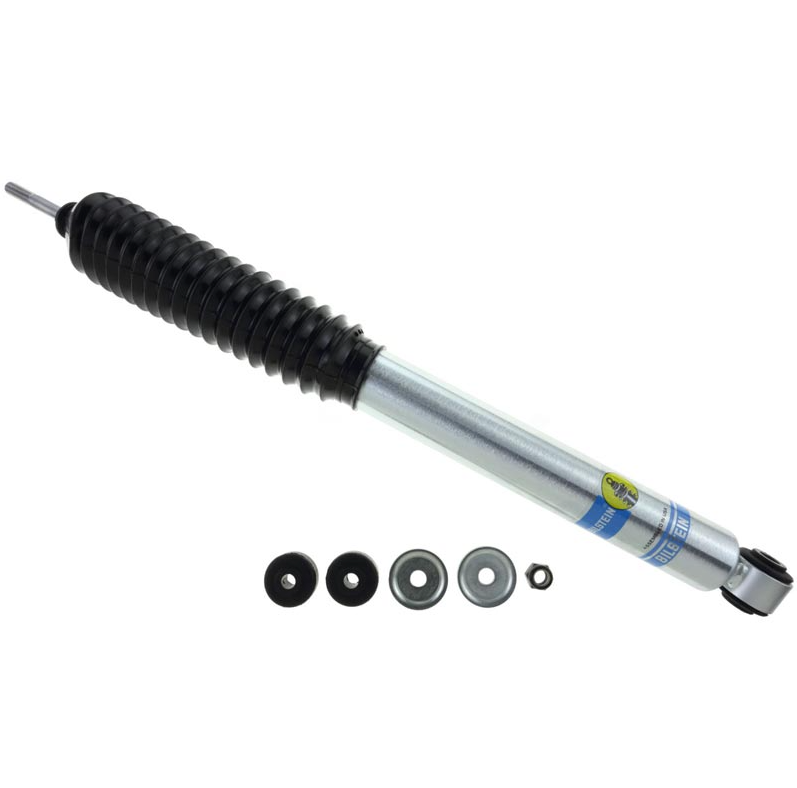

Bilstein 24-185776 5100 Series Front Shock Absorber

Upgrade your lifted pickup, SUV, or Jeep with the Bilstein 5100 Series Front Shock. Designed with a high-pressure monotube construction and a 46mm digressive piston with self-adjusting deflective disc valving, these shocks deliver superior damping for heavy-duty use while maintaining a smooth, controlled street ride. Perfect for off-road adventures, towing, or daily driving, each shock is tuned for optimal performance in lifted applications.

Specifications:

  • Part Number: 24-185776
  • Old Part Number: F4-BE5-6681-H8
  • Series: 5100
  • Drive Type: 4WD
  • Position: Front
  • Front Lifted Height: 0"-2.5" for Dodge, 4" for Ford Super Duty
  • Quantity Needed Per Vehicle: 2 (Sold Individually)
  • Body Design: 46mm ID Smooth Body (Non-Coilover)
  • Finish: Zinc Plated
  • Reservoir: No
  • Spring Seat: Not Included
  • Adjustable Damping: No

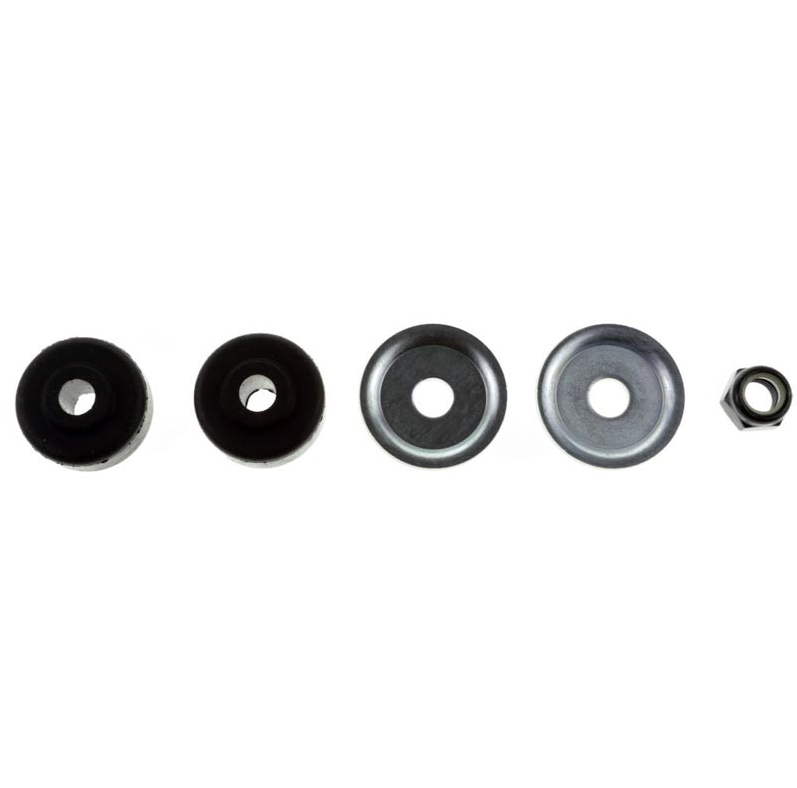

  • Replacement Mounting Kit: B4-KT1-Z103A00
  • Warranty: Limited Lifetime Warranty

Measurements:

  • Collapsed Length: 14.88 in (378 mm)
  • Extended Length: 24.37 in (619 mm)

Applications:

  • 1994-2013 Dodge Ram 2500 4WD – Front Lifted 0"-2.5"
  • 1994-2012 Dodge Ram 3500 4WD – Front Lifted 0"-2.5"
  • 2005-2016 Ford Super Duty F-250/350 4WD – Front Lifted 4"

Note: Lift heights are suggested by the manufacturer. Due to varying aftermarket suspension systems, it is recommended to measure for proper fit. Eye-to-eye measurement is taken from the base of the stem where the mounting hardware rests to the center of the eyelet. Shocks are sold individually.
