BEANS DIESEL ALUMINUM GRIDLOCK GIRDLE KIT WITH ARP STUDS 210300 | 2003-2018 5.9L/6.7L CUMMINS

Increase the strength and durability of your engine's bottom end with the Beans Diesel 210300 Billet Aluminum Gridlock Girdle Kit. Engineered for high-performance and high-horsepower Cummins builds, this complete kit reinforces the main caps and engine block to help prevent main cap walk, cap deflection, and block distortion under extreme cylinder pressures.

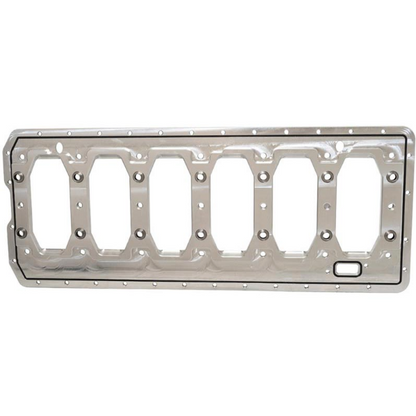

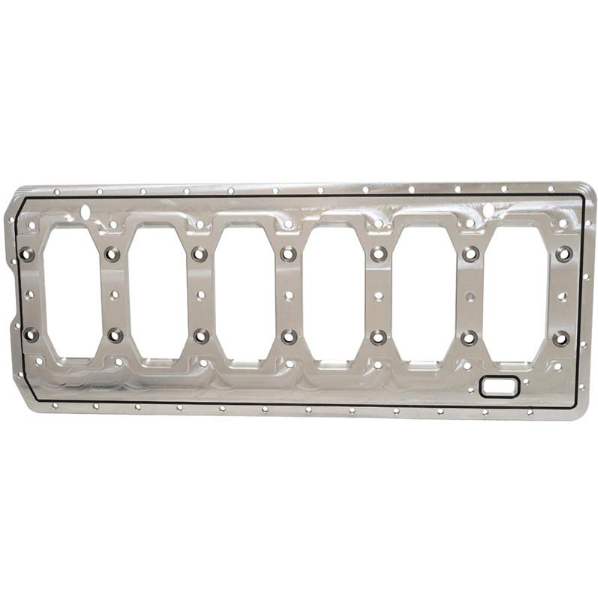

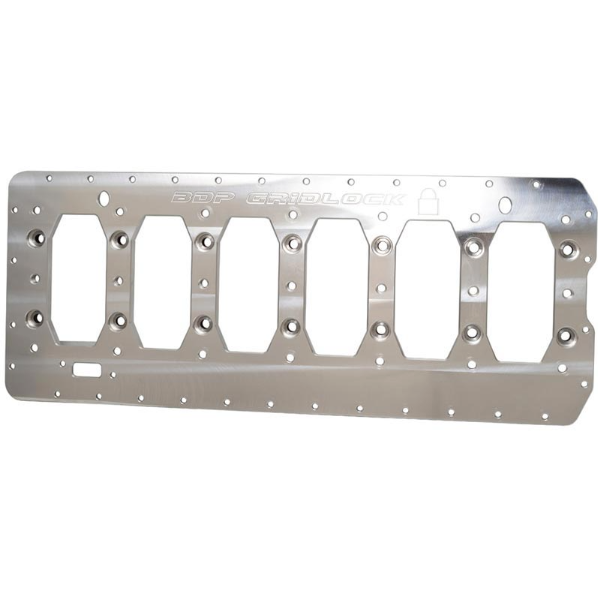

Precision-machined from billet aluminum, the Gridlock Girdle is designed for a straightforward, no-modification installation. Unlike many competing girdles, it requires no spacers, oil pan clearancing, or custom hardware. Integrated steel dowel pins lock the main caps in place, while preload set screws provide additional support to help eliminate cap movement under heavy loads.

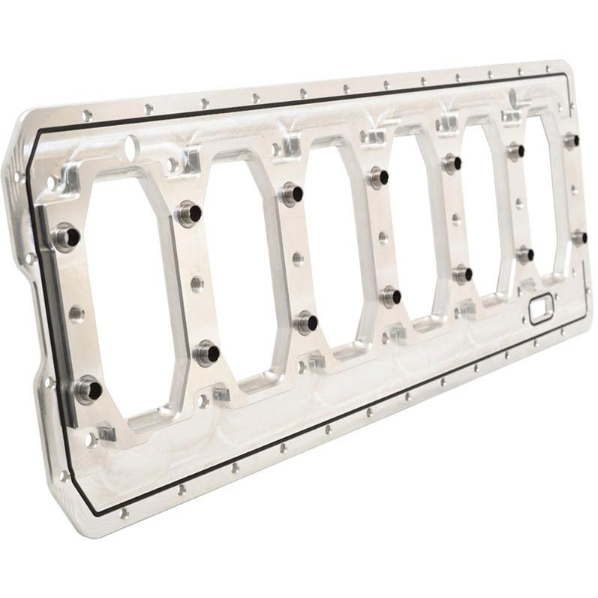

The thick billet aluminum construction provides exceptional rigidity while remaining significantly lighter than comparable steel girdles. Pressed-in steel inserts prevent compression around the main studs, and the integrated O-ring sealing surface ensures excellent oil control. This kit also includes custom-length ARP main studs specifically engineered for use with the Beans Gridlock Girdle.

Features:

• Precision-machined billet aluminum girdle
• Strengthens the engine block and main caps
• Helps prevent main cap walk, bowing, and deflection
• Steel locating dowels lock main caps into position
• Preload set screws provide additional main cap support
• Integrated O-ring sealing surface
• No oil pan modifications required
• Designed for use with the included custom-length ARP main studs
• Made in Tennessee, USA

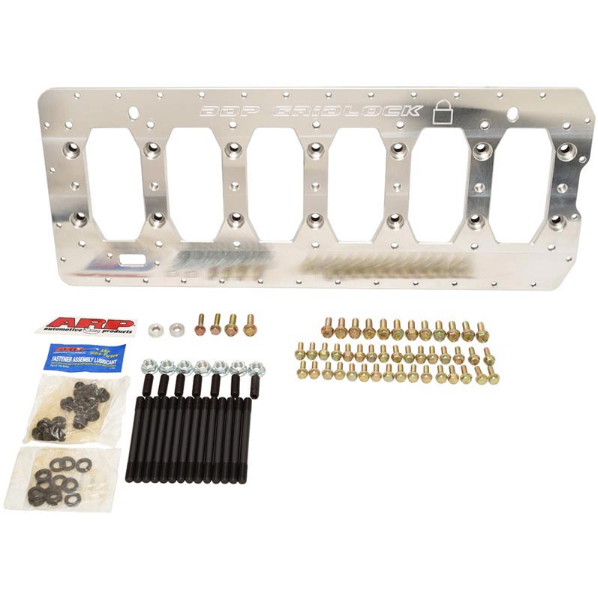

Kit Includes:

• Billet aluminum Gridlock girdle with steel locating dowels
• Custom-length ARP 12mm main stud kit
• ARP hardened washers
• ARP 12-point nuts
• ARP assembly lubricant
• Oil pan bolts
• Block stiffener bolts
• Extra-long block stiffener bolts for oil pickup brackets
• Oil pickup tube bolts and spacers
• Preload set screws and flange nuts

Note:

• The included ARP main studs are custom-length fasteners designed exclusively for the Beans Diesel Gridlock Girdle and are not standard off-the-shelf Cummins ARP main studs.
