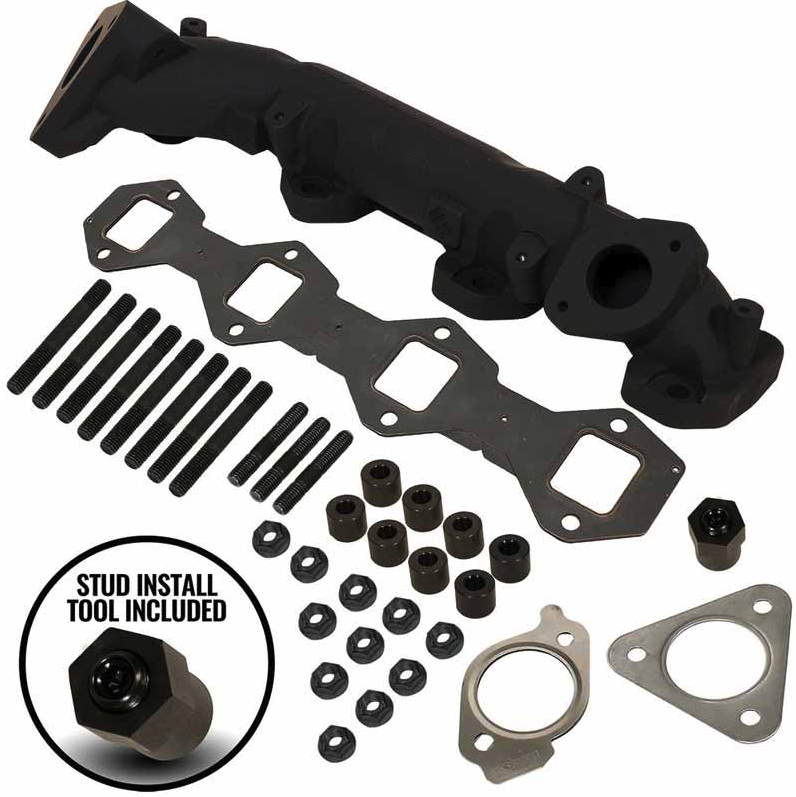

BD Diesel Right Side Exhaust Manifold Kit With Gaskets & Studs 1043009

Restore durability and reliability to your exhaust system by replacing the factory manifold with the BD Diesel Right Side Exhaust Manifold, part number 1043009. Designed for 2015–2019 Ford 6.7L Powerstroke pickups and 2017–2019 cab & chassis applications, this manifold addresses one of the most common failure points on the 6.7L platform.

Constructed from high-silicon ductile cast iron with a heavy-duty 0.275-inch thick wall design, this manifold is approximately 75% thicker than the factory unit. The added material strength helps resist cracking, retain heat, and prevent warping under extreme exhaust temperatures. Reinforced, machined mounting flanges further improve sealing and long-term durability.

Thermal performance is enhanced through the use of longer exhaust studs and thick spacers that better manage expansion during heat cycles. The manifold features gasket-matched exhaust ports for improved flow and is fully compatible with factory EGR components. Finished with a high-temperature POR-15 black coating, this kit includes all necessary gaskets, studs, spacers, and an M8 stud installation tool for a complete passenger-side replacement.

Features:

• Right (Passenger) Side Exhaust Manifold
• High-Silicon Ductile Cast Iron Construction
• Approximately 75% Thicker Walls to Reduce Warping
• Machined, Reinforced Mounting Flanges
• Gasket-Matched Exhaust Ports
• High-Temperature POR-15 Black Coating
• Longer Exhaust Studs for Improved Thermal Durability
• Black Oxide Coated Thick Spacers
• Designed Using Computational Fluid Dynamics
• Includes Exhaust Manifold, Crossover Tube, and EGR Port Gaskets
• Includes Long Stud and Spacer Kit for All 8 Cylinders
• M8 Stud Installation Tool Included
