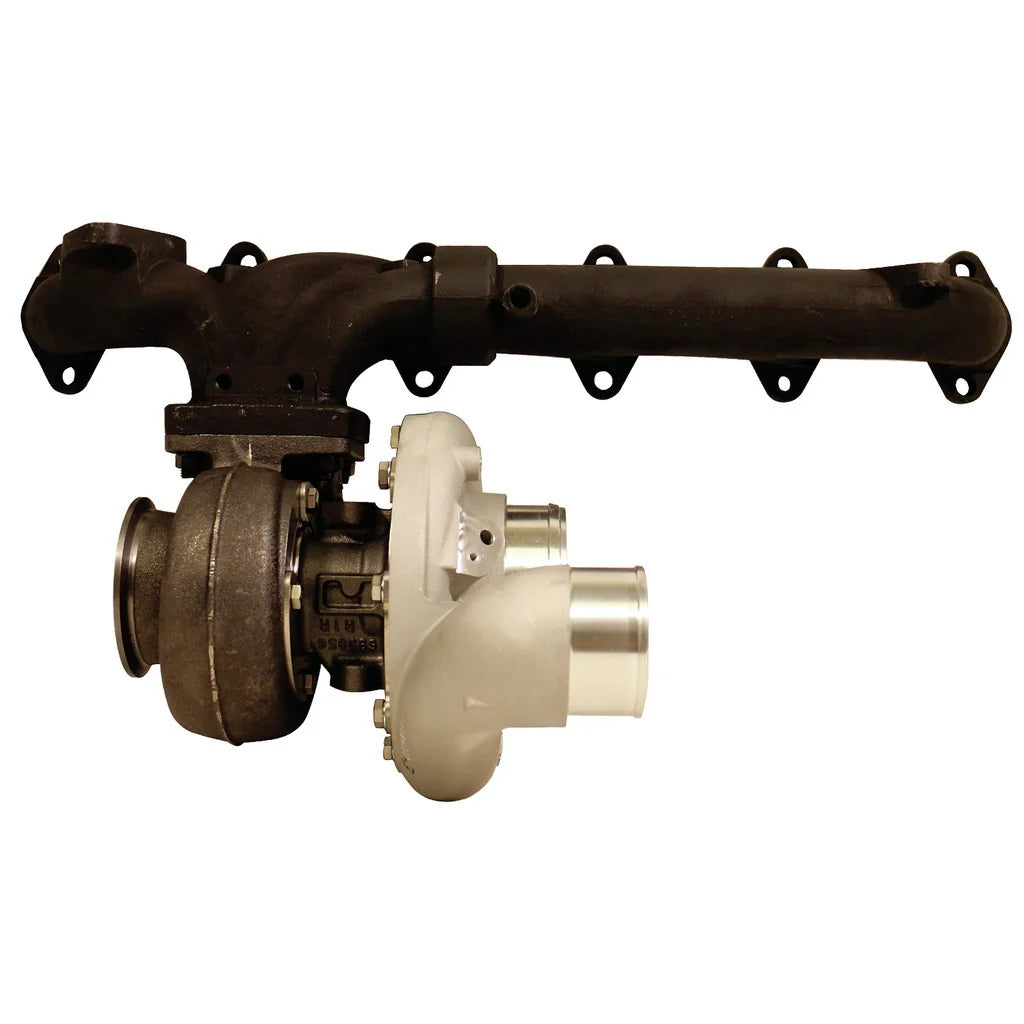

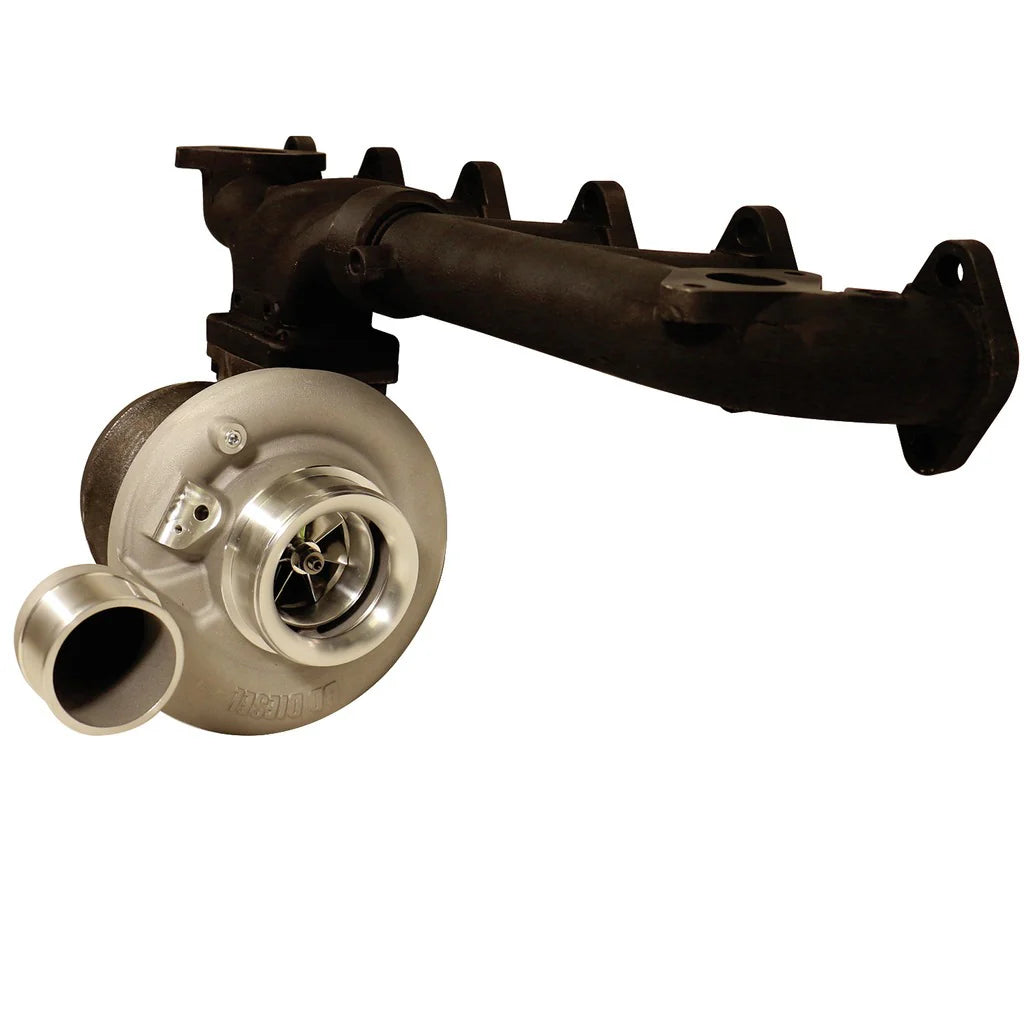

BD Diesel Iron Horn Turbo Manifold Package S369SXE 80 1.00AR 1045299 | 2007-2018 6.7L Cummins

Upgrade your factory VGT turbo with the BD 69mm SX-E Single Turbo Kit and experience exceptional airflow, reduced exhaust gas temperatures, and increased reliability. Designed as a complete bolt-on replacement, this system replaces the factory Holset turbo with a high-performance BorgWarner SX-E turbocharger capable of supporting approximately 700 horsepower, depending on your truck's configuration.

Built around a 69mm Forged Milled Wheel (FMW) compressor and an 80mm turbine wheel housed in a 1.00 A/R T4 turbine housing, this turbo offers excellent high-RPM airflow while maintaining dependable street and towing performance. The lightweight forged compressor wheel and heavy-duty 360-degree thrust bearing provide increased durability and efficiency under demanding conditions.

The included BD Performance Plus T4 exhaust manifold retains factory EGR ports, allowing emissions equipment to remain functional where applicable. With no additional piping required, installation is straightforward and maintains a clean, factory-style appearance.

Features:

• Complete BorgWarner SX-E single turbo conversion kit
• Replaces the factory VGT turbocharger
• Supports approximately 700 horsepower (vehicle dependent)
• 98 lb/min airflow capacity
• 1.00 A/R high-flow T4 turbine housing
• BD Performance Plus T4 exhaust manifold with integrated EGR ports
• 360-degree thrust bearing for enhanced durability
• Forged Milled Wheel (FMW) compressor wheel
• Reduces exhaust gas temperatures and turbo drive pressure
• Improves airflow, throttle response, and engine reliability
• No additional piping required
• Direct bolt-on installation

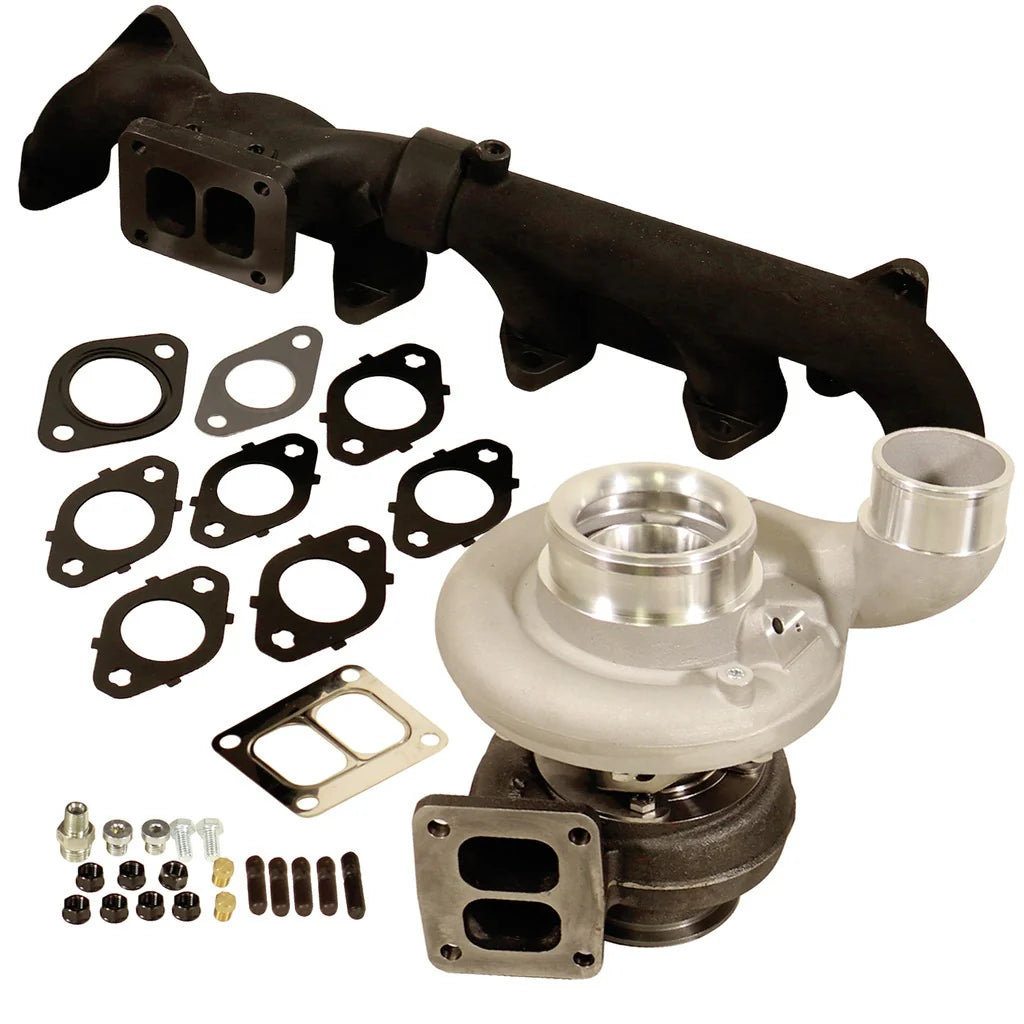

• Includes exhaust manifold and installation gaskets

Turbo Specifications:

• Compressor Wheel: 69mm (2.72")
• Turbine Wheel: 80mm (3.15")
• Turbine Housing A/R: 1.00
• Airflow: 98 lb/min
• Estimated Power Capability: 700 HP (vehicle dependent)
